Specifications
Mechanical
| Adjustability | Fixed |
|---|---|
| Body Material | Aluminium |
| Diffuser Material | Glass |
| Product Finish | Powdercoated |
| Fitting Colour | |
| AT1108/12/BLK/CW AT1108/12/BLK/WW AT1108/20/BLK/WW AT1108/30/BLK/WW | Black |
| AT1108/20/WH/CW AT1108/20/WH/WW AT1108/30/WH/CW AT1108/30/WH/WW | White |
| Installation Type | Surface mount |
| IP Rating | IP20 |
Electrical
| Electrical Rating | Class I |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Switch Type | Inline |
| System Max Wattage | |
| AT1108/12/BLK/CW AT1108/12/BLK/WW | 12 W |
| AT1108/20/BLK/WW AT1108/20/WH/CW AT1108/20/WH/WW | 20 W |
| AT1108/30/BLK/WW AT1108/30/WH/CW AT1108/30/WH/WW | 30 W |
| Working Temp Range | -20 to 40 °C |
Lamp
| Macadam Steps (SDCM) | 3-step MacAdam Ellipse |
|---|---|
| Beam Angle | 50 ° |
| CCT Configuration | Single |
| Colour Rendering Index (CRI) | >90 |
| LED Type | Diffused |
| Number of Lamps | 1 |
LED Lifetime
| LED Lifetime | 35000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
Colour temperature
| CCT | |
|---|---|
| AT1108/12/BLK/WW AT1108/20/BLK/WW AT1108/20/WH/WW AT1108/30/BLK/WW AT1108/30/WH/WW | 3000 K |
| AT1108/12/BLK/CW AT1108/20/WH/CW AT1108/30/WH/CW | 4000 K |
| CCT Colour | |
| AT1108/12/BLK/CW AT1108/20/WH/CW AT1108/30/WH/CW | Cool White |
| AT1108/12/BLK/WW AT1108/20/BLK/WW AT1108/20/WH/WW AT1108/30/BLK/WW AT1108/30/WH/WW | Warm White |
| Luminaire Lumens | |
| AT1108/12/BLK/WW | 582 lm |
| AT1108/12/BLK/CW | 725 lm |
| AT1108/20/BLK/WW AT1108/20/WH/WW | 1140 lm |
| AT1108/20/WH/CW | 1295 lm |
| AT1108/30/BLK/WW | 1930 lm |
| AT1108/30/WH/WW | 1980 lm |
| AT1108/30/WH/CW | 2000 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
Driver
| Dimmable | No |
|---|---|
| Driver Included | Yes |
| Integrated Driver | Yes |
| Driver Type | Fixed output |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|---|
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
Dimensions
| Item Code | Product Diameter | Product Height |
|---|---|---|
| AT1108/12/BLK/CW | 52 mm | 220 mm |
| AT1108/12/BLK/WW | 52 mm | 220 mm |
| AT1108/20/BLK/WW | 55 mm | 235 mm |
| AT1108/20/WH/CW | 55 mm | 235 mm |
| AT1108/20/WH/WW | 55 mm | 235 mm |
| AT1108/30/BLK/WW | 65 mm | 237 mm |
| AT1108/30/WH/CW | 65 mm | 237 mm |
| AT1108/30/WH/WW | 65 mm | 237 mm |
AT1108/12
AT1108/20
AT1108/30
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|

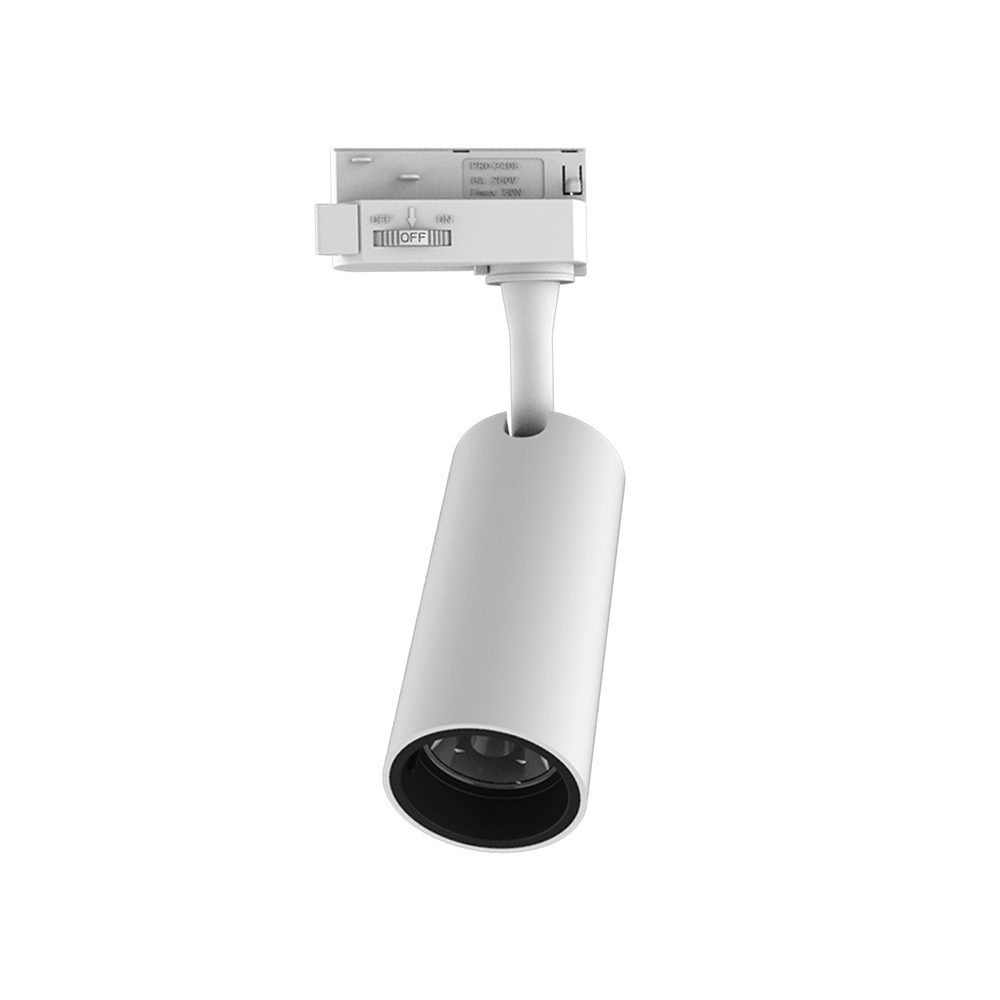

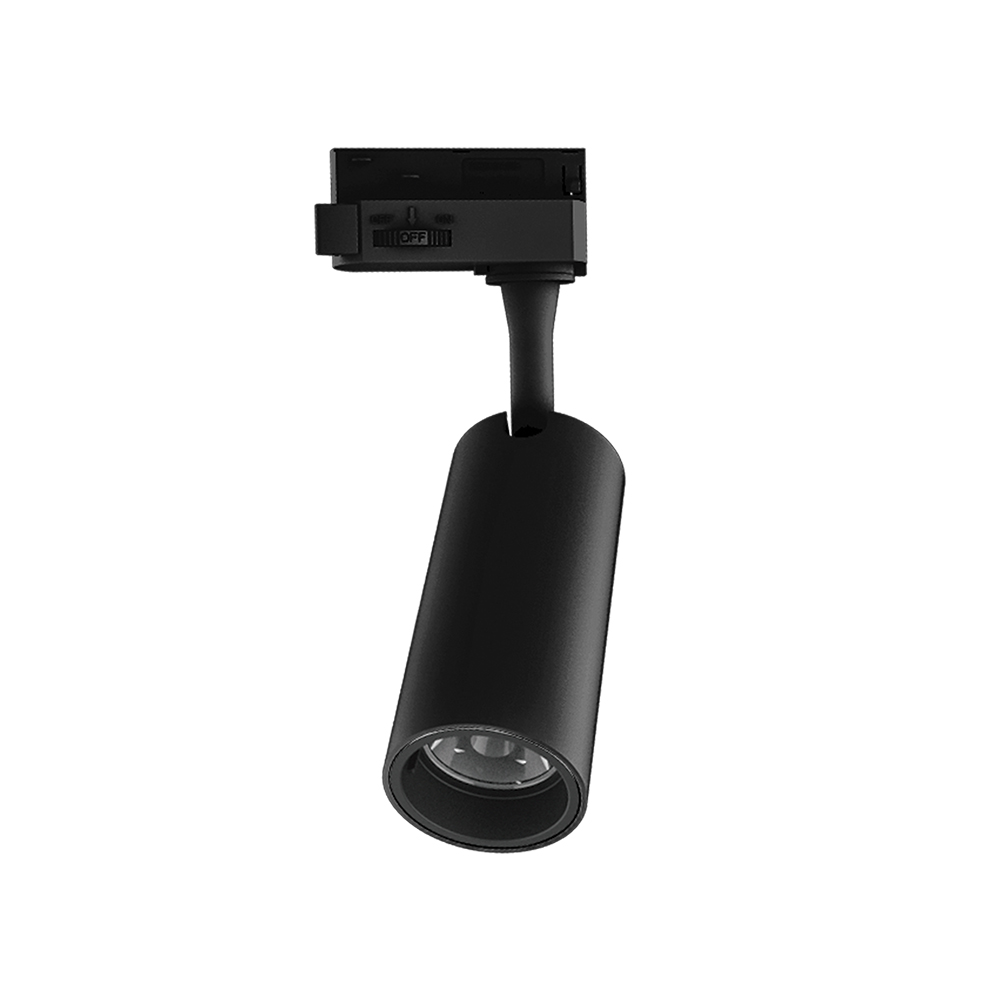

| 11896 | AT1108/12/BLK/CW | 12W LED Track Mounted spotlight - 55o Beam - Black - Cool white | |
| 11917 | AT1108/12/BLK/WW | 12W LED Track Mounted spotlight - 55o Beam - Black - Warm white | |
| 11909 | AT1108/20/BLK/WW | 20W LED Track Mounted spotlight - 55o Beam - Black - Warm white | |
| 12006 | AT1108/20/WH/CW | 20W LED Track Mounted spotlight - 55o Beam - White - Cool white | |
| 12050 | AT1108/20/WH/WW | 20W LED Track Mounted spotlight - 55o Beam - White - Warm white | |
| 12061 | AT1108/30/BLK/WW | 30W LED Track Mounted spotlight - 55o Beam - Black - Warm white | |
| 12170 | AT1108/30/WH/CW | 30W LED Track Mounted spotlight - 55o Beam - White - Cool white | |
| 12231 | AT1108/30/WH/WW | 30W LED Track Mounted spotlight - 55o Beam - White - Warm white |
Documents & Downloads
Instruction Manual
Datasheet
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 11345 | AT1100/BLK/1M | 3 Wire Track 1m Aluminium Alloy - Black | |
| 11359 | AT1100/BLK/2M | 3 Wire Track 2m Aluminium Alloy - Black | |
| 16833 | AT1100/BLK/BEND | 3 Wire - Bendable Joiner - Black | |
| 11376 | AT1100/BLK/CF | 3 Wire - Straight Joiner Feeder - Black | |
| 11195 | AT1100/BLK/DEAD | 3 Wire - Dead End - Black | |
| 11175 | AT1100/BLK/LIVE | 3 Wire - Live End Feeder - Black | |
| 11415 | AT1100/BLK/RA | 3 Wire - Right angle joiner Left - Black | |
| 11302 | AT1100/BLK/RAR | 3 Wire - Right angle joiner Right - Black | |
| 11393 | AT1100/BLK/STR | 3 Wire - Straight Joiner - Black | |
| 11430 | AT1100/BLK/T | 3 Wire - T Joiner - BLack | |
| 11450 | AT1100/BLK/X | 3 Wire - X Joiner - BLack | |
| 11643 | AT1100/WH/2M | 3 Wire Track 2m Aluminium Alloy - White | |
| 14739 | AT1100/WH/BEND | 3 Wire - Bendable Joiner - White | |
| 17149 | AT1100/WH/CF | 3 Wire - Straight Joiner Feeder - White | |
| 16693 | AT1100/WH/LIVE | 3 Wire - Live End Feeder - White | |
| 11730 | AT1100/WH/RA | 3 Wire - Right angle joiner Left - White | |
| 11284 | AT1100/WH/RAR | 3 Wire - Right angle joiner Right - White | |
| 13416 | AT1100/WH/STR | 3 Wire - Straight Joiner - White | |
| 15094 | AT1100/WH/T | 3 Wire - T Joiner - White | |
| 12348 | AT1100/WH/X | 3 Wire - X Joiner - White |
