AT6020
AT6020
Home Panels AT6020
AT9455
AT9455 $0.00
Back to products
AT1107
AT1107 $0.00

AT6020

$0.00

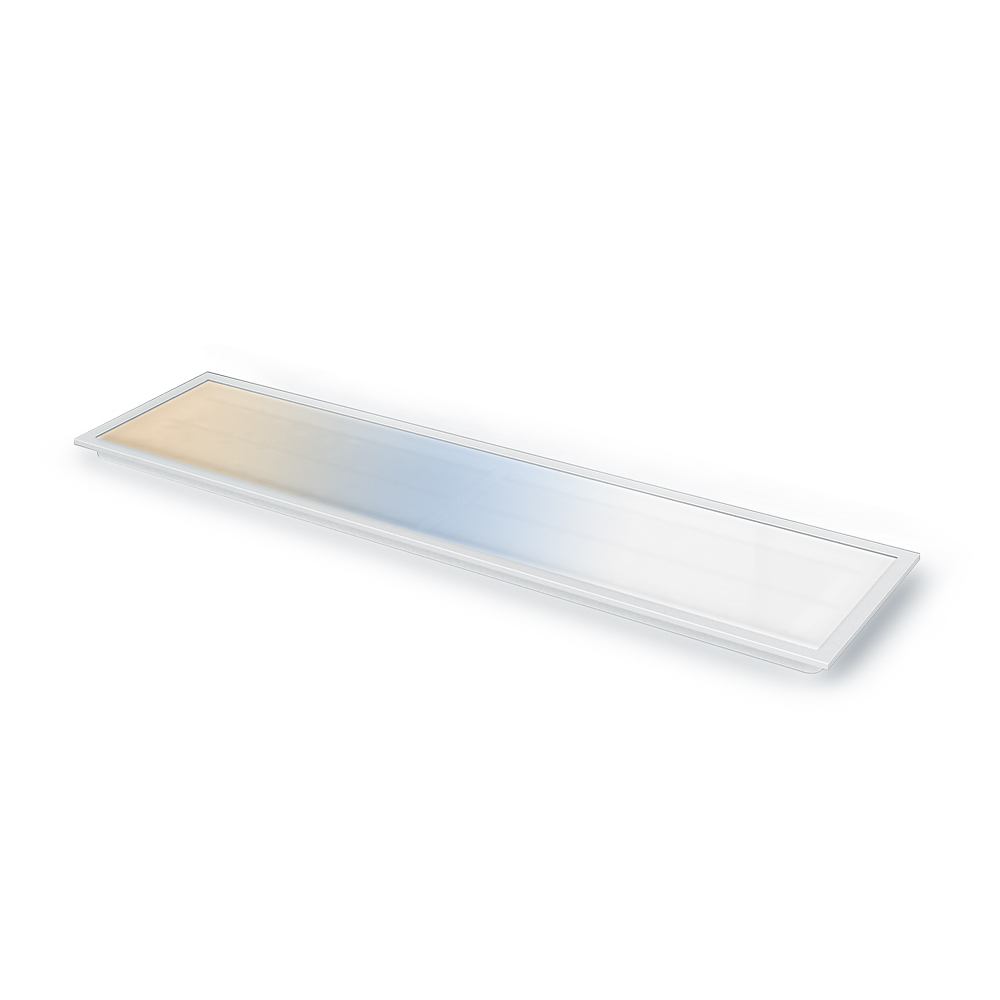

LED Backlit Panel, 4000K

Features

  • Led Driver Included
  • Lightweight
SKU: AT6020 Category: Panels Tags: Ip20, Commercial, Indoor
Share:
  • Specifications
  • Dimensions
  • Ordering Information
  • Documents & Downloads
  • Accessories
  • Photometrics
Specifications

Mechanical

AdjustabilityFixed
Body MaterialSteel
Diffuser MaterialPolystyrene
Product FinishPowdercoated
Fitting ColourWhite
IC RatingNon-IC
Installation TypeRecessed
IP RatingIP20

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage
AT6020/306/DL20 W
AT6020/612/DL60 W
Switch TypeInline
Working Temp Range-10 to 45 °C

Lamp

Beam Angle120 °
CCT ConfigurationSingle
CRI>80

LED Lifetime

LED Lifetime33,000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime RatingL70

Colour temperature

CCT6500 K
CCT ColourDaylight
System Lumens
AT6020/306/DL2035 lm
AT6020/612/DL6320 lm
All photometric data has a tolerance of ±10%.

Driver

DimmableNo
Driver IncludedYes
Integrated DriverNo
Driver ModeConstant Current
Driver TypeFixed output
Wiring TypeRe-wireable Flex & Plug (2 pin)

Compliance

Daily Use10 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.2
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15

Warranty

Commercial Use Warranty3 RTB (Total 3 Years)
Domestic Use Warranty3 (Yr) RTB
Operational Lifetime30000 hrs
VIP Warranty1 Onsite,3 RTB (Total 4 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.
Dimensions
Item CodeProduct HeightProduct LengthProduct Width
AT6020/306/DL34 mm295 mm595 mm
AT6020/612/DL34 mm595 mm1195 mm
AT6020/306
AT6020/612
Ordering Information
Ordering codeItem codeDescriptionAvailability
13108AT6020/306/DL20W LED Backlit panel 300 x 600 - Daylight
13199AT6020/612/DL60W LED Backlit panel 600 x 1200 - Daylight
Documents & Downloads

Datasheet

  • AT6020/306/DL*
  • AT6020/612/DL*
  • AT6020

Instruction Manual

  • AT6020/306
  • AT6020/312
  • AT6020/606
  • AT6020/612

Compliance

  • AT6020/306/DL-AU-sdoc*
  • AT6020/612/DL-AU-sdoc*

*Auto generated datasheet (beta)
Accessories
Ordering codeItem codeDescriptionAvailability
1622416224-SM PANEL FRAMESurface mounted frame 300x600 WHITE to suit panels (PRE-ASSEMBLED)
10258AT9053/PRF/WHPlaster Recessed Frame 300x600 WHITE to suit panels (PRE-ASSEMBLED)
13856AT9056/PRF/WHPlaster Recessed frame 600x1200 WHITE to suit Panels (PRE-ASSEMBLED)
11315AT9057Panel Suspension Cable Kit - NEW STYLE
Photometrics
AT6020/306/DL
IES File

IES File


Download
AT6020/612/DL
IES File

IES File


Download
