AT9059
$0.00
Trapezoid surface mount panel frame
- Suits Atom LED Panel sizes and allows compatibility with solid or inaccessible ceilings
- Simple lift and tilt installation
- Durable and lightweight powdercoated steel construction
- Made in Australia
Specifications
Mechanical
| Body Material | Steel |
|---|---|
| Product Finish | Powder Coated |
| Fitting Colour | White |
| Installation Type | Surface mount |
Dimensions
| Item Code | Product Height | Product Length | Product Width |
|---|---|---|---|

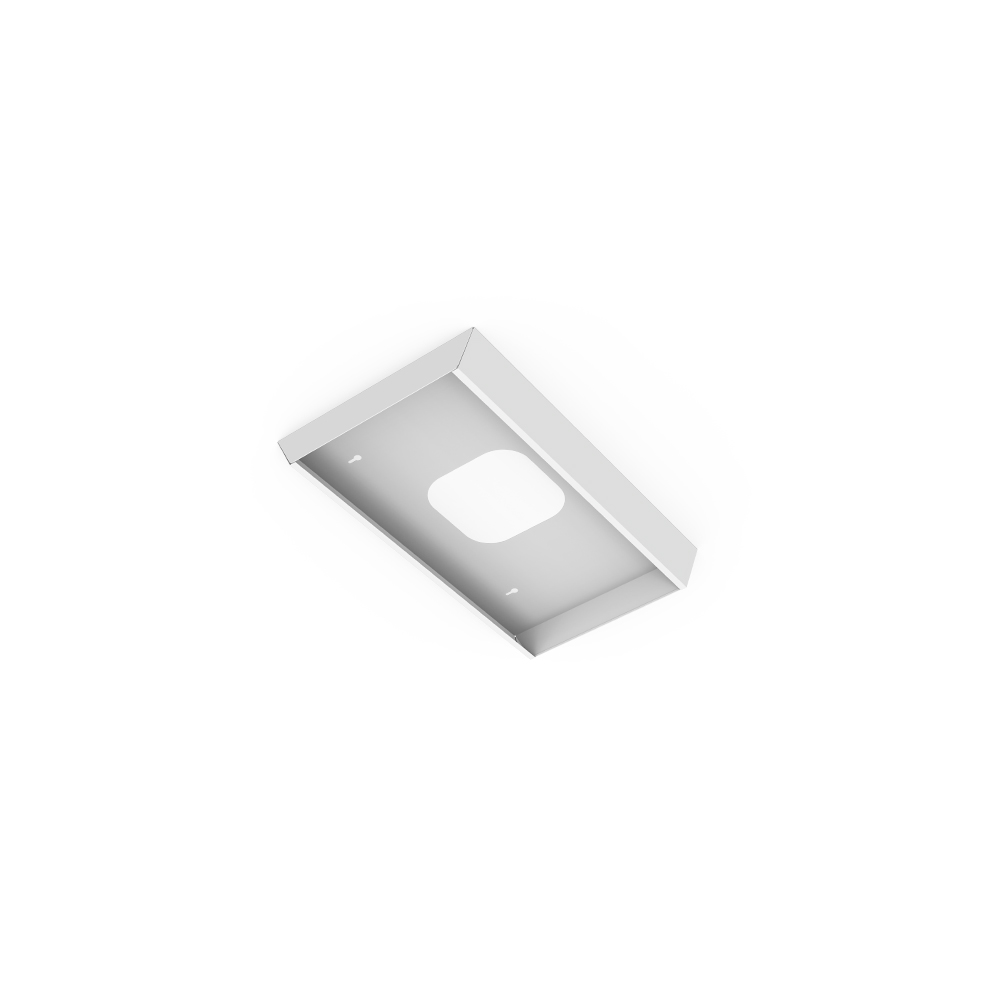

| AT9059/306 | 65 mm | 597 mm | 360 mm |

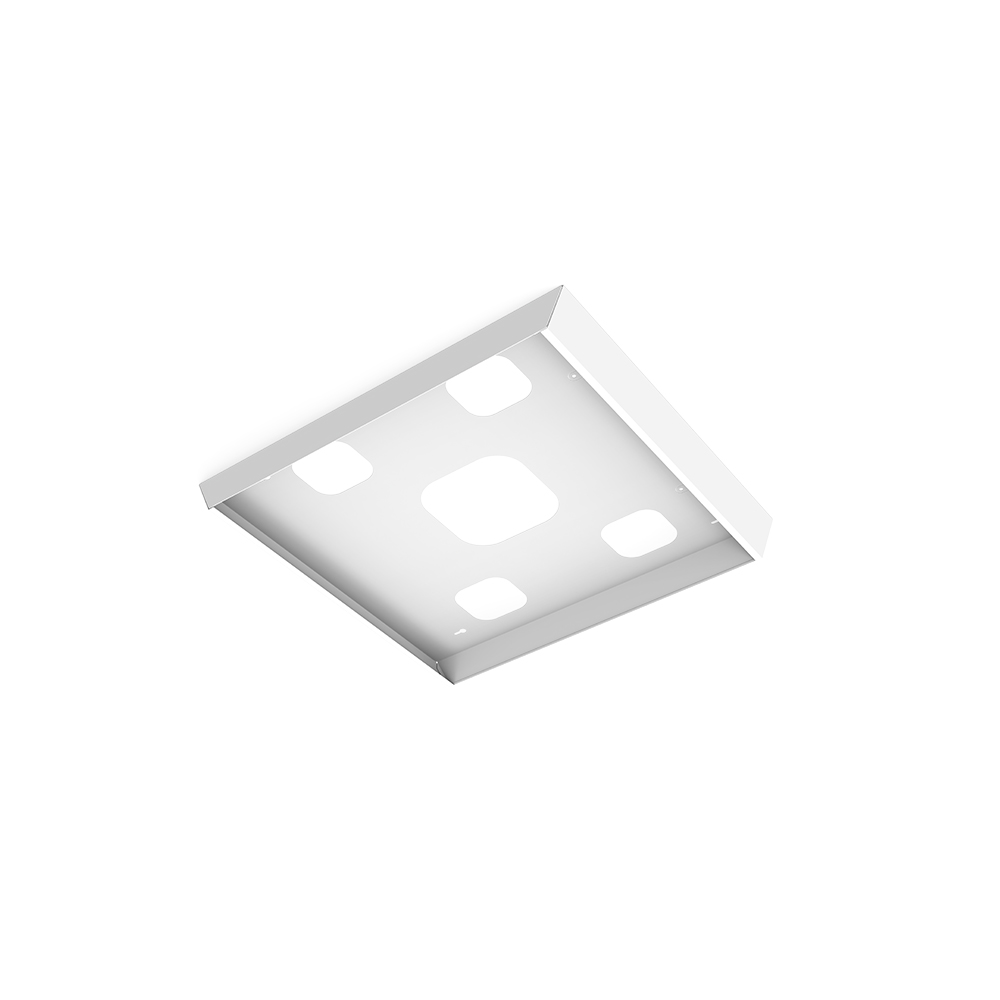

| AT9059/606 | 65 mm | 597 mm | 656 mm |

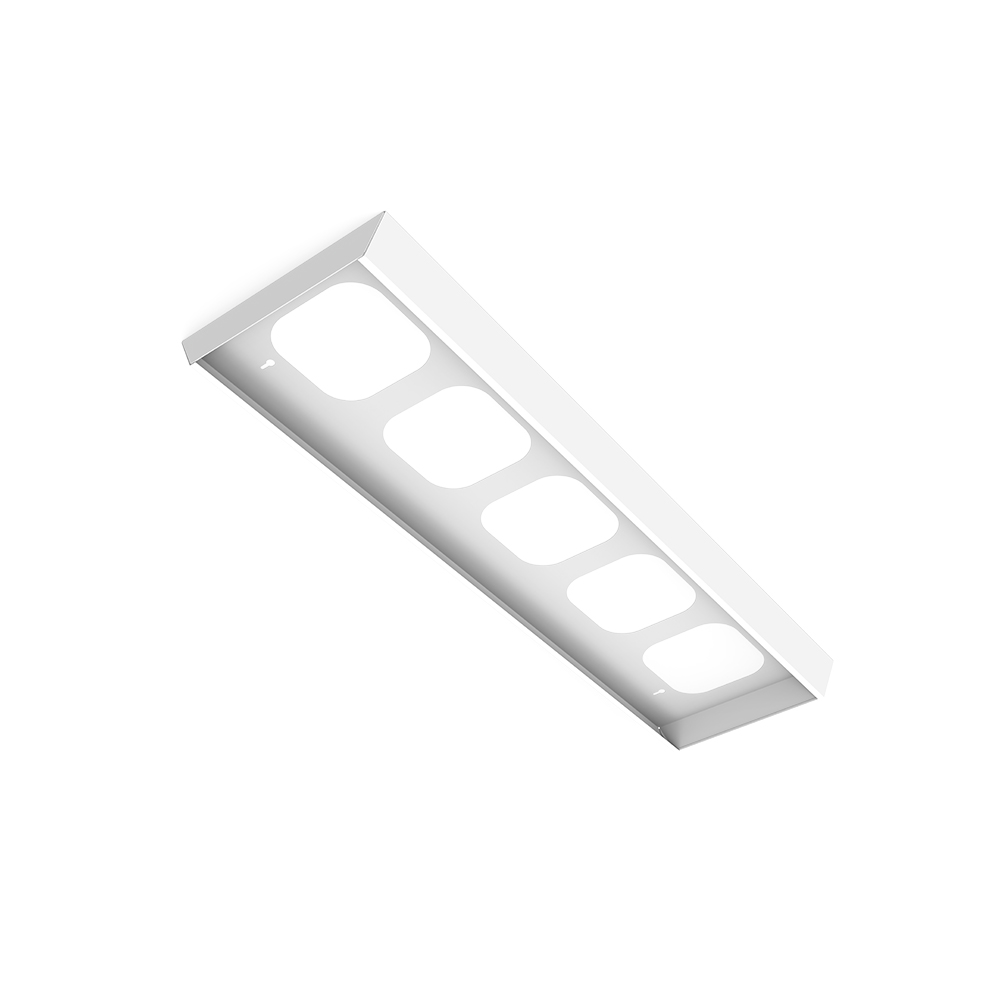

| AT9059/312 | 65 mm | 1197 mm | 356 mm |

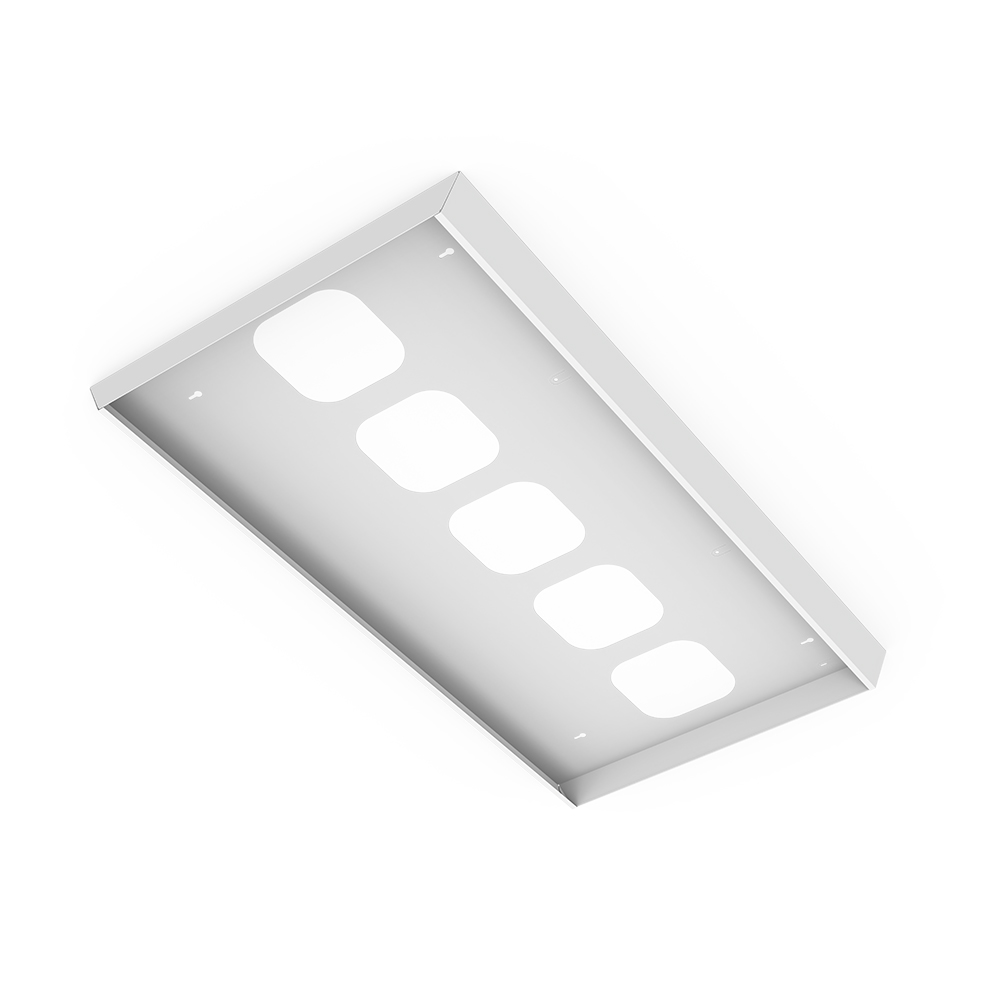

| AT9059/612 | 65 mm | 1197 mm | 656 mm |
AT9059_306
AT9059_312
AT9059_606
AT9059_612
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 13351 | AT9059/306 | Trapezoid surface-mount one piece panel frame 300x600mm White | |
| 13352 | AT9059/312 | Trapezoid surface-mount one piece panel frame 300x1200mm White | |
| 13353 | AT9059/606 | Trapezoid surface-mount one piece panel frame 600x600mm White | |
| 13354 | AT9059/612 | Trapezoid surface-mount one piece panel frame 600x1200mm White |
Documents & Downloads
*Auto generated datasheet (beta)
