DALI-2 Constant Current Driver
Driver Kit – DALI-2 LED Driver
- Precise dimming and individual fixture control
- Supports interoperability with other DALI-2 devices
- Optimises power usage for energy savings
Specifications
Mechanical
| IC Rating | Do not cover |
|---|---|
| Fitting Colour | |
| DK1-0AADADZX00075 | Black |
| DK1-0AADADZX00025 DK1-0AADADZX00035 DK1-0AADADZX00040 | White |
Electrical
| Working Temp Range | |
|---|---|
| DK1-0AADADZX00075 | -20 to 45 °C |
| DK1-0AADADZX00025 DK1-0AADADZX00035 DK1-0AADADZX00040 | -20 to 50 °C |
| Input Frequency | 50 Hz |
| Power Factor | 0.95 |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Input Current | |
| DK1-0AADADZX00025 DK1-0AADADZX00035 DK1-0AADADZX00040 | 0.14 A |
| DK1-0AADADZX00075 | 0.18 A |
| Surge Protection L-N | 2kV |
| Standby Power | 0.5 W |
| Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
Driver
| Driver Type | DALI DT6 LED Driver |
|---|---|
| DALI DT6 ~ Includes DALI-2 Driver with full support for DT6 allowing flicker free dimming with compliant DALI-2 Application controllers. | |
| Driver Code | |

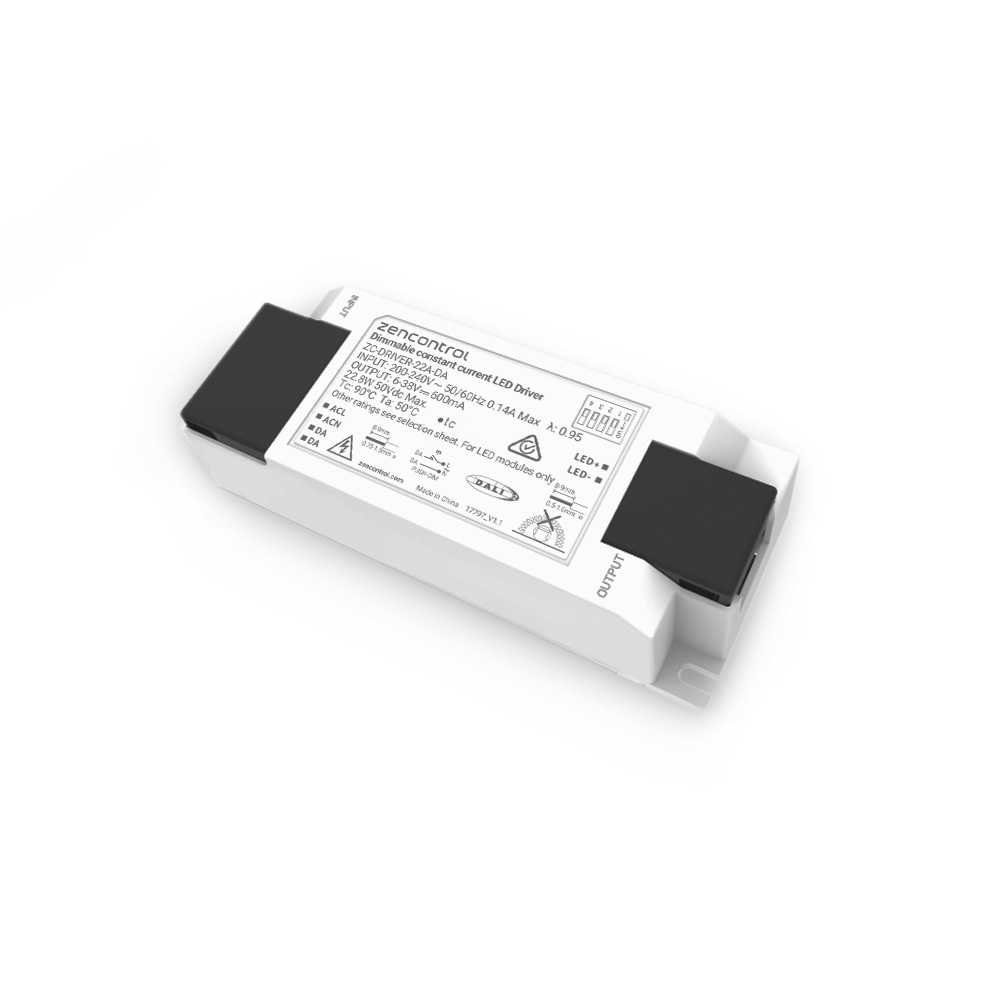

| DK1-0AADADZX00025 DK1-0AADADZX00035 DK1-0AADADZX00040 | ZC-DRIVER-22A-DA-600 |

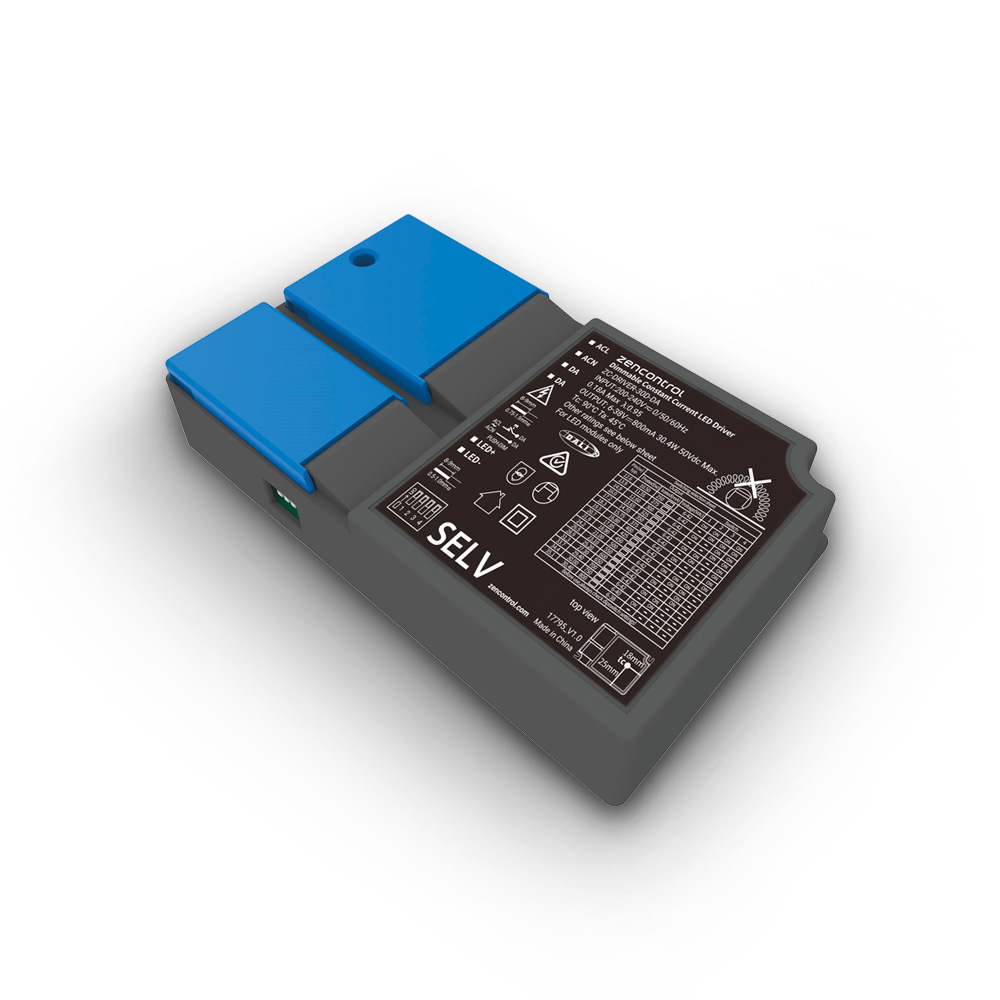

| DK1-0AADADZX00075 | ZC-DRIVER-30D-DA-800 |
| Dimmable | Yes |
| Flex & Plug or Lead Length | 1200 mm |
| Wiring Type | Flex and Plug (2 pin) and 2 wire flying lead(DALI) |
| Driver Mode | Constant Current |
| Driver Power | |
| DK1-0AADADZX00025 DK1-0AADADZX00035 DK1-0AADADZX00040 | 22.8 W |
| DK1-0AADADZX00075 | 30.4 W |
| Driver Current | |
| DK1-0AADADZX00025 | 250 mA |
| DK1-0AADADZX00035 | 350 mA |
| DK1-0AADADZX00040 | 400 mA |
| DK1-0AADADZX00075 | 750 mA |
| Output Voltage Range | 6-38 V |
| PSTLM | |
| DK1-0AADADZX00075 | 0.001 |
| DK1-0AADADZX00025 DK1-0AADADZX00035 DK1-0AADADZX00040 | 0.011 |
| Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues. | |
| SVM | |
| DK1-0AADADZX00075 | 0.003 |
| DK1-0AADADZX00025 DK1-0AADADZX00035 DK1-0AADADZX00040 | 0.005 |
| Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards. | |
Compliance
| Standards |
|
|---|
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14909 | DK1-0AADADZX00025 | Driver Kit - DALI-2 LED driver with 1.2m 2 core flex and plug and 2 core flying lead - set to 250mA | |
| 14911 | DK1-0AADADZX00035 | Driver Kit - DALI-2 LED driver with 1.2m 2 core flex and plug and 2 core flying lead - set to 350mA | |
| 14912 | DK1-0AADADZX00040 | Driver kit - DALI-DT6 - F&P 2 +Flying - Set to 400mA | |
| 14919 | DK1-0AADADZX00075 | Driver Kit - DALI-2 LED driver with 1.2m 2 core flex and plug and 2 core flying lead - set to 750mA |
