24V Constant Voltage IP20

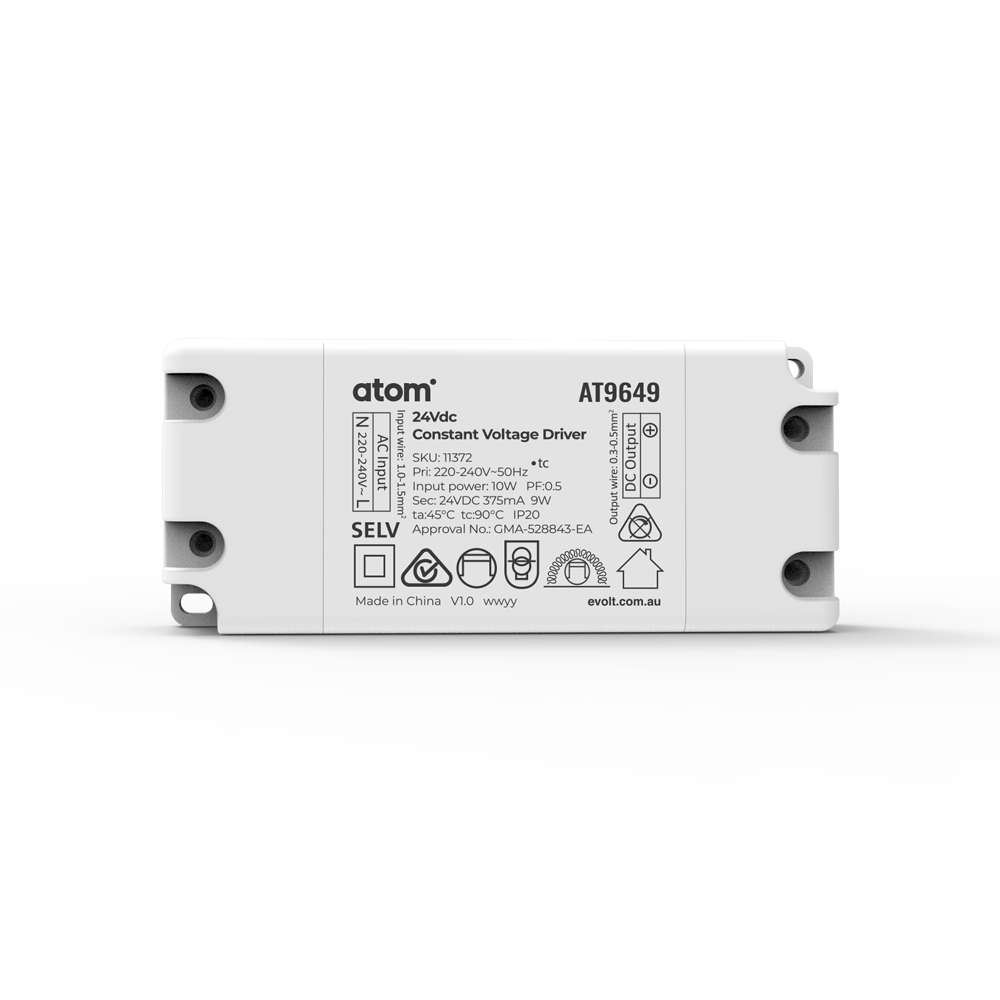

9W 24Vdc Constant Voltage LED Driver IP20
- Runs up to 3 AT9500 step lights, or 3 AT9011 shelf lights, or 2 AT9014 undershelf downlights
- Suits 24V LED Strip up to 9W
- IC rated, can be covered by insulation
- Short circuit and overload protection
- Compact size for joinery and ceiling cavities
- Screw terminal connections
Specifications
Mechanical
| IP Rating | IP20 |
|---|---|
| IC Rating | IC |
| Fitting Colour | White |
| Body Material | Polycarbonate |
Electrical
| Working Temp Range | -15 - 45 °C |
|---|---|
| Input Frequency | 50 Hz |
| Power Factor | 0.5 |
| Maximum Wattage | 9 W |
| Input voltage | 220-240 V~ |
| Input Current | 0.05 A |
Driver
| Driver Type | Fixed output |
|---|---|
| Dimmable | No |
| Wiring Type | Re-wireable terminal block (2 pin) |
| Driver Mode | Constant Voltage |
| Driver Power | 9 W |
| Driver Current | 375 mA |
| Output Voltage Range | 24 V |
Compliance
| Standards |
|
|---|
Warranty
| Warranty | 5 Year Warranty, First 2 Years Onsite |
|---|---|
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
Dimensions
| Product Height | 20 mm |
|---|---|
| Product Length | 87 mm |
| Product Width | 38 mm |
AT9649
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 11372 | AT9649 | 9W 24V Constant Voltage Driver IP20 |
Documents & Downloads
*Auto generated datasheet (beta)
