AT9208 RGB
$0.00

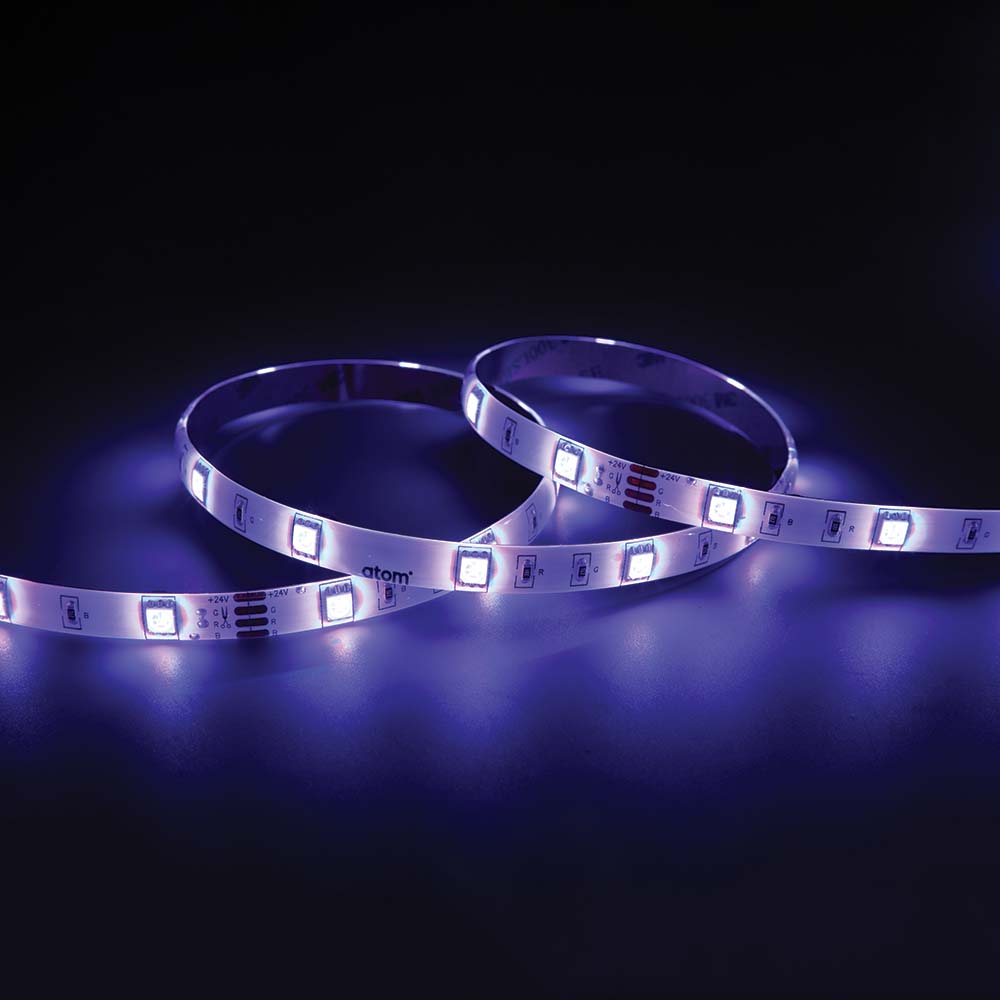

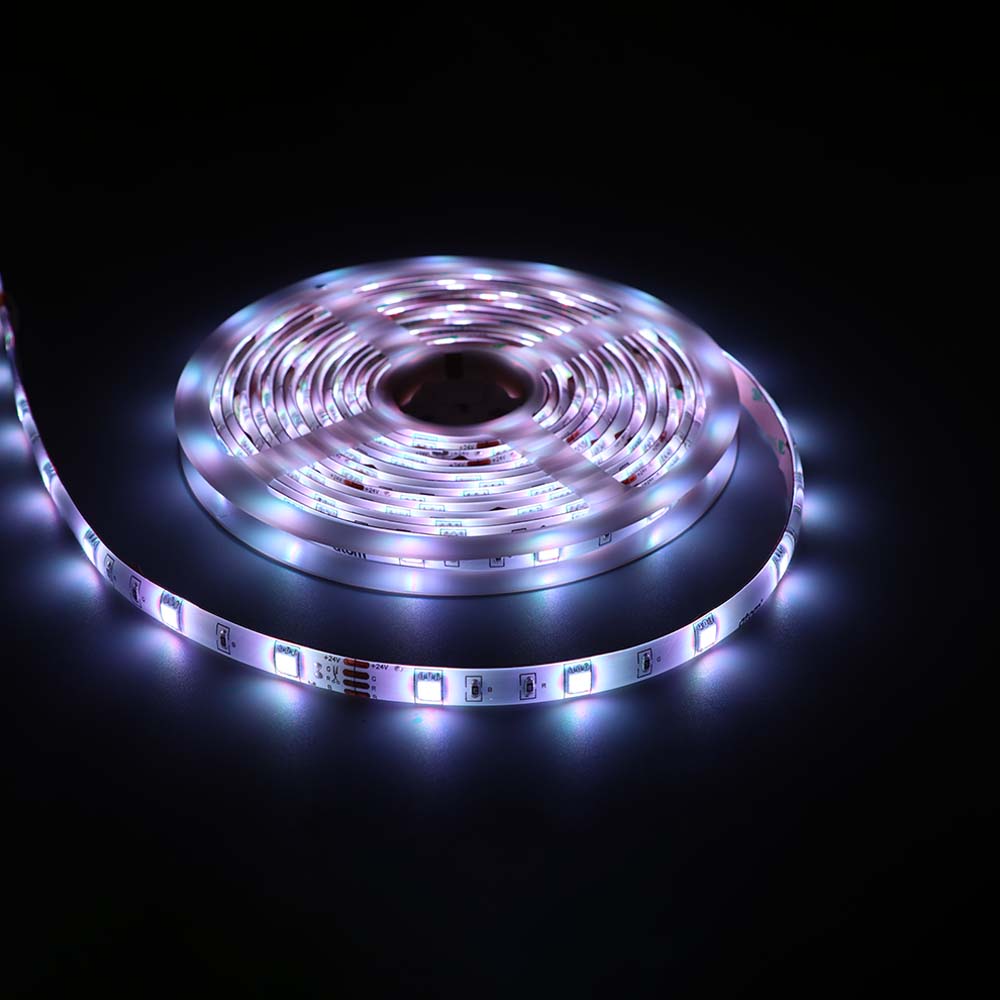

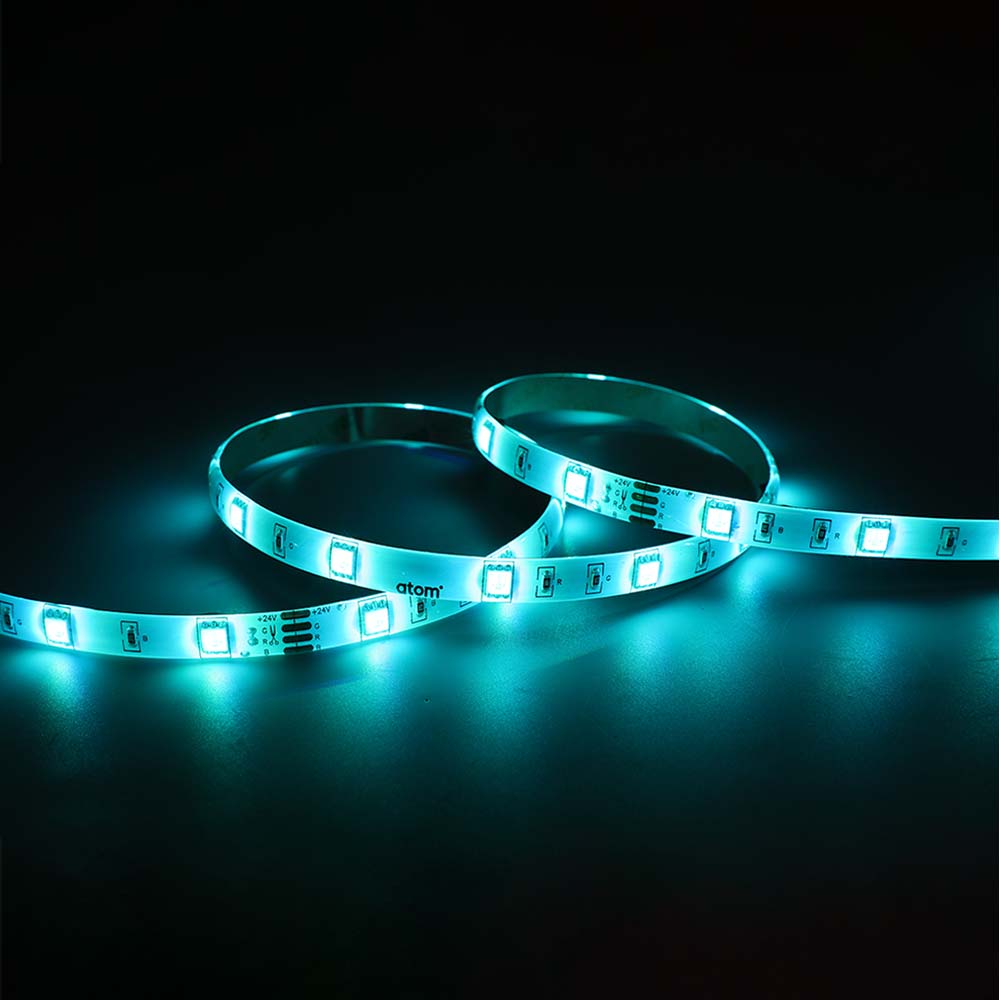

LED STRIP KIT – IP54 – 4.8W/m – RGB
- Superior 24V design
- Weather resistant IP54
- Flexible, quality LED housing

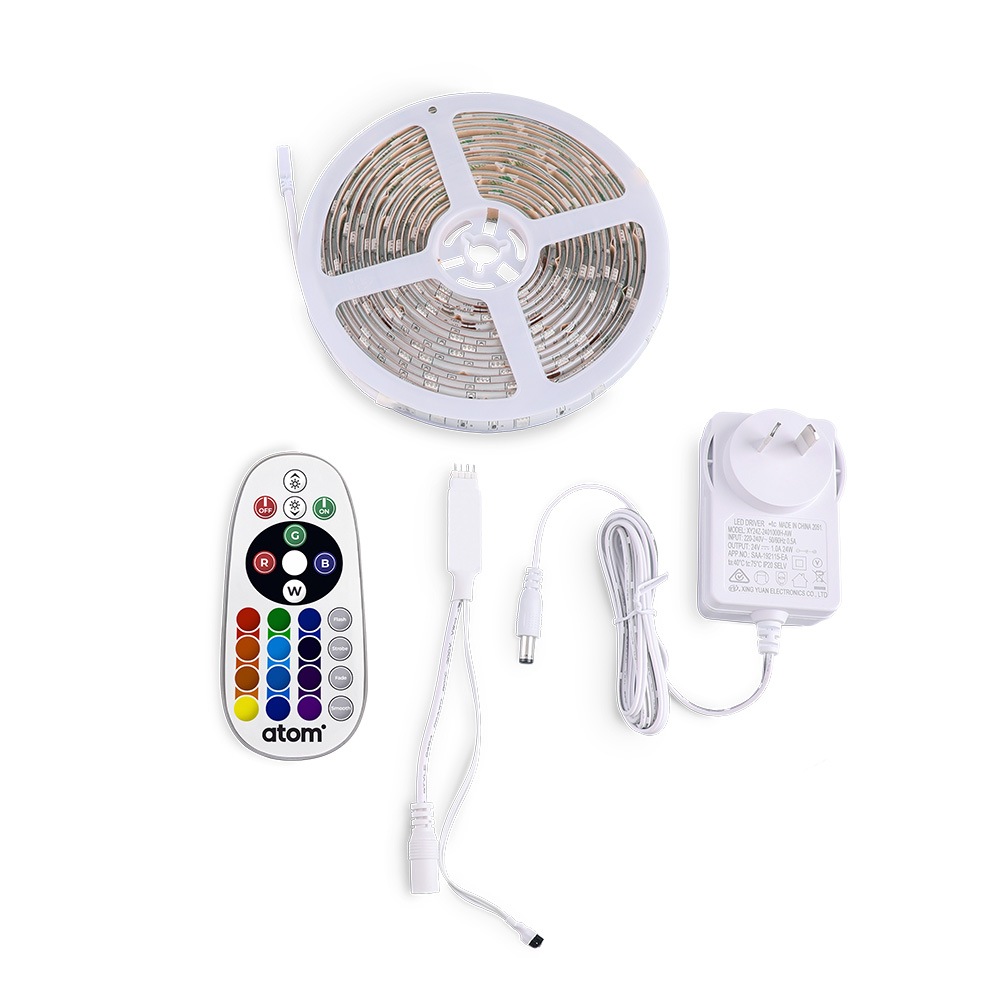

- Includes 24V power supply
- D.I.Y. easy install
- Supplied with 3M adhesive tape
Specifications
Mechanical
| IP Rating | IP54 |
|---|
Electrical
| Working Temp Range | 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Maximum Wattage | 24 W |
| Watts Per Meter (W/m) | 4.8 |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Input Current | 0.5 A |
Lamp
| CCT Configuration | RGB |
|---|---|
| Lumens /m | 148 lm/m |
| Lamp/LED voltage | 24 V |
| LED's per meter | 60 |
Colour temperature
| LED Wattage | 24 W |
|---|---|
| Luminaire Lumens | 740 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
Driver
| Driver Type | Fixed output |
|---|---|
| Driver Included | Yes |
| Flex & Plug or Lead Length | 1500 mm |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
| Driver Mode | Constant Current |
| Driver Current | 1000 mA |
Compliance
| Product Design Life | 10 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Daily Use | 12 hrs |
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
|---|---|
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
| Warranty Operating Hours | 13000 hrs |
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
Dimensions
| Product Height | 3 mm |
|---|---|
| Product Length | 5000 mm |
| Product Width | 10 mm |
| Cutting Interval | 200 mm |
| Maximum End to End Length | 5000 mm |
AT9208/RGB/KIT
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 11506 | AT9208/RGB/KIT/5M | 5m 4.8W/m 24V LED STRIP KIT IP54 RGB |
Documents & Downloads
Instruction Manual
Datasheet
Compliance
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 16678 | AT9220/1M | Square Shallow Extrusion KIT - 1M (Clip in Diffuser) | |
| 16679 | AT9220/2M | Square Shallow Extrusion KIT - 2M | |
| 16682 | AT9228/2M | Square Deep Recessed Extrusion KIT - 2M | |
| 16681 | AT9232/2M | Square Shallow Recessed Extrusion KIT - 2M | |
| 16683 | AT9234/2M | Round Corner Extrusion KIT - 2M | |
| 16684 | AT9235/2M | Square Deep Extrusion KIT - 2M | |
| 16647 | AT9260/RGB | RGB RF Controller for LED Strip | |
| 16648 | AT9261/RGB | 4-Channel Amplifier/Repeater for LED Strip |
