AT9208 White

$0.00

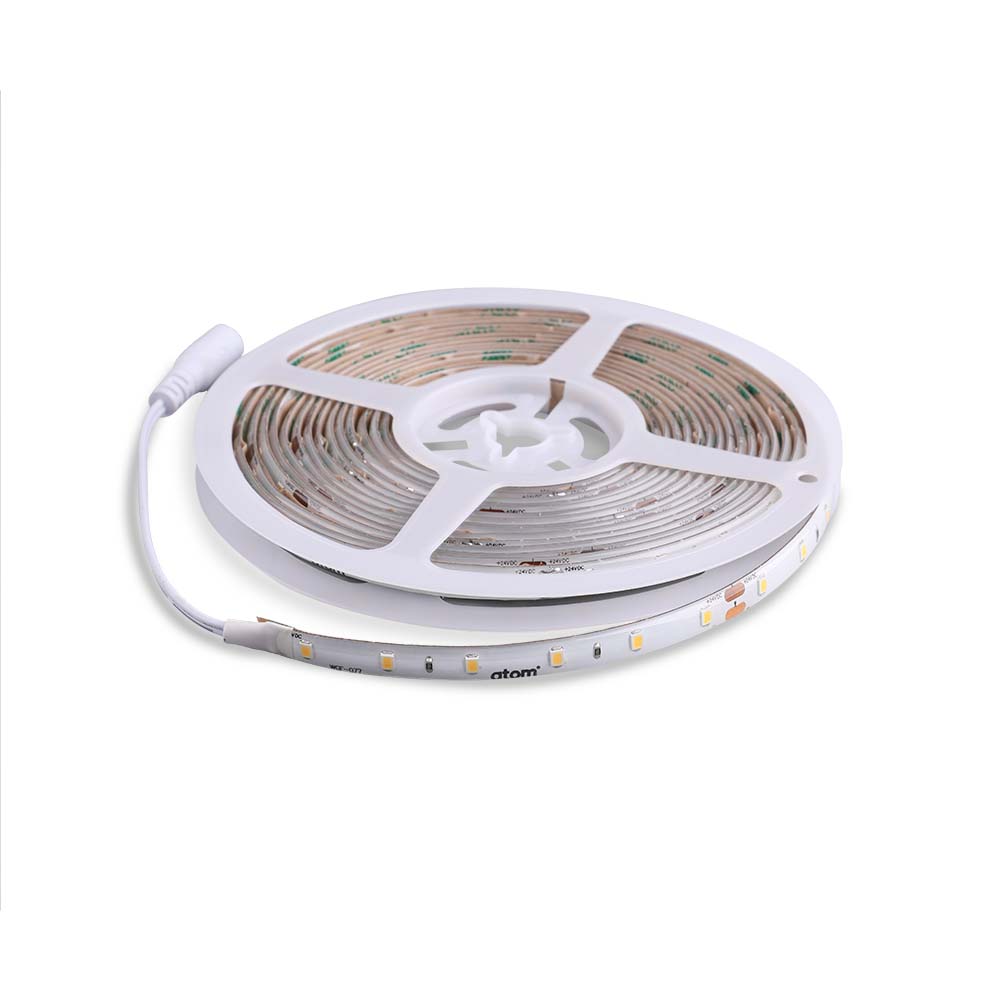

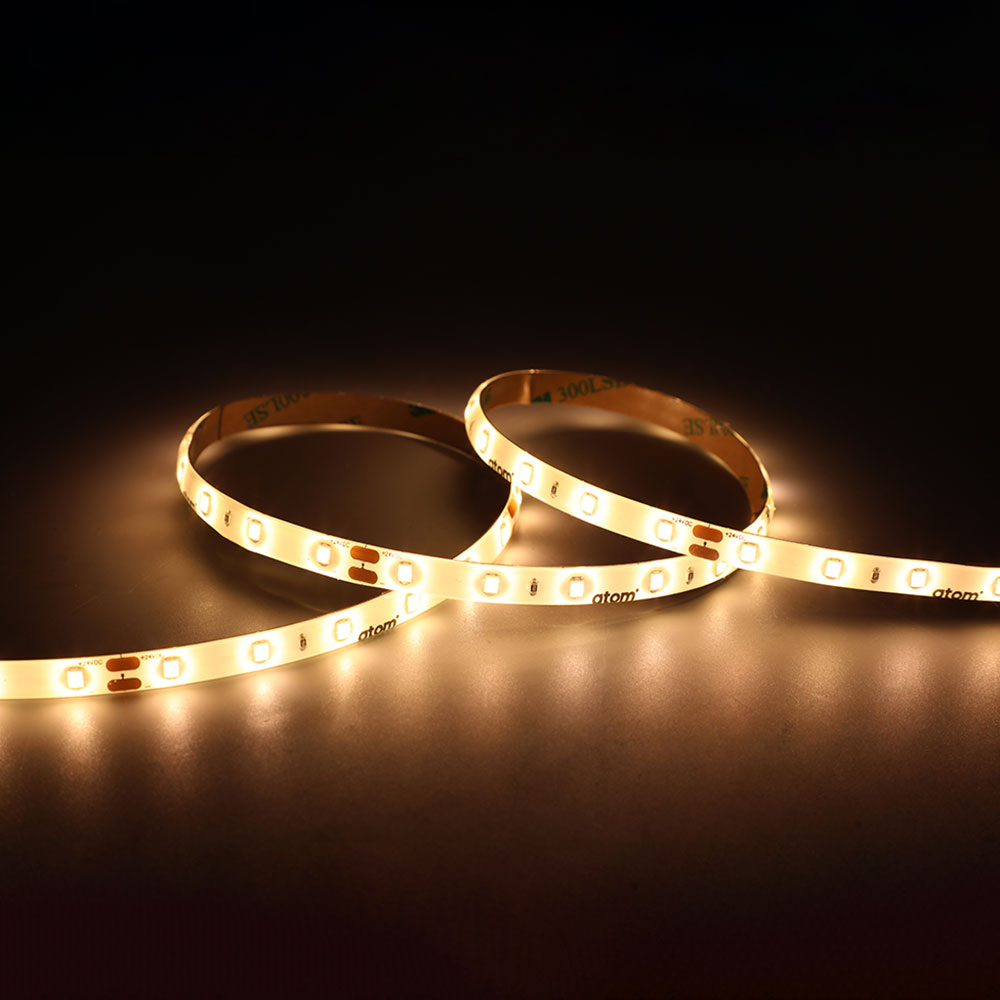

LED STRIP KIT – IP54 – 3.6W/m – White

Features

  • Superior 24V design
  • Weather resistant IP54
  • Flexible, quality LED housing

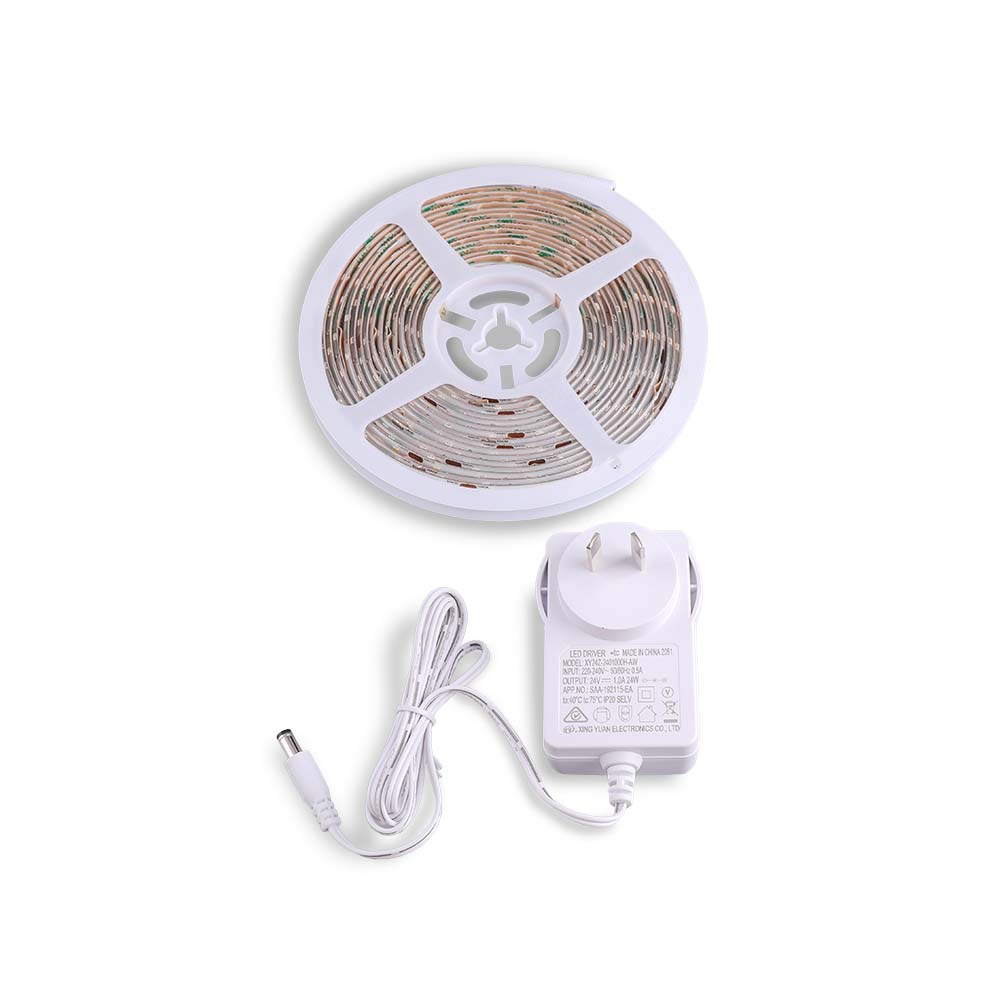

  • Includes 24V power supply
  • D.I.Y. easy install
  • Includes 3 strip connectors
  • Supplied with 3M adhesive tape
SKU: AT9208 White Category: Led Strip Kits Tag: Ip54
Share:
  • Specifications
  • Dimensions
  • Ordering Information
  • Documents & Downloads
  • Accessories
Specifications

Mechanical

IP RatingIP54

Electrical

Electrical RatingClass II
Input Current
AT9208/CW/KIT/5M
AT9208/WW/KIT/5M
0.5 A
AT9208/CW/KIT/10M
AT9208/WW/KIT/10M
0.6 A
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage
AT9208/CW/KIT/5M
AT9208/WW/KIT/5M
24 W
AT9208/CW/KIT/10M
AT9208/WW/KIT/10M
36 W
Watts Per Meter (W/m)
AT9208/CW/KIT/10M
AT9208/WW/KIT/10M
3.6
AT9208/CW/KIT/5M
AT9208/WW/KIT/5M
4.8
Working Temp Range40 °C

Lamp

Macadam Steps (SDCM)5-step MacAdam Ellipse
CCT ConfigurationSingle
CRI>80
Lamp/LED voltage24 V
LED's per meter60
Lumens /m
AT9208/WW/KIT/10M270 lm/m
AT9208/CW/KIT/10M288 lm/m
AT9208/CW/KIT/5M
AT9208/WW/KIT/5M
380 lm/m

LED Lifetime

LED Lifetime Ratings (Failure rate & lumen depreciation)
Ambient Temp (°C)25 °C40 °C
L70B50>50000 hrs>50000 hrs
This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.
TM-21 Test Hours9000 hrs

Colour temperature

CCT
AT9208/WW/KIT/10M
AT9208/WW/KIT/5M
3000 K
AT9208/CW/KIT/10M
AT9208/CW/KIT/5M
4000 K
CCT Colour
AT9208/CW/KIT/10M
AT9208/CW/KIT/5M

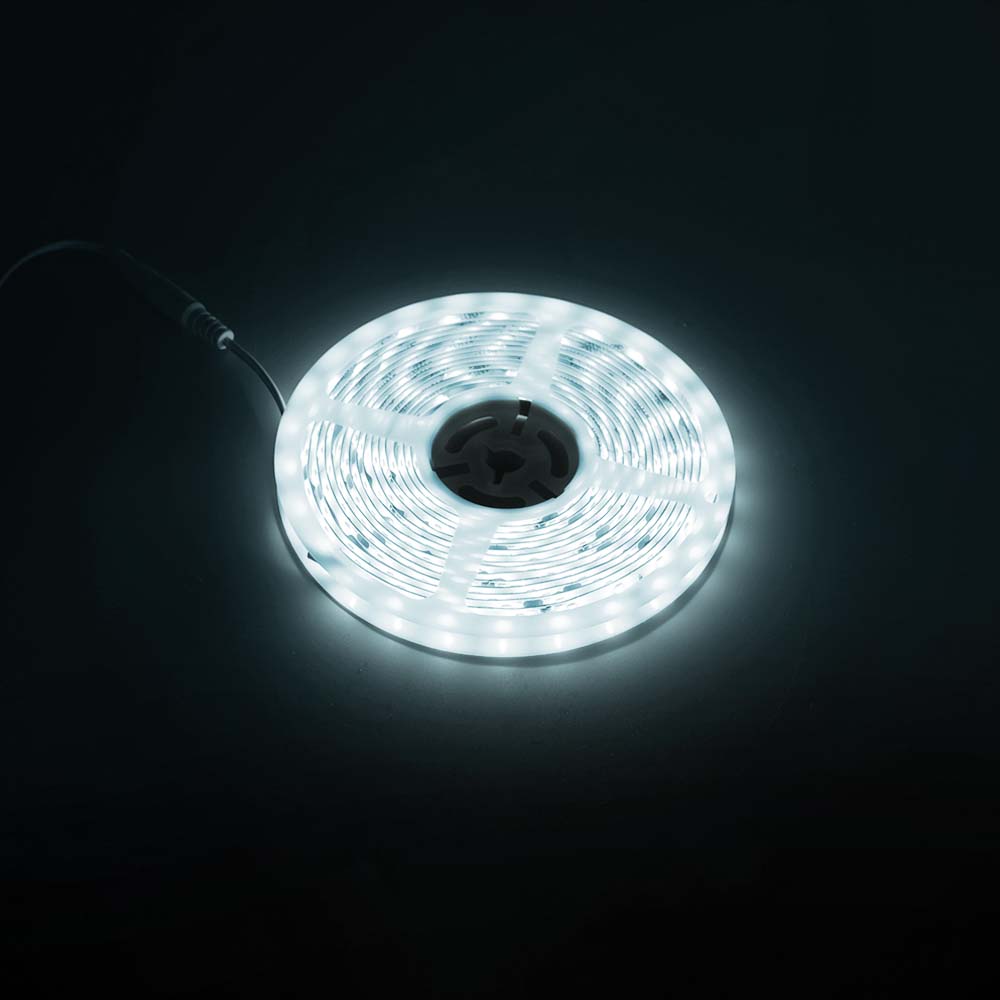

Cool White
AT9208/WW/KIT/10M
AT9208/WW/KIT/5M

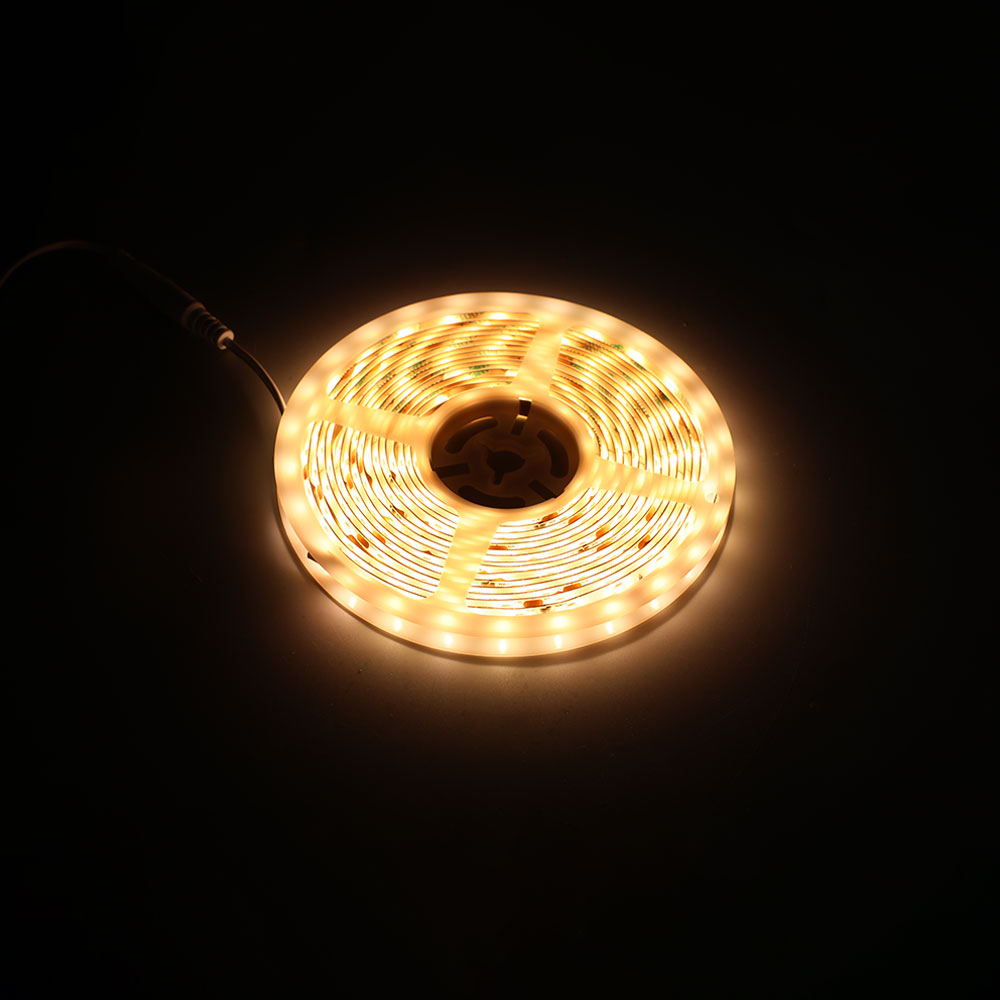

Warm White
LED Wattage
AT9208/CW/KIT/5M
AT9208/WW/KIT/5M
24 W
AT9208/CW/KIT/10M
AT9208/WW/KIT/10M
36 W
System Lumens
AT9208/CW/KIT/5M
AT9208/WW/KIT/5M
1900 lm
AT9208/WW/KIT/10M2700 lm
AT9208/CW/KIT/10M2880 lm
All photometric data has a tolerance of ±10%.

Driver

Driver IncludedYes
Driver ModeConstant Current
Driver TypeFixed output
Flex & Plug or Lead Length1500 mm
Wiring TypeRe-wireable Flex & Plug (2 pin)

Compliance

Product Design Life10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use12 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • IEC 60598.2.21
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS/NZS 3112
  • EN 55015
  • IEC 60086.4
  • IEC 62031
  • IEC 62471
  • IEC 62493

Warranty

Commercial Use Warranty2 RTB (Total 2 Years)
Domestic Use Warranty3 (Yr) RTB
Warranty Operating Hours13000 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Dimensions
Item CodeCutting IntervalProduct HeightProduct LengthMaximum End to End LengthProduct Width
AT9208/CW/KIT/10M100 mm3 mm10000 mm10000 mm8 mm
AT9208/WW/KIT/10M100 mm3 mm10000 mm10000 mm8 mm
AT9208/CW/KIT/5M100 mm3 mm5000 mm5000 mm8 mm
AT9208/WW/KIT/5M100 mm3 mm5000 mm5000 mm8 mm
AT9208
Ordering Information
Ordering codeItem codeDescriptionAvailability
11509AT9208/CW/KIT/10M10m 3.6W/m 24V LED STRIP KIT IP54 CW
11505AT9208/CW/KIT/5M5m 4.8W/m 24V LED STRIP KIT IP54 CW
11508AT9208/WW/KIT/10M10m 3.6W/m 24V LED STRIP KIT IP54 WW
11504AT9208/WW/KIT/5M5m 4.8W/m 24V LED STRIP KIT IP54 WW
Documents & Downloads

Instruction Manual

  • AT9208/10M-W-LED-Strip
  • AT9208/5M-W-LED-Strip

Datasheet

  • AT9208/CW/KIT/10M*
  • AT9208/CW/KIT/5M*
  • AT9208/WW/KIT/10M*
  • AT9208/WW/KIT/5M*

Compliance

  • AT9208/CW/KIT/10M-AU-sdoc*
  • AT9208/CW/KIT/5M-AU-sdoc*
  • AT9208/WW/KIT/10M-AU-sdoc*
  • AT9208/WW/KIT/5M-AU-sdoc*

*Auto generated datasheet (beta)
Accessories
Ordering codeItem codeDescriptionAvailability
16678AT9220/1MSquare Shallow Extrusion KIT - 1M (Clip in Diffuser)
16679AT9220/2MSquare Shallow Extrusion KIT - 2M
16682AT9228/2MSquare Deep Recessed Extrusion KIT - 2M
16681AT9232/2MSquare Shallow Recessed Extrusion KIT - 2M
16683AT9234/2MRound Corner Extrusion KIT - 2M
16684AT9235/2MSquare Deep Extrusion KIT - 2M
16648AT9261/RGB4-Channel Amplifier/Repeater for LED Strip
