AT9068 Stratos
10W Surface mount LED COB downlight – CRI 90 – Tri-CCT
- Integrated COB LED with dual-power selectable output: 8W / 10W
- Recessed lens with low-glare matte reflector
- Tri-CCT selectable: 3000K / 4000K / 5700K
- High colour accuracy with CRI 90 rating
- 50° beam angle
- IP54 weather resistance
- Double insulated design
Specifications
Mechanical
| IP Rating | IP54 |
|---|---|
| Fitting Colour | |

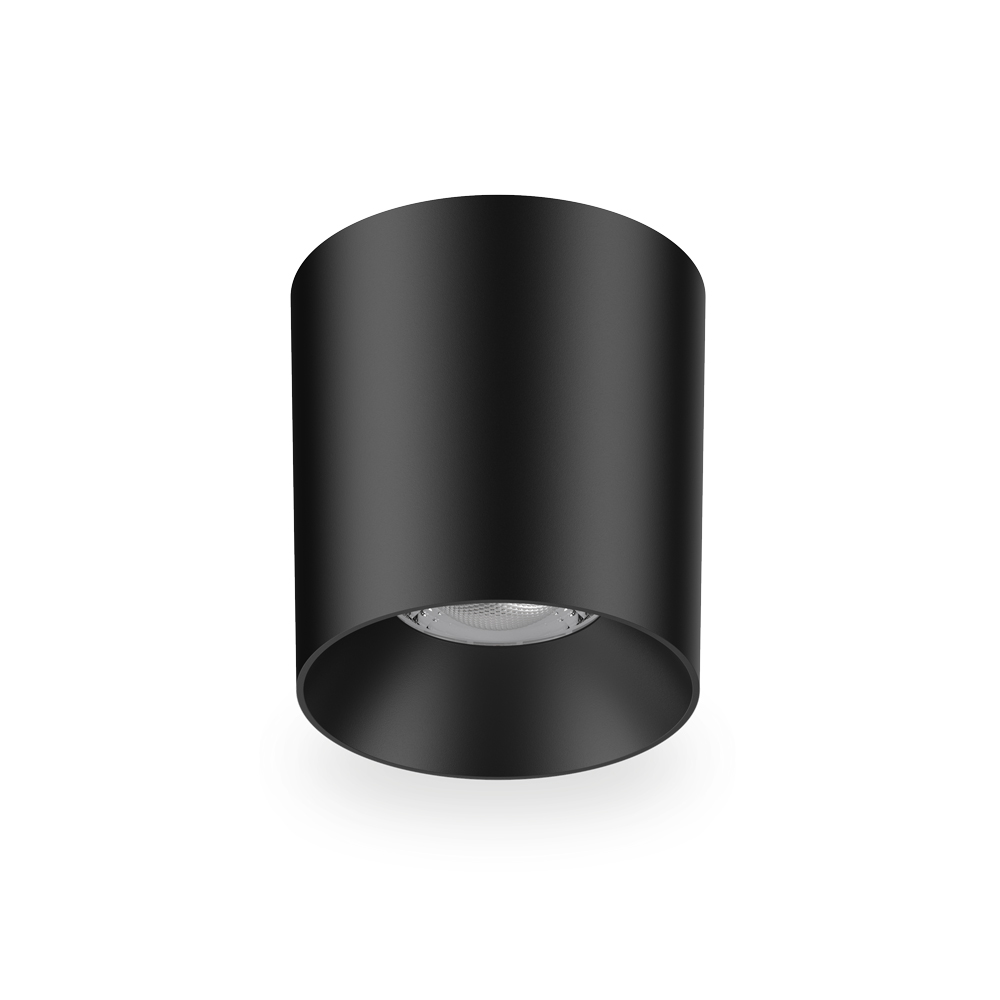

| AT9068/BK | Black |

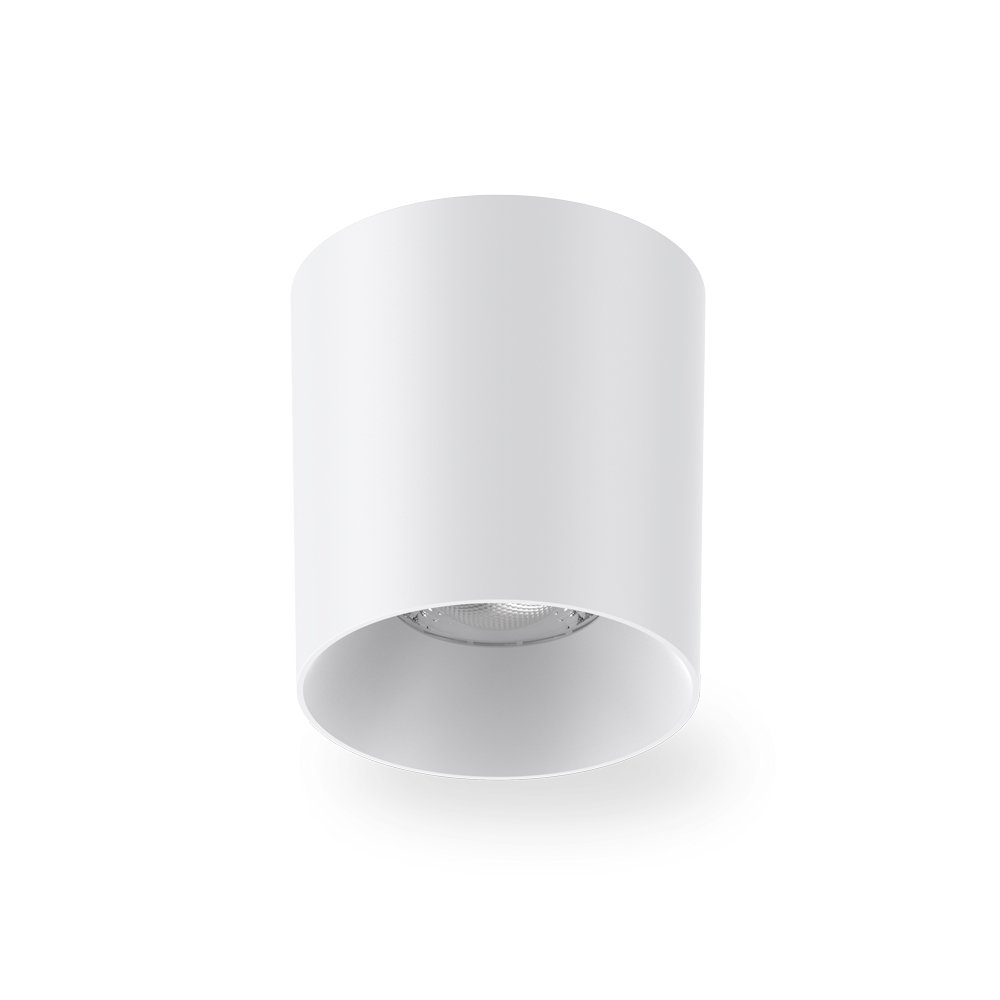

| AT9068/WH | White |
| Body Material | Polycarbonate Plastic |
| Diffuser Material | Acrylic |
| Installation Type | Surface mount |
Electrical
| Working Temp Range | -10 to 40C °C |
|---|---|
| Maximum Wattage | 10 W |
| System Max Wattage | 10 W |
| Input voltage | 220-240V~ 50Hz |
| Power Selection | 8W/10W W |
Lamp
| Colour Rendering Index (CRI) | >90 |
|---|---|
| LED Type | COB |
| UGR | <19 |
| CCT Configuration | TRI-CCT |
| Maximum Bulb Wattage | 10 W |
| Beam Angle | 50 ° |
LED Lifetime
| LED Lifetime Ratings (Failure rate & lumen depreciation) | |||||||
|---|---|---|---|---|---|---|---|
| |||||||
| This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717. | |||||||
| TM-21 Test Hours | 12000 hrs | ||||||
Colour temperature
AT9068/BK
| |||||||||||||||||||||
AT9068/WH
| |||||||||||||||||||||
Driver
| Driver Type | Dimmable ( Phase cut) |
|---|---|
| Driver Included | Yes |
| Integrated Driver | Yes |
| Dimmable | Yes |
| Wiring Type | Re-wireable terminal block (2 pin) |
Compliance
| Standards |
|
|---|
Warranty
| Warranty | 5 Year Warranty, First 2 Years Onsite |
|---|---|
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
Dimensions
| Product Height | 94 mm |
|---|---|
| Product Diameter | 90 mm |
AT9068/BK
AT9068/WH
Ordering Information
Documents & Downloads
Instruction Manual
Datasheet
Compliance
*Auto generated datasheet (beta)
Photometrics
AT9068BK/3000K/10W
AT9068BK/3000K/8W
AT9068BK/4000K/10W
AT9068BK/4000K/8W
AT9068BK/5700K/10W
AT9068BK/5700K/8W
AT9068WH/3000K/10W
AT9068WH/3000K/8W
AT9068WH/4000K/10W
AT9068WH/4000K/8W
AT9068WH/5700K/10W
AT9068WH/5700K/8W
