AT9064
10W LED dimmable surface mount downlight

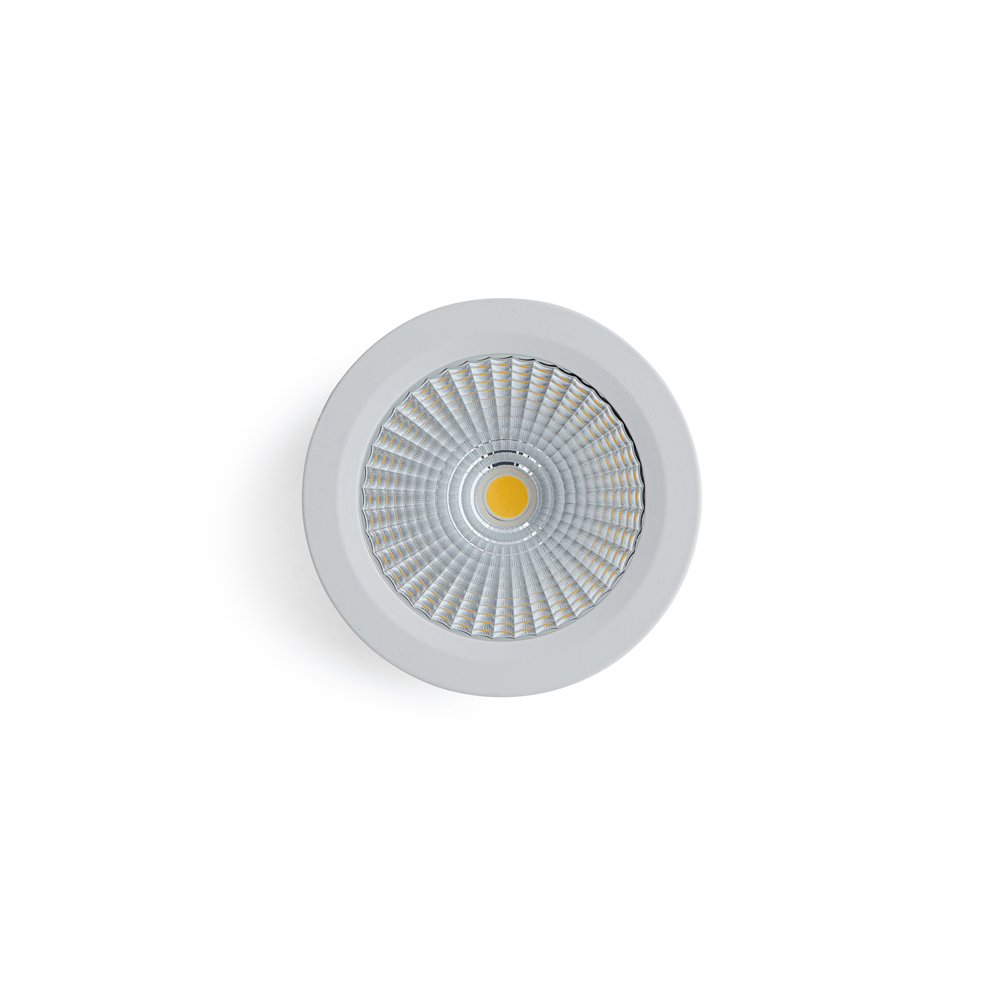

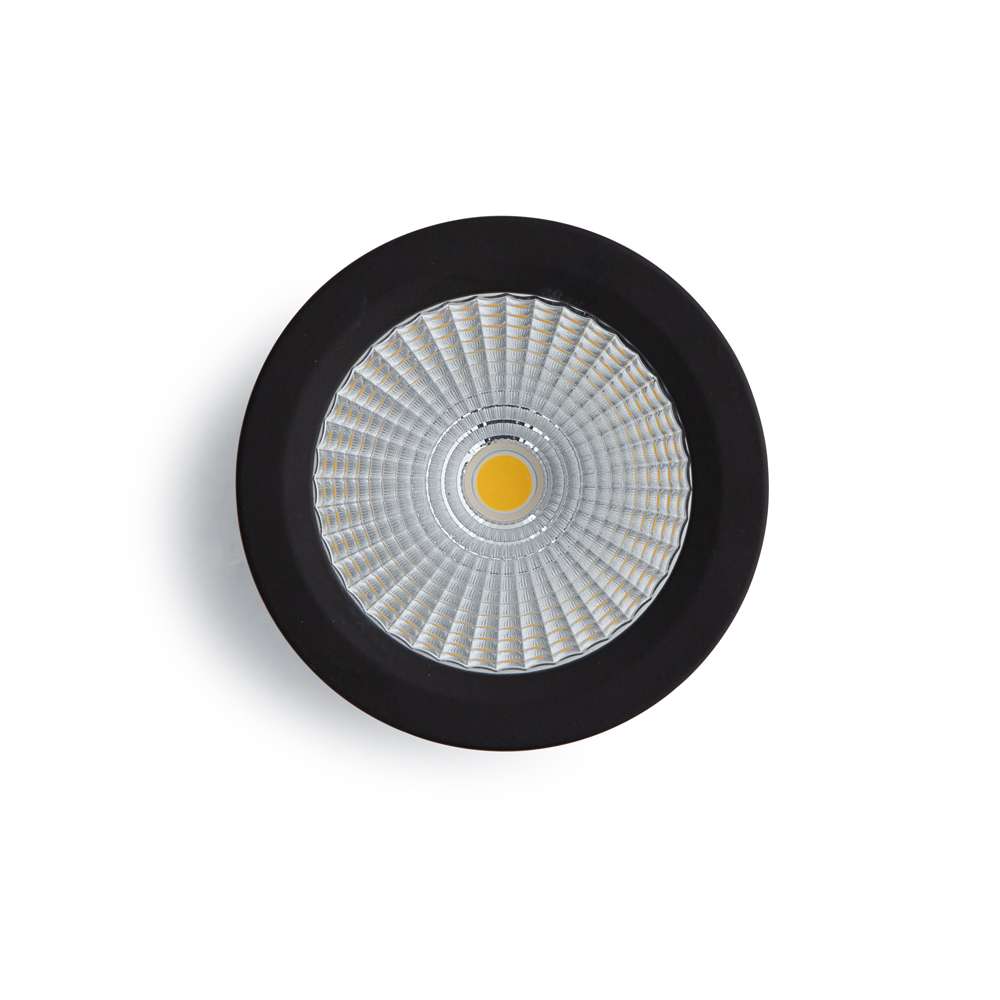

- High quality COB LED and faceted reflector – 60 degree beam angle
- Surface mount design with 90mm diameter body
- Integrated dimmable driver
- Ideal for commercial, retail, showroom and decorative
Selected Models
- 10W output – 790 lumens at 4000K (cool white)
- 10W output – 760 lumens at 3000K (warm white)
Specifications
Efficiencies
| Total System Efficiency | |
|---|---|
| AT9064/BLK/60/WW AT9064/WH/60/WW | 76 lm/W |
| AT9064/BLK/60/CW AT9064/WH/60/CW | 79 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP54 Front Face Only |
|---|---|
| Adjustability | Fixed |
| Fitting Colour | |

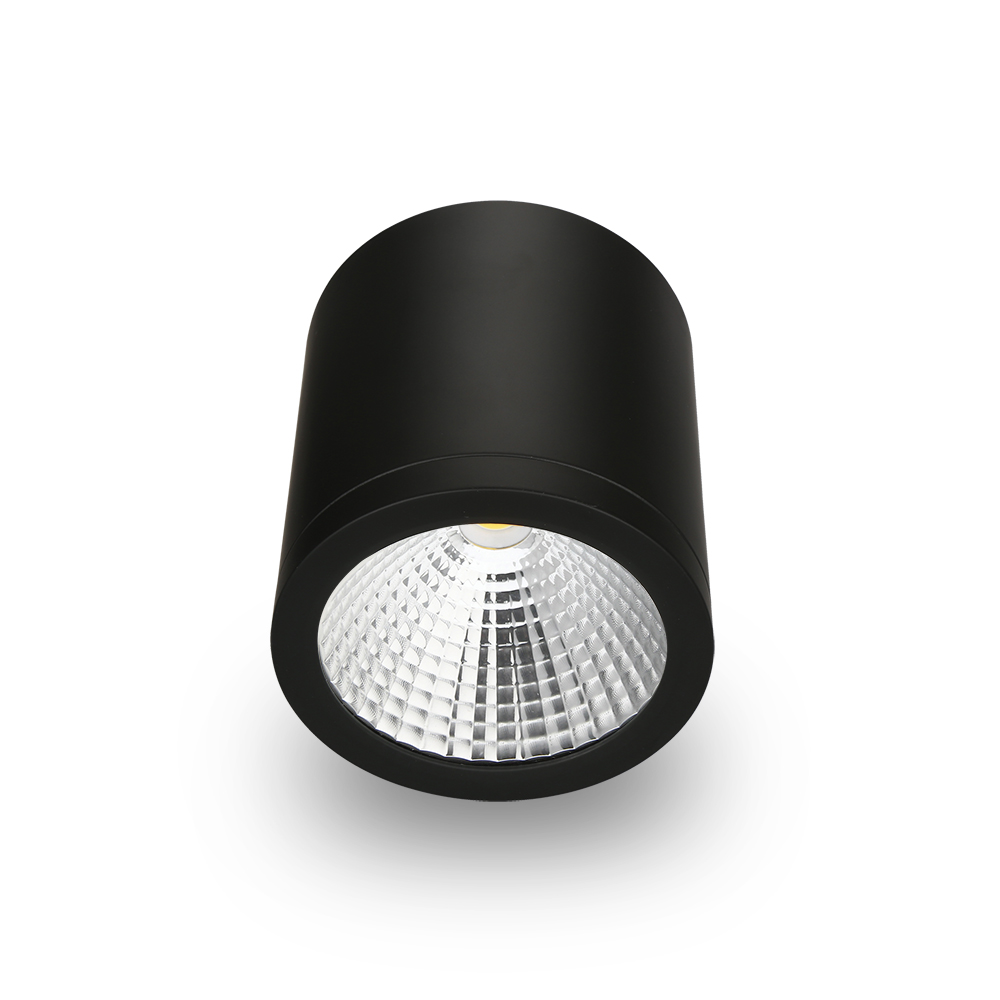

| AT9064/BLK/60/CW AT9064/BLK/60/WW | Black |

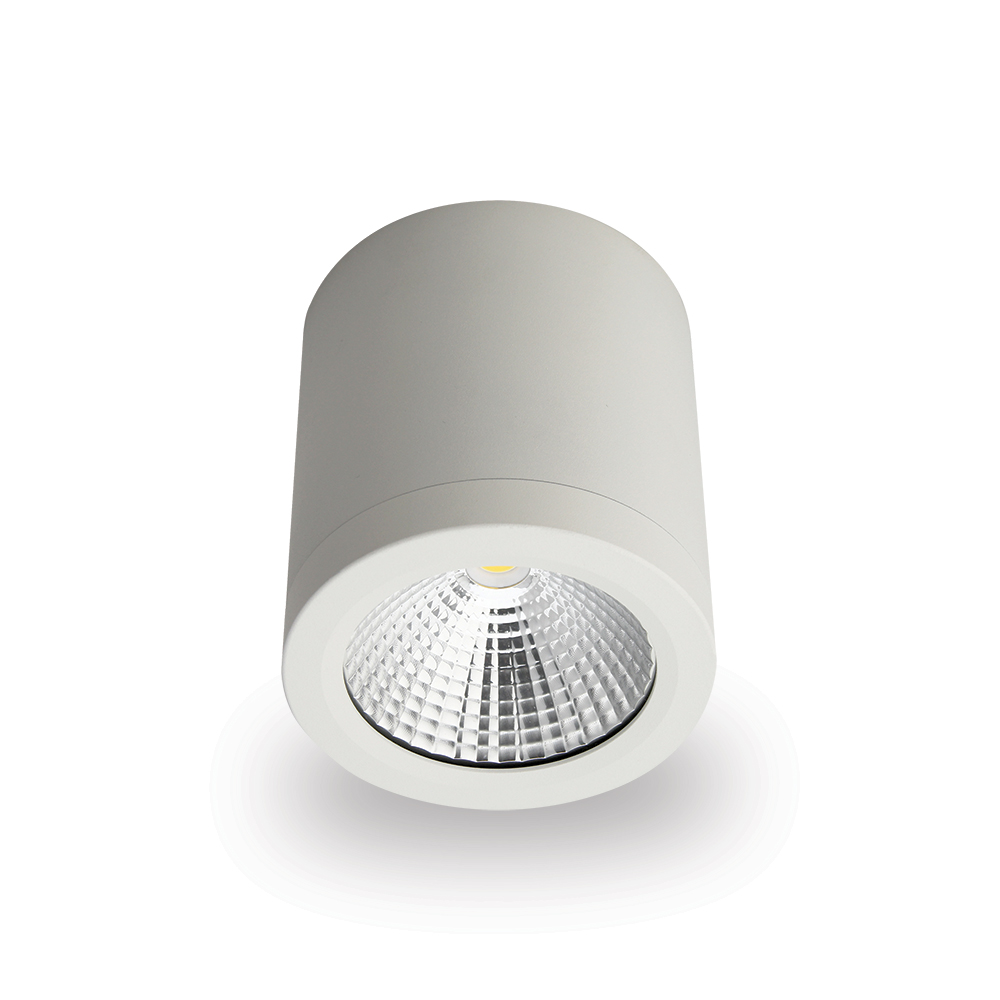

| AT9064/WH/60/CW AT9064/WH/60/WW | White |
| Product Finish | Powdercoated |
| Body Material | Aluminium |
| Diffuser Material | Glass |
| Installation Type | Surface mount |
Electrical
| Working Temp Range | -20 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Switch Type | Inline |
| System Max Wattage | 10 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | 10 W |
Lamp
| Number of Lamps | 1 |
|---|---|
| LED Type | COB |
| CCT Configuration | Single |
| Macadam Steps (SDCM) |
|
| Beam Angle | 60 ° |
| Colour Rendering Index (CRI) | >80 |
LED Lifetime
| LED Lifetime | 40000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
Colour temperature
| CCT Colour | |
|---|---|
| AT9064/BLK/60/CW AT9064/WH/60/CW | Cool White |
| AT9064/BLK/60/WW AT9064/WH/60/WW | Warm White |
| LED Wattage | 8 W |
| Luminaire Lumens | |
| AT9064/BLK/60/WW AT9064/WH/60/WW | 760 lm |
| AT9064/BLK/60/CW AT9064/WH/60/CW | 790 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
| CCT | |
| AT9064/BLK/60/WW AT9064/WH/60/WW | 3000 K |
| AT9064/BLK/60/CW AT9064/WH/60/CW | 4000 K |
Driver
| Driver Type | Dimmable ( Phase cut) |
|---|---|
| Driver Included | Yes |
| Integrated Driver | Yes |
| Dimmable | Yes |
| Wiring Type | Re-wireable terminal block (3 pin) |
| Driver Mode | Constant Current |
| Driver Current | 215 mA |
Compliance
| Standards |
|
|---|
Warranty
| Warranty | 5 Year Warranty, First 2 Years Onsite |
|---|---|
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
Dimensions
| Product Height | 100 mm |
|---|---|
| Product Width | 90 mm |
| Product Weight | 500 g |
| Cutout | 100 mm |
| Product Diameter | 90 mm |
AT9064
AT9064
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 10319 | AT9064/BLK/60/CW | 10w LED IP54 Dimmable Surface Mount D/L - Black/4000k/60o - Cool White | ||
| 10320 | AT9064/BLK/60/WW | 10w LED IP54 Dimmable Surface Mount D/L -Black/3000k/60o - Warm White | ||
| 10791 | AT9064/WH/60/CW | 10w LED IP54 Dimmable Surface Mount D/L - White/4000k/60o - Cool White | ||
| 10673 | AT9064/WH/60/WW | 10w LED IP54 Dimmable Surface Mount D/L - White/3000k/60o - Warm White |
