AT9065

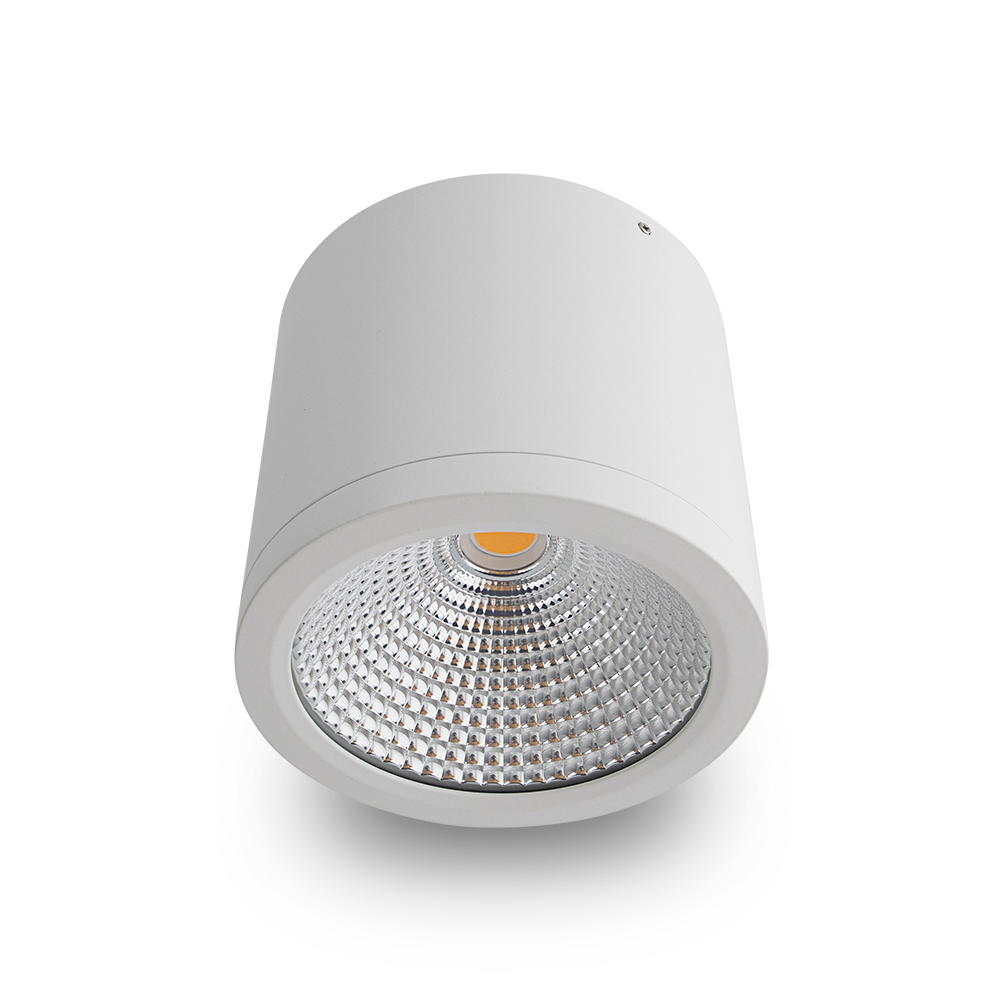

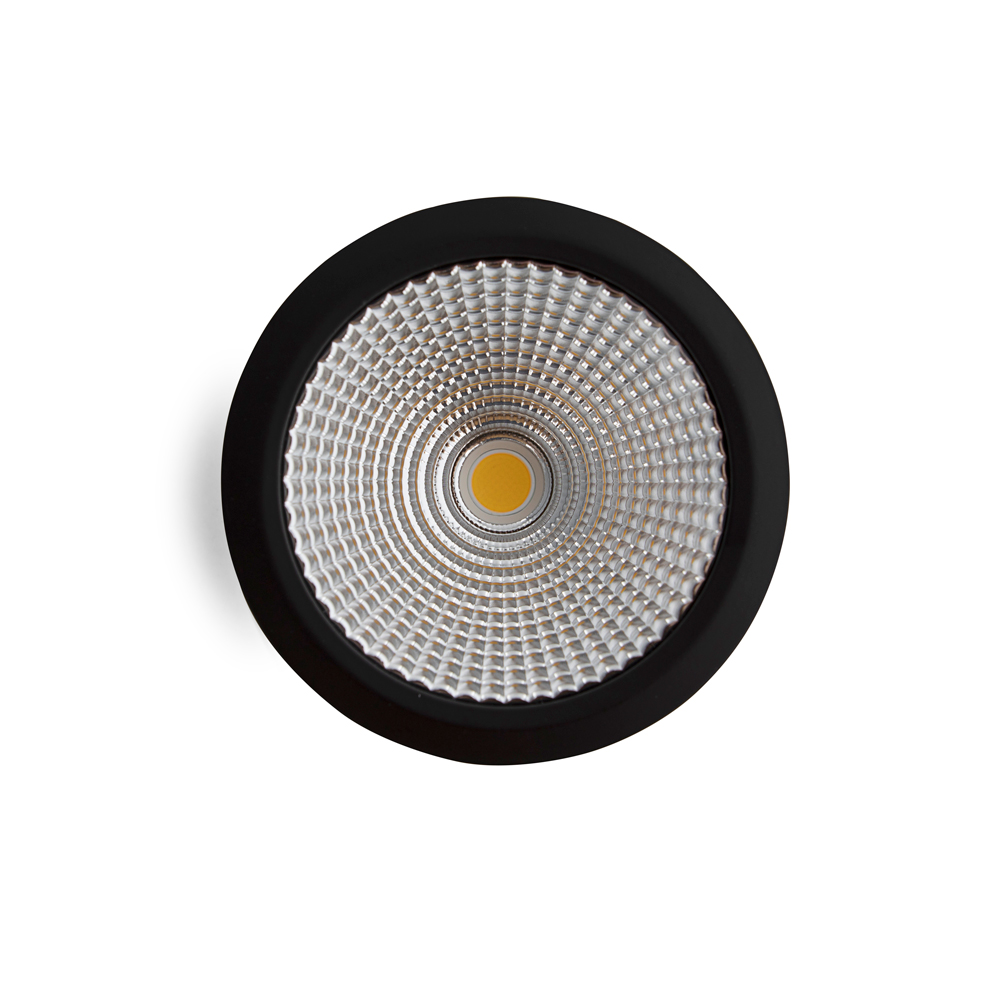

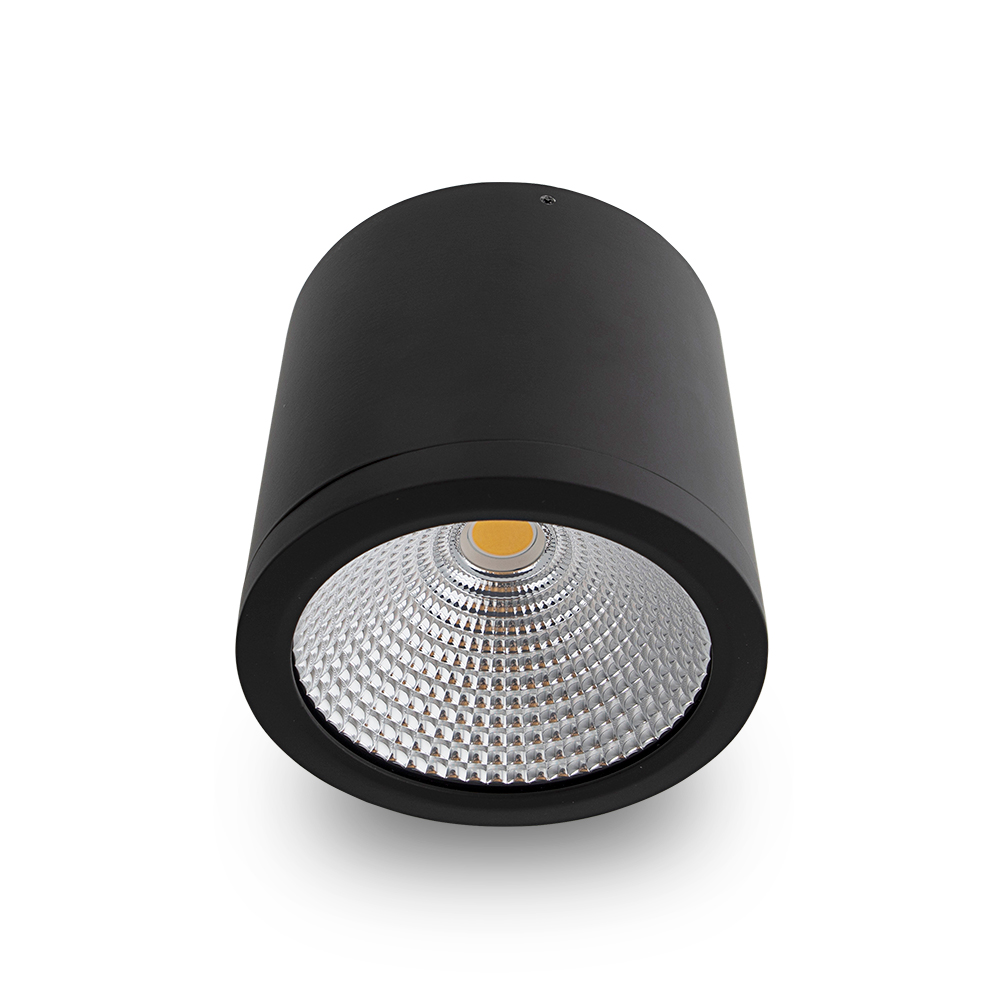

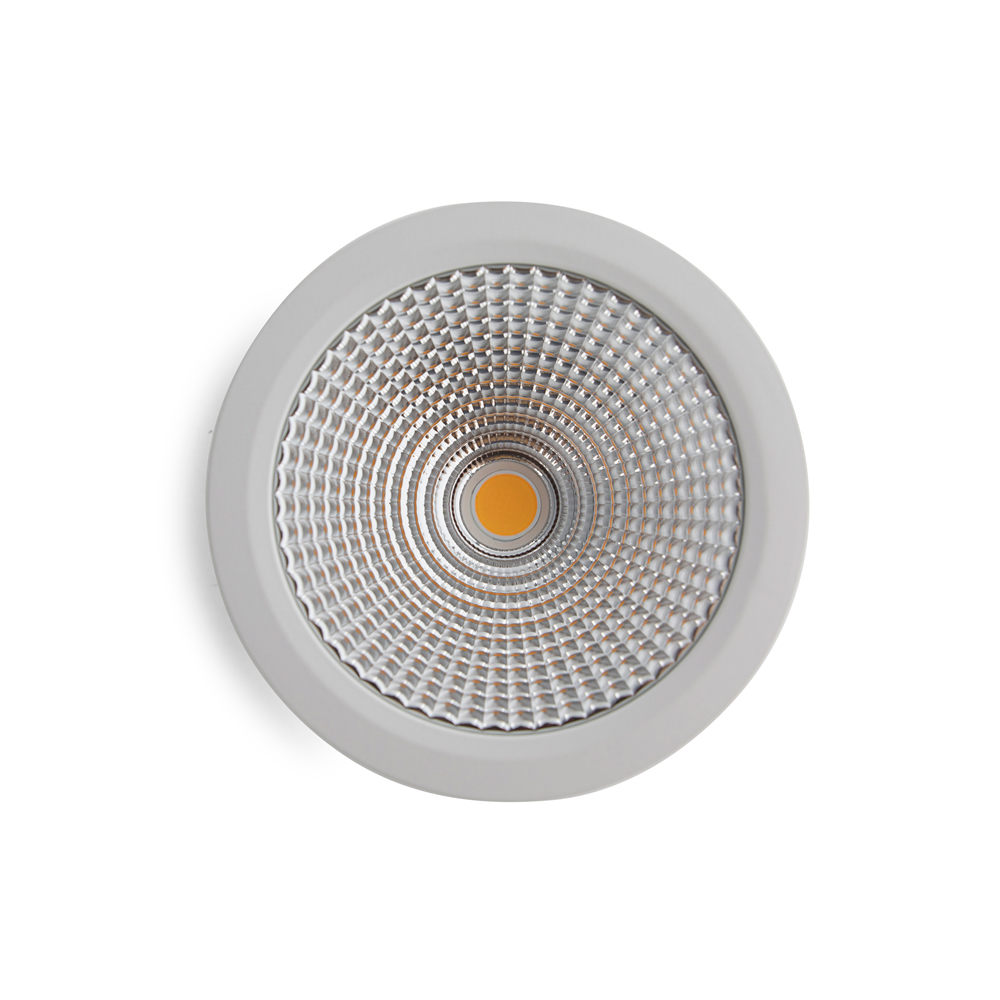

25W LED dimmable surface mount downlight
- High quality COB LED and faceted reflector – 60 degree beam angle
- Surface mount design with 120mm diameter body
- Integrated dimmable driver
- Ideal for commercial, retail, showroom and decorative
Selected Models
- 25W high output – 2670 lumens at 4000K (cool white)
- 25W high output – 2580 lumens at 3000K (warm white)
Specifications
Efficiencies
| Total System Efficiency | |
|---|---|
| AT9065/BLK/60/WW AT9065/WH/60/WW | 103 lm/W |
| AT9065/BLK/60/CW AT9065/WH/60/CW | 107 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP54 Front Face Only |
|---|---|
| Adjustability | Fixed |
| Fitting Colour | |
| AT9065/BLK/60/CW AT9065/BLK/60/WW | Black |
| AT9065/WH/60/CW AT9065/WH/60/WW | White |
| Product Finish | White |
| Body Material | Aluminium |
| Diffuser Material | Glass |
| Installation Type | Surface mount |
Electrical
| Working Temp Range | -20 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Switch Type | Inline |
| Maximum Wattage | 25 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| Number of Lamps | 1 |
| LED Type | COB |
| CCT Configuration | Single |
| Macadam Steps (SDCM) |
|
| Beam Angle | 60 ° |
LED Lifetime
| LED Lifetime | >55000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
| TM-21 Test Hours | 10000 hrs |
Colour temperature
| CCT Colour | |
|---|---|
| AT9065/BLK/60/CW AT9065/WH/60/CW | Cool White |
| AT9065/BLK/60/WW AT9065/WH/60/WW | Warm White |
| Luminaire Lumens | |
| AT9065/BLK/60/WW AT9065/WH/60/WW | 2580 lm |
| AT9065/BLK/60/CW AT9065/WH/60/CW | 2670 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
| CCT | |
| AT9065/BLK/60/WW AT9065/WH/60/WW | 3000 K |
| AT9065/BLK/60/CW AT9065/WH/60/CW | 4000 K |
Driver
| Driver Type | Dimmable ( Phase cut) |
|---|---|
| Driver Included | Yes |
| Integrated Driver | Yes |
| Dimmable | Yes |
| Wiring Type | Re-wireable terminal block (3 pin) |
Compliance
| Standards |
|
|---|
Warranty
| Warranty | 5 Year Warranty, First 2 Years Onsite |
|---|---|
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
Dimensions
| Product Height | 110 mm |
|---|---|
| Product Diameter | 120 mm |
AT9065
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 10710 | AT9065/BLK/60/CW | 25w LED IP54 Dimmable Surface Mount D/L - Black/4000k/60o - Cool White | ||
| 10711 | AT9065/BLK/60/WW | 25w LED IP54 Dimmable Surface Mount D/L - Black/3000k/60o - Warm White | ||
| 10475 | AT9065/WH/60/CW | 25w LED IP54 Dimmable Surface Mount D/L - White/4000k/60o - Cool White | ||
| 10593 | AT9065/WH/60/WW | 25w LED IP54 Dimmable Surface Mount D/L - White/3000k/60o - Warm White |
Documents & Downloads
Instruction Manual
*Auto generated datasheet (beta)
