Home Downlights Recessed Slide
Altius
Altius $0.00
Back to products
AT9232
AT9232 $0.00

Slide

$0.00

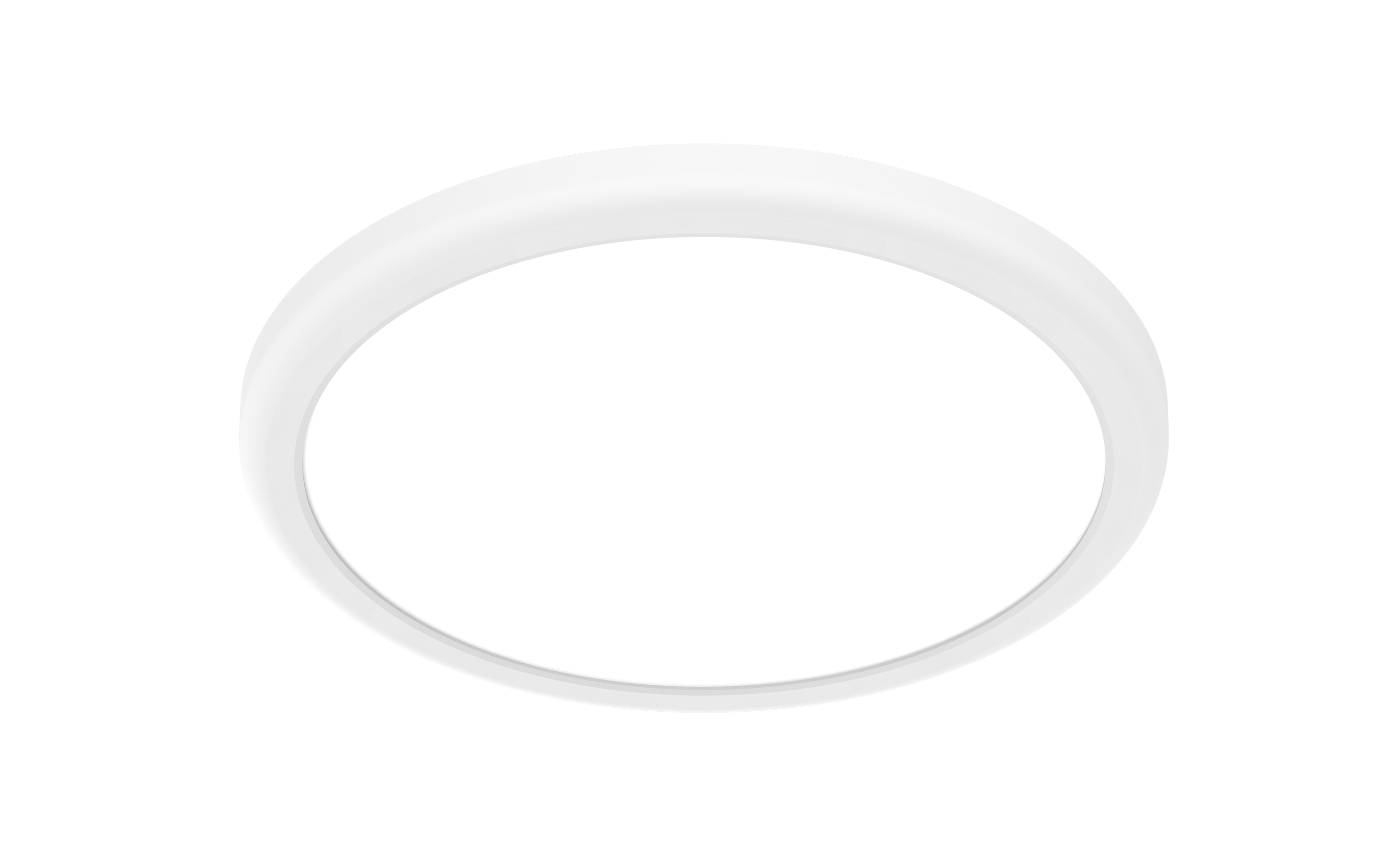

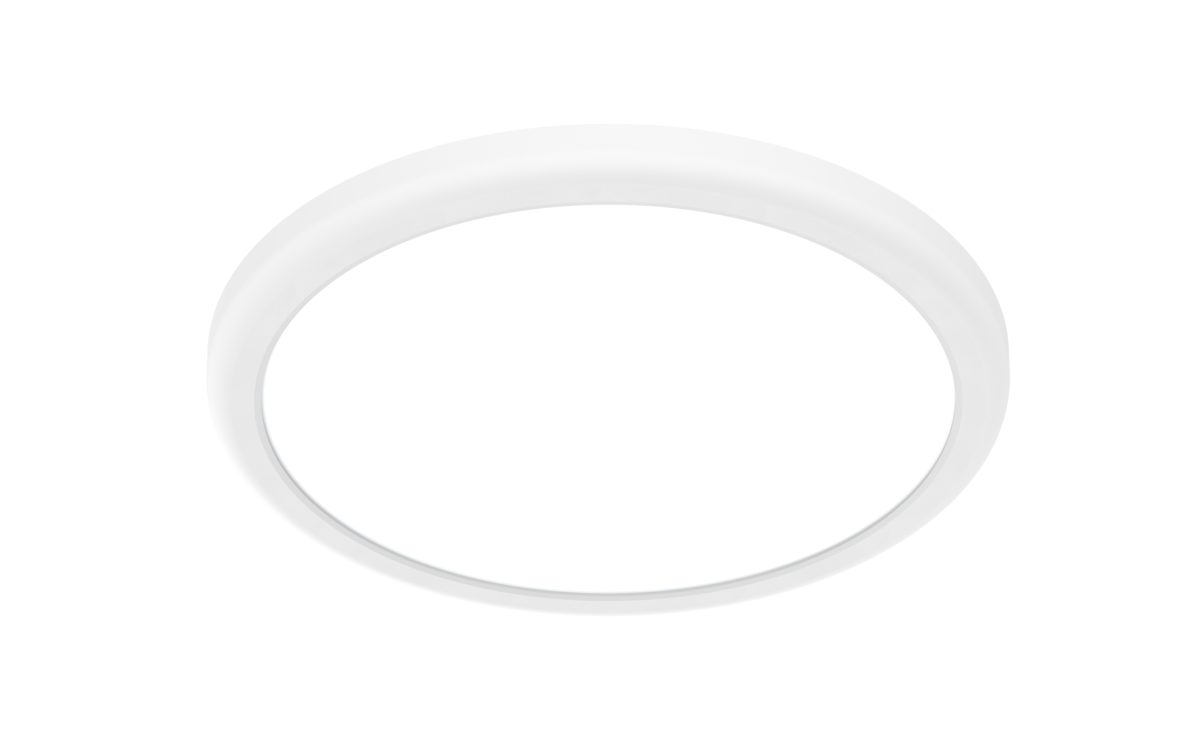

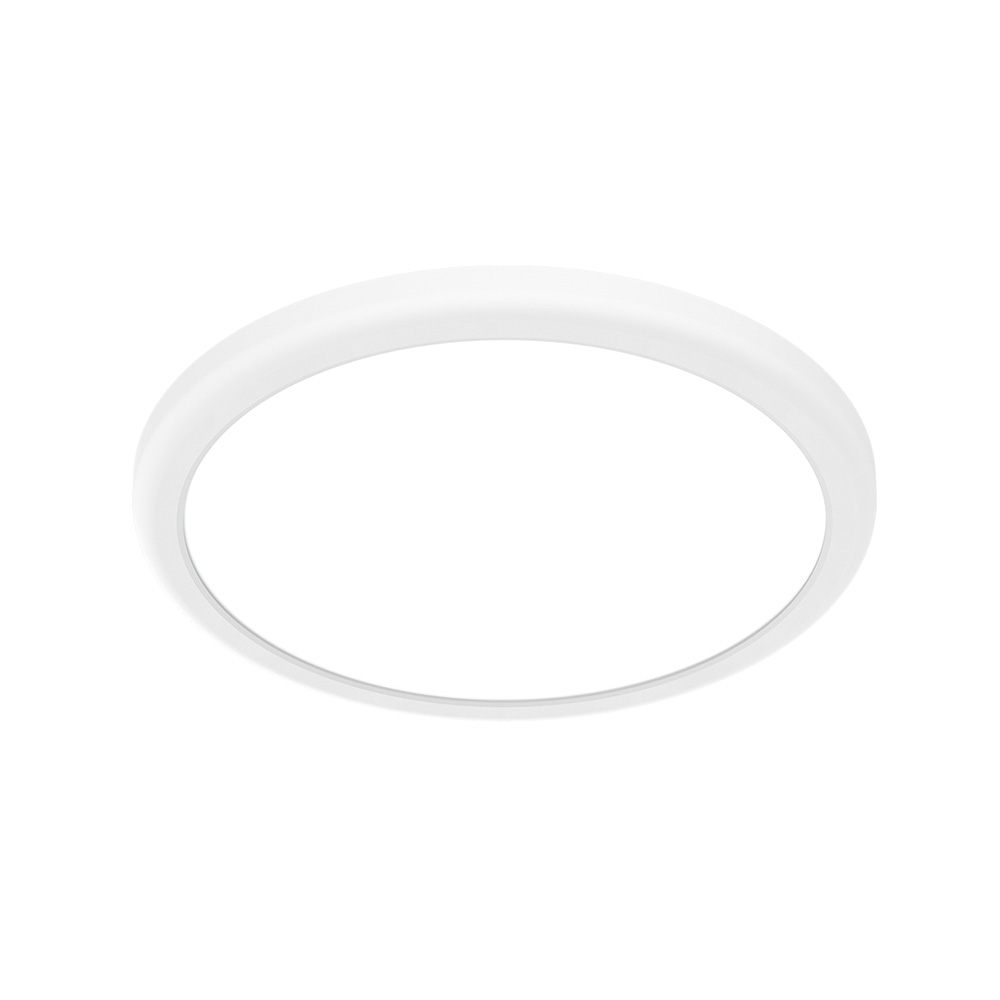

16W Adjustable cut-out Tri-Colour LED downlight

Features

  • 120o Beam Angle

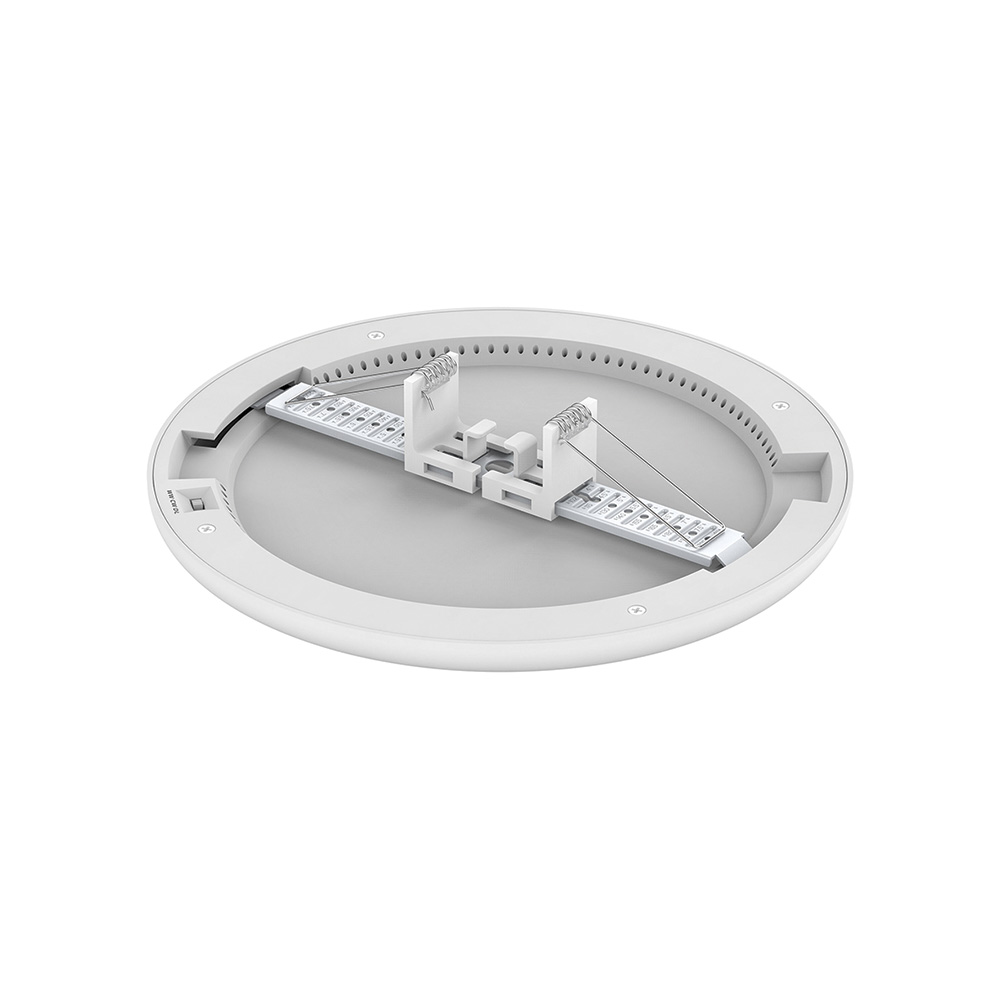

  • Adjustable bracket to fit and cover recessed cutouts from 65 – 235mm
  • Suitable for surface-mount installation
  • Supplied with an integrated dimmable driver
  • Flex and plug
SKU: Slide Category: Recessed Tags: TRI-CCT, Ip20, Indoor, Domestic
Share:
  • Specifications
  • Dimensions
  • Ordering Information
  • Documents & Downloads
Specifications

Mechanical

AdjustabilityFixed
Body MaterialPlastic
Fitting ColourWhite
Installation TypeRecessed
IP RatingIP20

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Maximum Wattage16 W
Switch TypeInline
Working Temp Range-20 to 40 °C

Lamp

Beam Angle120 °
CCT ConfigurationTRI-CCT
CRI>80
Number of Lamps1

LED Lifetime

LED Lifetime36000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.

Colour temperature

14 Watts
Warm White (3000)1675 lm
Cool White (4000)1810 lm
DayLight (5700)1675 lm

Driver

DimmableYes
Driver IncludedYes
Integrated DriverYes
Driver TypeDimmable ( Phase cut)

Compliance

Daily Use12 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.2
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15

Warranty

Commercial Use Warranty3 RTB (Total 3 Years)
Domestic Use Warranty3 (Yr) RTB
Dimensions
Cutout65-205 mm
Product Diameter235 mm
Product Height16 mm
Ordering Information
Ordering codeItem codeDescriptionAvailability
16868SLIDE-16868SLIDE ADJUSTABLE CUTOUT DOWNLIGHT WHITE 16W 1500lm TRI-CCT IP20
Documents & Downloads

Datasheet

  • SLIDE-16868*

Compliance

  • SLIDE-16868-AU-sdoc*

*Auto generated datasheet (beta)
