Maximus
Maximus
Maximus
Maximus
Maximus
Maximus
Maximus
Home Downlights Recessed Maximus
AT5005 6W
AT5005 6W $0.00
Back to products
AT9227
AT9227 $0.00

Maximus

$0.00

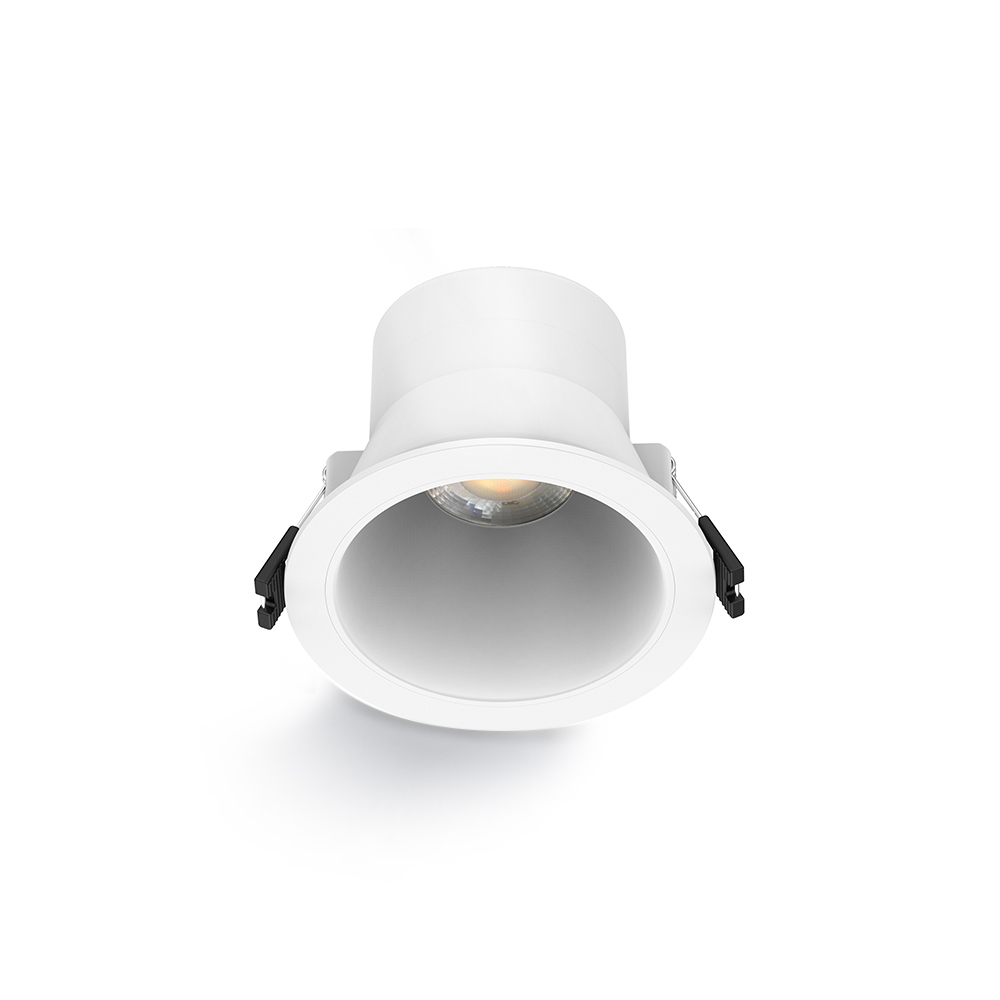

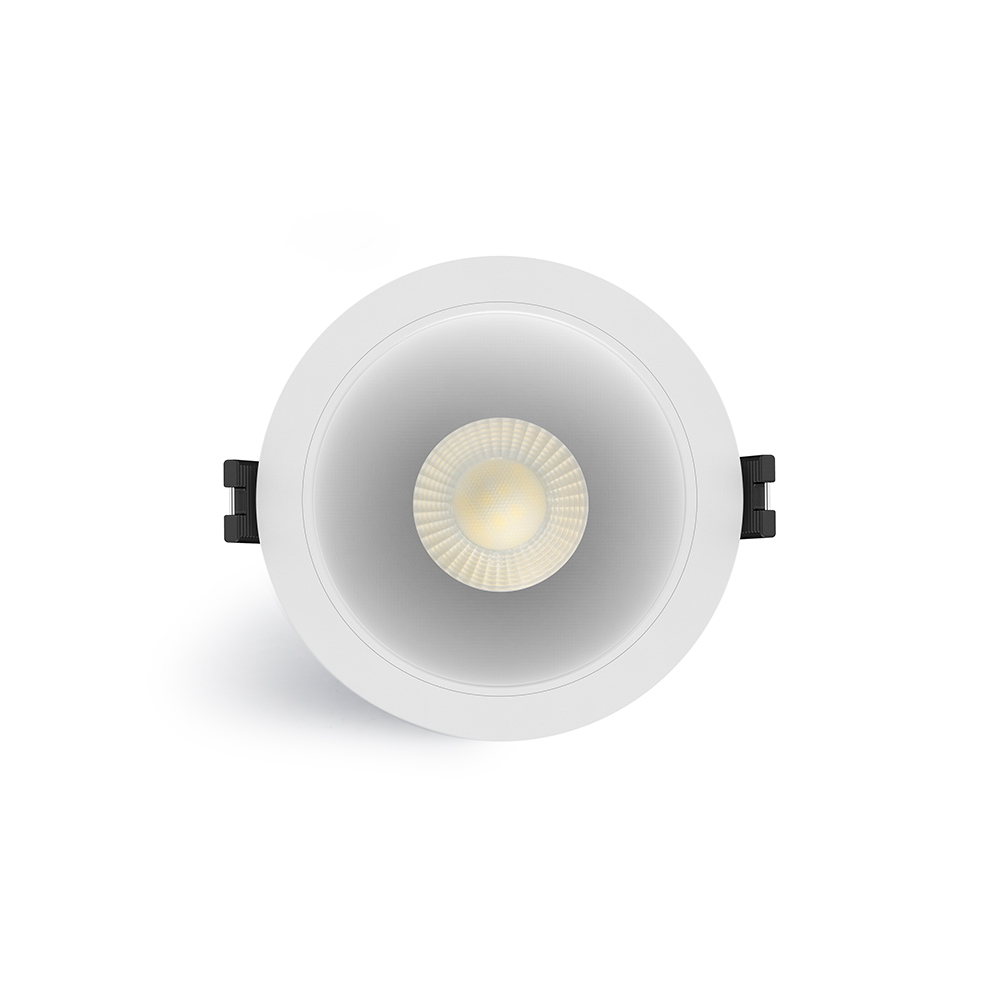

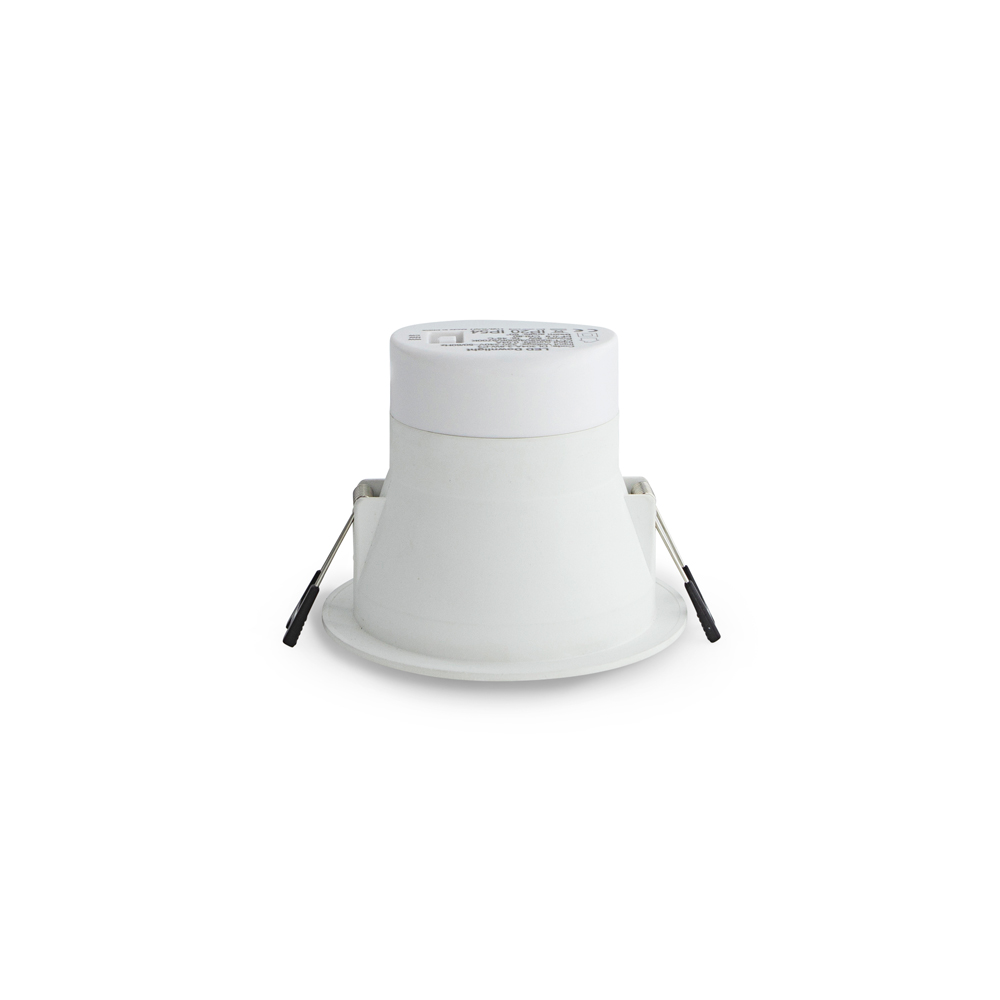

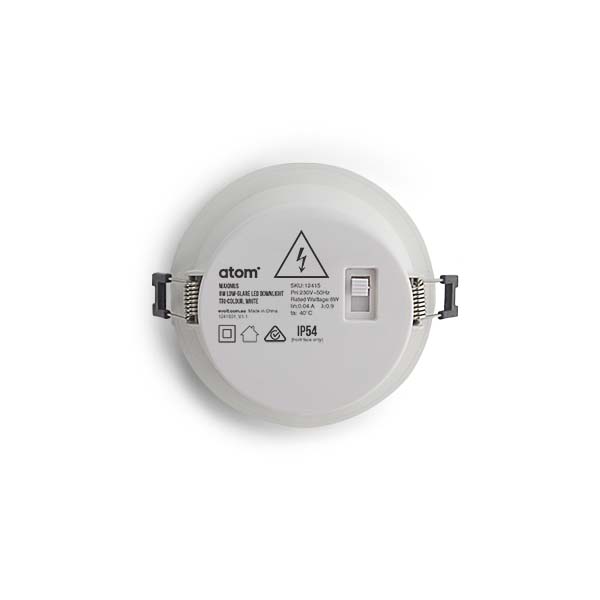

8W Low-Glare Tri-Colour LED Downlight, Dimmable

Features

  • Recessed light source for high quality installations
  • Excellent beam control compared to diffused downlights
  • Reduce eye strain and increase comfort with a low glare design
  • Ideal for high-end and residential applications
  • Supplied with an integrated dimmable LED driver
  • Selectable colour temperature to suit the installation and room
SKU: Maximus Category: Recessed Tags: Kitchen, Bath, Bed, Study, TRI-CCT, Living, IC-4, Family, Low glare, Office, Ip54 front face only, Stairs, Toilet, Indoor, Hallway, Domestic
Share:
  • Specifications
  • Dimensions
  • Ordering Information
  • Documents & Downloads
  • Accessories
  • Photometrics
Specifications

Mechanical

Body MaterialPA46 Plastic wrapped aluminium
Diffuser MaterialPolycarbonate
Fitting Colour
MAXIMUS-12416Black
MAXIMUS-12415White
IC RatingIC-4
IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments.
Installation TypeRecessed
IP RatingIP54 Front Face Only

Electrical

Electrical RatingClass II
Input Current0.05 A
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage8 W
Power Factor0.9
Switch TypeInline
Working Temp Range-20 to 40 °C

Lamp

Beam Angle45 °
CCT ConfigurationTRI-CCT
CRI>80
UGR
MAXIMUS-12416<19
MAXIMUS-12415<24

LED Lifetime

LED Lifetime35000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.

Colour temperature

MAXIMUS-12415
Warm White (3000)750 lm
Cool White (4000)840 lm
DayLight (5700)790 lm
MAXIMUS-12416
Warm White (3000)560 lm
Cool White (4000)630 lm
DayLight (5700)570 lm

Driver

DimmableYes
Driver IncludedYes
Integrated DriverYes
Driver TypeDimmable ( Phase cut)
Flex & Plug or Lead Length600 mm
Wiring TypeRe-wireable Flex & Plug (2 pin)

Compliance

Daily Use12 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.2
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15

Warranty

Commercial Use Warranty3 RTB (Total 3 Years)
Domestic Use Warranty3 (Yr) RTB
Dimensions
Cutout92 mm
Product Diameter106 mm
Product Height84 mm
Product Weight280 g
Ordering Information
Ordering codeItem codeDescriptionAvailability
12415MAXIMUS-124158W Low-Glare LED Downlight - 90mm - TRI-CCT - White

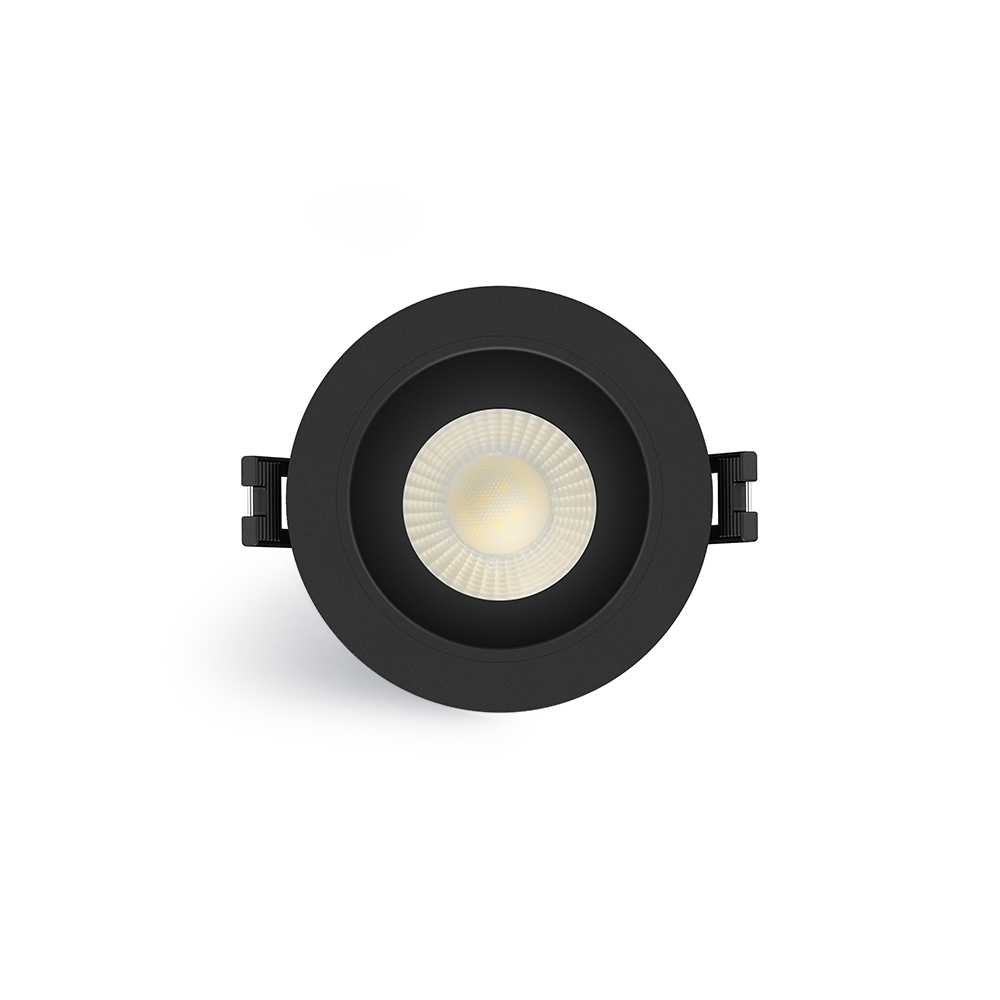

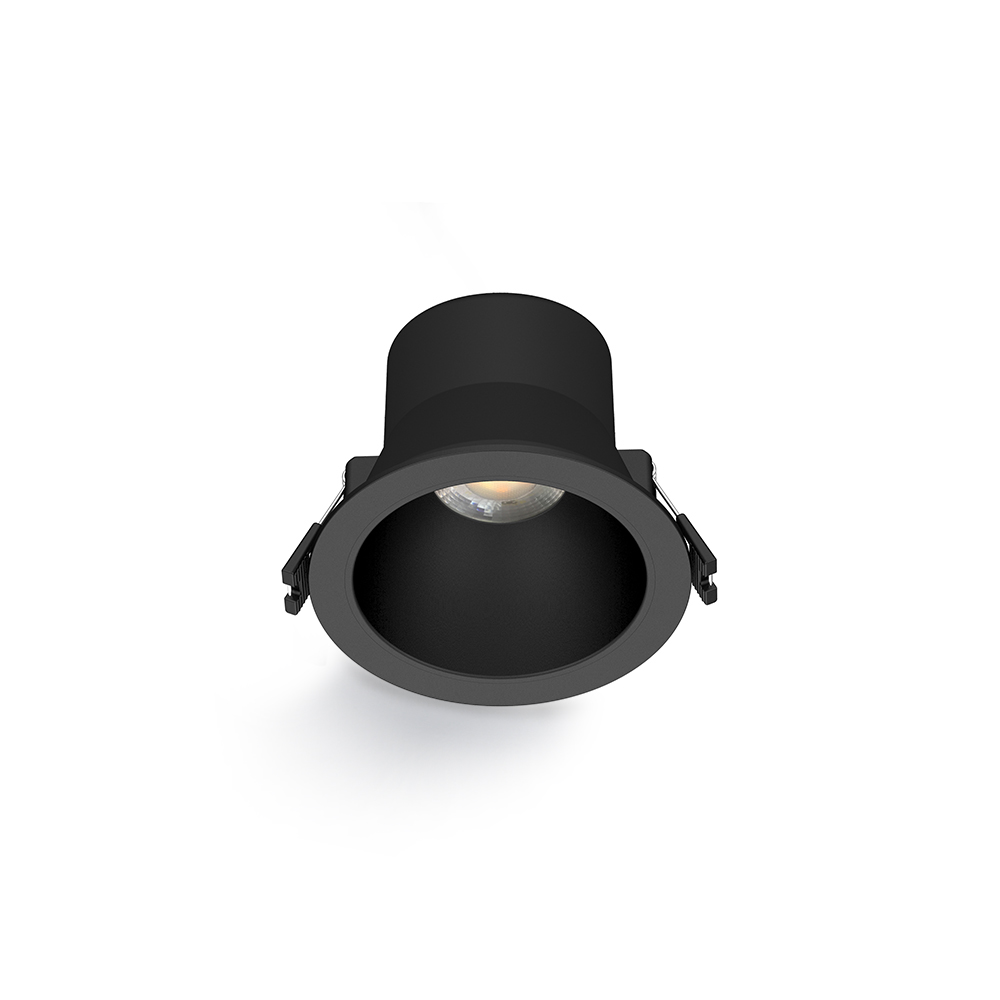

12416MAXIMUS-124168W Low-Glare LED Downlight - 90mm - TRI-CCT - Black
Documents & Downloads

Datasheet

  • MAXIMUS-12415*
  • MAXIMUS-12416*
  • MAXIMUS

Instruction Manual

  • MAX

Compliance

  • MAXIMUS-12415-AU-sdoc*
  • MAXIMUS-12416-AU-sdoc*

*Auto generated datasheet (beta)
Accessories
Ordering codeItem codeDescriptionAvailability
10117AT9018/BLK140mm Extension plate for AT9012 - Black
10121AT9018/WH140mm Extension plate for AT9012 - White
10130AT9019/WH170mm Extension plate for 9012 - White
Photometrics
Maximus/12415/4000K
IES File

IES File


Download
Maximus/12415/3000K
IES File

IES File


Download
Maximus/12415/5700K
IES File

IES File


Download
Maximus/12416/3000K
IES File

IES File


Download
Maximus/12416/5700K
IES File

IES File


Download
Maximus/12416/4000K
IES File

IES File


Download
