AT9045 /6 /7 /8 TRI
$0.00

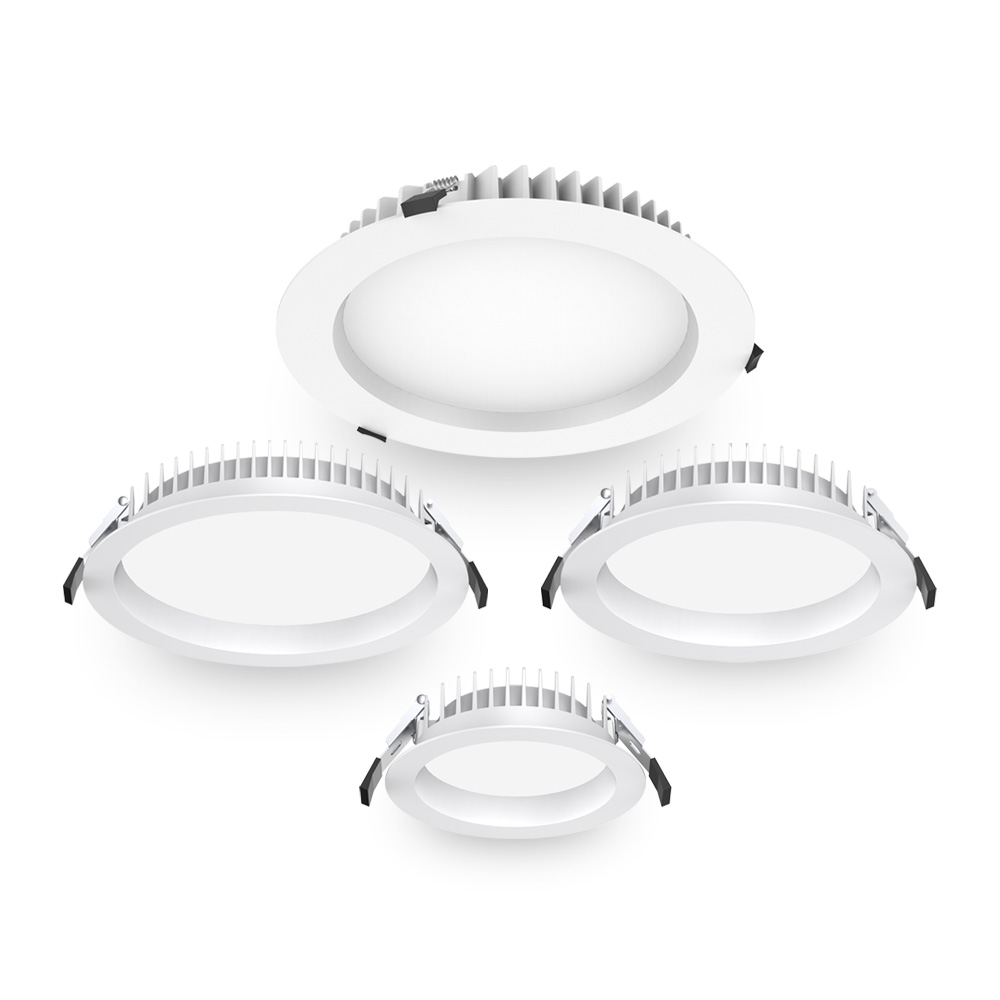

12 – 35W Commercial LED downlight with dimmable driver – Tri-colour
- High efficient LED array
- Ideal for residential and commercial applications
- Recessed diffuser design
- Phase-cut dimmable
- Tri-CCT selectable
Specifications
Efficiencies
| Total System Efficiency | |
|---|---|
| AT9045/WH/TRI | 118 lm/W |
| AT9046/WH/TRI | 120 lm/W |
| AT9047/WH/TRI | 122 lm/W |
| AT9048/WH/TRI | 123 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| Adjustability | Fixed |
|---|---|
| Body Material | Aluminium |
| Diffuser Material | PMMA |
| Product Finish | Powdercoated |
| Fitting Colour | White |
| IC Rating | |
| AT9048/WH/TRI | Do not cover |
| AT9045/WH/TRI AT9046/WH/TRI AT9047/WH/TRI | IC-4 |
| Installation Type | Recessed |
| IP Rating | IP54 Front Face Only |
Electrical
| Electrical Rating | Class II |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | |
| AT9045/WH/TRI | 12 W |
| AT9046/WH/TRI | 18 W |
| AT9047/WH/TRI | 25 W |
| AT9048/WH/TRI | 35 W |
| Switch Type | Inline |
| Working Temp Range | -20 to 40 °C |
Lamp
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
|---|---|
| Beam Angle | 90 ° |
| CCT Configuration | TRI-CCT |
| Colour Rendering Index (CRI) | >80 |
| Lamp/LED Current | |
| AT9045/WH/TRI | 300 mA |
| AT9046/WH/TRI | 450 mA |
| AT9047/WH/TRI | 580 mA |
| AT9048/WH/TRI | 900 mA |
| Lamp/LED voltage | 36 V |
LED Lifetime
| LED Lifetime | >54,000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
| TM-21 Test Hours | 9000 hrs |
Colour temperature
AT9045/WH/TRI
| |||||||||
AT9046/WH/TRI
| |||||||||
AT9047/WH/TRI
| |||||||||
AT9048/WH/TRI
| |||||||||
Driver
| Dimmable | Yes |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Driver Mode | Constant Current |
| Driver Type | Dimmable ( Phase cut) |
| Flex & Plug or Lead Length | 600 mm |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
Energy Savings Scheme
| Ipart Approval | Yes |
|---|---|
| REES Approval | Yes |
| VEU Approval | Yes |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 (Yr) RTB |
|---|---|
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
Dimensions
| Item Code | Cutout | Product Diameter | Product Height |
|---|---|---|---|
| AT9045/WH/TRI | 120-130 mm | 145 mm | 55 mm |
| AT9046/WH/TRI | 160-170 mm | 190 mm | 55 mm |
| AT9047/WH/TRI | 200-210 mm | 230 mm | 55 mm |
| AT9048/WH/TRI | 230-260 mm | 280 mm | 60 mm |

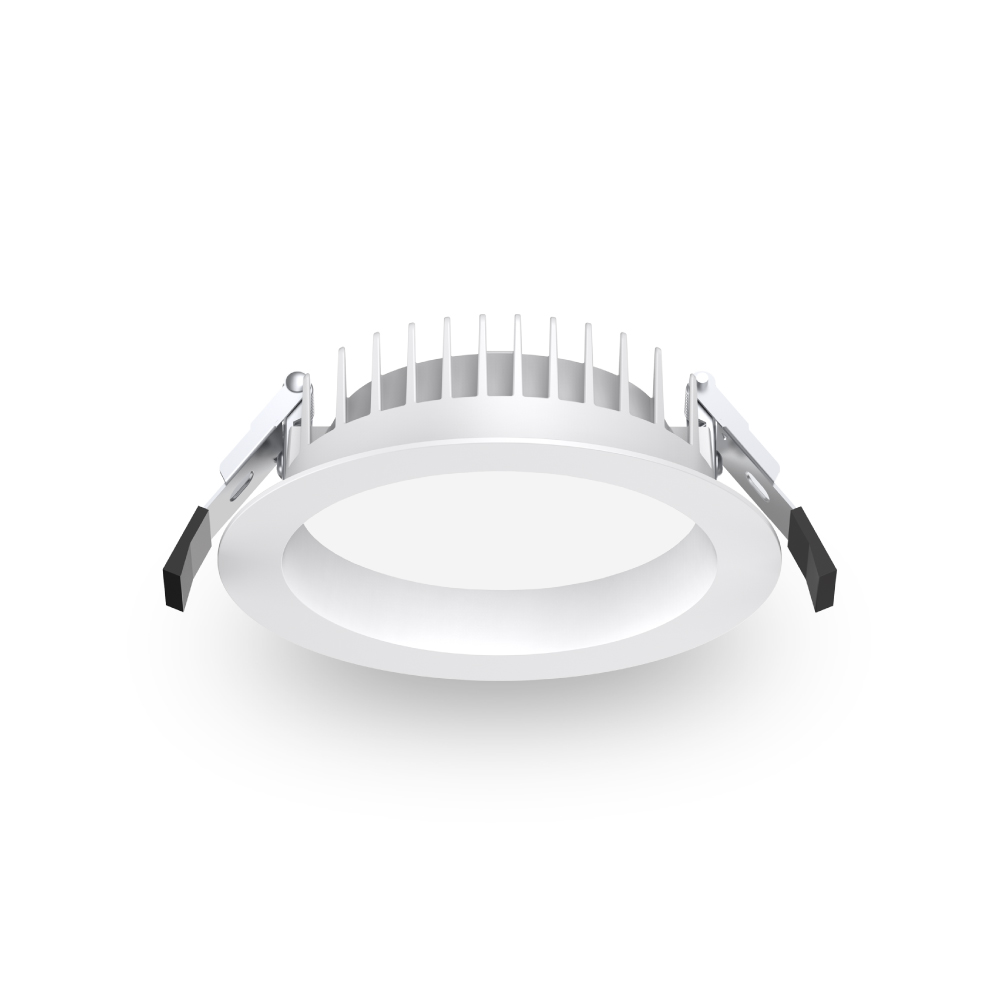

AT9045/WH/TRI

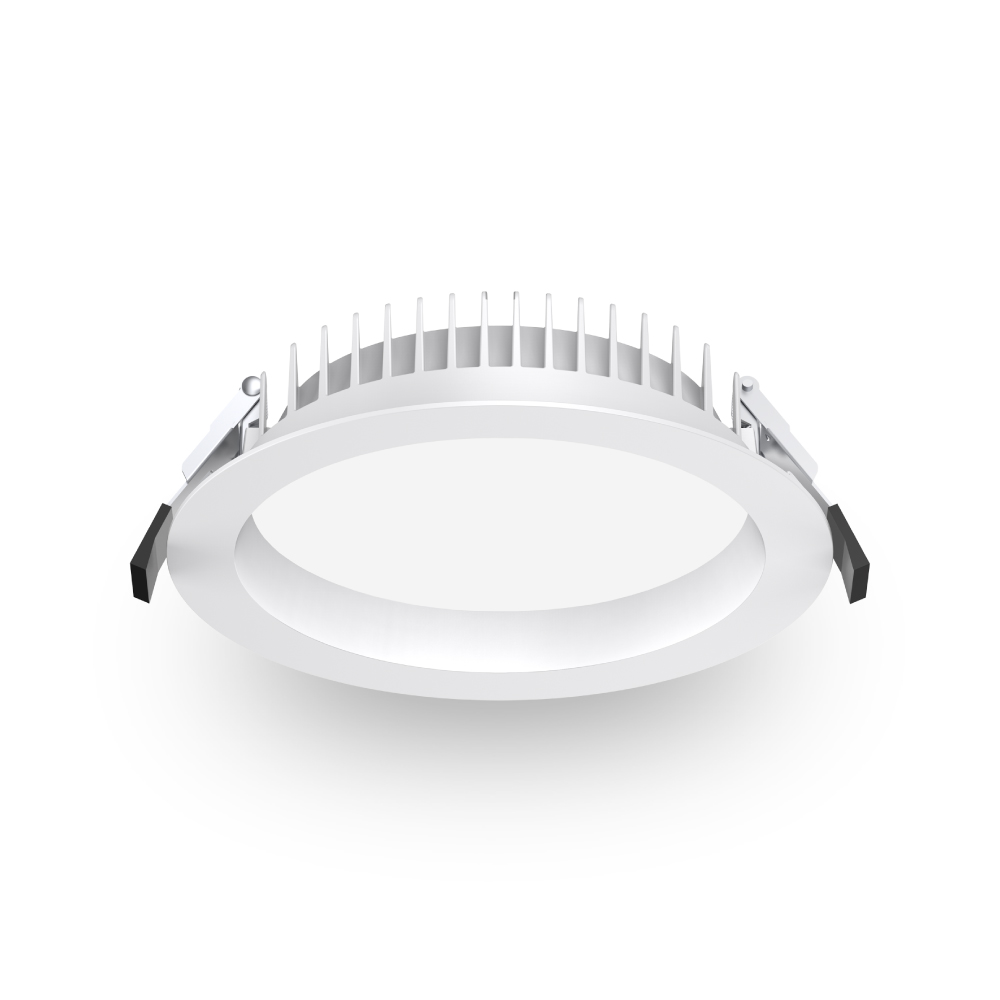

AT9046/WH/TRI

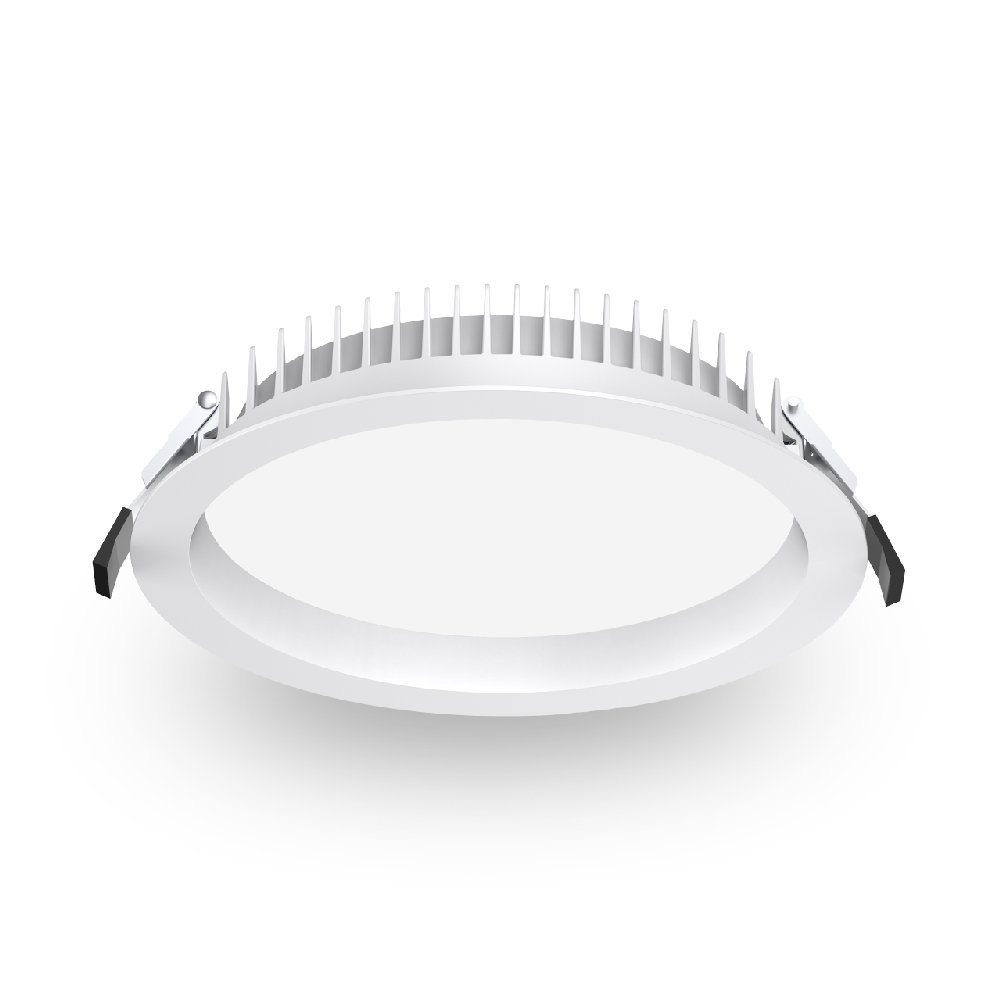

AT9047/WH/TRI

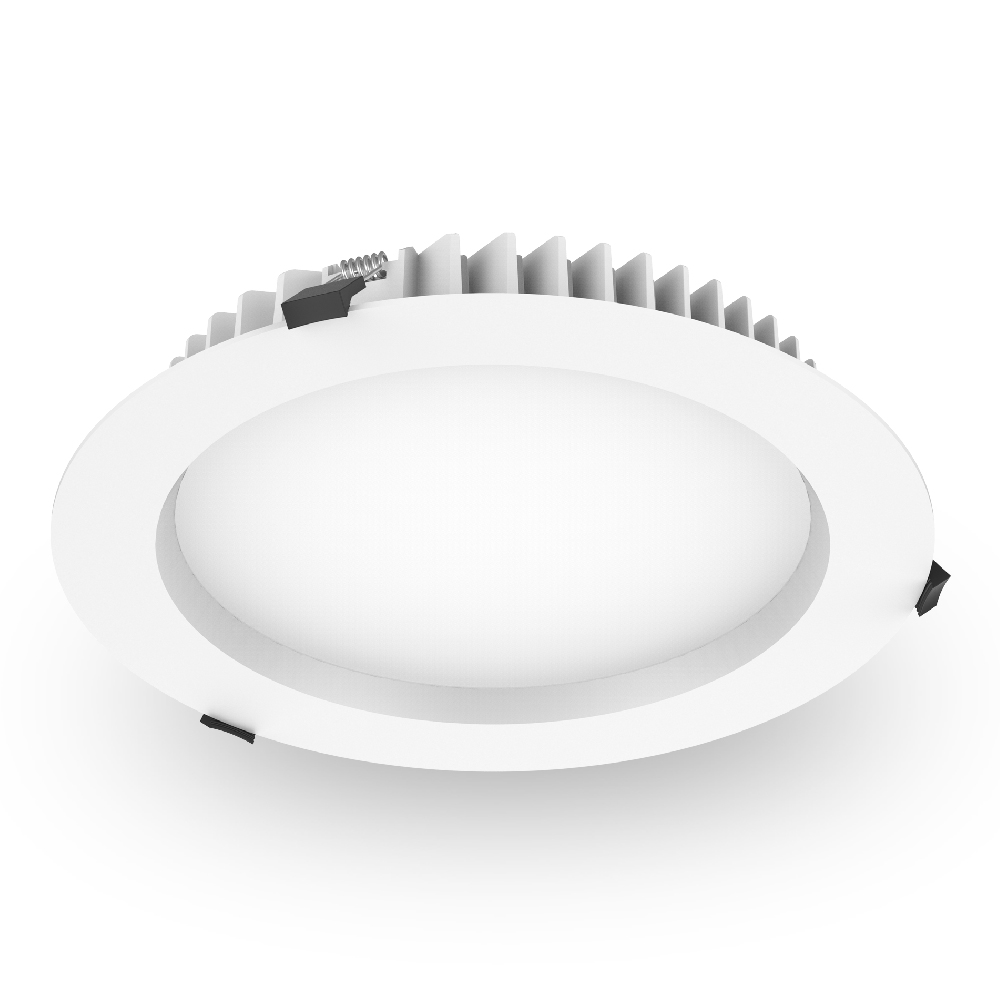

AT9048/WH/TRI
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12789 | AT9045/WH/TRI | 12W LED downlight with dimmable driver - Tri-CCT - White | |
| 12790 | AT9046/WH/TRI | 18W LED downlight with dimmable driver - Tri-CCT - White | |
| 12791 | AT9047/WH/TRI | 25W LED downlight with dimmable driver - Tri-CCT - White | |
| 12792 | AT9048/WH/TRI | 35W LED downlight with dimmable driver - Tri-CCT - White |
Documents & Downloads
*Auto generated datasheet (beta)
Accessories
Recommended Drivers
Dimmable ( Phase cut)
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 11466 | AT9660 | 20W Phase Dimmable Driver 550mA to suit 306 Backlit Panels - AT6023 SER II | |
| 11467 | AT9661 | 36W Phase Dimmable Driver 900mA to suit 312 & 606 Backlit Panels - AT6021 SER II & AT6023 SER II | |
| 11572 | AT9665 | 16W Phase Dimmable Driver 450mA to suit 306 Backlit Panels - AT6023 SER III |
Wireless (IEC62386-104) with DT6
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14928 | DK1-0AABBHZX00030 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 300mA | |
| 14931 | DK1-0AABBHZX00045 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 450mA | |
| 14933 | DK1-0AABBHZX00055 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 550mA | |
| 14982 | DK1-0AABBHZX00090 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 900mA |
DALI DT6 LED Driver
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14910 | DK1-0AADADZX00030 | Driver Kit - DALI-2 LED driver with 1.2m 2 core flex and plug and 2 core flying lead - set to 300mA | |
| 14913 | DK1-0AADADZX00045 | Driver Kit - DALI-2 LED driver with 1.2m 2 core flex and plug and 2 core flying lead - set to 450mA | |
| 14915 | DK1-0AADADZX00055 | Driver Kit - DALI-2 LED driver with 1.2m 2 core flex and plug and 2 core flying lead - set to 550mA | |
| 14981 | DK1-0AADADZX00090 | Driver Kit - DALI-2 LED driver with 2.4m Wire-By-Click (WBC) lead - set to 900mA |
Photometrics
AT9045/WH/TRI/3000K
AT9047/WH/TRI/3000K
AT9047/WH/TRI/5700K
AT9047/WH/TRI/4000K
AT9048/WH/TRI/3000K
