AT9023 TRI
$0.00

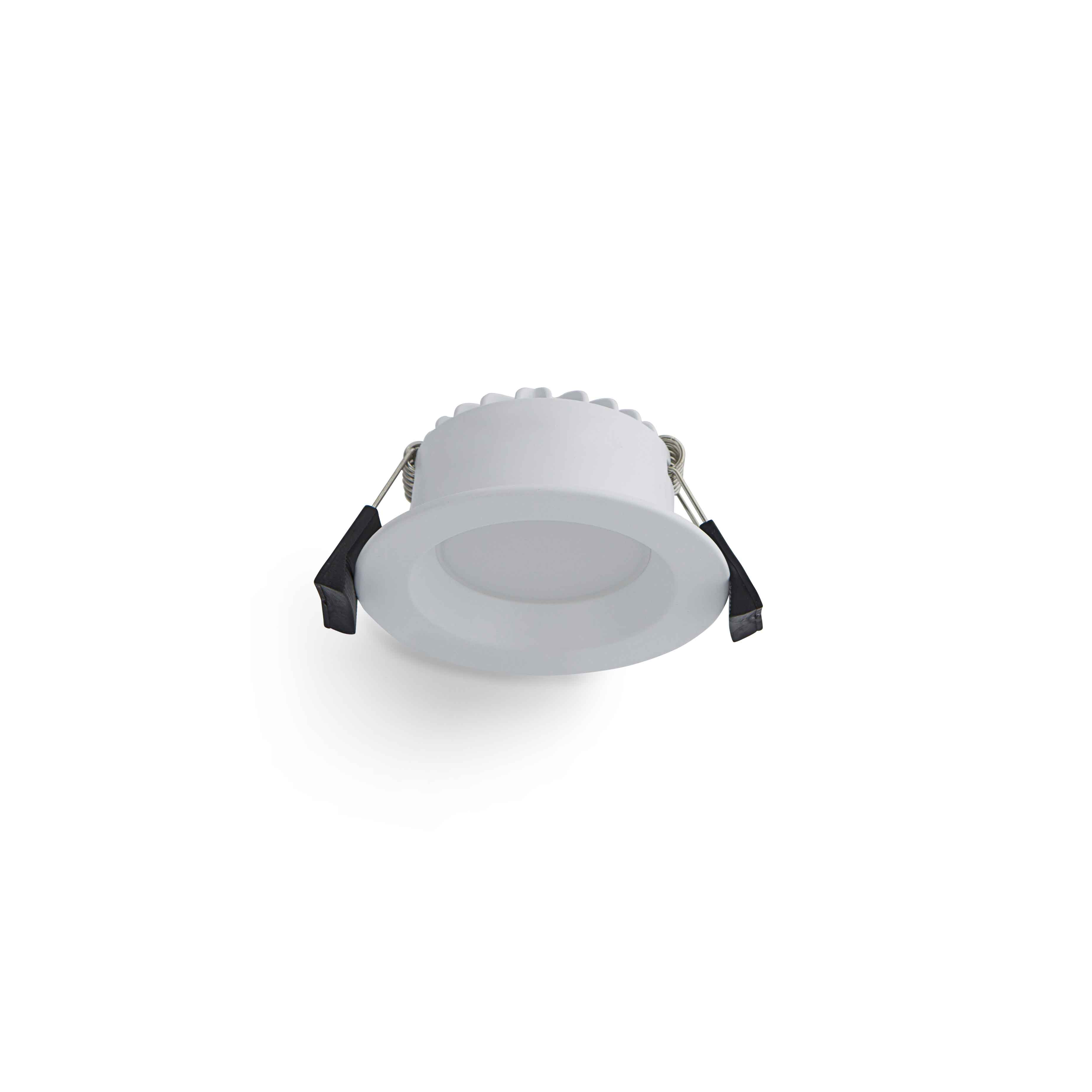

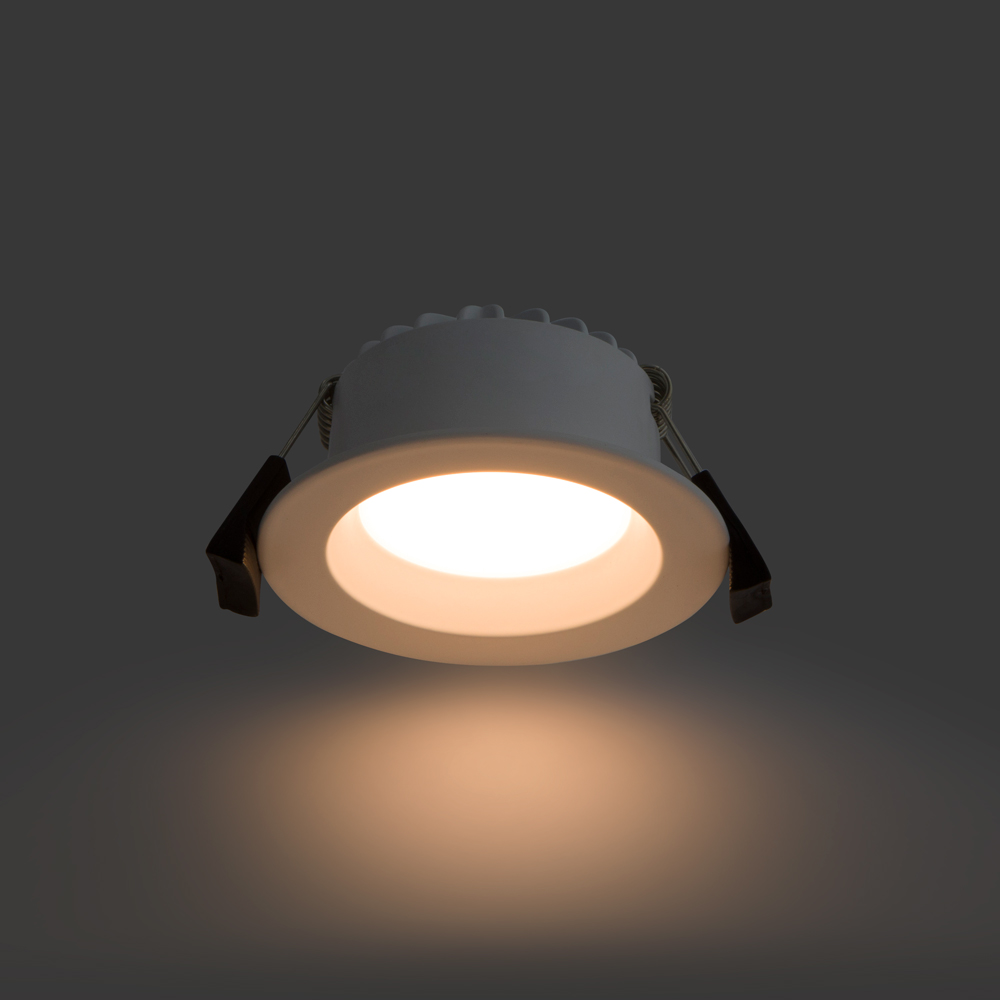

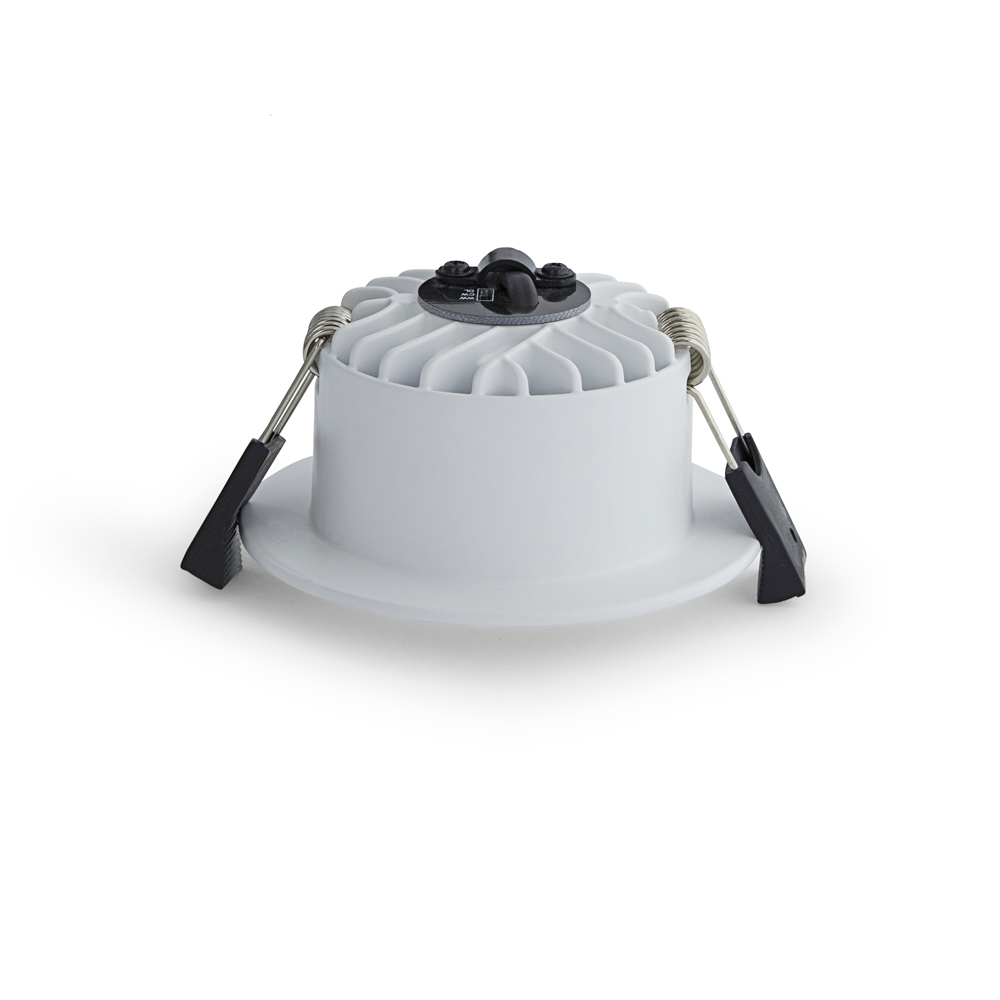

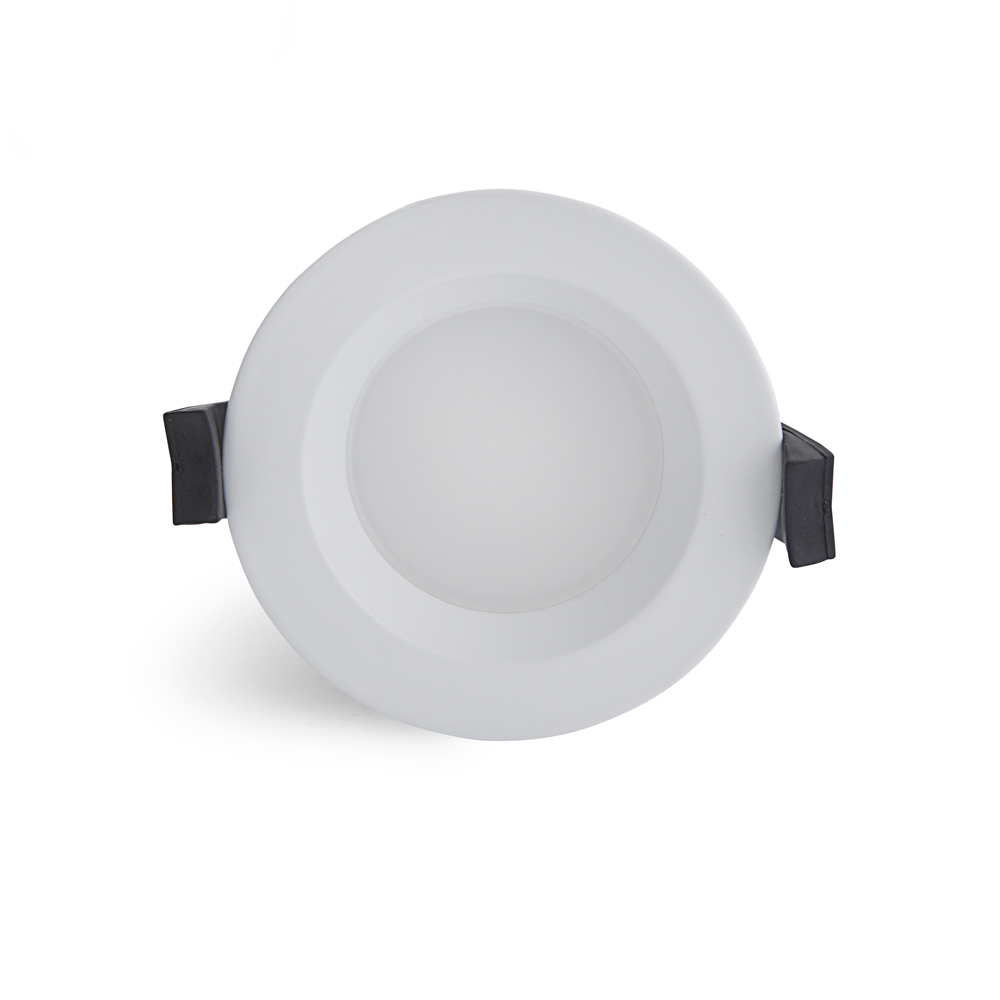

7W LED Tri-Colour Downlight With Dimmable Driver
- 90 Degree Beam angle
- Supplied with Dimmable LED Driver
- Ideal for Residential, retail, showroom and decorative
Specifications
Efficiencies
| Total System Efficiency | 77 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| Adjustability | Fixed |
|---|---|
| Body Material | Aluminium |
| Diffuser Material | PMMA |
| Product Finish | Powdercoated |
| Fitting Colour | White |
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Installation Type | Recessed |
| IP Rating | IP54 Front Face Only |
Electrical
| Electrical Rating | Class II |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | 7 W |
| Switch Type | Inline |
| Working Temp Range | 0 to 40 °C |
Lamp
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
|---|---|
| Beam Angle | 90 ° |
| CCT Configuration | TRI-CCT |
| Colour Rendering Index (CRI) | >90 |
| LED Type | Diffused |
| Maximum Bulb Wattage | 7 W |
| Number of Lamps | 1 |
Colour temperature
| Warm White (3000 K) | 540 lm |
| Cool White (4000 K) | 620 lm |
| DayLight (5700 K) | 590 lm |
Driver
| Dimmable | Yes |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Driver Type | Dimmable ( Phase cut) |

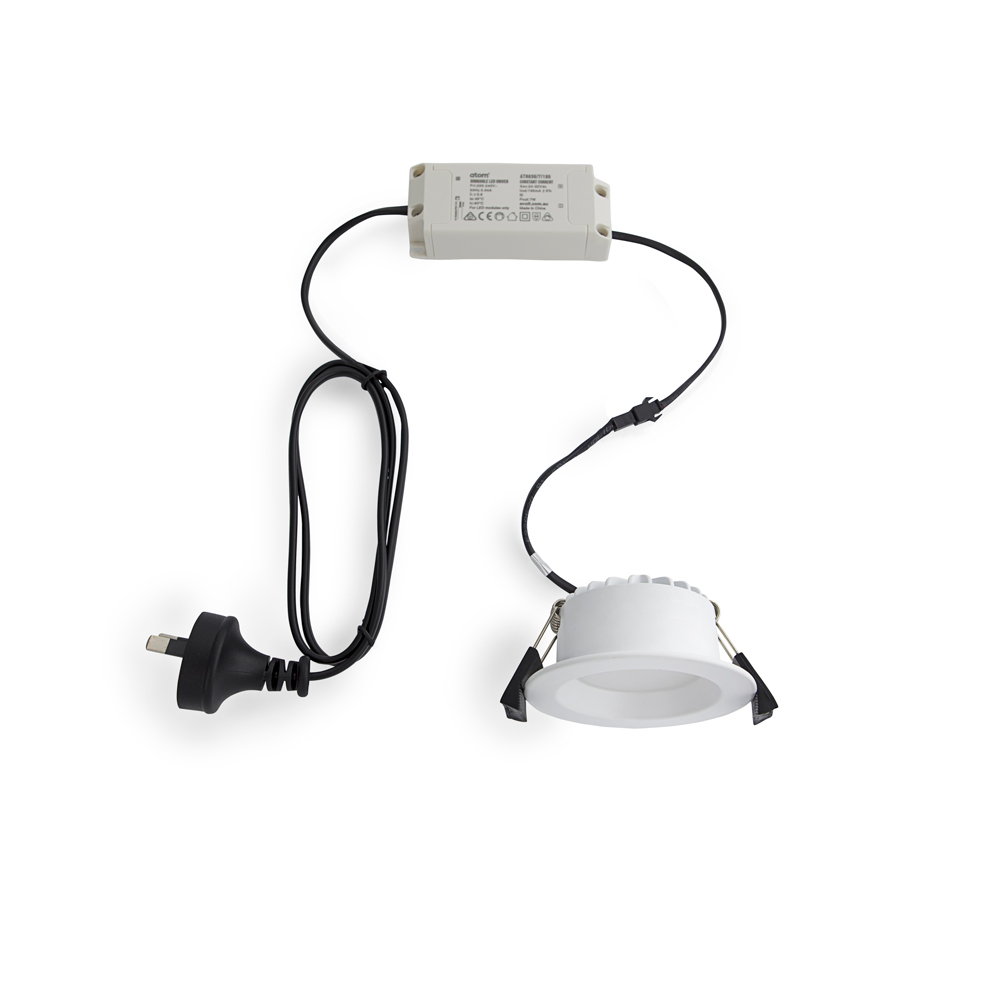

| Wiring Type | Re-wireable Flex & Plug (2 pin) |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|---|
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
Dimensions
| Cutout | 70 mm |
|---|---|
| Product Diameter | 85 mm |
| Product Height | 40 mm |
AT9023/TRI
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 10991 | AT9023/WH/TRI | 7W LED Downlight with Dimmable Driver - 90o beam - White - TRI |
Documents & Downloads
*Auto generated datasheet (beta)
