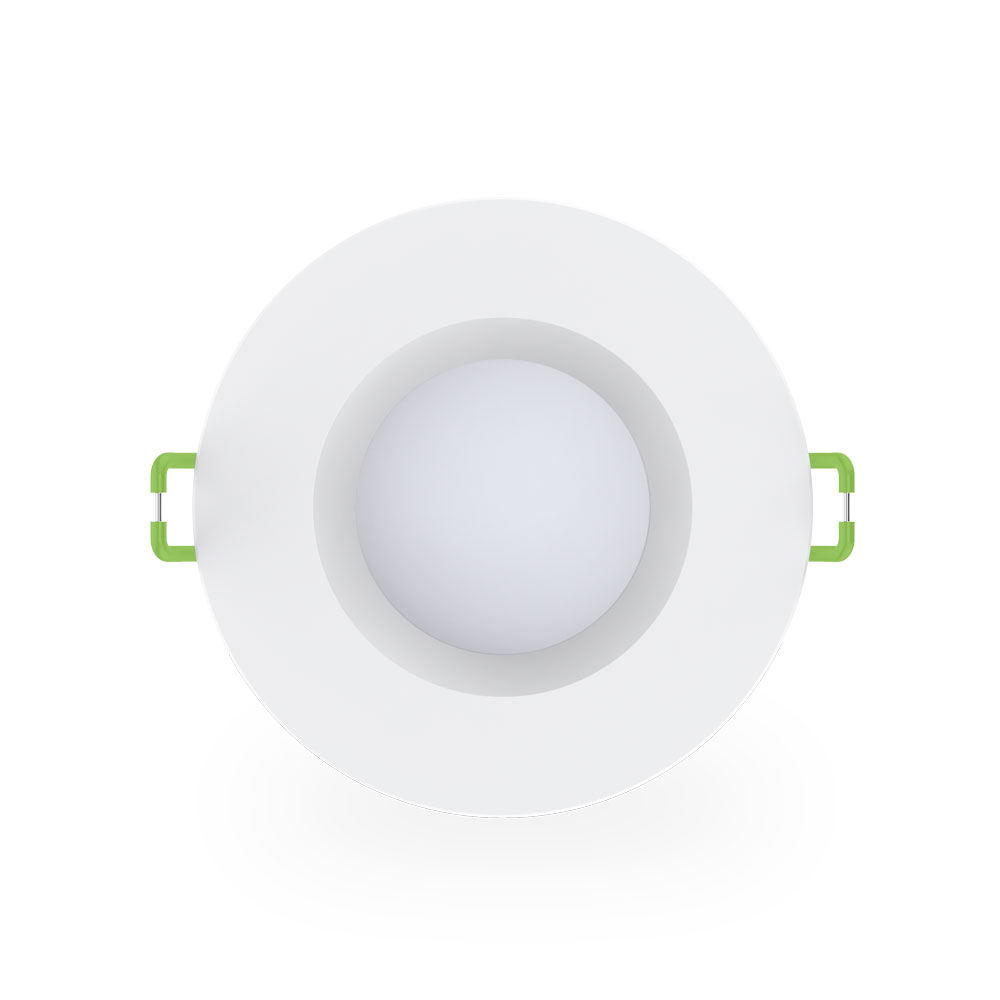

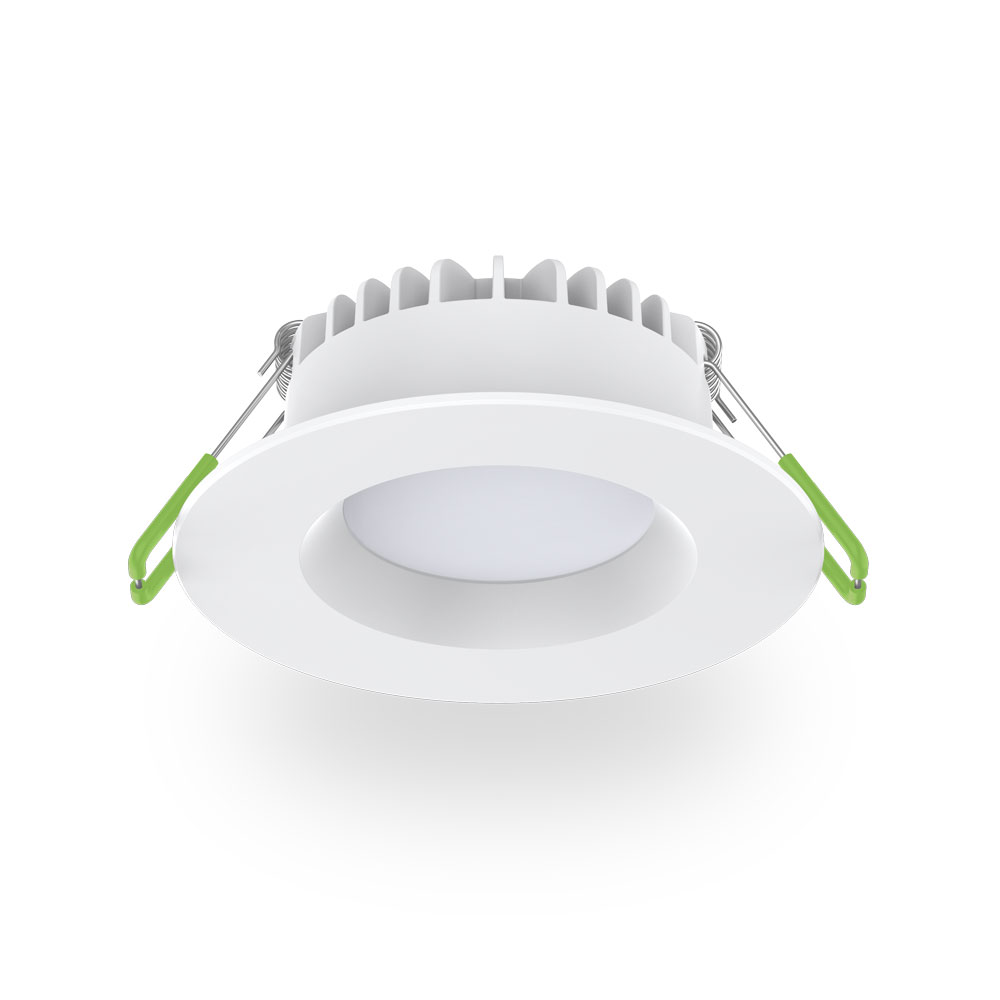

AT9092 Arcus
7W LED power adjustable downlight to suit 72-92mm cutouts – Tri-CCT
- Wide trim plate for cutout compatibility between 72-92mm
- Maximum flexibility on site – dual power selectable: 5W / 7W
- Recessed lens with 100° beam angle
- Tri-CCT selectable: 3000K / 4000K / 5700K
- Dimmable driver with flex and plug
- Flex and plug lead and dimmable driver
Specifications
Mechanical
| IP Rating | IP54 |
|---|---|
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Adjustability | Adjustable |
| Fitting Colour | White |
| Product Finish | White |
| Body Material | ABS Plastic |
| Diffuser Material | PC |
| Installation Type | Recessed |
Electrical
| Working Temp Range | -20 to 40C °C |
|---|---|
| Maximum Wattage | 7 W |
| System Max Wattage | 7 W |
| Input voltage | 220-240V~ 50Hz |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| LED Type | COB |
| CCT Configuration | TRI-CCT |
| Beam Angle | 100 ° |
LED Lifetime
| TM-21 Test Hours | 10000 hrs |
|---|
Colour temperature
| 5 Watts | |
|---|---|
| Warm White (3000 K) | 550 lm |
| Cool White (4000 K) | 590 lm |
| DayLight (5700 K) | 570 lm |
| 7 Watts | |
| Warm White (3000 K) | 750 lm |
| Cool White (4000 K) | 800 lm |
| DayLight (5700 K) | 780 lm |
Driver
| Driver Type | Dimmable ( Phase cut) |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Dimmable | Yes |
| Flex & Plug or Lead Length | 600 mm |
| Wiring Type | Non rewireable Flex & Plug |
Compliance
| Standards |
|
|---|
Warranty
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
|---|---|
| Selected products include VIP on-site warranty support, followed by return-to-base coverage for the remainder of the warranty period. For full warranty details and claim instructions, please refer to our Warranty page. | |
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
Dimensions
| Product Height | 38 mm |
|---|---|
| Minimum Ceiling Depth | 35 mm |
| Cutout | 69 mm |
| Product Diameter | 100 mm |
AT9092/WH
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 11559 | AT9092/WH | ARCUS 7W 800lm recessed downlight to suit 72-92mm cutouts - TRI-CCT - White |
