AT9079

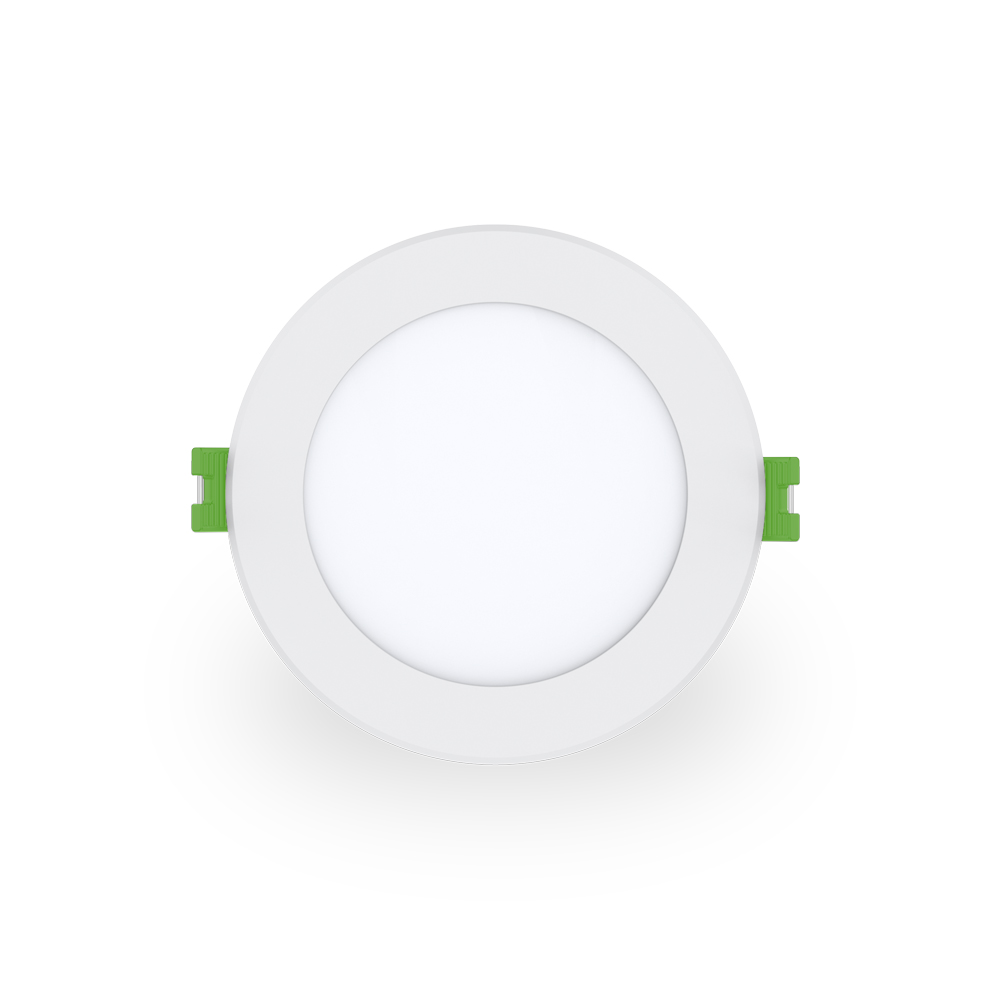

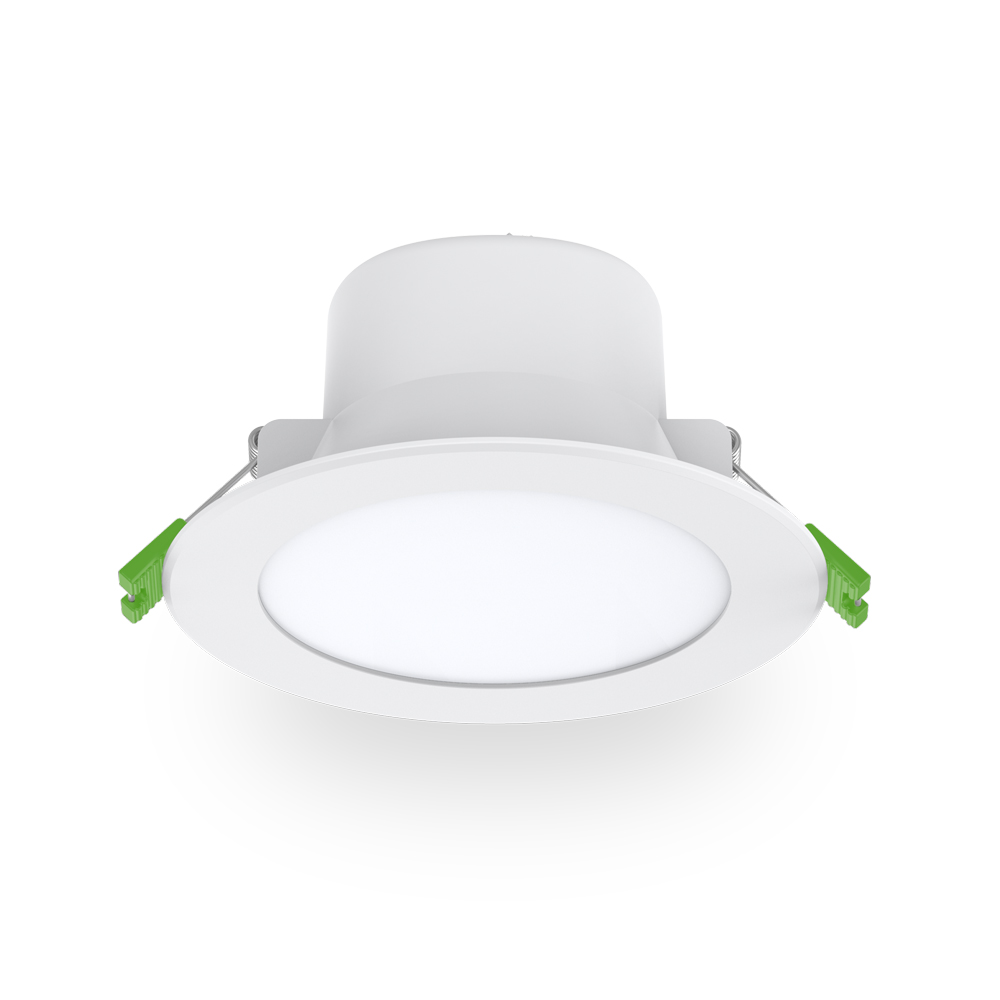

7W LED downlight with integrated driver – Tri-CCT – 20 pack

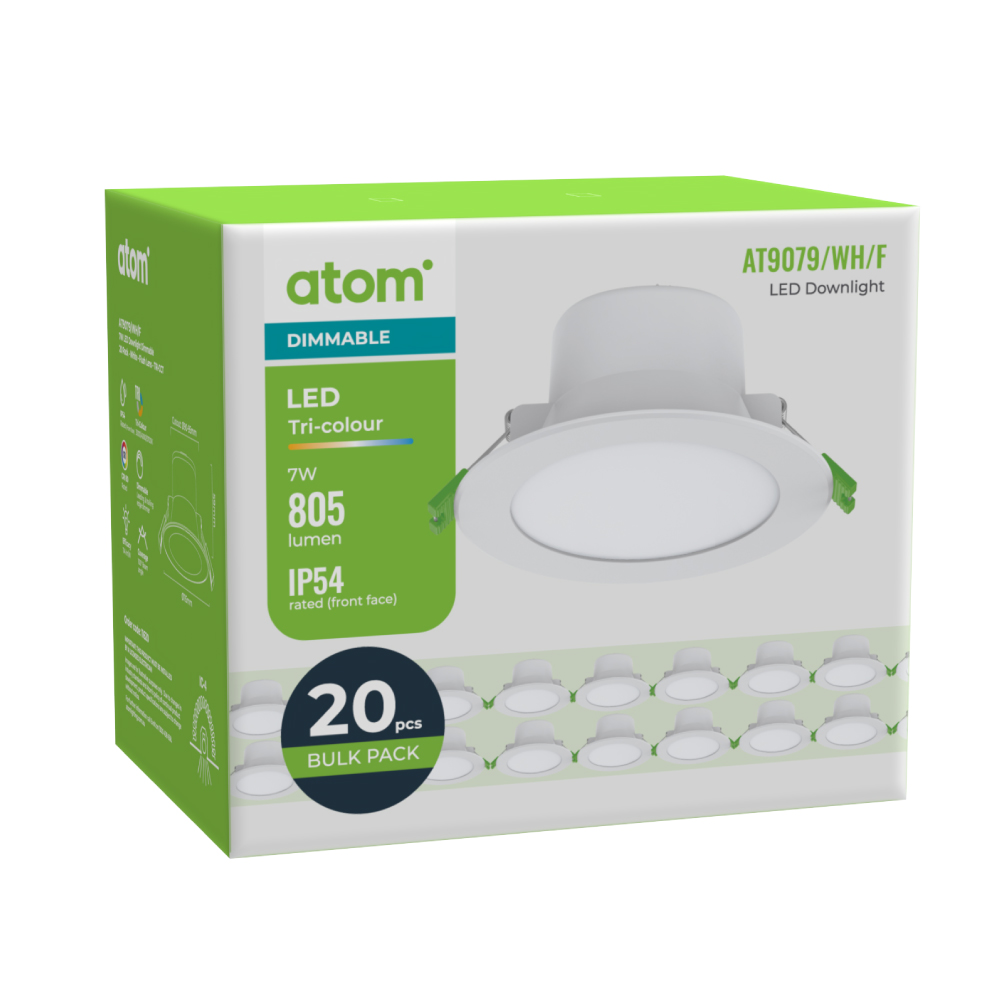

- Value 20 pack of LED downlights
- Integrated dimmable driver
- Tri-CCT with 100 degree beam angle
- IP54 rated front face
- IC-4 and TA40°C rated
- Flex & plug for easy install
Specifications
Efficiencies
| Total System Efficiency | 115 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP54 Front Face Only |
|---|---|
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Adjustability | Fixed |
| Fitting Colour | White |
| Product Finish | White |
| Installation Type | Recessed |
Electrical
| Working Temp Range | -20 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Maximum Wattage | 7 W |
| System Max Wattage | 7 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
| Beam Angle | 100° ° |
LED Lifetime
| LED Lifetime Ratings (Failure rate & lumen depreciation) | |||||||
|---|---|---|---|---|---|---|---|
| |||||||
| This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717. | |||||||
Colour temperature
| 7 Watts | |
|---|---|
| Warm White (3000K K) | 710 lm |
| Cool White (4000K K) | 805 lm |
| DayLight (5700K K) | 760 lm |
Driver
| Driver Type | Dimmable ( Phase cut) |
|---|---|
| Driver Included | Yes |
| Integrated Driver | Yes |
| Dimmable | Yes |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
| Driver Mode | Constant Current |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|
Dimensions
| Product Height | 59 mm |
|---|---|
| Cutout | 90-95mm mm |
| Product Diameter | 115 mm |
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 11620 | AT9079/WH/F | 7W LED downlight 20 Pack - Flush Lens - White - Tri-CCT |
Documents & Downloads
*Auto generated datasheet (beta)
