Ventura
High velocity DC exhaust fan
- DC motor for high airflow with low power use
- Low noise design for a peaceful bathroom
- High airflow performance to clear steam and odours
- Modern matt white fascia with slim profile
- Removable fascia for easy cleaning
- Includes flex and plug, draft stopper, and duct adaptor
- 3-year return to base warranty from Atom Air
Selected Models
- Bright 12W tri-CCT LED panel
- Full face, side-lit design for even light spread
- Moisture-sealed to prevent steam ingress
- Rear tri-CCT switch: 3000K / 4000K / 5000K
Specifications
Mechanical
| IP Rating | IPx4 |
|---|---|
| IC Rating | Do not cover |
| Fitting Colour | White |
| Product Finish | Matt |
| Installation Type | Recessed |
Electrical
| Input Frequency | 50 Hz |
|---|---|
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
Colour temperature
| VENTURA/240/LT/WH/RD VENTURA/295/LT/WH/RD
| |||||||||||||
| VENTURA/240/WH/RD VENTURA/295/WH/RD | |||||||||||||
Air Movement
| Outlet | |
|---|---|
| VENTURA/240/LT/WH/RD VENTURA/240/WH/RD | 125 mm |
| VENTURA/295/LT/WH/RD VENTURA/295/WH/RD | 150 mm |
| Noise level | |
| VENTURA/295/LT/WH/RD VENTURA/295/WH/RD | 37 dB |
| VENTURA/240/LT/WH/RD VENTURA/240/WH/RD | 42 dB |
| Motor Wattage | |
| VENTURA/240/LT/WH/RD VENTURA/240/WH/RD | 20 W |
| VENTURA/295/LT/WH/RD VENTURA/295/WH/RD | 25 W |
| Motor Type | Ball bearing |
| Fan Type | Centrifugal |
| Air extraction | |
| VENTURA/240/LT/WH/RD VENTURA/240/WH/RD | 420 m3/hr |
| VENTURA/295/LT/WH/RD VENTURA/295/WH/RD | 550 m3/hr |
Driver
| Dimmable | No |
|---|
Compliance
| Standards |
|
|---|
Warranty
| VIP Warranty | 5 Year Warranty, RTB |
|---|---|
| Selected products include VIP on-site warranty support, followed by return-to-base coverage for the remainder of the warranty period. For full warranty details and claim instructions, please refer to our Warranty page. | |
Dimensions
| Item Code | Product Height | Product Length | Product Width | Minimum Ceiling Depth | Cutout |
|---|---|---|---|---|---|
| VENTURA/240/LT/WH/RD | 198 mm | 275 mm | 275 mm | 250 mm | 240 mm |
| VENTURA/240/WH/RD | 198 mm | 275 mm | 275 mm | 250 mm | 240 mm |
| VENTURA/295/LT/WH/RD | 230 mm | 320 mm | 320 mm | 250 mm | 295 mm |
| VENTURA/295/WH/RD | 230 mm | 320 mm | 320 mm | 250 mm | 295 mm |

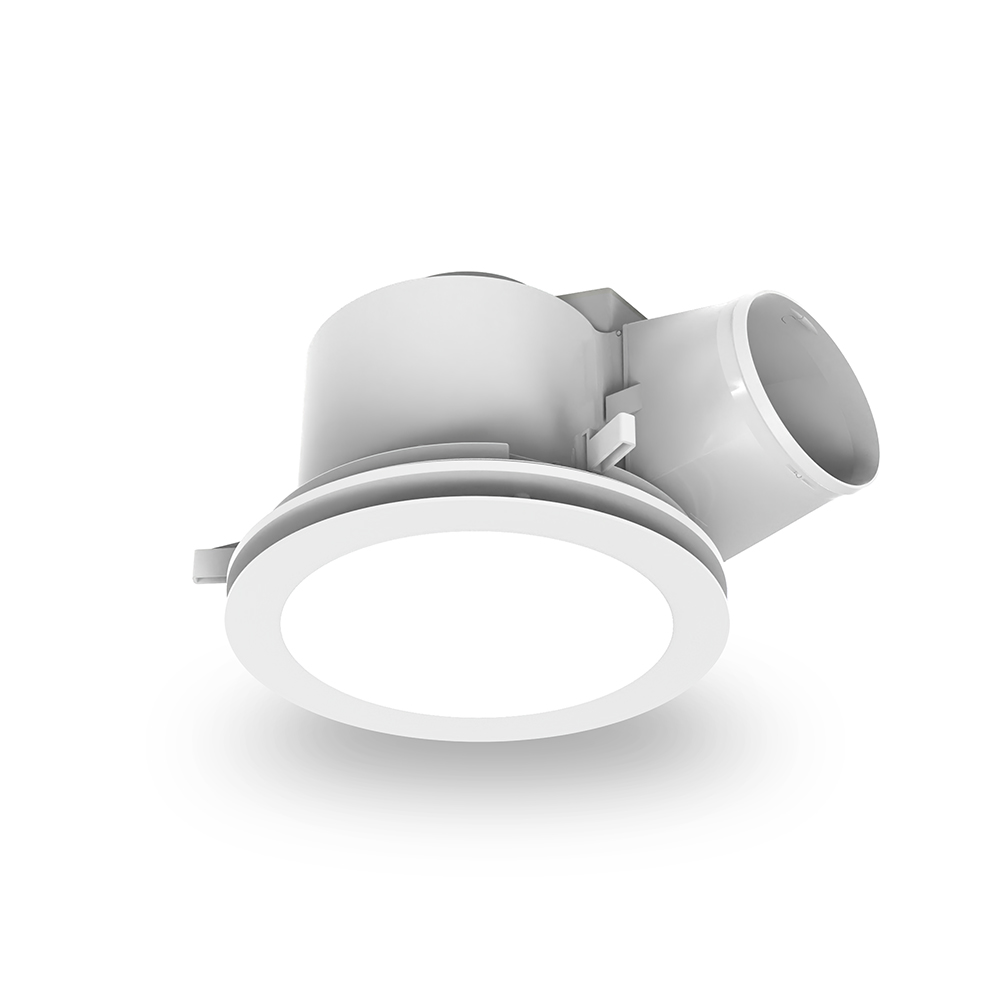

VENTURA/240/LT/WH/RD

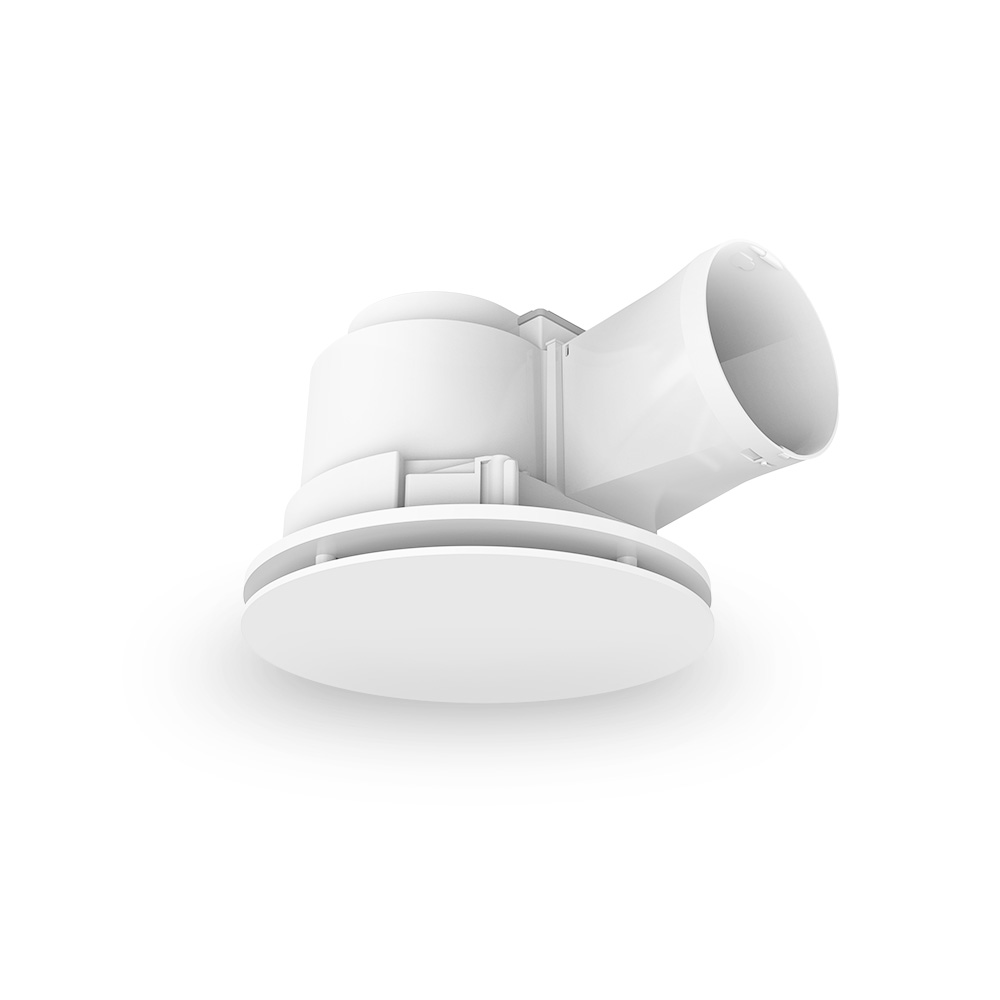

VENTURA/240/WH/RD

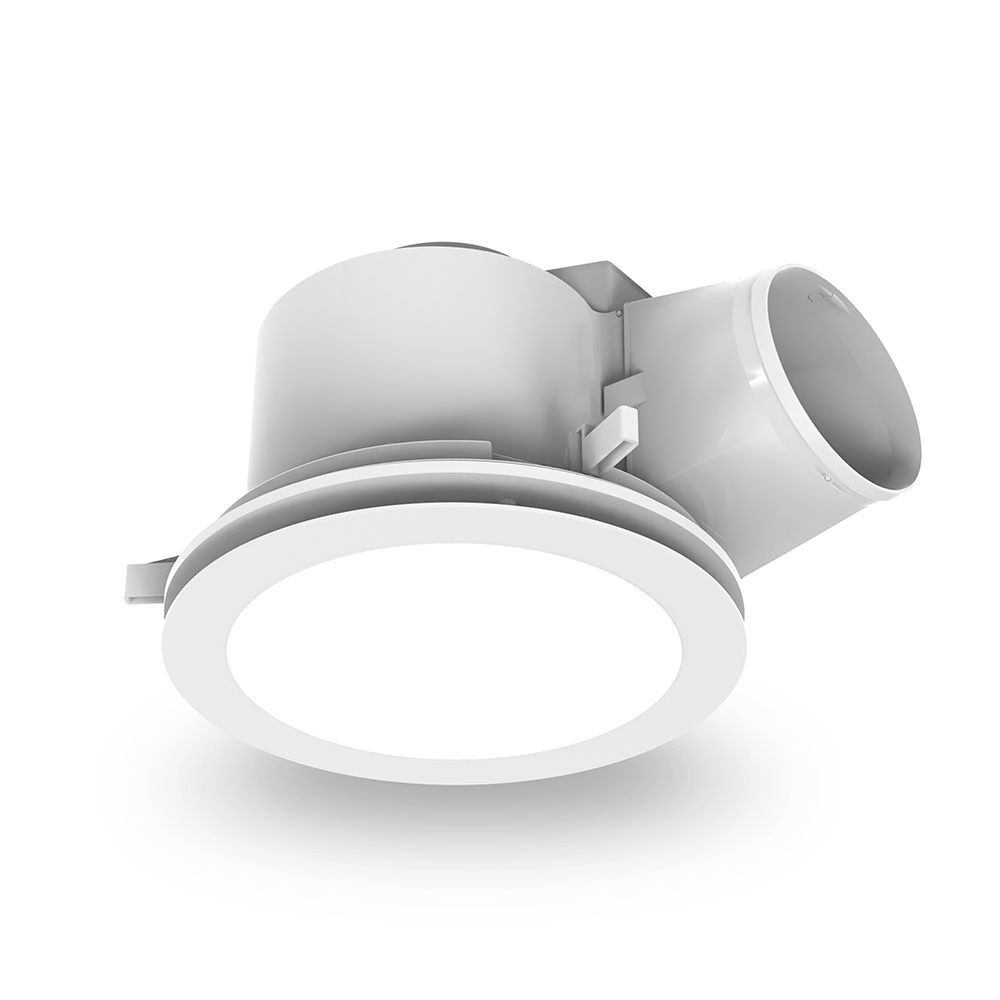

VENTURA/295/LT/WH/RD

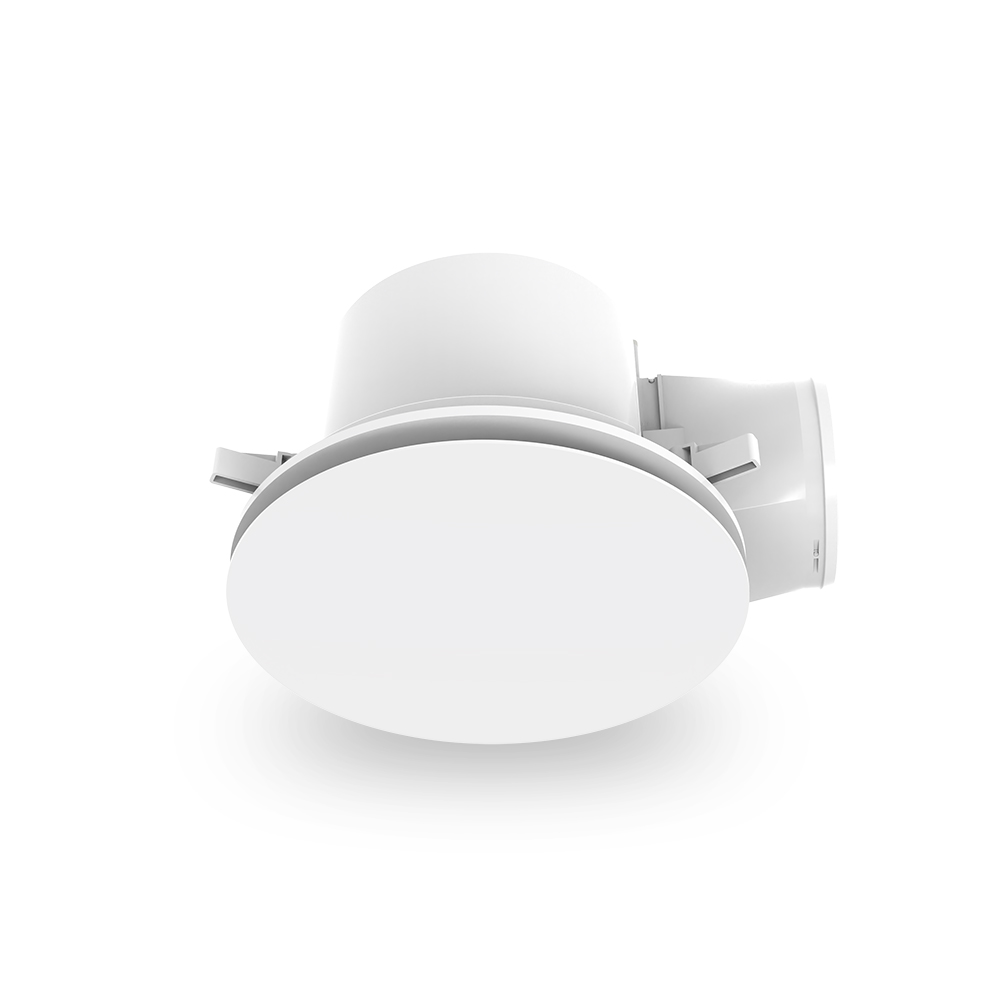

VENTURA/295/WH/RD
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 13525 | VENTURA/240/LT/WH/RD | 240mm 20W Ducted high velocity DC exhaust fan with round white fascia w/Light - Tri-CCT | ||
| 13524 | VENTURA/240/WH/RD | 240mm 20W Ducted high velocity DC exhaust fan w/round white fascia | ||
| 13527 | VENTURA/295/LT/WH/RD | 295mm 25W Ducted high velocity DC exhaust fan with round white fascia w/Light - Tri-CCT | ||
| 13526 | VENTURA/295/WH/RD | 295mm 25W Ducted high velocity DC exhaust fan w/round white fascia |
Documents & Downloads
Instruction Manual
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 14854 | DUCT/125/6M | 125mm x 6m Aluminium Exhaust Duct | ||
| 14853 | DUCT/150/6M | 150mm x 6m Aluminium Exhaust Duct | ||
| 13535 | VENT/125/EXT/WH/SQ | 125mm Exterior exhaust fan wall vent square | ||
| 13536 | VENT/150/EXT/WH/SQ | 150mm Exterior exhaust fan wall vent square |
