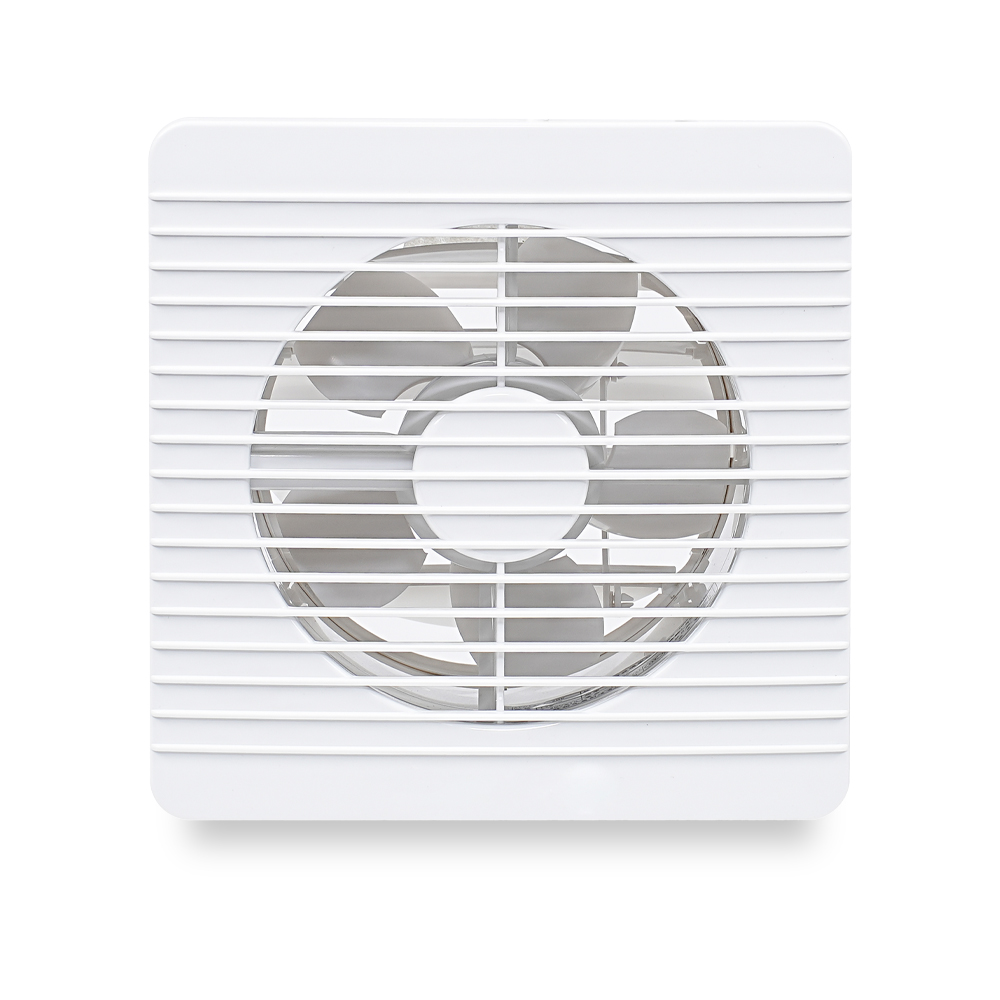

Wallflo
Wall exhaust fan
- Wall-mounted exhaust fan for laundries, kitchens, and sanitary compartments
- Oil bearing motor for superior reliability vertically mounted
- Enjoy quiet operation
- Supplied with flex and plug for easy installation
- Draught stopper for improved energy efficiency
- IPX4 rated to resist water ingress
- 3-year return to base warranty for peace of mind
Specifications
Mechanical
| IP Rating | IPx4 |
|---|---|
| Fitting Colour | White |
| Product Finish | Matt |
| Installation Type | Recessed |
Electrical
| Working Temp Range | 0 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Maximum Wattage | 17 W |
| Input voltage | 220-240V~ |
Air Movement
| Outlet | 153 mm |
|---|---|
| Noise level | 41 dB |
| Motor Wattage | 17 W |
| Motor Type | Oil Bearing |
| Fan Type | Axial flow fan |
| Fan Size | 150 |
| Air extraction | 130 m3/hr |
Driver
| Flex & Plug or Lead Length | 1200 mm |
|---|
Compliance
| Standards |
|
|---|
Warranty
| VIP Warranty | 5 Year Warranty, RTB |
|---|---|
| Selected products include VIP on-site warranty support, followed by return-to-base coverage for the remainder of the warranty period. For full warranty details and claim instructions, please refer to our Warranty page. | |
Dimensions
| Product Height | 200 mm |
|---|---|
| Product Length | 200 mm |
| Product Width | 112 mm |
| Cutout | 150 mm |
WALLFLO/150
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 14849 | WALLFLO/150 | 150mm Wall exhaust fan - White |
Documents & Downloads
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 14851 | TIMER/RO | 1-25min run-on exhaust timer - hardwired |
