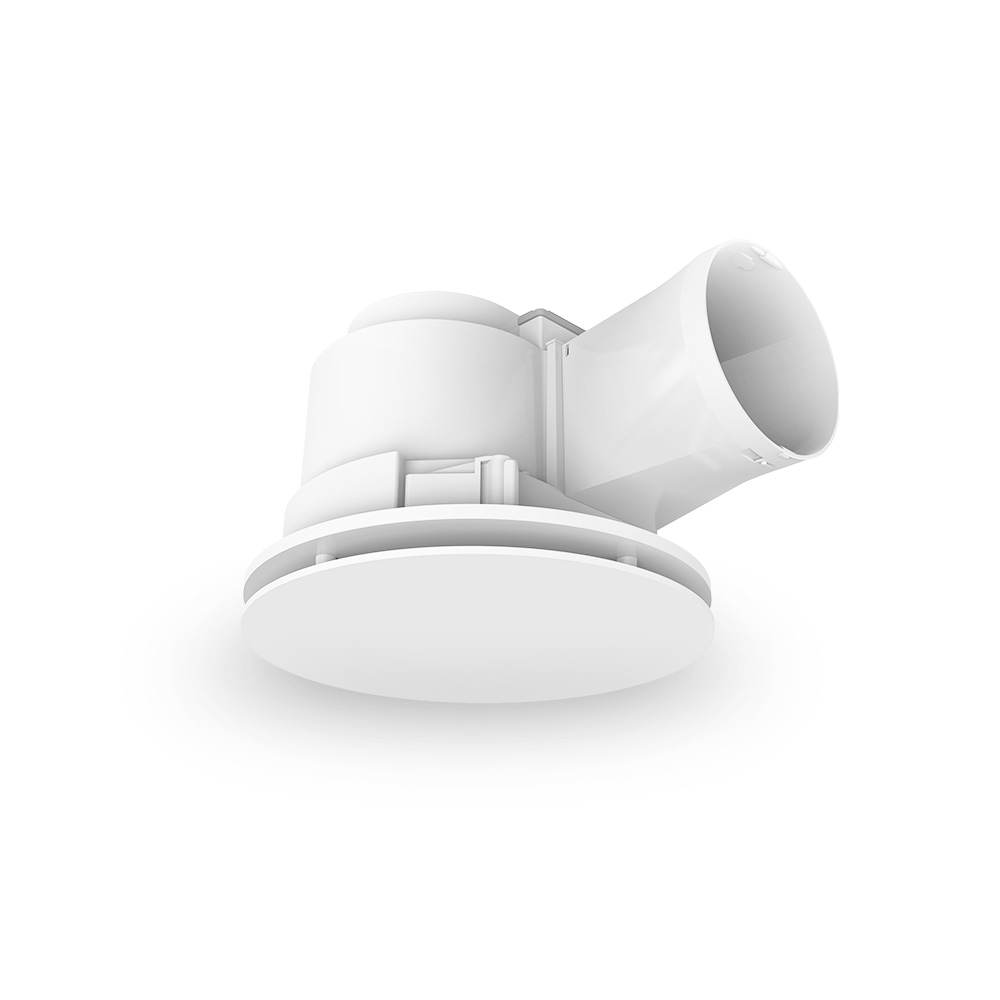

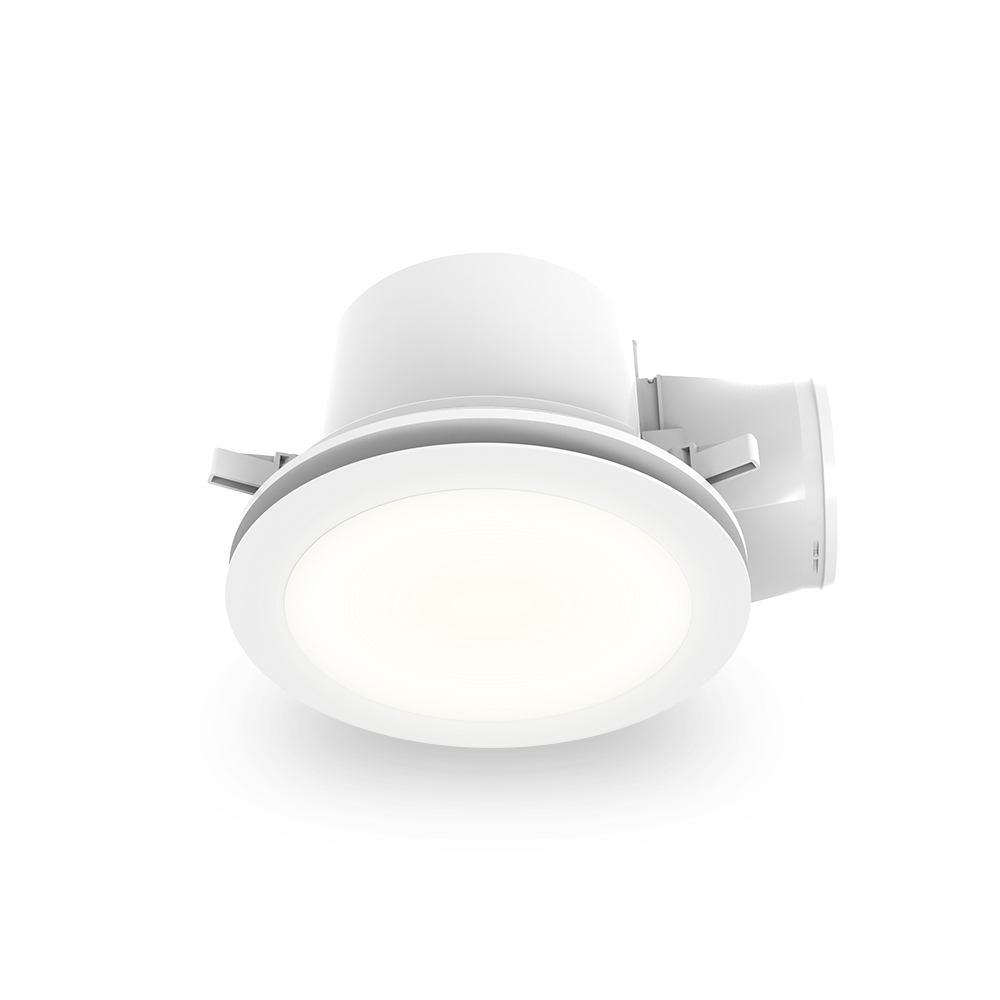

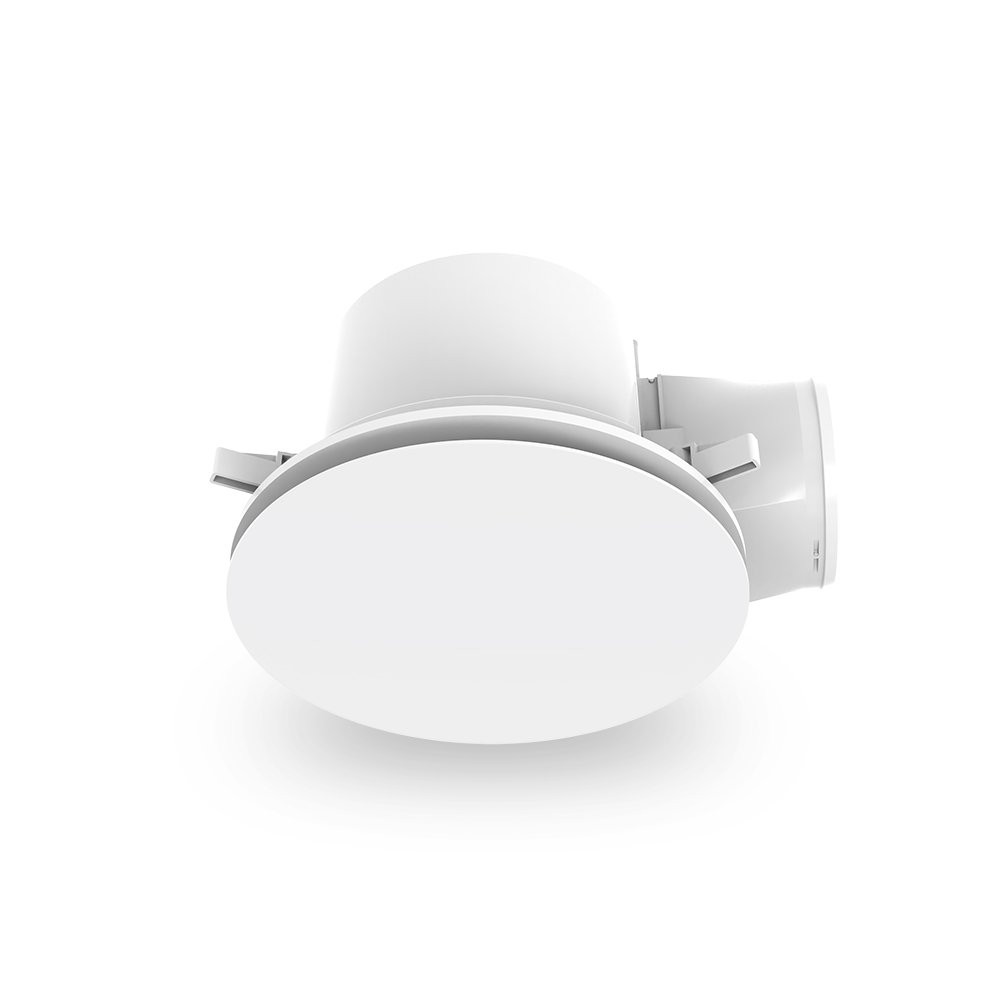

Gust
High velocity ducted exhaust fan
- Powerful ball bearing motor for superior reliability
- High velocity airflow
- Enjoy quiet operation
- Draught stopper for improved energy efficiency
- Supplied with flex and plug for easy DIY installation
- Optional run-on timer accessory (order code 14851)
- 3-year return to base warranty for peace of mind
Specifications
Mechanical
| IP Rating | IPx4 |
|---|---|
| Fitting Colour | White |
| Product Finish | Matt |
| Installation Type | Recessed |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
Air Movement
| Outlet | |
|---|---|
| GUST/240/WH/RD | 125 mm |
| GUST/295/LT/WH/RD GUST/295/WH/RD | 150 mm |
| Noise level | |
| GUST/240/WH/RD | 41 dB |
| GUST/295/LT/WH/RD GUST/295/WH/RD | 45 dB |
| Motor Wattage | |
| GUST/240/WH/RD | 35 W |
| GUST/295/LT/WH/RD GUST/295/WH/RD | 65 W |
| Motor Type | Ball bearing |
| Fan Type | Centrifugal |
| Air extraction | |
| GUST/240/WH/RD | 330 m3/hr |
| GUST/295/LT/WH/RD GUST/295/WH/RD | 640 m3/hr |
Driver
| Flex & Plug or Lead Length | 900 mm |
|---|---|
| Wiring Type | Re-wireable Flex & Plug (3 pin) |
Compliance
| Daily Use | 2 hrs |
|---|---|
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| Warranty | 5 Year Warranty, RTB |
|---|---|
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
| Warranty Operating Hours | 2500 hrs |
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
Dimensions
| Item Code | Product Height | Product Length | Product Width | Minimum Ceiling Depth | Cutout |
|---|---|---|---|---|---|
| GUST/240/WH/RD | 198 mm | 275 mm | 275 mm | 200 mm | 240 mm |
| GUST/295/LT/WH/RD | 230 mm | 320 mm | 320 mm | 240 mm | 295 mm |
| GUST/295/WH/RD | 230 mm | 320 mm | 320 mm | 240 mm | 295 mm |
GUST/240/WH/RD
GUST/295/LT/WH/RD
GUST/295/WH/RD
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 15558 | GUST/240/WH/RD | 240mm 35W Ducted high velocity exhaust fan w/ round white fascia | ||
| 16764 | GUST/295/LT/WH/RD | 295mm 65W Ducted high velocity exhaust fan w/ round white fascia w/Light - Tri-CCT | ||
| 16763 | GUST/295/WH/RD | 295mm 65W Ducted high velocity exhaust fan with round white fascia |
Documents & Downloads
Instruction Manual
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 14854 | DUCT/125/6M | 125mm x 6m Aluminium Exhaust Duct | ||
| 14853 | DUCT/150/6M | 150mm x 6m Aluminium Exhaust Duct | ||
| 14851 | TIMER/RO | 1-25min run-on exhaust timer - hardwired | ||
| 13535 | VENT/125/EXT/WH/SQ | 125mm Exterior exhaust fan wall vent square | ||
| 13536 | VENT/150/EXT/WH/SQ | 150mm Exterior exhaust fan wall vent square |
