Specifications

Mechanical

Product Finish	Matt
Fitting Colour	White
IC Rating	Do not cover
Installation Type	Recessed
IP Rating	IPx4

Electrical

Electrical Rating	Class I
Input Frequency	50 Hz
Input voltage	230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Working Temp Range	-10 to 40 °C

Lamp

CCT Configuration	TRI-CCT
Colour Rendering Index (CRI)	>80

Colour temperature

ECLIPSE/240/LT/WH/RD

12 Watts
Warm White (3000 K)	900 lm
Cool White (4000 K)	1000 lm
DayLight (5000 K)	900 lm

ECLIPSE/240/WH/RD
ECLIPSE/240/WH/SQ
ECLIPSE/290/WH/RD
ECLIPSE/290/WH/SQ

ECLIPSE/290/LT/WH/RD

18 Watts
Warm White (3000 K)	1300 lm
Cool White (4000 K)	1500 lm
DayLight (5000 K)	1300 lm

Air Movement

Outlet
ECLIPSE/240/LT/WH/RD ECLIPSE/240/WH/RD ECLIPSE/240/WH/SQ	100 mm
ECLIPSE/290/LT/WH/RD ECLIPSE/290/WH/RD ECLIPSE/290/WH/SQ	150 mm

Noise level
ECLIPSE/240/LT/WH/RD ECLIPSE/240/WH/RD ECLIPSE/240/WH/SQ	42 dB
ECLIPSE/290/LT/WH/RD ECLIPSE/290/WH/RD ECLIPSE/290/WH/SQ	45 dB

Motor Wattage
ECLIPSE/240/LT/WH/RD ECLIPSE/240/WH/RD ECLIPSE/240/WH/SQ	30 W
ECLIPSE/290/LT/WH/RD ECLIPSE/290/WH/RD ECLIPSE/290/WH/SQ	35 W

Motor Type	Ball bearing
Fan Type	Centrifugal
Fan Size
ECLIPSE/240/LT/WH/RD ECLIPSE/240/WH/RD ECLIPSE/240/WH/SQ	240
ECLIPSE/290/LT/WH/RD ECLIPSE/290/WH/RD ECLIPSE/290/WH/SQ	290

Air extraction
ECLIPSE/240/LT/WH/RD ECLIPSE/240/WH/RD ECLIPSE/240/WH/SQ	270 m3/hr
ECLIPSE/290/LT/WH/RD ECLIPSE/290/WH/RD ECLIPSE/290/WH/SQ	350 m3/hr

Driver

Flex & Plug or Lead Length	900 mm
Wiring Type	Re-wireable Flex & Plug (3 pin)

Compliance

Product Design Life	10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use	2 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards	AS/NZS 60335.1 AS/NZS 60335.2.80 AS/NZS 60598.1 AS/NZS 60598.2.2 AS/NZS CISPR 14.1 AS CISPR 15

Warranty

Domestic Use Warranty	3 RTB (Total 3 Years)
Warranty Operating Hours	2500 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).

Dimensions

Item Code	Minimum Ceiling Depth	Cutout	Product Height	Product Length	Product Width
ECLIPSE/240/LT/WH/RD	220 mm	240 mm	195 mm	270 mm	270 mm
ECLIPSE/240/WH/RD	220 mm	240 mm	195 mm	270 mm	270 mm
ECLIPSE/240/WH/SQ	220 mm	240 mm	195 mm	270 mm	270 mm
ECLIPSE/290/LT/WH/RD	220 mm	290 mm	195 mm	330 mm	330 mm
ECLIPSE/290/WH/RD	220 mm	290 mm	195 mm	330 mm	330 mm
ECLIPSE/290/WH/SQ	220 mm	290 mm	195 mm	330 mm	330 mm

ECLIPSE/240/LT/WH/RD

ECLIPSE/240/WH/RD

ECLIPSE/240/WH/SQ

ECLIPSE/290/LT/WH/RD

ECLIPSE/290/WH/RD

ECLIPSE/290/WH/SQ

Ordering Information

Order code	Item code	Description

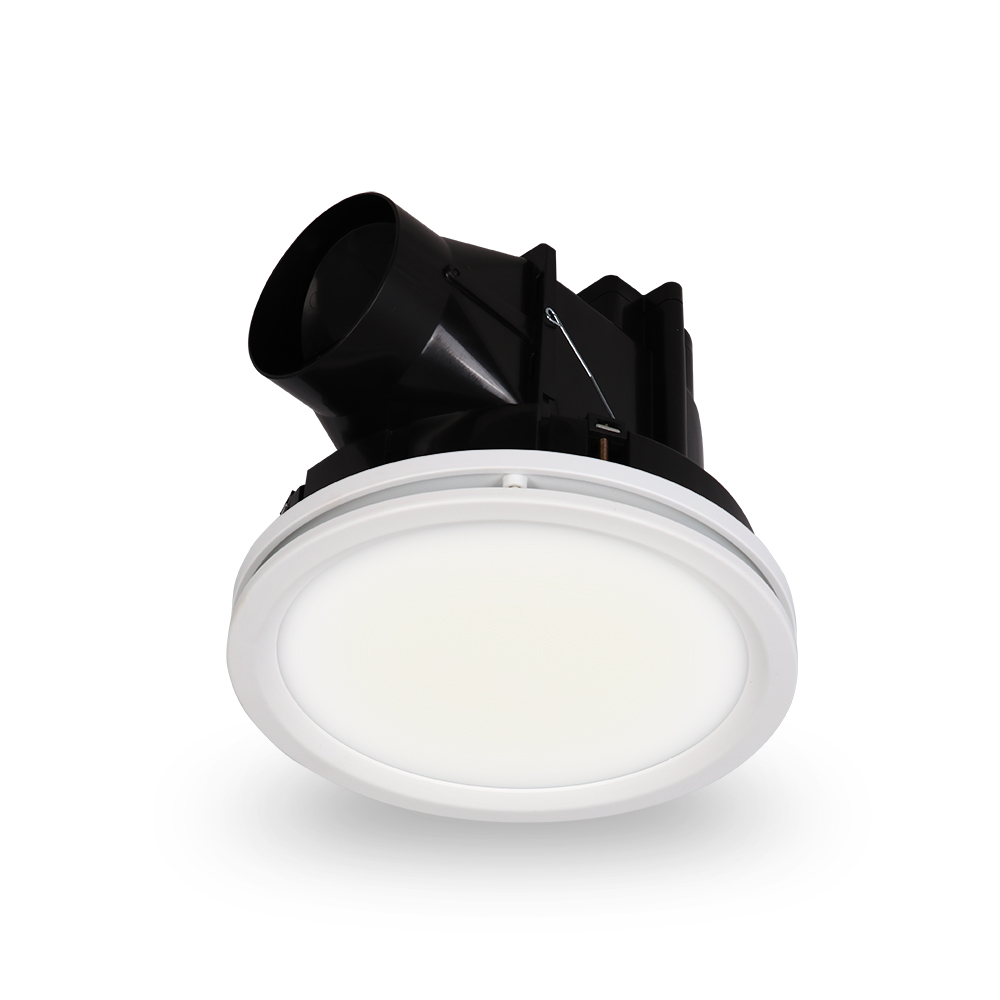

16759	ECLIPSE/240/LT/WH/RD	240mm 30W Ducted exhaust fan with round white fascia w/Light - Tri-CCT
16757	ECLIPSE/240/WH/RD	240mm 30W Ducted exhaust fan with round white fascia

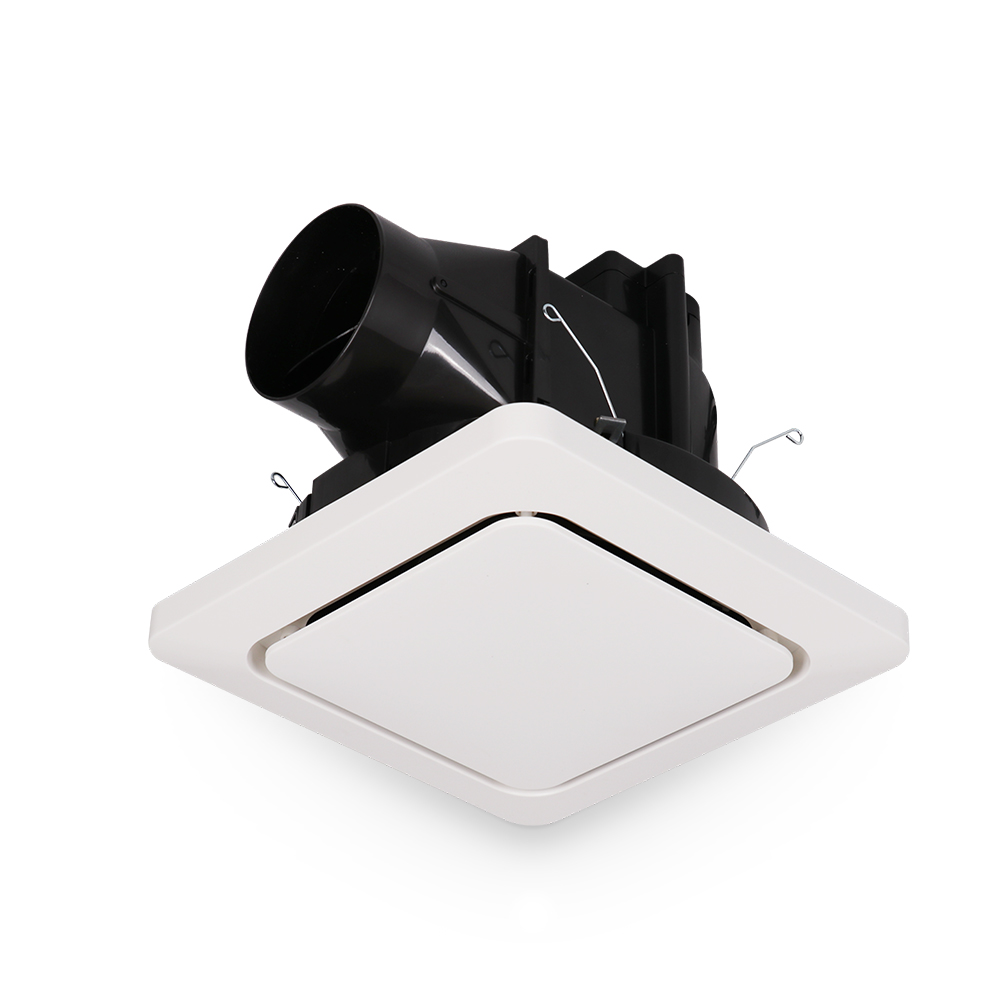

16784	ECLIPSE/240/WH/SQ	240mm 30W Ducted exhaust fan with square white fascia

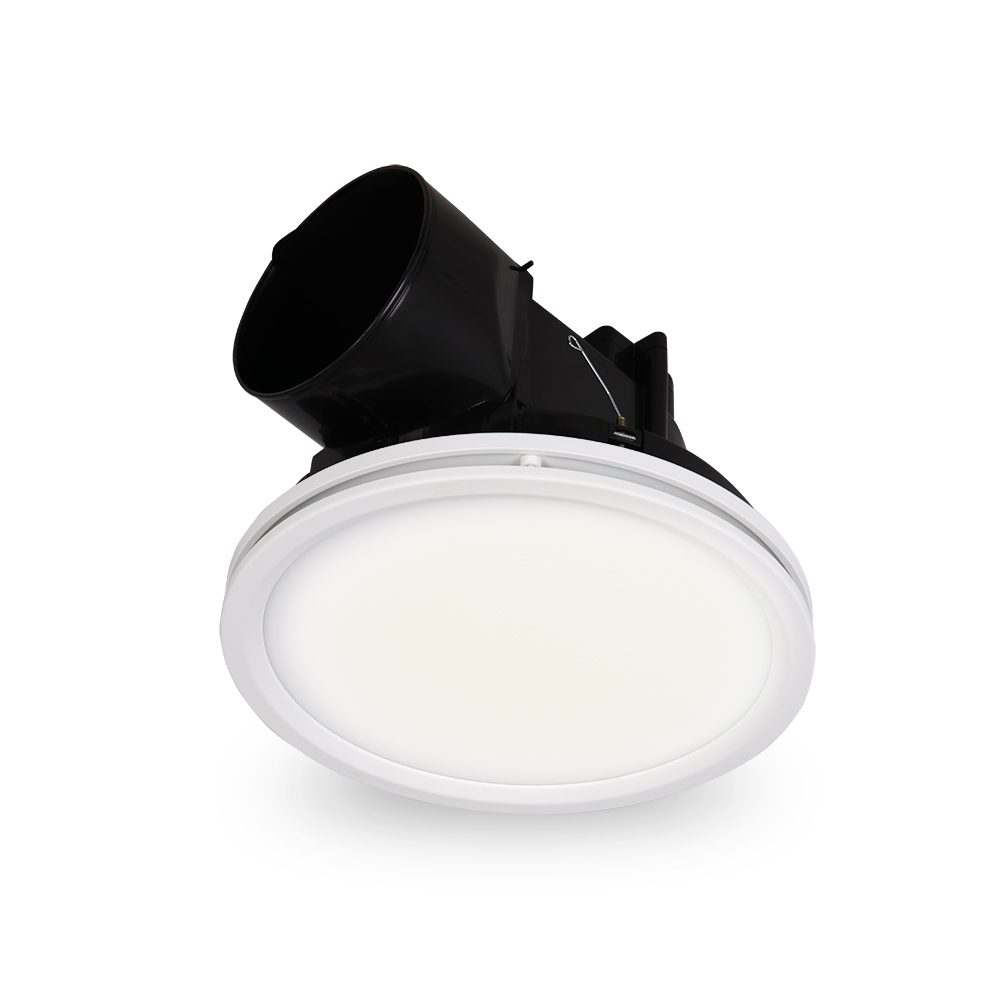

16760	ECLIPSE/290/LT/WH/RD	290mm 35W Ducted exhaust fan with round white fascia w/Light - Tri-CCT

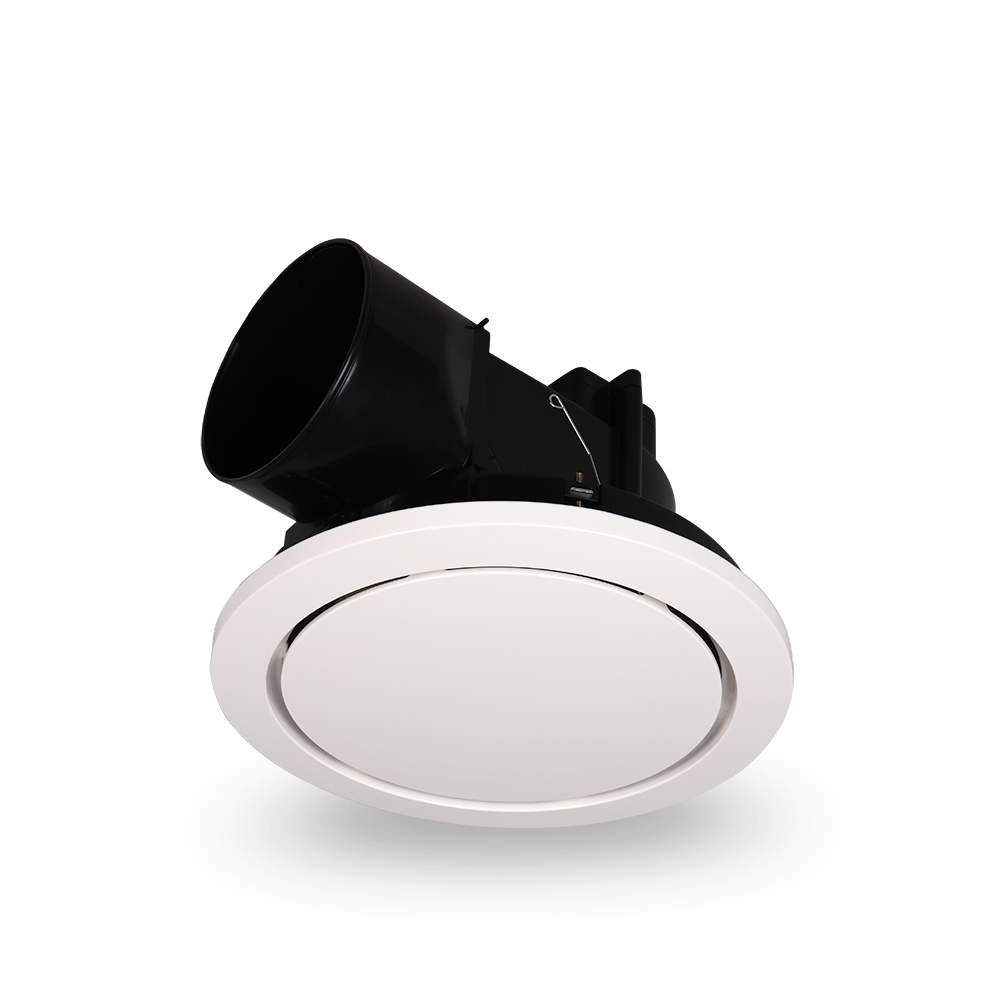

16758	ECLIPSE/290/WH/RD	290mm 35W Ducted exhaust fan with round white fascia

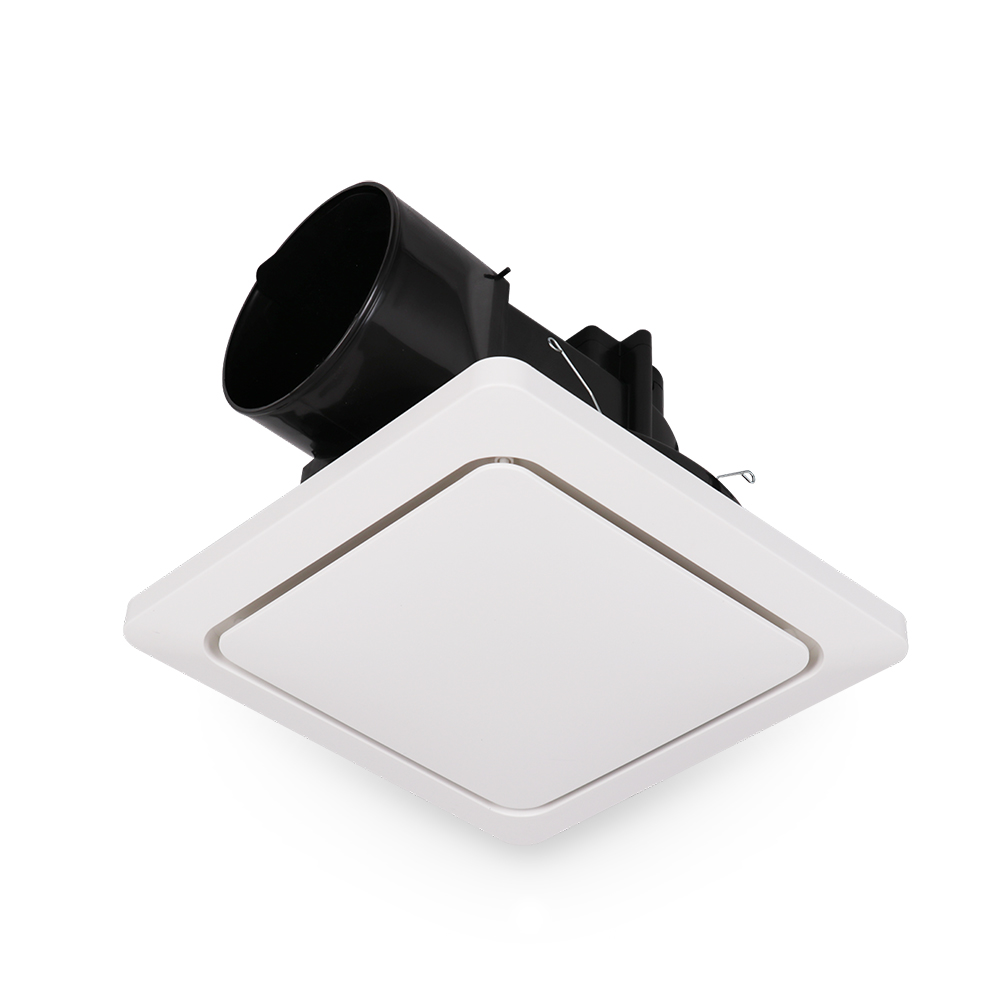

16785	ECLIPSE/290/WH/SQ	290mm 35W Ducted exhaust fan with Square white fascia

Documents & Downloads

Instruction Manual

Datasheet

Compliance

^*Auto generated datasheet (beta)

Accessories

Order code	Item code	Description
12677	AT9492	125mm Duct Adapter to suit Small Eclipse
16776	ECLIPSE/TRIM/240/B/RD	240mm round exhaust fan fascia - matt black
16780	ECLIPSE/TRIM/240/B/SQ	240mm square exhaust fan fascia - matt black
16782	ECLIPSE/TRIM/240/LT/WH/SQ	240mm square exhaust fan fascia w/LED Light - matt white - Tri-cct
16778	ECLIPSE/TRIM/240/WH/SQ	240mm square exhaust fan fascia - matt white
16777	ECLIPSE/TRIM/290/B/RD	290mm round exhaust fan fascia - matt black
16781	ECLIPSE/TRIM/290/B/SQ	290mm square exhaust fan fascia - matt black
16783	ECLIPSE/TRIM/290/LT/WH/SQ	290mm square exhaust fan fascia w/LED Light - matt white - Tri-cct
16779	ECLIPSE/TRIM/290/WH/SQ	290mm square exhaust fan fascia - matt white

Eclipse

$0.00

Ducted exhaust fan

Powerful ball bearing motor for superior reliability
Enjoy quiet operation
Supplied with flex and plug for easy DIY installation
3-year return to base warranty for peace of mind
Draught stopper for improved energy efficiency

Selected Models

Tri-CCT LED panel provides energy-efficient illumination

SKU: Eclipse Category: Exhaust Tags: Ipx4, TRI-CCT

Product Finish	Matt
Fitting Colour	White
IC Rating	Do not cover
Installation Type	Recessed
IP Rating	IPx4

Electrical Rating	Class I
Input Frequency	50 Hz
Input voltage	230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Working Temp Range	-10 to 40 °C

CCT Configuration	TRI-CCT
Colour Rendering Index (CRI)	>80

12 Watts
Warm White (3000 K)	900 lm
Cool White (4000 K)	1000 lm
DayLight (5000 K)	900 lm

18 Watts
Warm White (3000 K)	1300 lm
Cool White (4000 K)	1500 lm
DayLight (5000 K)	1300 lm

Outlet
ECLIPSE/240/LT/WH/RD ECLIPSE/240/WH/RD ECLIPSE/240/WH/SQ	100 mm
ECLIPSE/290/LT/WH/RD ECLIPSE/290/WH/RD ECLIPSE/290/WH/SQ	150 mm

Noise level
ECLIPSE/240/LT/WH/RD ECLIPSE/240/WH/RD ECLIPSE/240/WH/SQ	42 dB
ECLIPSE/290/LT/WH/RD ECLIPSE/290/WH/RD ECLIPSE/290/WH/SQ	45 dB

Motor Wattage
ECLIPSE/240/LT/WH/RD ECLIPSE/240/WH/RD ECLIPSE/240/WH/SQ	30 W
ECLIPSE/290/LT/WH/RD ECLIPSE/290/WH/RD ECLIPSE/290/WH/SQ	35 W

Motor Type	Ball bearing
Fan Type	Centrifugal
Fan Size
ECLIPSE/240/LT/WH/RD ECLIPSE/240/WH/RD ECLIPSE/240/WH/SQ	240
ECLIPSE/290/LT/WH/RD ECLIPSE/290/WH/RD ECLIPSE/290/WH/SQ	290

Air extraction
ECLIPSE/240/LT/WH/RD ECLIPSE/240/WH/RD ECLIPSE/240/WH/SQ	270 m3/hr
ECLIPSE/290/LT/WH/RD ECLIPSE/290/WH/RD ECLIPSE/290/WH/SQ	350 m3/hr

Flex & Plug or Lead Length	900 mm
Wiring Type	Re-wireable Flex & Plug (3 pin)

Product Design Life	10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use	2 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards	AS/NZS 60335.1 AS/NZS 60335.2.80 AS/NZS 60598.1 AS/NZS 60598.2.2 AS/NZS CISPR 14.1 AS CISPR 15

Domestic Use Warranty	3 RTB (Total 3 Years)
Warranty Operating Hours	2500 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).

Item Code	Minimum Ceiling Depth	Cutout	Product Height	Product Length	Product Width
ECLIPSE/240/LT/WH/RD	220 mm	240 mm	195 mm	270 mm	270 mm
ECLIPSE/240/WH/RD	220 mm	240 mm	195 mm	270 mm	270 mm
ECLIPSE/240/WH/SQ	220 mm	240 mm	195 mm	270 mm	270 mm
ECLIPSE/290/LT/WH/RD	220 mm	290 mm	195 mm	330 mm	330 mm
ECLIPSE/290/WH/RD	220 mm	290 mm	195 mm	330 mm	330 mm
ECLIPSE/290/WH/SQ	220 mm	290 mm	195 mm	330 mm	330 mm

Order code	Item code	Description
16759	ECLIPSE/240/LT/WH/RD	240mm 30W Ducted exhaust fan with round white fascia w/Light - Tri-CCT
16757	ECLIPSE/240/WH/RD	240mm 30W Ducted exhaust fan with round white fascia
16784	ECLIPSE/240/WH/SQ	240mm 30W Ducted exhaust fan with square white fascia
16760	ECLIPSE/290/LT/WH/RD	290mm 35W Ducted exhaust fan with round white fascia w/Light - Tri-CCT
16758	ECLIPSE/290/WH/RD	290mm 35W Ducted exhaust fan with round white fascia
16785	ECLIPSE/290/WH/SQ	290mm 35W Ducted exhaust fan with Square white fascia

Order code	Item code	Description
12677	AT9492	125mm Duct Adapter to suit Small Eclipse
16776	ECLIPSE/TRIM/240/B/RD	240mm round exhaust fan fascia - matt black
16780	ECLIPSE/TRIM/240/B/SQ	240mm square exhaust fan fascia - matt black
16782	ECLIPSE/TRIM/240/LT/WH/SQ	240mm square exhaust fan fascia w/LED Light - matt white - Tri-cct
16778	ECLIPSE/TRIM/240/WH/SQ	240mm square exhaust fan fascia - matt white
16777	ECLIPSE/TRIM/290/B/RD	290mm round exhaust fan fascia - matt black
16781	ECLIPSE/TRIM/290/B/SQ	290mm square exhaust fan fascia - matt black
16783	ECLIPSE/TRIM/290/LT/WH/SQ	290mm square exhaust fan fascia w/LED Light - matt white - Tri-cct
16779	ECLIPSE/TRIM/290/WH/SQ	290mm square exhaust fan fascia - matt white
