AT9431
AT9431
Home Lamps Stick AT9431
AT9045 /6 /7
AT9045 /6 /7 $0.00
Back to products
AT9039
AT9039 $0.00

AT9431

$0.00

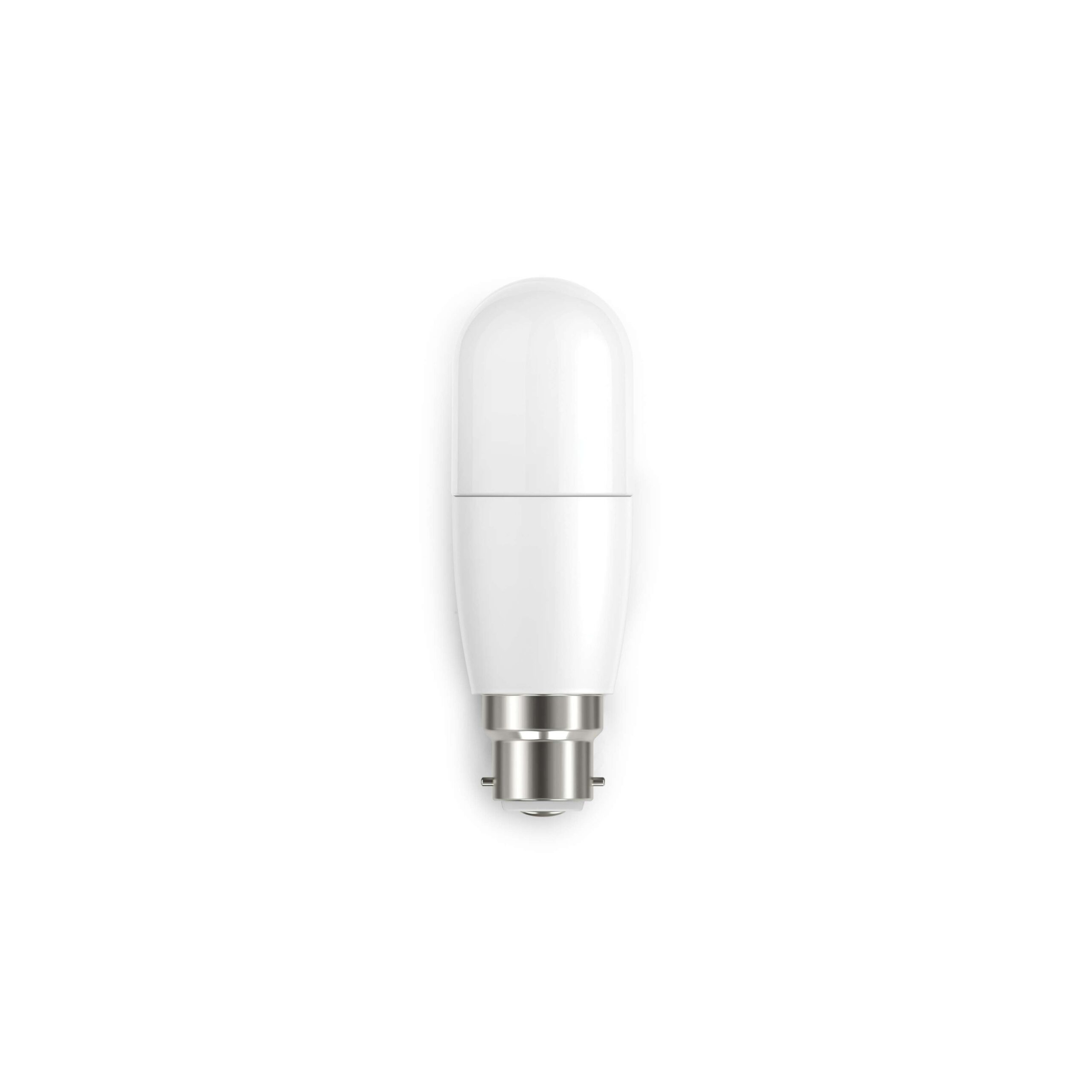

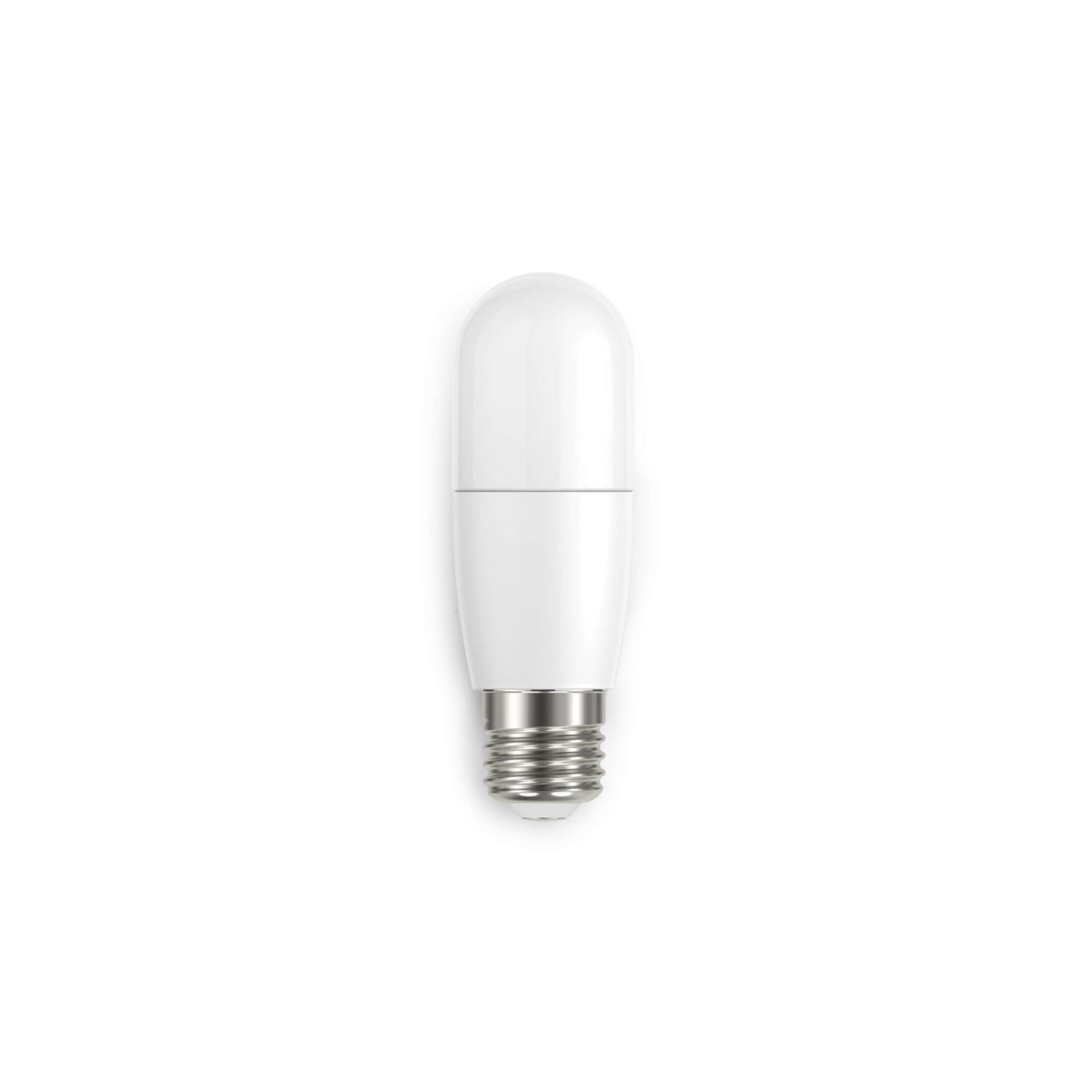

9W T45 LED Lamps. Dimmable, Frosted lens

Features

  • Energy efficient LED lamp
  • Long Life
  • No mercury Content
  • Suitable replacement for halogen and incandescent lamps
  • Suitable for use with dimmers
SKU: AT9431 Category: Stick Tags: Family, Ip20, Office, Shed, Garage, Stairs, Hallway, Toilet, Kitchen, Indoor, Bath, Domestic, Bed, Study, Living
Share:
  • Specifications
  • Dimensions
  • Ordering Information
  • Documents & Downloads
Specifications

Mechanical

AdjustabilityFixed
Diffuser MaterialPolycarbonate
Product FinishFrosted
Fitting ColourWhite
IP RatingIP20

Electrical

Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage6.9 W
Power Factor0.5
Switch TypeInline
System Max Wattage9 W
Working Temp Range-20 to 40 °C

Lamp

Beam Angle240 °
Bulb TypeT38
CCT ConfigurationSingle
CRI>80
Globe Base
AT9431/BC/CW
AT9431/BC/DL
AT9431/BC/WW
B22 / BC
AT9431/ES/CW
AT9431/ES/DL
AT9431/ES/WW
E27
Globe IncludedYes
Lamp/LED Current21 mA
Lamp/LED voltage272 V
Led Package2835
Number of Lamps1

LED Lifetime

LED Lifetime15000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.

Colour temperature

CCT
AT9431/BC/WW
AT9431/ES/WW
3000 K
AT9431/BC/CW
AT9431/ES/CW
4000 K
AT9431/BC/DL
AT9431/ES/DL
5700 K
CCT Colour
AT9431/BC/CW
AT9431/ES/CW
Cool White
AT9431/BC/DL
AT9431/ES/DL
Daylight
AT9431/BC/WW
AT9431/ES/WW
Warm White
LED Wattage5.7 W
System Lumens880 lm
All photometric data has a tolerance of ±10%.

Driver

DimmableYes
Driver IncludedYes
Integrated DriverYes
Driver TypeDimmable ( Phase cut)

Compliance

Product Design Life10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use4 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 62560
  • IEC/TR 62778
  • AS CISPR 15

Warranty

Domestic Use Warranty1 (Yr) RTB
VIP Warranty2 RTB (Total 2 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.
Warranty Operating Hours500 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Dimensions
Product Height116 mm
Product Width38 mm
Ordering Information
Ordering codeItem codeDescriptionAvailability
18736AT9431/BC/CW9W T38 LED STICK LAMP B22 CW DIMMABLE FROSTED
18737AT9431/BC/DL9W T38 LED STICK LAMP B22 DL DIMMABLE FROSTED
18735AT9431/BC/WW9W T38 LED STICK LAMP B22 WW DIMMABLE FROSTED
18739AT9431/ES/CW9W T38 LED STICK LAMP E27 CW DIMMABLE FROSTED
18740AT9431/ES/DL9W T38 LED STICK LAMP E27 DL DIMMABLE FROSTED
18738AT9431/ES/WW9W T38 LED STICK LAMP E27 WW DIMMABLE FROSTED
Documents & Downloads

Datasheet

  • AT9431/BC/CW*
  • AT9431/BC/DL*
  • AT9431/BC/WW*
  • AT9431/ES/CW*
  • AT9431/ES/DL*
  • AT9431/ES/WW*

Compliance

  • AT9431/BC/CW-AU-sdoc*
  • AT9431/BC/DL-AU-sdoc*
  • AT9431/BC/WW-AU-sdoc*
  • AT9431/ES/CW-AU-sdoc*
  • AT9431/ES/DL-AU-sdoc*
  • AT9431/ES/WW-AU-sdoc*

*Auto generated datasheet (beta)
