Efficiencies

Total System Efficiency

89 lm/W

The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

IP Rating	IP20
Adjustability	Fixed
Fitting Colour	White
Product Finish	Frosted
Diffuser Material	Polycarbonate

Electrical

Working Temp Range	-20 to 40 °C
Input Frequency	50 Hz
Switch Type	Inline
Power Factor	0.9
System Max Wattage	9 W
Input voltage	230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage	9 W

Lamp

Globe Base
Colour Rendering Index (CRI)	>80
Bulb Type	ST38
Number of Lamps	1

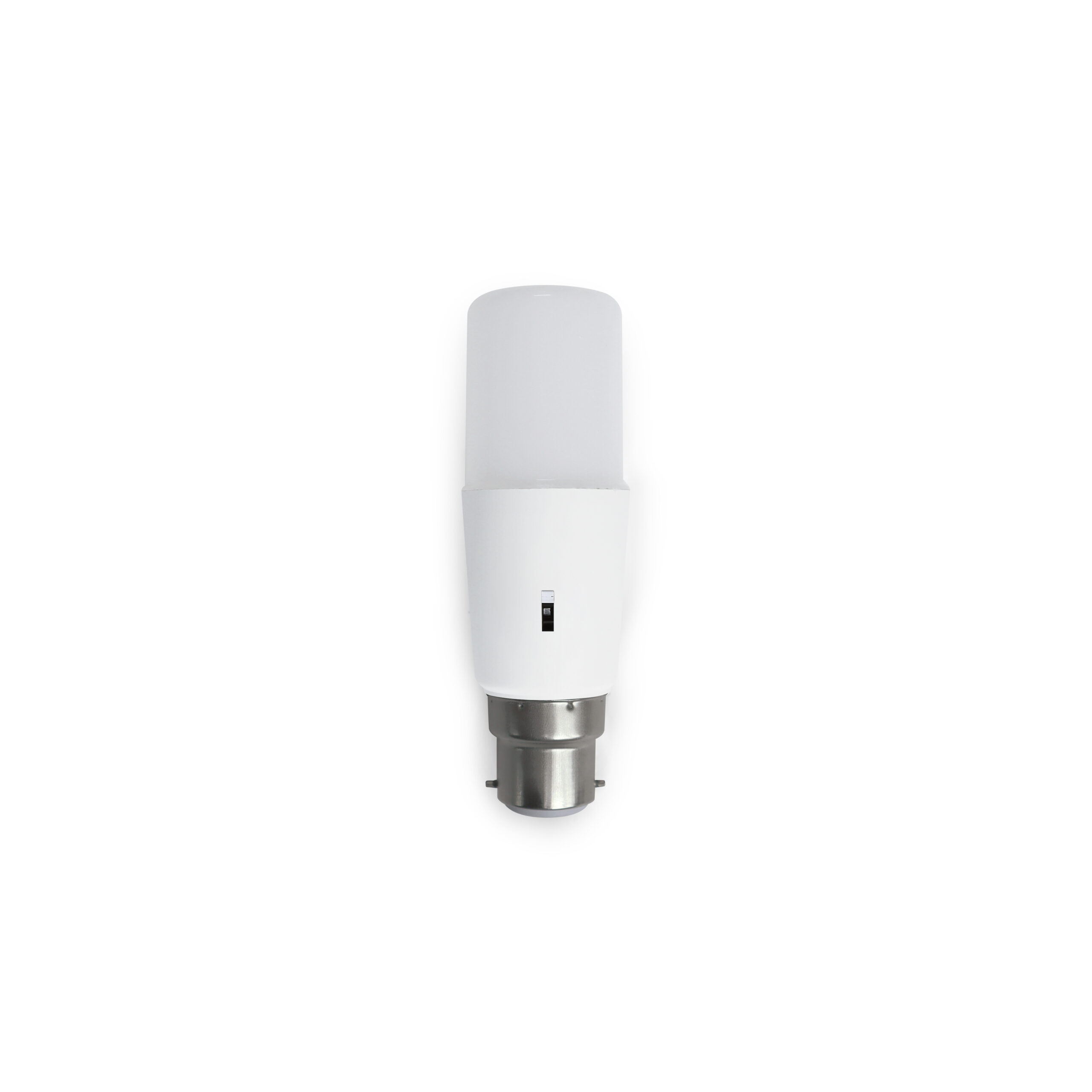

AT9464/BC/TRI	B22 / BC

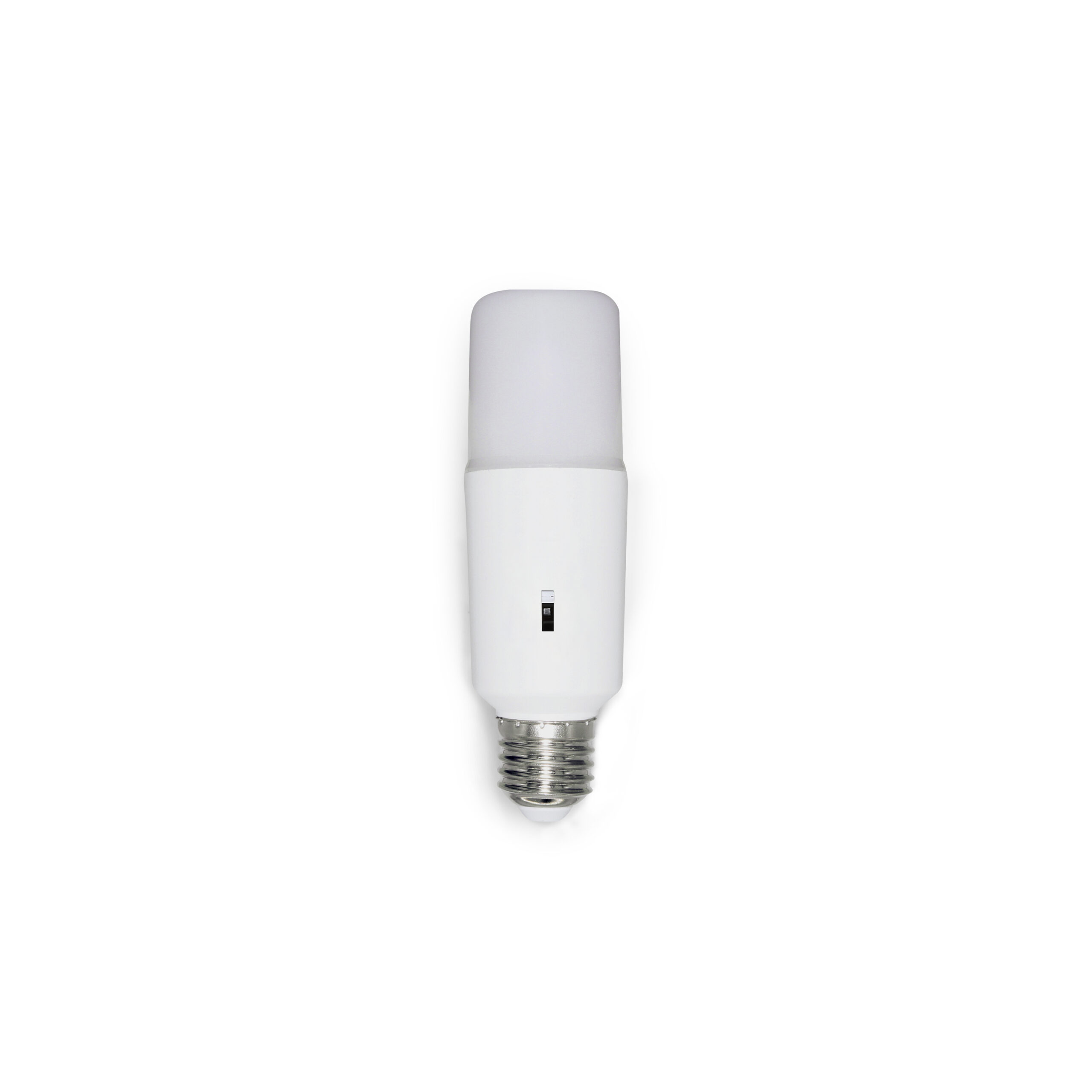

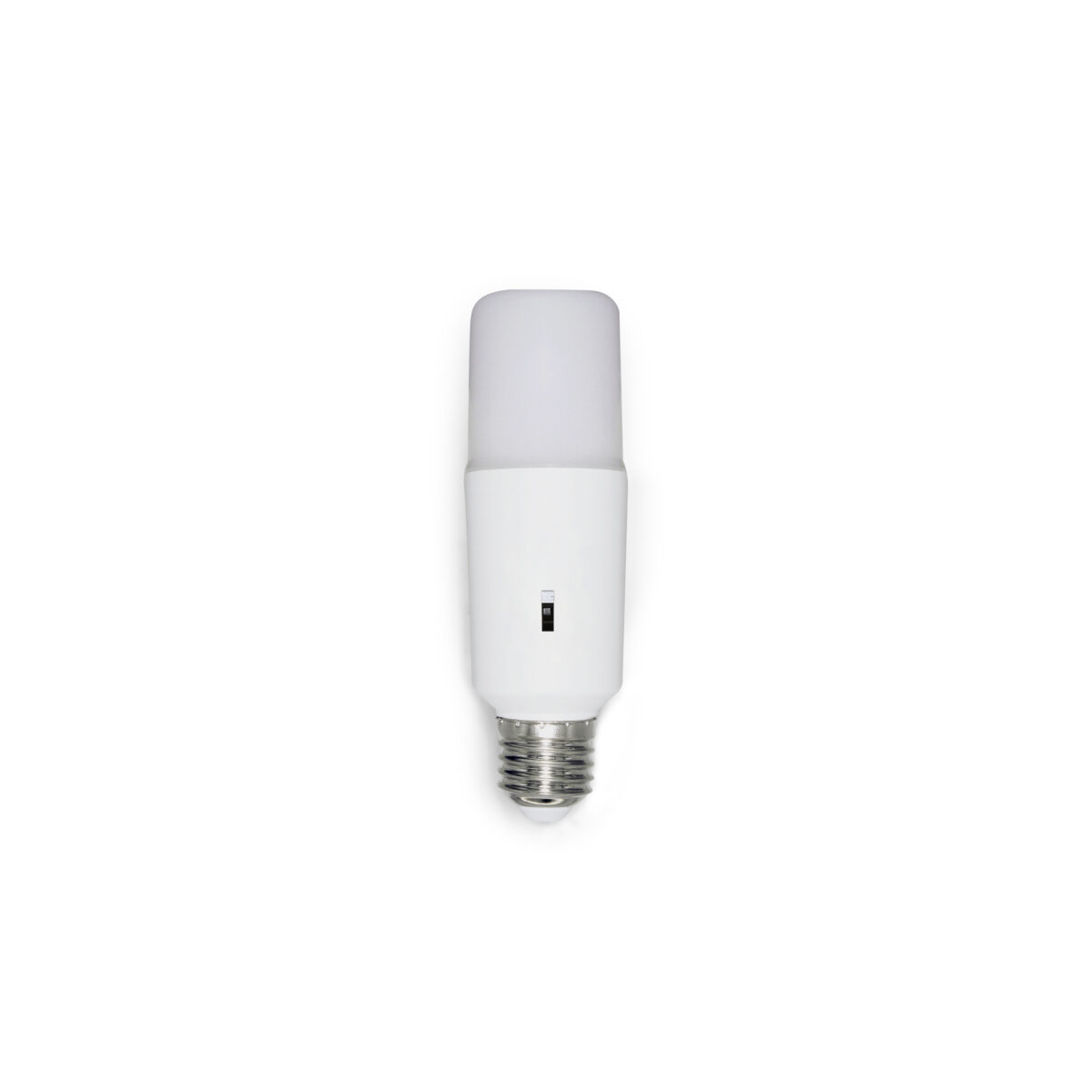

AT9464/ES/TRI	E27

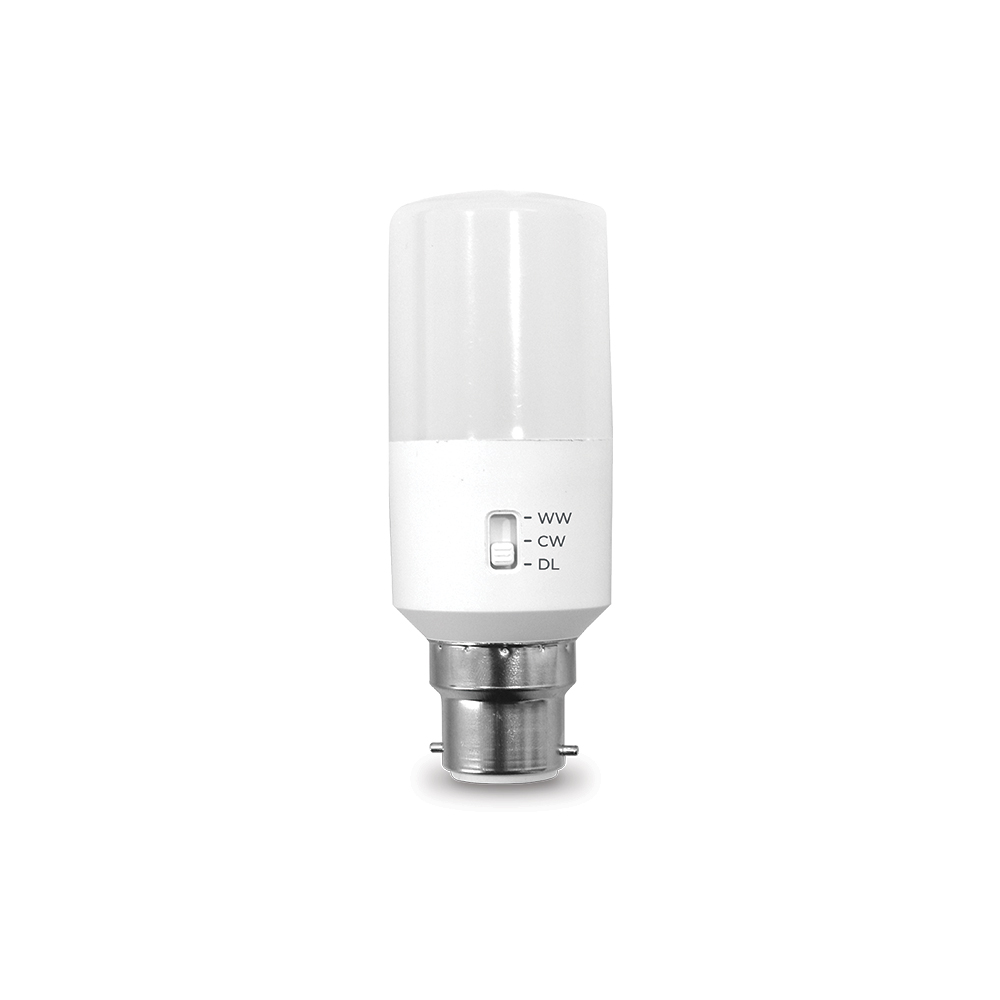

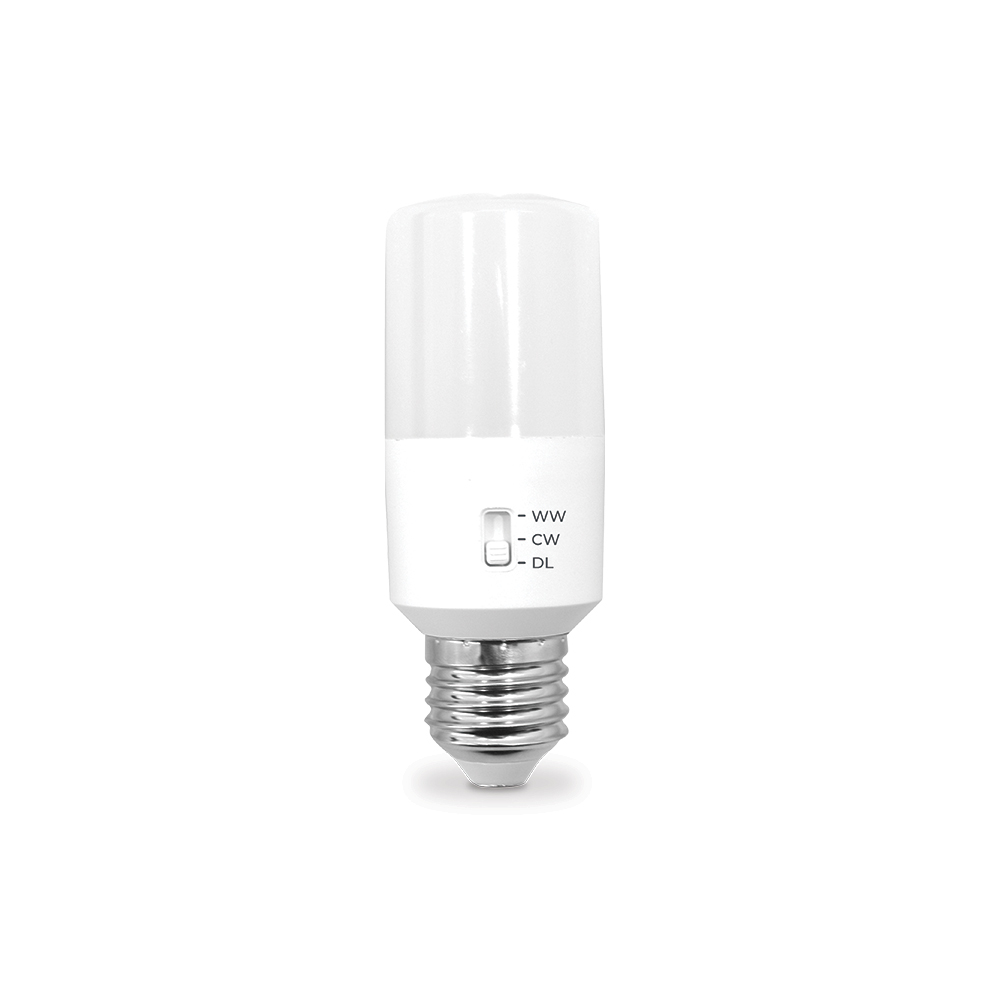

CCT Configuration	TRI-CCT
Beam Angle	220 °
Lamp/LED voltage	90 V
Lamp/LED Current	85 mA

LED Lifetime

LED Lifetime Ratings (Failure rate & lumen depreciation)

Ambient Temp (°C)	0 °C
L70B50	25000 hrs

This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.
