Efficiencies

Total System Efficiency

89 lm/W

The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Electrical

Input Frequency	50 Hz
Power Factor	0.6
System Max Wattage	9 W
Input voltage	230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage	9 W

Lamp

Globe Base
Colour Rendering Index (CRI)	>80
Bulb Type	ST38

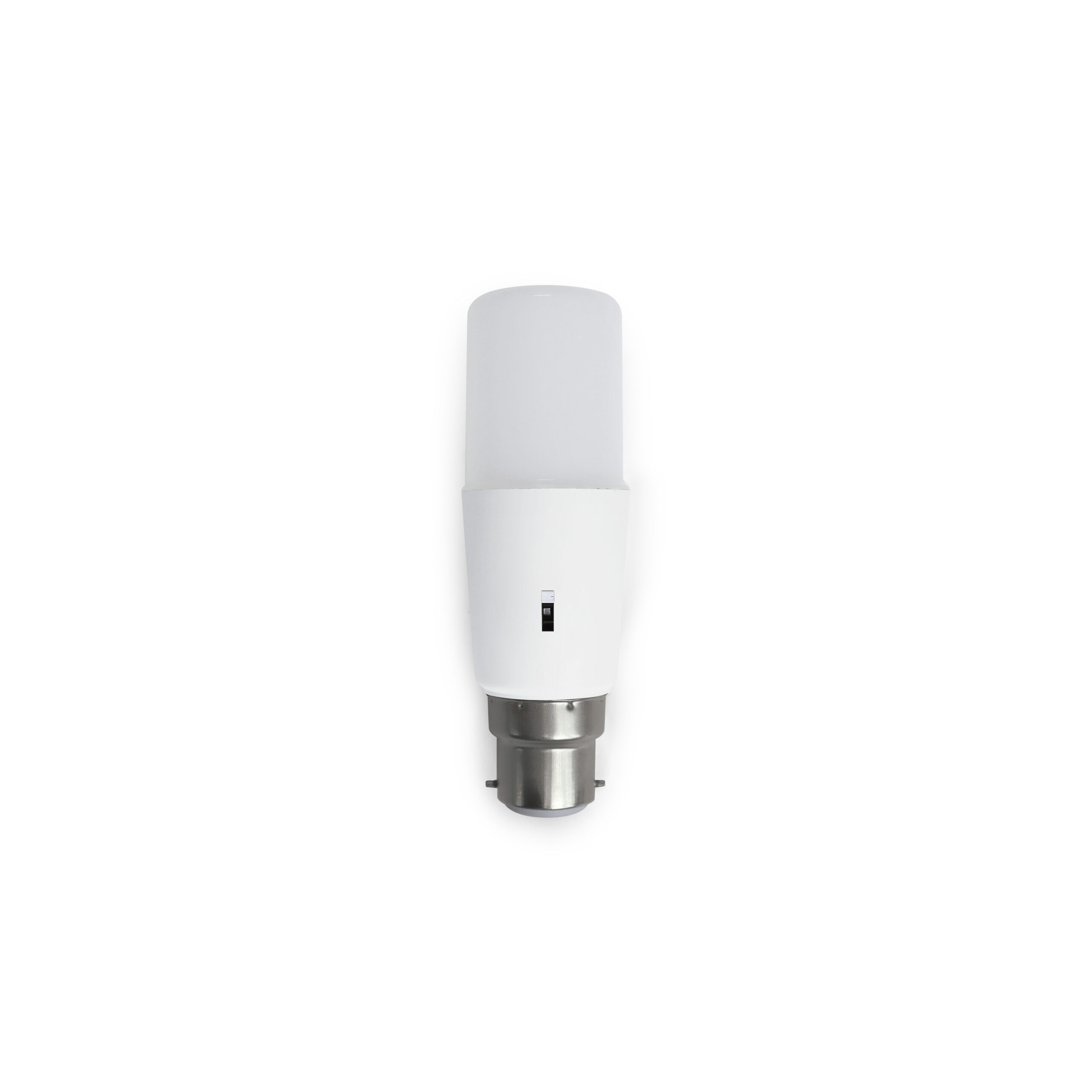

AT9489/BC/TRI	B22 / BC

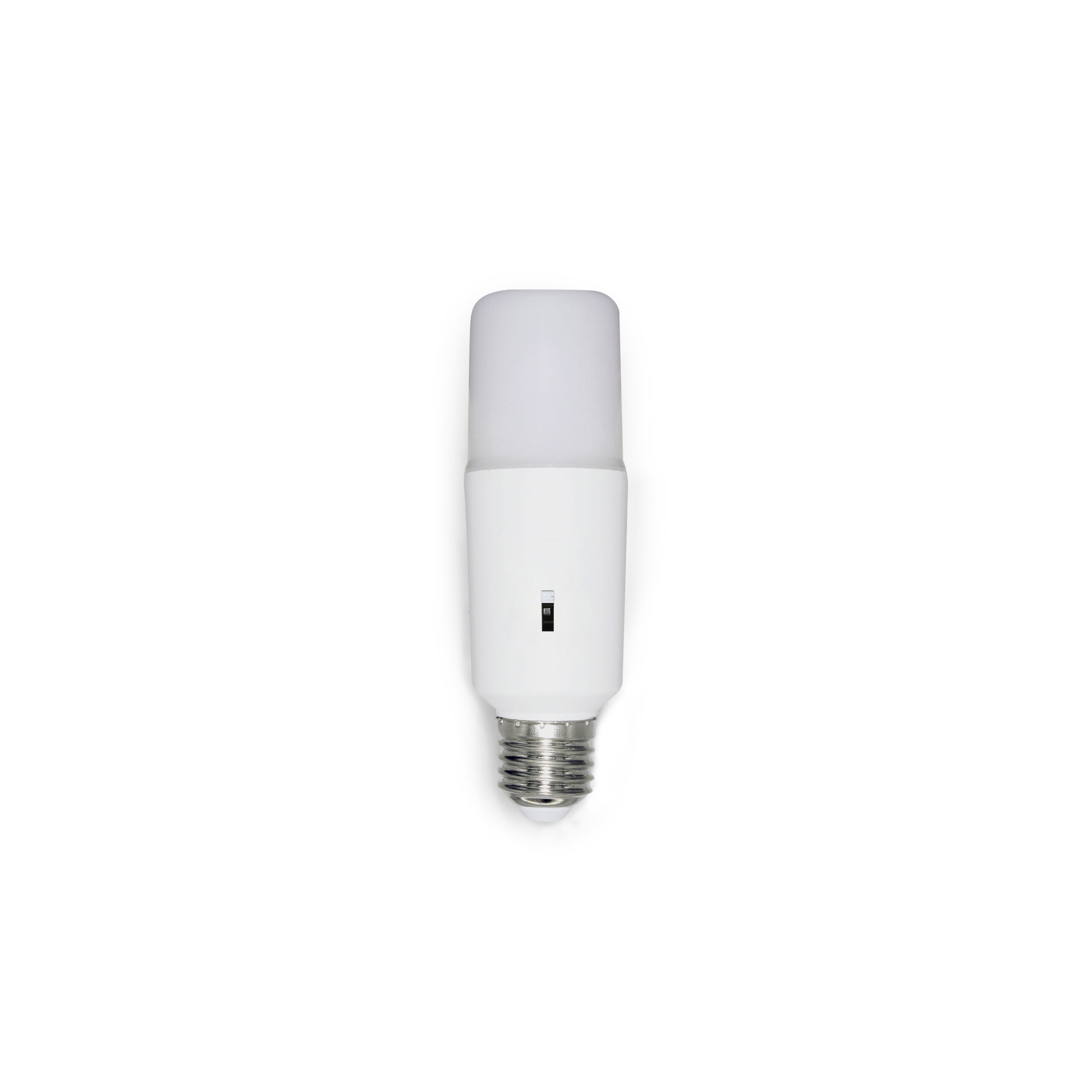

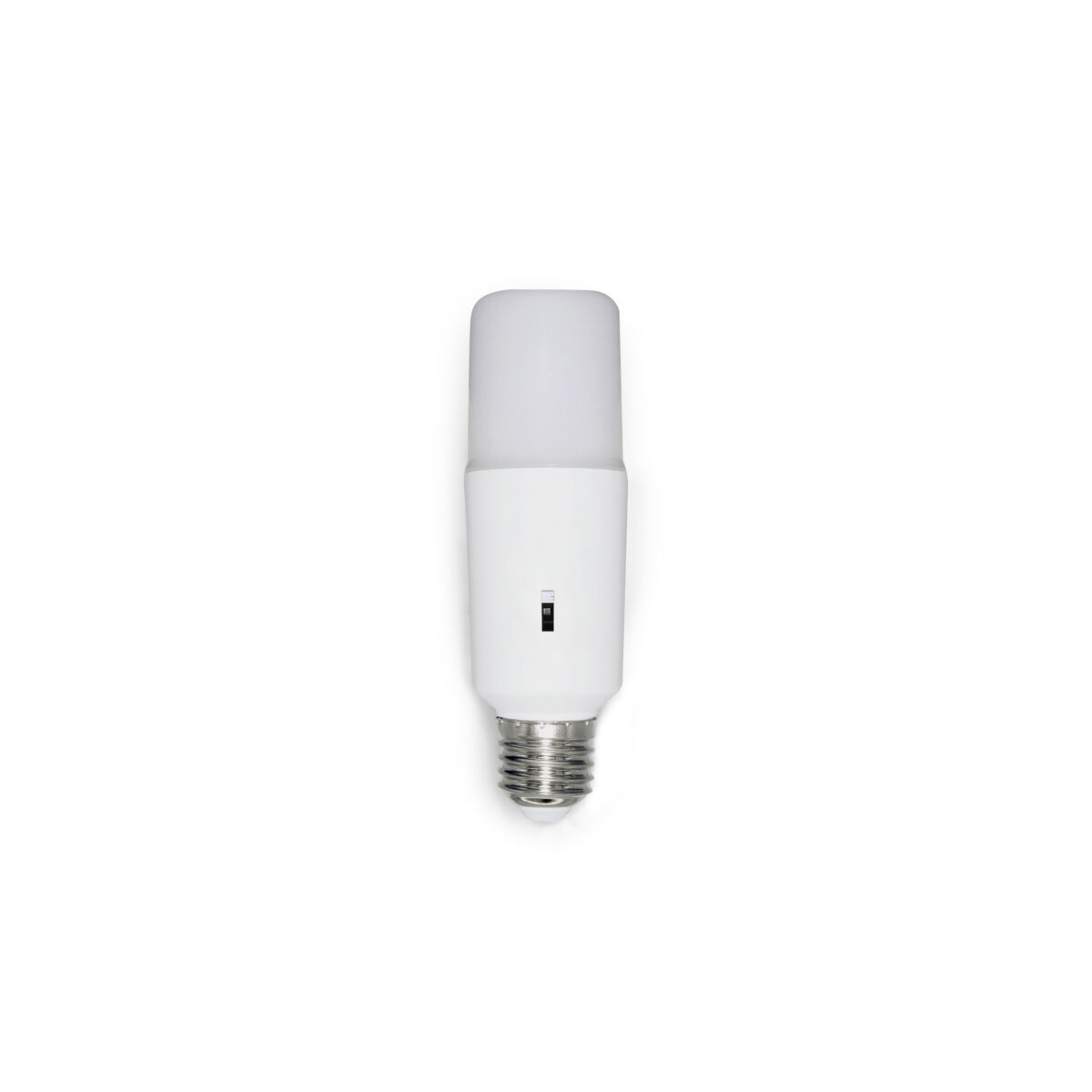

AT9489/ES/TRI	E27

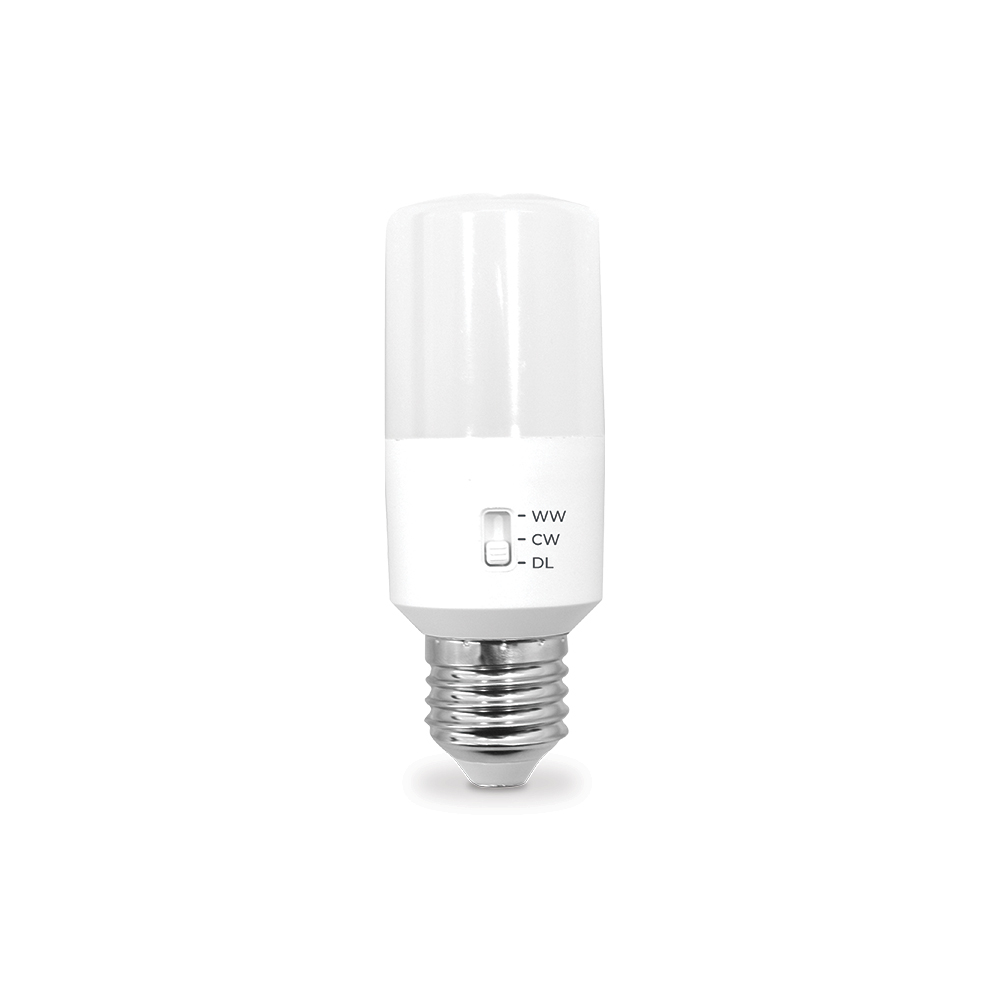

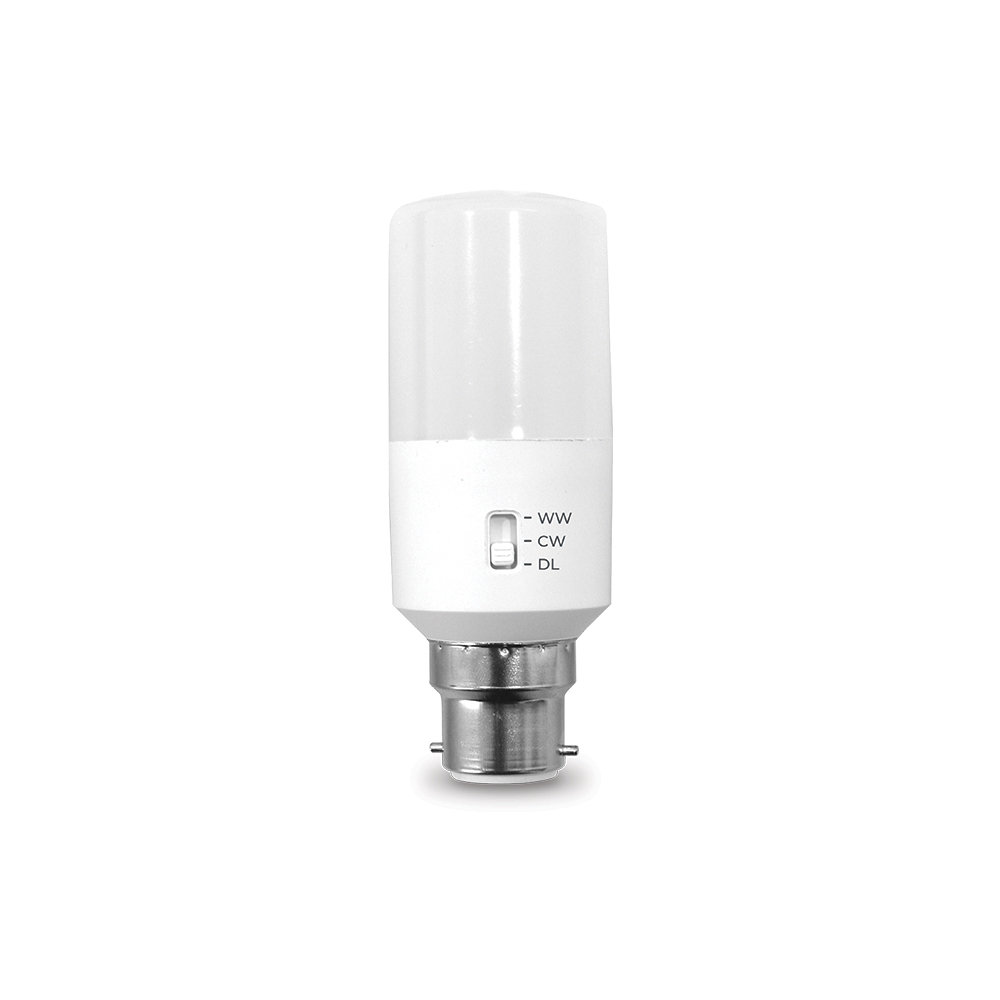

CCT Configuration	TRI-CCT
Beam Angle	220 °
Lamp/LED voltage	90 V
Lamp/LED Current	85 mA

LED Lifetime

LED Lifetime Ratings (Failure rate & lumen depreciation)

Ambient Temp (°C)	0 °C
L70B50	25000 hrs

This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.

Colour temperature

7 Watts
Warm White (3000 K)	800 lm
Warm White (3000 K)	700 lm

Neutral White (4000 K)
Cool White (4000 K)	800 lm
Cool White (6500 K)
DayLight (6500 K)	750 lm

Driver

Dimmable	No

Compliance

Standards	AS/NZS 62560 IEC/TR 62778 AS CISPR 15 AS/NZS 5341 IEC/TR 52778

Warranty

Operational Lifetime	25000 hrs
Domestic Use Warranty	1 RTB (Total 1 Year)

Dimensions

Product Height	115 mm
Product Width	37 mm

Ordering Information

Order code	Item code	Description
15376	AT9489/BC/TRI	T38 7.6W LED LAMP B22 TRI-CCT NON-DIM FROSTED
13399	AT9489/BC/TRI	T38 9W LED LAMP B22 TRI CCT NON-DIM FROST
15377	AT9489/ES/TRI	T38 7.6W LED LAMP E27 TRI-CCT NON-DIM FROSTED
13400	AT9489/ES/TRI	T38 9W LED LAMP E27 TRI CCT NON-DIM FROST
