AT5709

$0.00

LED Large 14W polycarbonate Bunker – Tri-colour

  • UV resistant polycarbonate plastic
  • IP65 rating, high weather resistance
  • Energy efficient 14W tri-colour LED
  • Available in black or white fitting colour
  • Ideal for residential, retail, and decorative

Selected Models

  • Upgraded IK10 rating, built tough against impacts
  • Double insulated design
  • Corridor function
SKU: AT5709 Category: Tags: , , , , , , , ,
Specifications

Efficiencies

Total System Efficiency
AT5709/BLK/TRI103 lm/W
AT5709/BLK/TRI/CF105 lm/W
AT5709/WH/TRI/CF110 lm/W
AT5709/WH/TRI112 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

AdjustabilityFixed
Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Product FinishPlastic
Fitting Colour

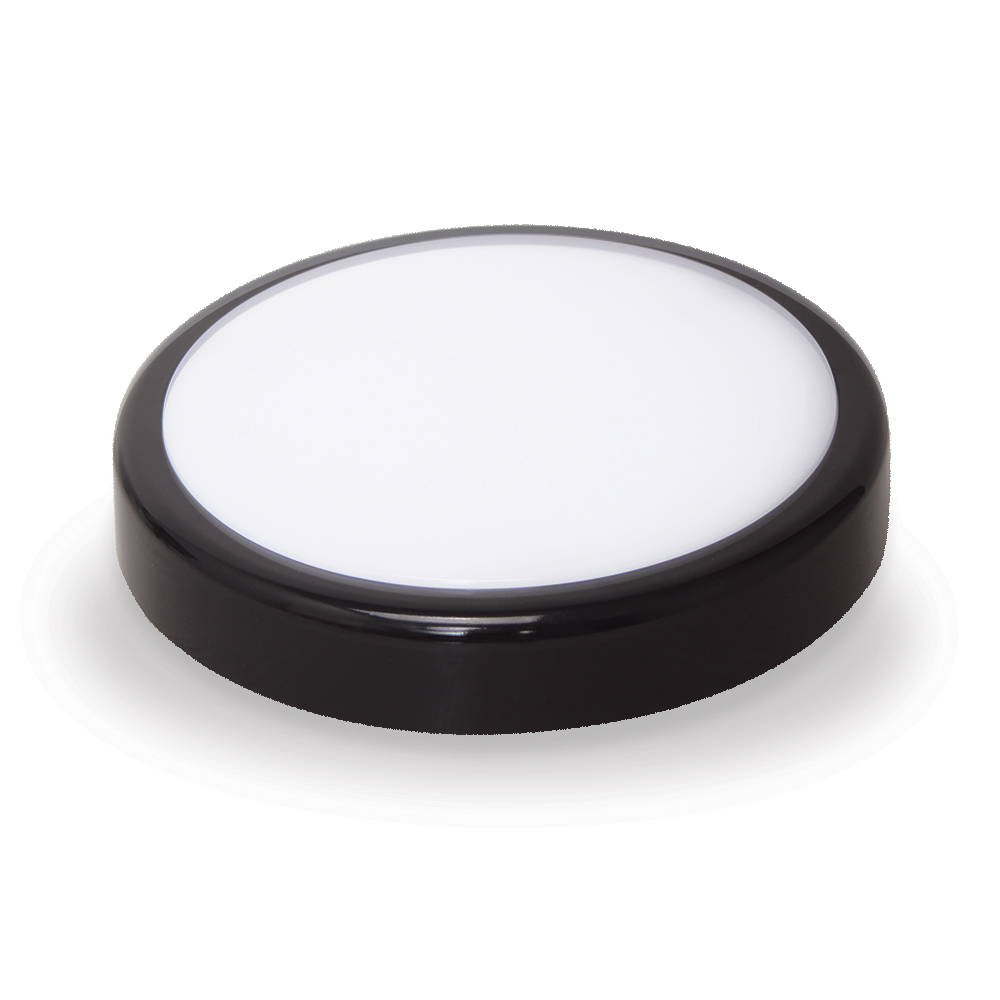

AT5709/BLK/TRI
AT5709/BLK/TRI/CF
Black

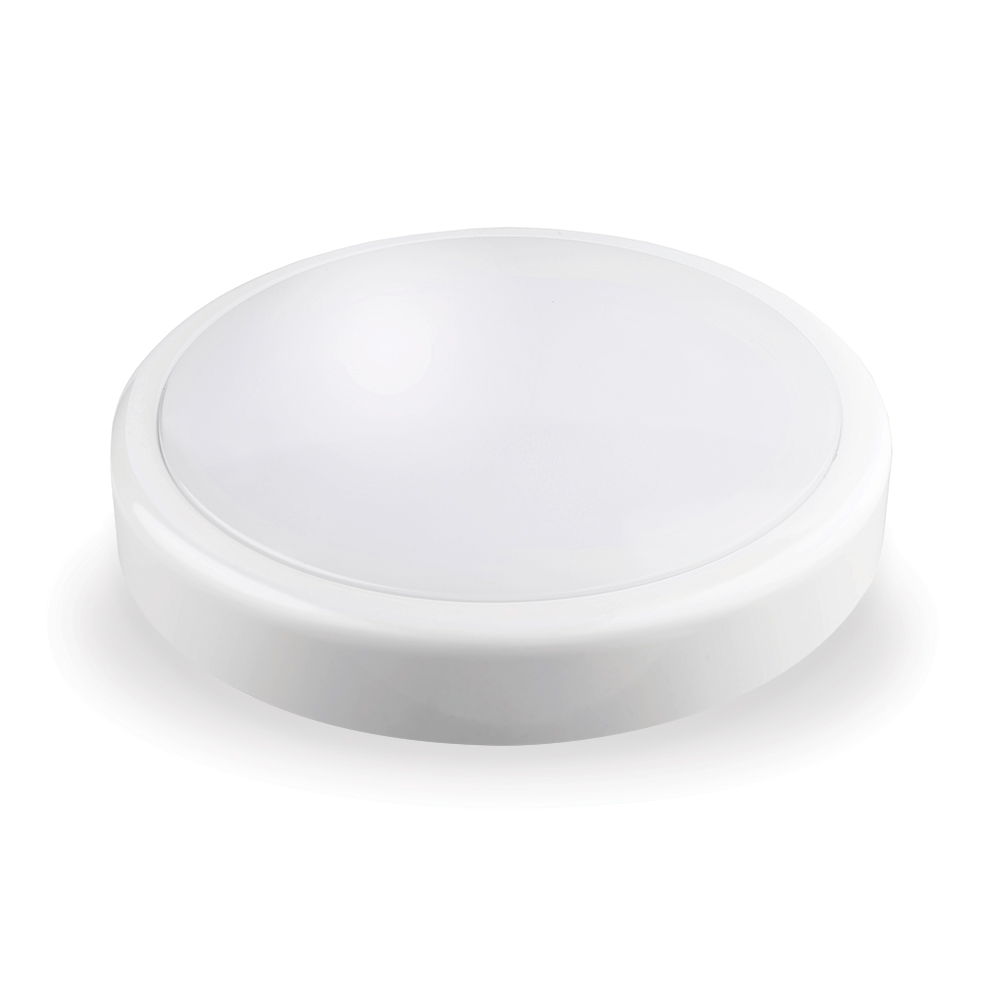

AT5709/WH/TRI
AT5709/WH/TRI/CF
White
IC RatingNon-IC
IK RatingIK10
Installation TypeSurface mount
IP RatingIP65

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage14 W
Switch TypeInline

Lamp

Beam Angle120 °
CCT ConfigurationTRI-CCT
Colour Rendering Index (CRI)>80

Colour temperature

AT5709/BLK/TRI
Warm White (3000 K)1370 lm
Cool White (4000 K)1450 lm
DayLight (5000 K)1390 lm
12 Watts
Warm White (3000 K)1280 lm
Cool White (4000 K)1390 lm
DayLight (5000 K)1320 lm
AT5709/BLK/TRI/CF
Warm White (3000 K)1380 lm
Cool White (4000 K)1470 lm
DayLight (5000 K)1420 lm
AT5709/WH/TRI
Warm White (3000 K)1470 lm
Cool White (4000 K)1570 lm
DayLight (5000 K)1510 lm
AT5709/WH/TRI/CF
Warm White (3000 K)1460 lm
Cool White (4000 K)1550 lm
DayLight (5000 K)1510 lm
12 Watts
Warm White (3000 K)1270 lm
Cool White (4000 K)1390 lm
DayLight (5000 K)1310 lm

Driver

DimmableNo
Driver IncludedYes
Integrated DriverNo
Driver ModeConstant Current
Driver TypeFixed output
Wiring Type
AT5709/BLK/TRI
AT5709/WH/TRI/CF
Re-wireable terminal block (3 pin)
AT5709/BLK/TRI
AT5709/BLK/TRI/CF
AT5709/WH/TRI
AT5709/WH/TRI/CF
Re-wireable terminal block (6 pin)

Sensor (S suffix)

Sensor TypeMicrowave
Detection Range4 m
Time Delay0.5-10

Compliance

Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.1
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS/NZS CISPR 15
  • AS/NZS 61058.1

Warranty

Domestic Use Warranty3 RTB (Total 3 Years)
VIP Warranty2 Onsite, 3 RTB (Total 5 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.
Dimensions
Product Diameter320 mm
Product Height75 mm
Product Length320 mm
Product Width320 mm
AT5709/TRI
Ordering Information
Order codeItem codeDescriptionAvailability
16552AT5709/BLK/TRI14W Polycarbonate LED Bunker IP65 - Black - Tri Colour
16020AT5709/BLK/TRILED Large 14W Polycarbonate Bunker - Black - Tri Colour
16554AT5709/BLK/TRI/CF14W Polycarbonate LED Bunker IP65 with corridor function - Black - Tri Colour
16551AT5709/WH/TRI14W Polycarbonate LED Bunker IP65 - White - Tri Colour
16553AT5709/WH/TRI/CF14W Polycarbonate LED Bunker IP65 with corridor function - White - Tri Colour
16066AT5709/WH/TRI/CFLED Large 14W Polycarbonate Bunker with corridor function - White - Tri Colour
