AT5004 6W
AT5004 6W
AT5004 6W
AT5004 6W
AT5004 6W
AT5004 6W
AT5004 6W
AT5004 6W
Home Exterior Lighting Up/Down AT5004 6W
AT9429 A60
AT9429 A60 $0.00
Back to products
AT9819 ACC
AT9819 $0.00

AT5004 6W

$0.00

2 X 6W LED Up/Down exterior wall light with glass diffuser including LED lamps – GU10

Features

  • Discrete installation of sets screws
  • Tempered Glass lens
  • Elegant Design
  • Suitable for coastal environments
SKU: AT5004 6W Category: Up/Down Tags: Outside, Domestic, Outdoor, Ip65
Share:
  • Specifications
  • Dimensions
  • Ordering Information
  • Documents & Downloads
Specifications

Mechanical

AdjustabilityFixed
Body Material
AT5004/316/LED316L Stainless Steel
AT5004/AND/AT/LED
AT5004/AND/BLK/LED
AT5004/AND/LED
AT5004/WHT/LED
Aluminium
Product Finish
AT5004/AND/AT/LED
AT5004/AND/BLK/LED
AT5004/AND/LED
Anodised
AT5004/WHT/LEDPowdercoated
AT5004/316/LEDSteel
Fitting Colour
AT5004/AND/BLK/LEDBlack
AT5004/AND/LEDSilver
AT5004/316/LEDStainless
AT5004/AND/AT/LEDTitanium
AT5004/WHT/LEDWhite
IC RatingNon-IC
Installation TypeWall mount
IP RatingIP65

Electrical

Electrical RatingClass I
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage12 W
Switch TypeInline
System Max Wattage12 W
Working Temp Range-10 to 40 °C

Lamp

Beam Angle38 °
CCT ConfigurationSingle
Globe BaseGU10
Globe IncludedYes
Maximum Bulb Wattage6 W
Number of Lamps2
System Efficiency78 lm/W

Colour temperature

CCT4000 K
CCT ColourCool White
LED Wattage6 W
System Lumens940 lm
All photometric data has a tolerance of ±10%.

Driver

DimmableNo
Driver IncludedYes
Integrated DriverYes
Driver TypeFixed output
Wiring TypeRe-wireable terminal block (3 pin)

Compliance

Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.1

Warranty

Commercial Use Warranty
AT5004/AND/AT/LED
AT5004/AND/BLK/LED
AT5004/AND/LED
AT5004/WHT/LED
1 RTB (Total 1 Year)
AT5004/316/LED3 RTB (Total 3 Years)
Domestic Use Warranty
AT5004/AND/AT/LED
AT5004/AND/BLK/LED
AT5004/AND/LED
AT5004/WHT/LED
1 (Yr) RTB
AT5004/316/LED3 (Yr) RTB
Dimensions
Product Height200 mm
Product Length85 mm
Product Width60 mm
AT5004
Ordering Information
Ordering codeItem codeDescriptionAvailability

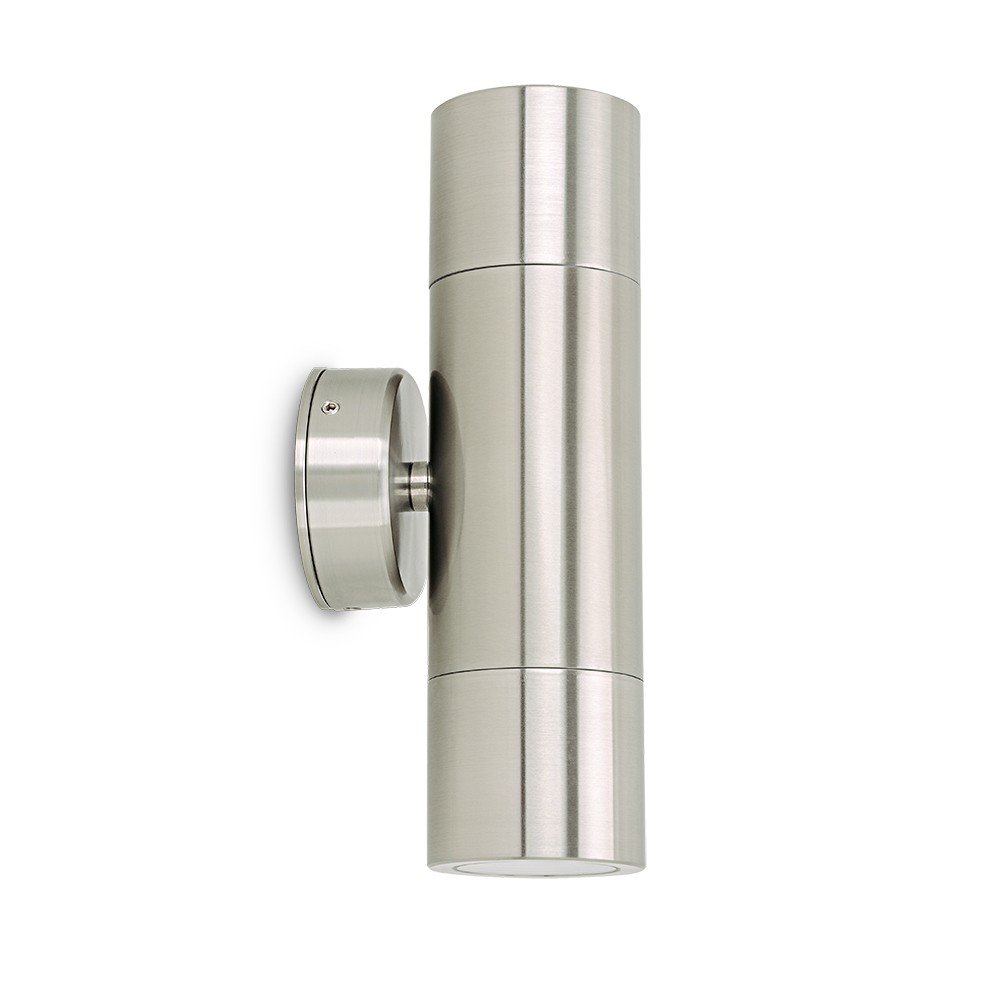

12831AT5004/316/LED2x 6W LED - 316L Stainless Steel Up/Down Light

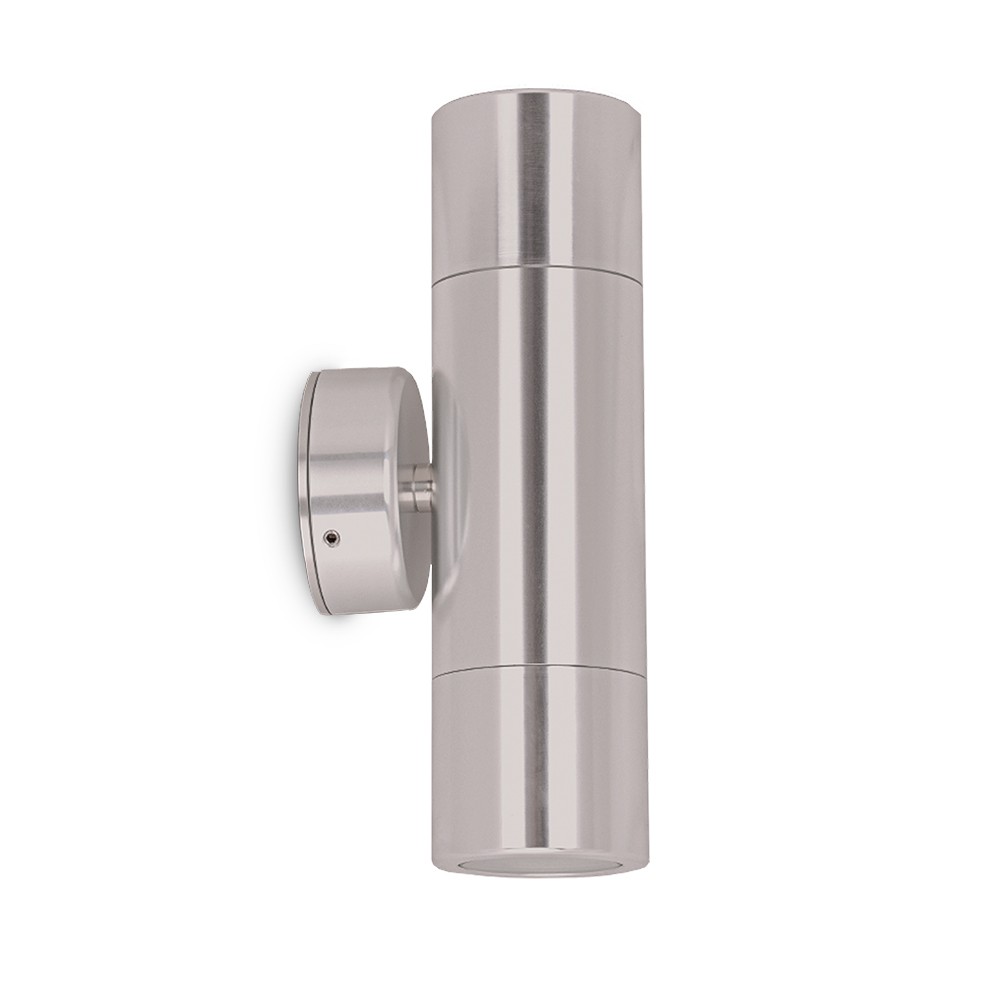

12780AT5004/AND/AT/LED2 x 6W LED Anodised Aluminium Titanium Up/Down Light

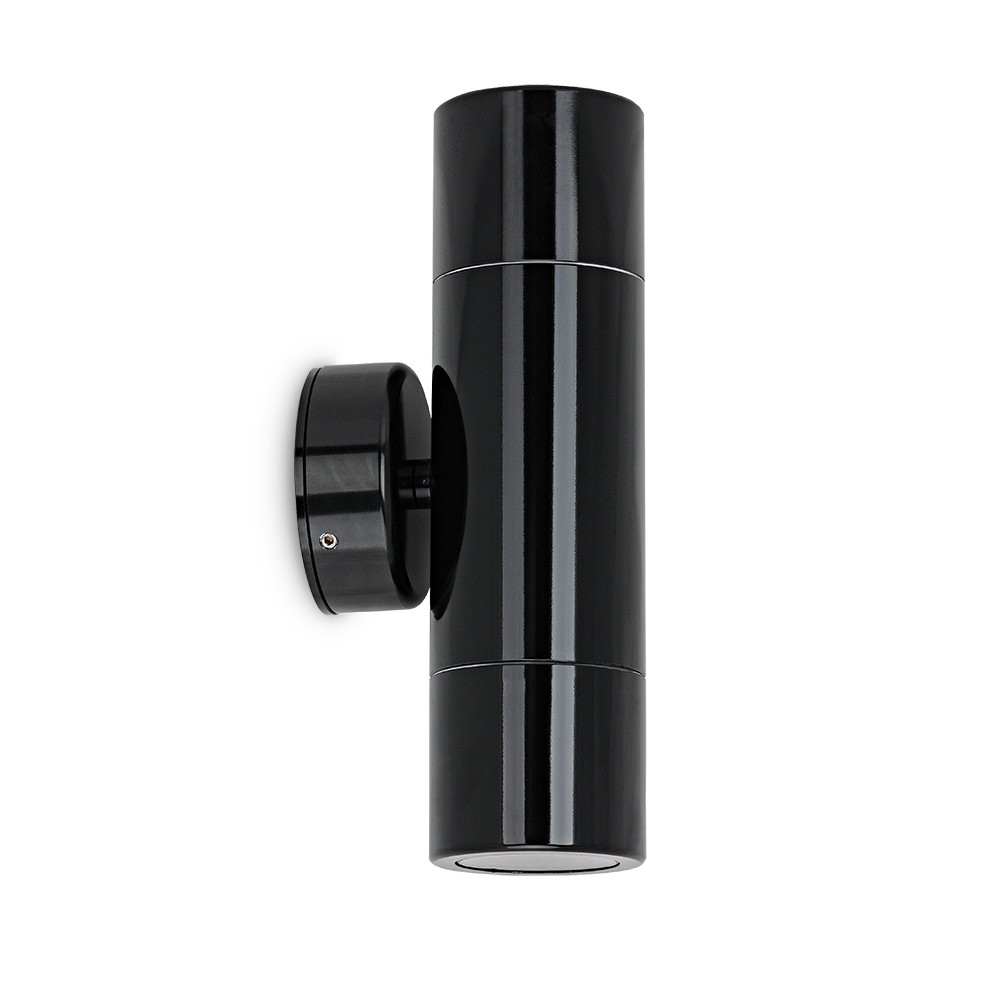

12747AT5004/AND/BLK/LED2 x 6W LED Anodised Aluminium Black Up/Down Light

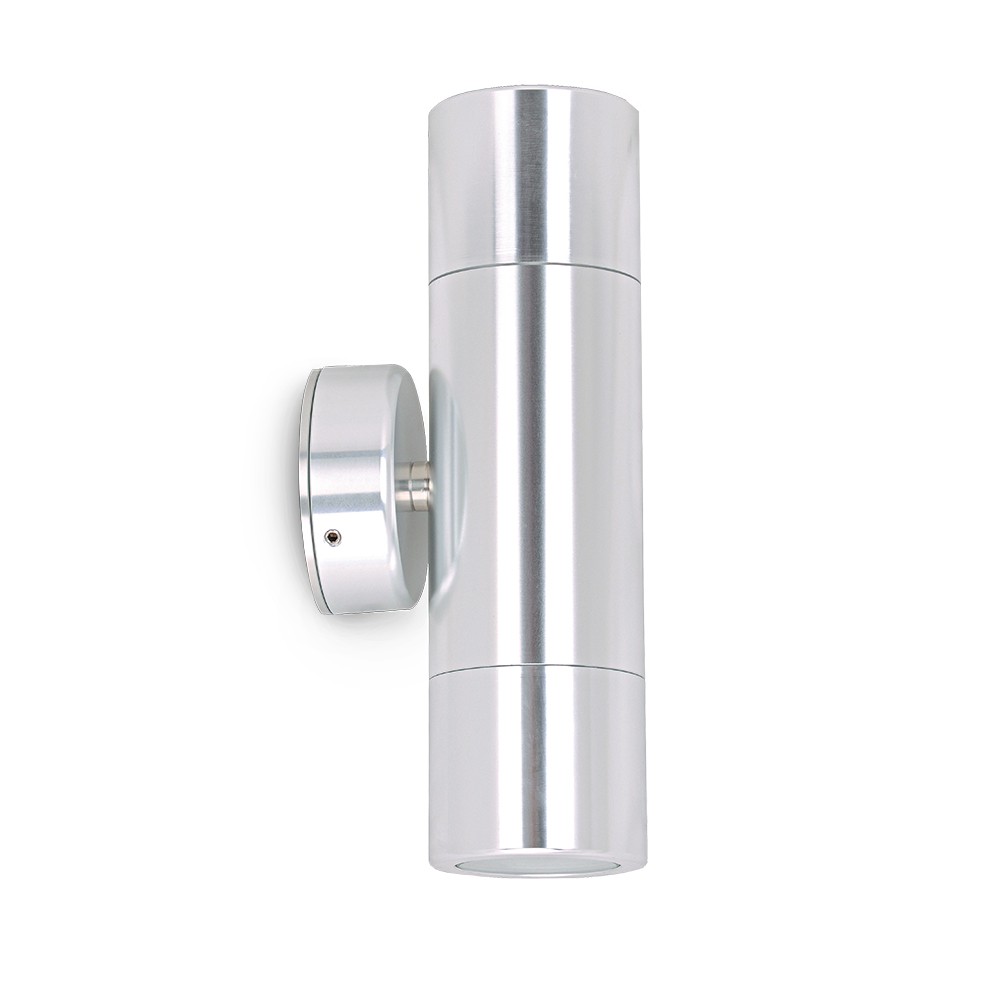

12674AT5004/AND/LED2 x 6W LED Anodised Aluminium Up/Down Light

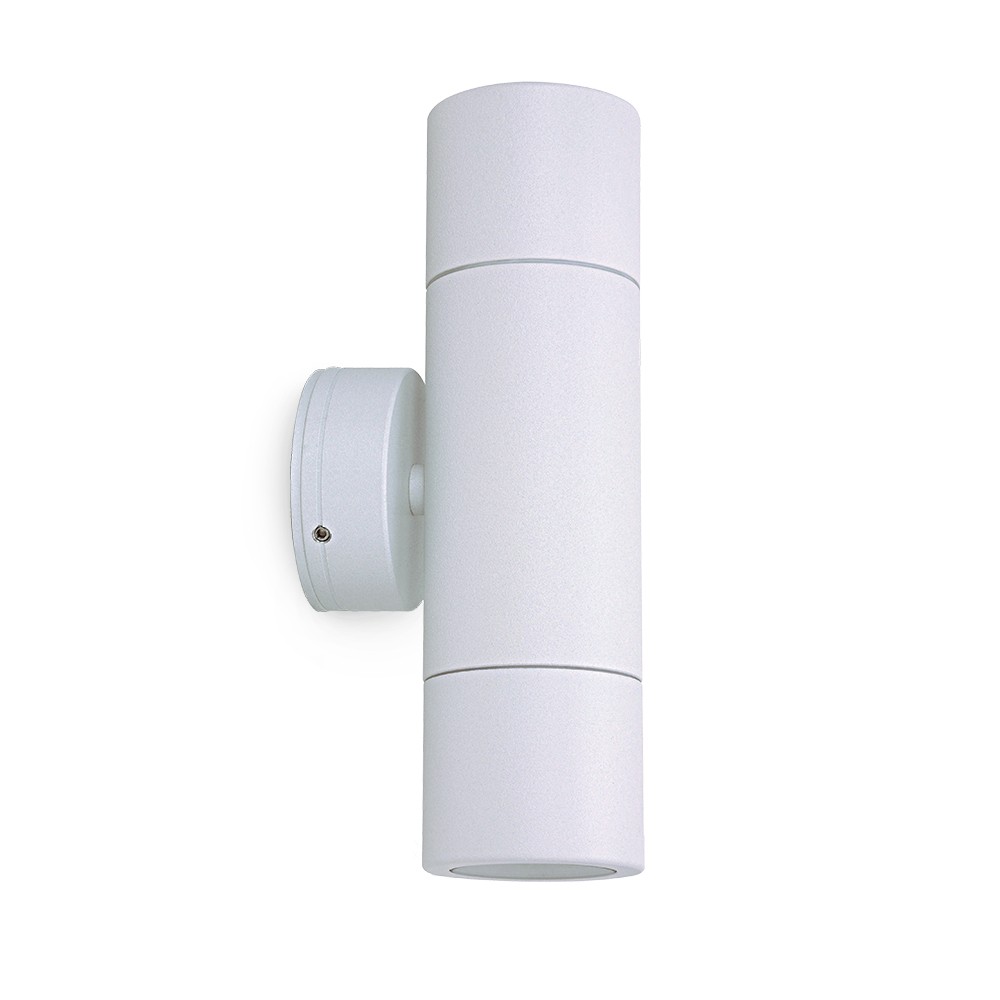

12576AT5004/WHT/LED2 x 6W LED White Up/Down Light
Documents & Downloads

Instruction Manual

  • AT5004/LED/ Instruction Manual.pdf

Datasheet

  • AT5004/316/LED*
  • AT5004/AND/AT/LED*
  • AT5004/AND/BLK/LED*
  • AT5004/AND/LED*
  • AT5004/WHT/LED*

Compliance

  • AT5004/316/LED-AU-sdoc*
  • AT5004/AND/AT/LED-AU-sdoc*
  • AT5004/AND/BLK/LED-AU-sdoc*
  • AT5004/AND/LED-AU-sdoc*
  • AT5004/WHT/LED-AU-sdoc*

*Auto generated datasheet (beta)
