Name: AT3016 TRI
SKU: AT3016 TRI
Availability: InStock

AT3016 TRI

$0.00

Oval and Round LED IP66 Bunker, Tri-CCT (Supplied with eyelid option)

Energy efficient LED
IP66 weatherproof rating with insect resistant seal
IK10 vandal proof rating
Supplied with eyelid trim option
Tri-CCT selectable

Efficiencies

Total System Efficiency
AT3016/BLK/OH/TRI	91 lm/W
AT3016/BLK/RD/TRI	98 lm/W
AT3016/WH/OH/TRI AT3016/WH/RD/TRI	104 lm/W

The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

Fitting Colour
Adjustability	Fixed
Body Material	Polycarbonate
Diffuser Material	Polycarbonate
AT3016/BLK/OH/TRI AT3016/BLK/RD/TRI	Black
AT3016/WH/OH/TRI AT3016/WH/RD/TRI	White

IK Rating	IK10
Installation Type	Wall or Ceiling
IP Rating	IP66

Electrical

Electrical Rating	Class II
Input Current	0.07 A
Input Frequency	50 Hz
Input voltage	230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Switch Type	Inline
System Max Wattage	12 W
Working Temp Range	-20 to 45 °C

Lamp

CCT Configuration	TRI-CCT
Colour Rendering Index (CRI)	>80

LED Lifetime

LED Lifetime	>54000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Rating	L70B10
TM-21 Test Hours	9000 hrs

Colour temperature

AT3016/BLK/OH/TRI

Warm White (3000K K)	1050 lm
Cool White (4000K K)	1100 lm
DayLight (5700K K)	1090 lm
Warm White (3000K (Eyelid) K)	610 lm
Cool White (4000K (Eyelid) K)	650 lm
DayLight (5700K (Eyelid) K)	640 lm

AT3016/BLK/RD/TRI

Warm White (3000K K)	1125 lm
Cool White (4000K K)	1170 lm
DayLight (5700K K)	1150 lm
Warm White (3000K (Eyelid) K)	670 lm
Cool White (4000K (Eyelid) K)	700 lm
DayLight (5700K (Eyelid) K)	685 lm

AT3016/WH/OH/TRI

Warm White (3000K K)	1185 lm
Cool White (4000K K)	1250 lm
DayLight (5700K K)	1240 lm
Warm White (3000K (Eyelid) K)	800 lm
Cool White (4000K (Eyelid) K)	815 lm
DayLight (5700K (Eyelid) K)	810 lm

AT3016/WH/RD/TRI

Warm White (3000K K)	1215 lm
Cool White (4000K K)	1250 lm
DayLight (5700K K)	1240 lm
Warm White (3000K (Eyelid) K)	820 lm
Cool White (4000K (Eyelid) K)	850 lm
DayLight (5700K (Eyelid) K)	840 lm

Driver

Dimmable	No
Driver Included	Yes
Integrated Driver	No
Driver Mode	Constant Current
Driver Type	Fixed output
Wiring Type	Re-wireable terminal block (3 pin)

Compliance

Standards	AS/NZS 60598.1 AS/NZS 60598.2.1 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 60598.2.13

Warranty

Domestic Use Warranty	3 (Yr) RTB
VIP Warranty	2 Onsite, 3 RTB (Total 5 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.

Item Code

Product Height

Product Length

Product Width

AT3016/BLK/OH/TRI

90 mm

325 mm

235 mm

AT3016/WH/OH/TRI

90 mm

325 mm

235 mm

AT3016/BLK/RD/TRI

90 mm

300 mm

AT3016/WH/RD/TRI

90 mm

300 mm

Order code

Item code

Description

Availability

11499

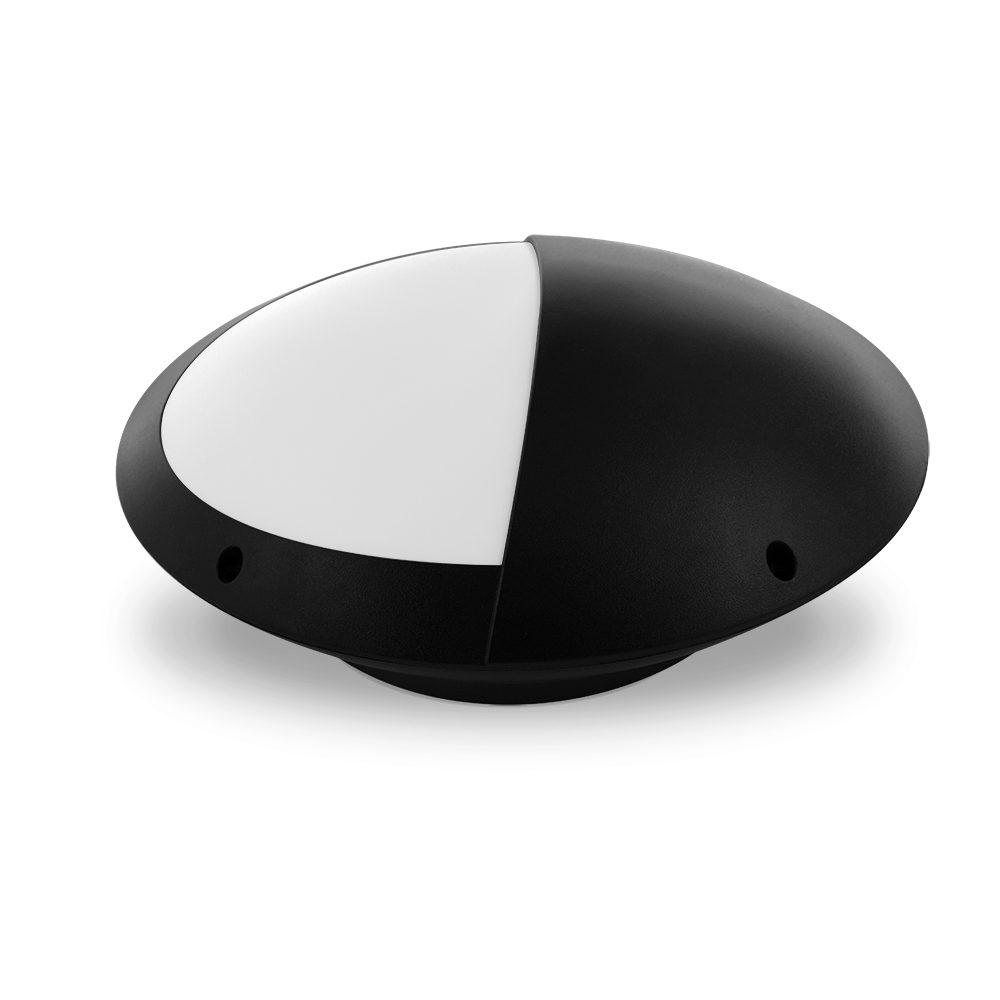

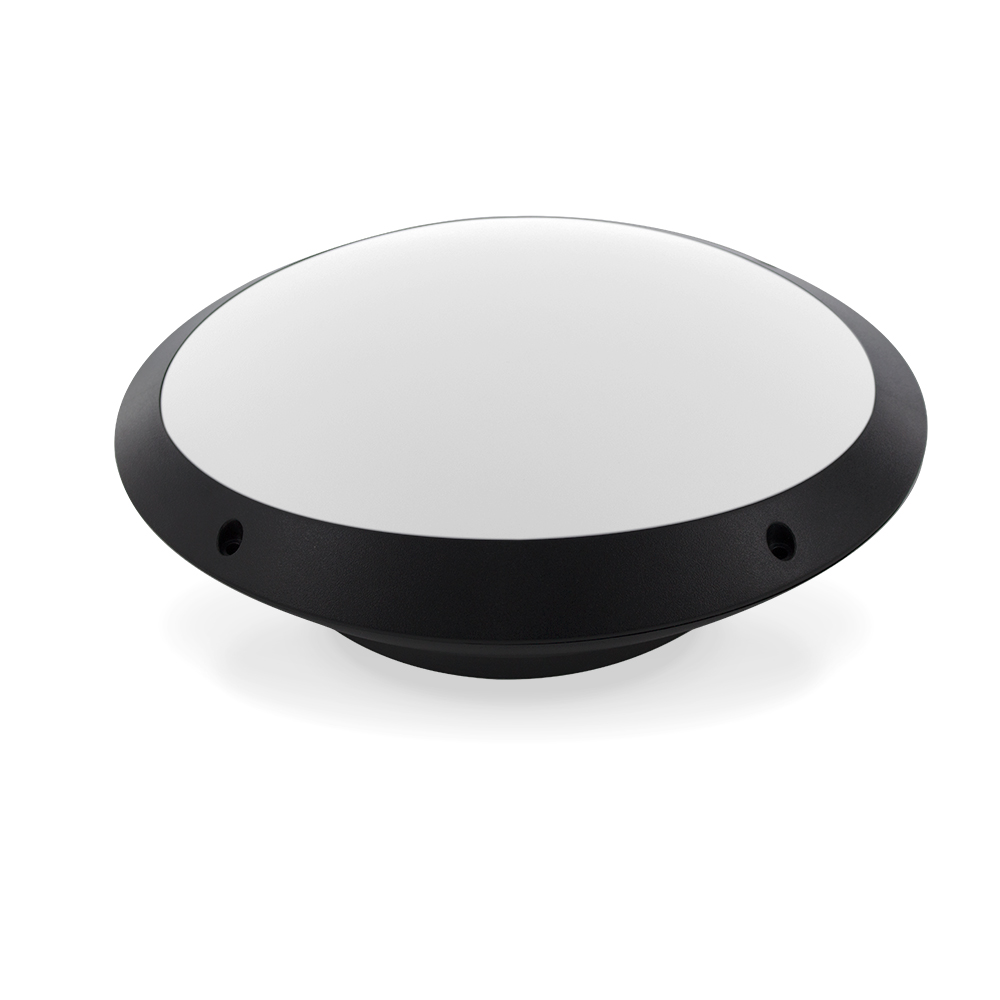

AT3016/BLK/OH/TRI

Oval 12W LED Polycarbonate Bunker - IP66 w/Eyelid option - Black Colour - TRI-CCT

11497

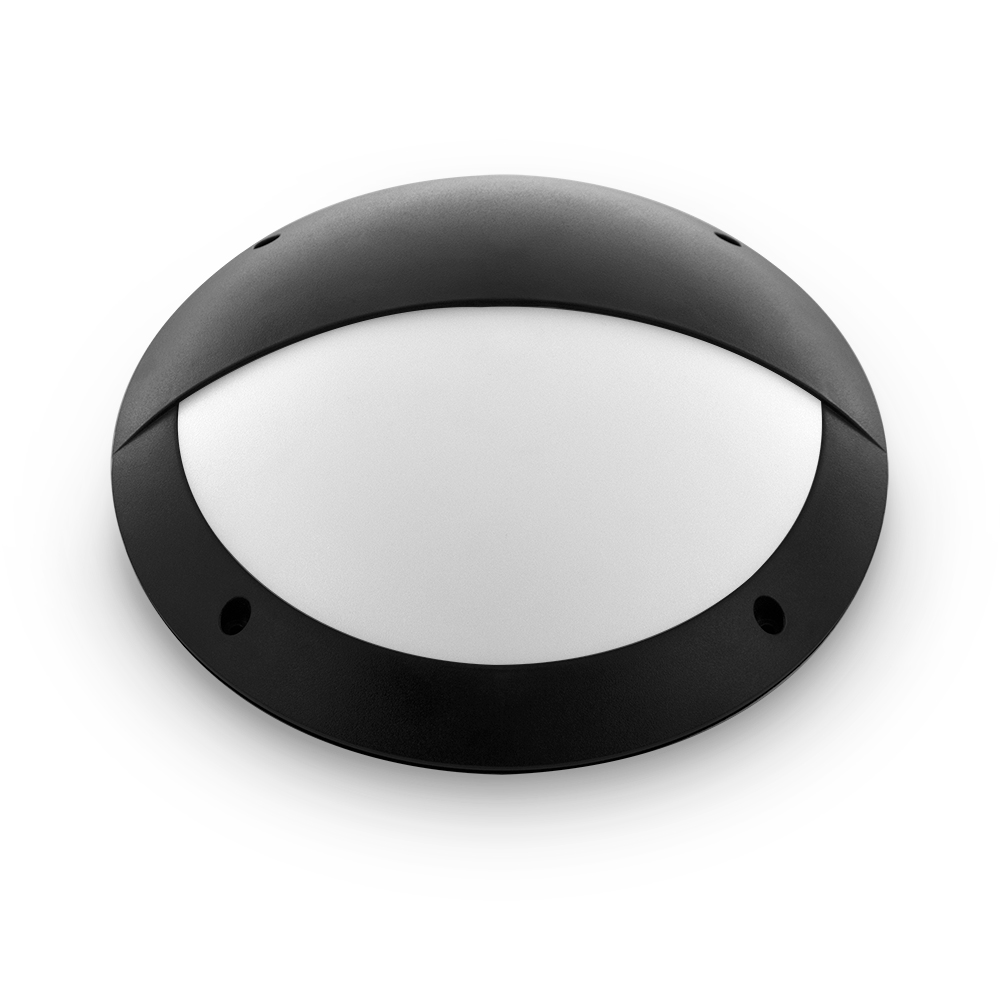

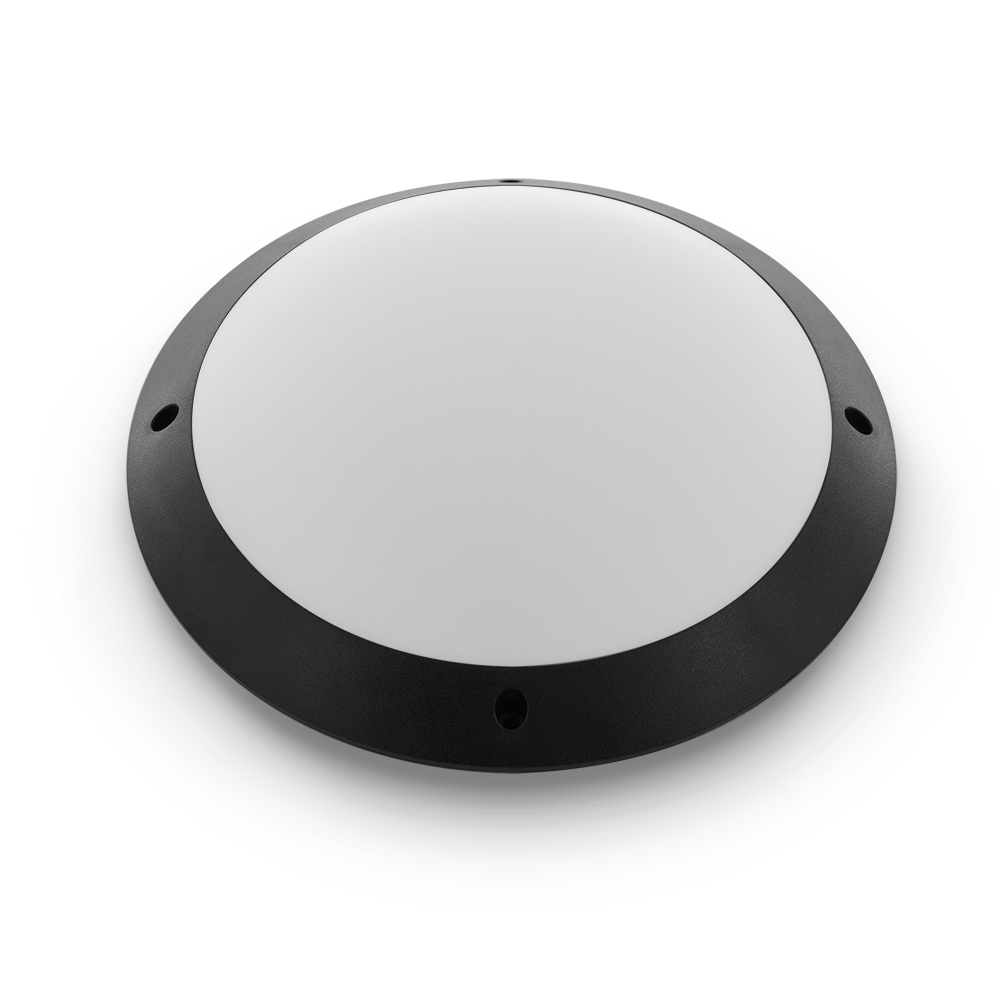

AT3016/BLK/RD/TRI

Round 12W LED Polycarbonate Bunker - IP66 w/Eyelid option - Black - TRI-CCT

11500

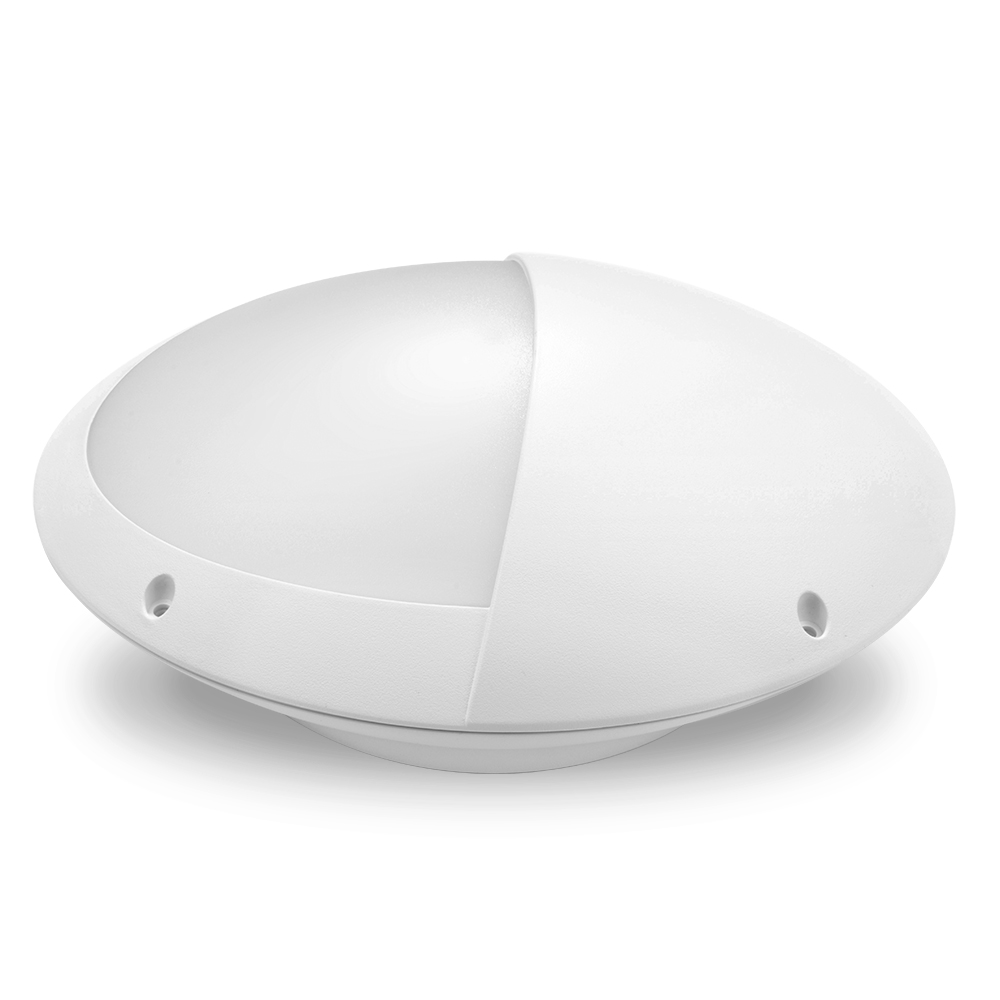

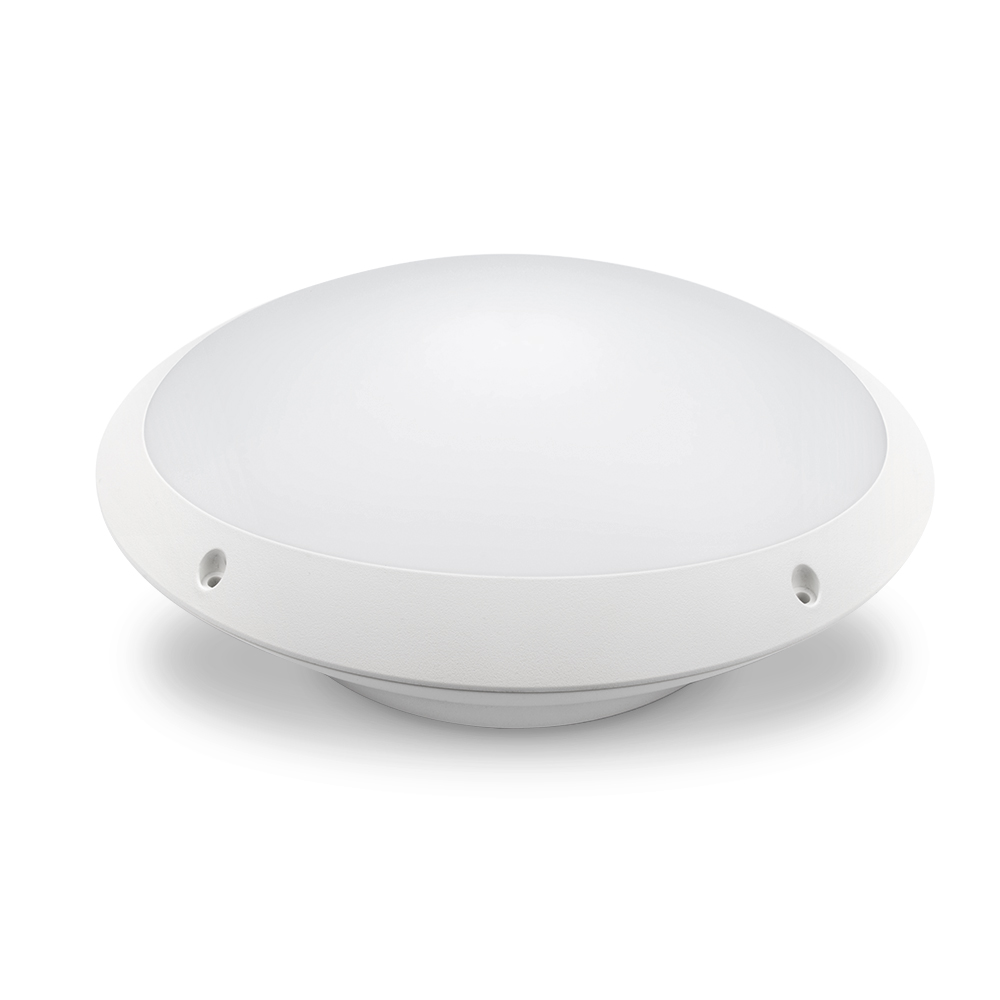

AT3016/WH/OH/TRI

Oval 12W LED Polycarbonate Bunker - IP66 w/Eyelid option - White Colour - TRI-CCT

11498

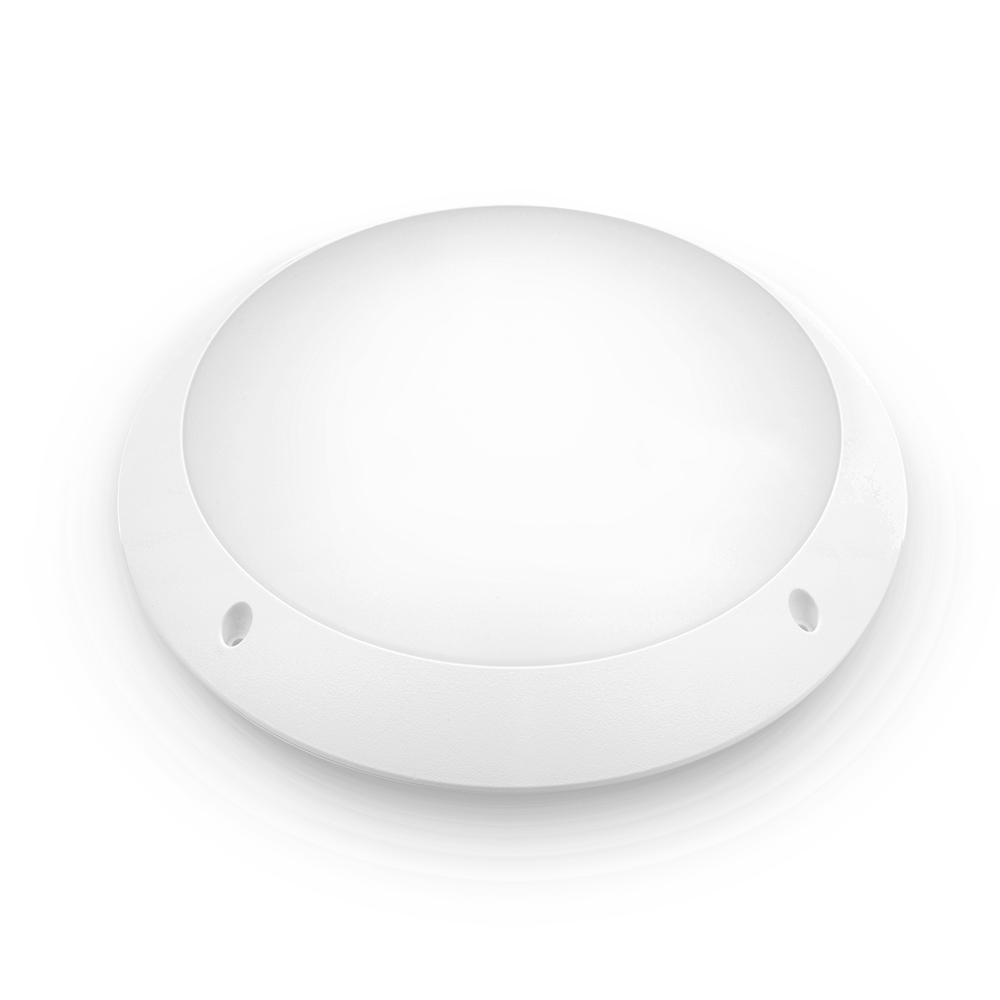

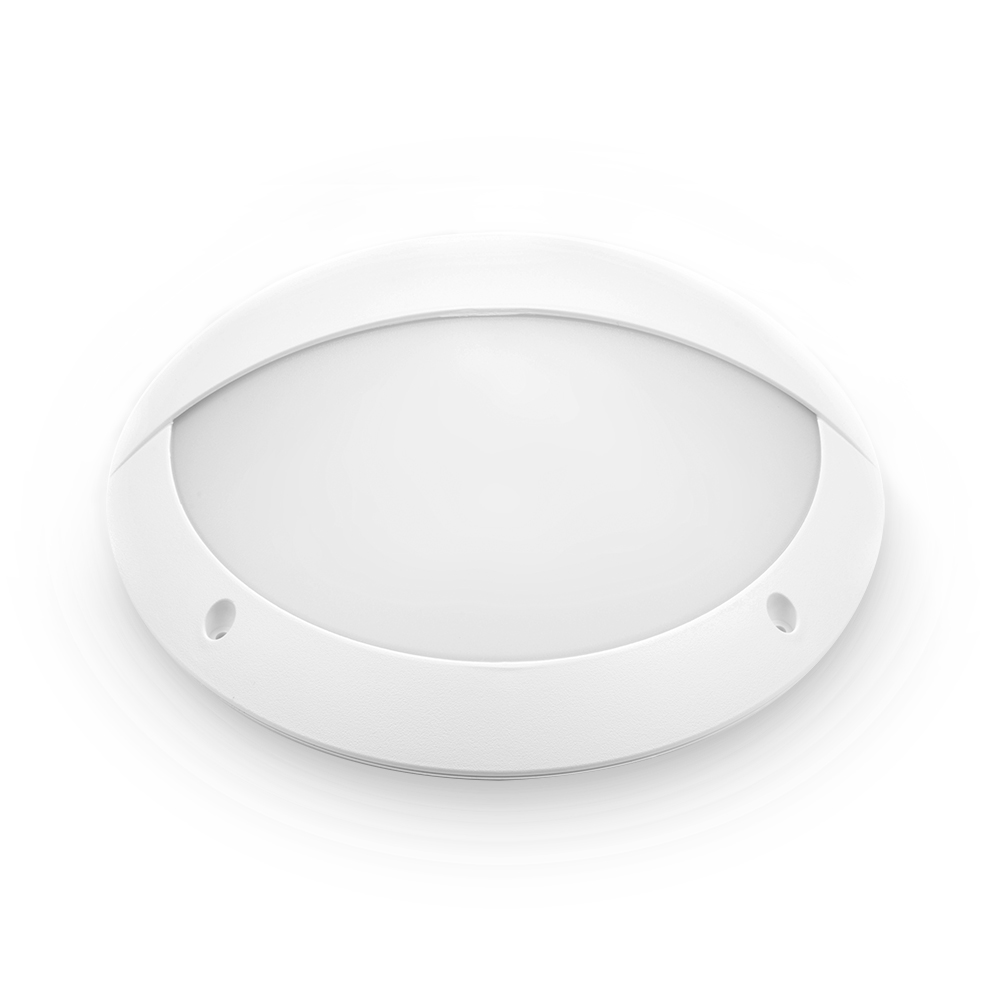

AT3016/WH/RD/TRI

Round 12W LED Polycarbonate Bunker - IP66 w/Eyelid option - White Colour - TRI-CCT

SKU: AT3016 TRI Category: Bunkers Tags: Outdoor, Ik10, TRI-CCT, Ip66

Specifications

Total System Efficiency
AT3016/BLK/OH/TRI	91 lm/W
AT3016/BLK/RD/TRI	98 lm/W
AT3016/WH/OH/TRI AT3016/WH/RD/TRI	104 lm/W

The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Fitting Colour
Adjustability	Fixed
Body Material	Polycarbonate
Diffuser Material	Polycarbonate
AT3016/BLK/OH/TRI AT3016/BLK/RD/TRI	Black
AT3016/WH/OH/TRI AT3016/WH/RD/TRI	White

IK Rating	IK10
Installation Type	Wall or Ceiling
IP Rating	IP66

Electrical Rating	Class II
Input Current	0.07 A
Input Frequency	50 Hz
Input voltage	230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Switch Type	Inline
System Max Wattage	12 W
Working Temp Range	-20 to 45 °C

CCT Configuration	TRI-CCT
Colour Rendering Index (CRI)	>80

LED Lifetime	>54000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Rating	L70B10
TM-21 Test Hours	9000 hrs

Warm White (3000K K)	1050 lm
Cool White (4000K K)	1100 lm
DayLight (5700K K)	1090 lm
Warm White (3000K (Eyelid) K)	610 lm
Cool White (4000K (Eyelid) K)	650 lm
DayLight (5700K (Eyelid) K)	640 lm

Warm White (3000K K)	1125 lm
Cool White (4000K K)	1170 lm
DayLight (5700K K)	1150 lm
Warm White (3000K (Eyelid) K)	670 lm
Cool White (4000K (Eyelid) K)	700 lm
DayLight (5700K (Eyelid) K)	685 lm

Warm White (3000K K)	1185 lm
Cool White (4000K K)	1250 lm
DayLight (5700K K)	1240 lm
Warm White (3000K (Eyelid) K)	800 lm
Cool White (4000K (Eyelid) K)	815 lm
DayLight (5700K (Eyelid) K)	810 lm

Warm White (3000K K)	1215 lm
Cool White (4000K K)	1250 lm
DayLight (5700K K)	1240 lm
Warm White (3000K (Eyelid) K)	820 lm
Cool White (4000K (Eyelid) K)	850 lm
DayLight (5700K (Eyelid) K)	840 lm

Dimmable	No
Driver Included	Yes
Integrated Driver	No
Driver Mode	Constant Current
Driver Type	Fixed output
Wiring Type	Re-wireable terminal block (3 pin)

Standards	AS/NZS 60598.1 AS/NZS 60598.2.1 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15 AS/NZS 60598.2.13

Domestic Use Warranty	3 (Yr) RTB
VIP Warranty	2 Onsite, 3 RTB (Total 5 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.

Dimensions

Item Code	Product Height	Product Length	Product Width
AT3016/BLK/OH/TRI	90 mm	325 mm	235 mm
AT3016/WH/OH/TRI	90 mm	325 mm	235 mm
AT3016/BLK/RD/TRI	90 mm	300 mm	300 mm
AT3016/WH/RD/TRI	90 mm	300 mm	300 mm

AT3016/OH/TRI

AT3016/RD/TRI

Ordering Information

Order code	Item code	Description
11499	AT3016/BLK/OH/TRI	Oval 12W LED Polycarbonate Bunker - IP66 w/Eyelid option - Black Colour - TRI-CCT
11497	AT3016/BLK/RD/TRI	Round 12W LED Polycarbonate Bunker - IP66 w/Eyelid option - Black - TRI-CCT
11500	AT3016/WH/OH/TRI	Oval 12W LED Polycarbonate Bunker - IP66 w/Eyelid option - White Colour - TRI-CCT
11498	AT3016/WH/RD/TRI	Round 12W LED Polycarbonate Bunker - IP66 w/Eyelid option - White Colour - TRI-CCT
