Keppel
$0.00

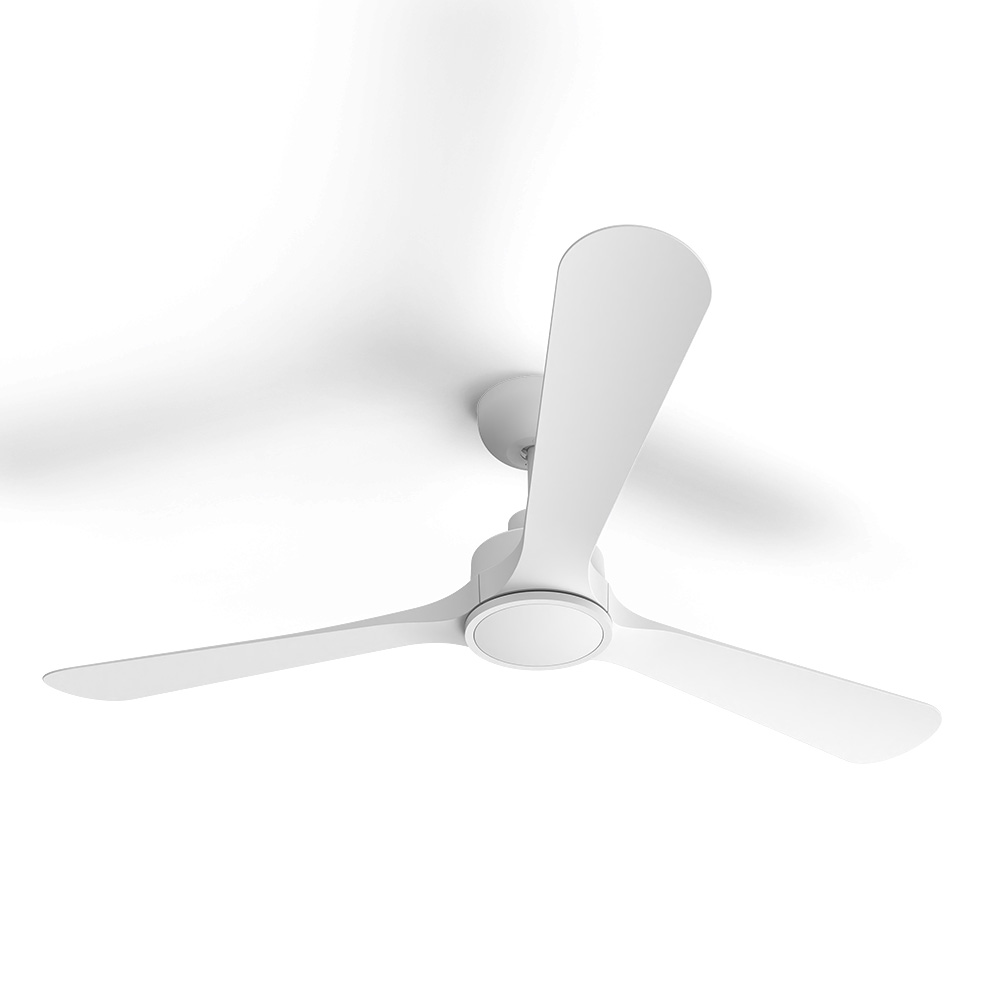

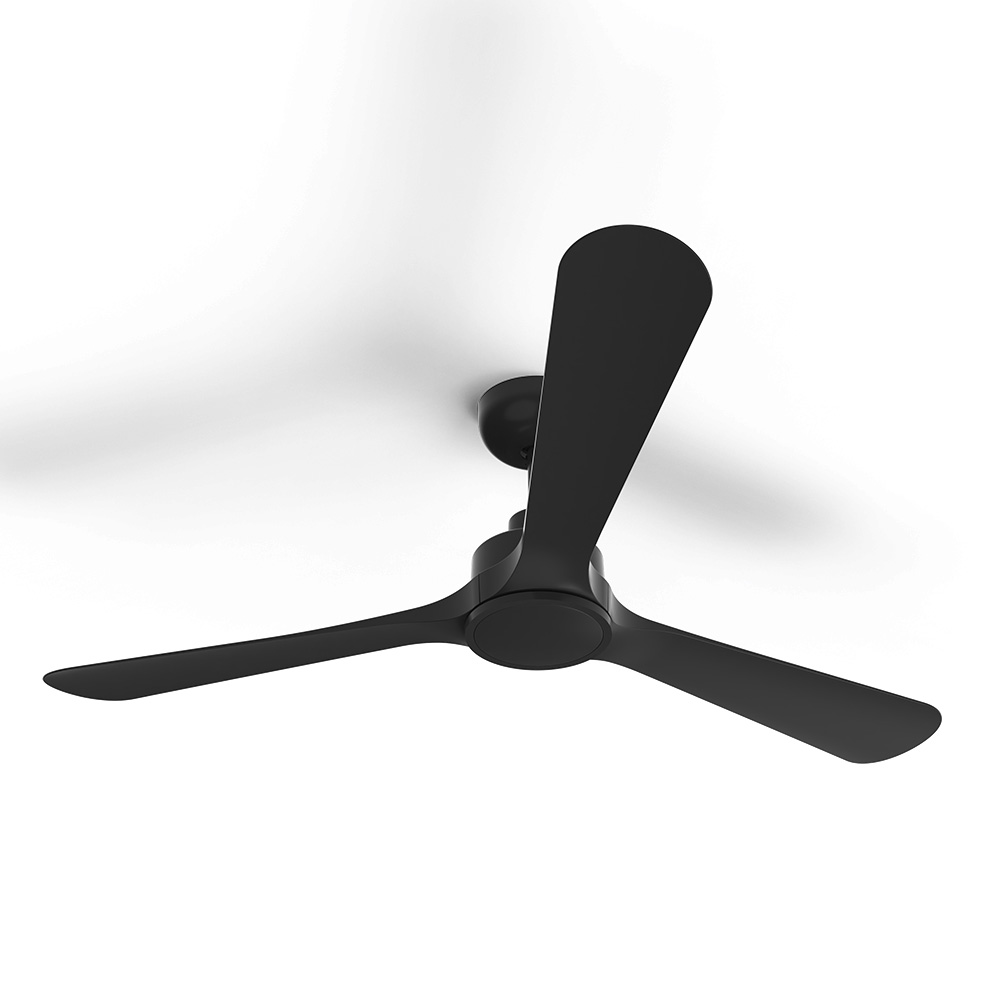

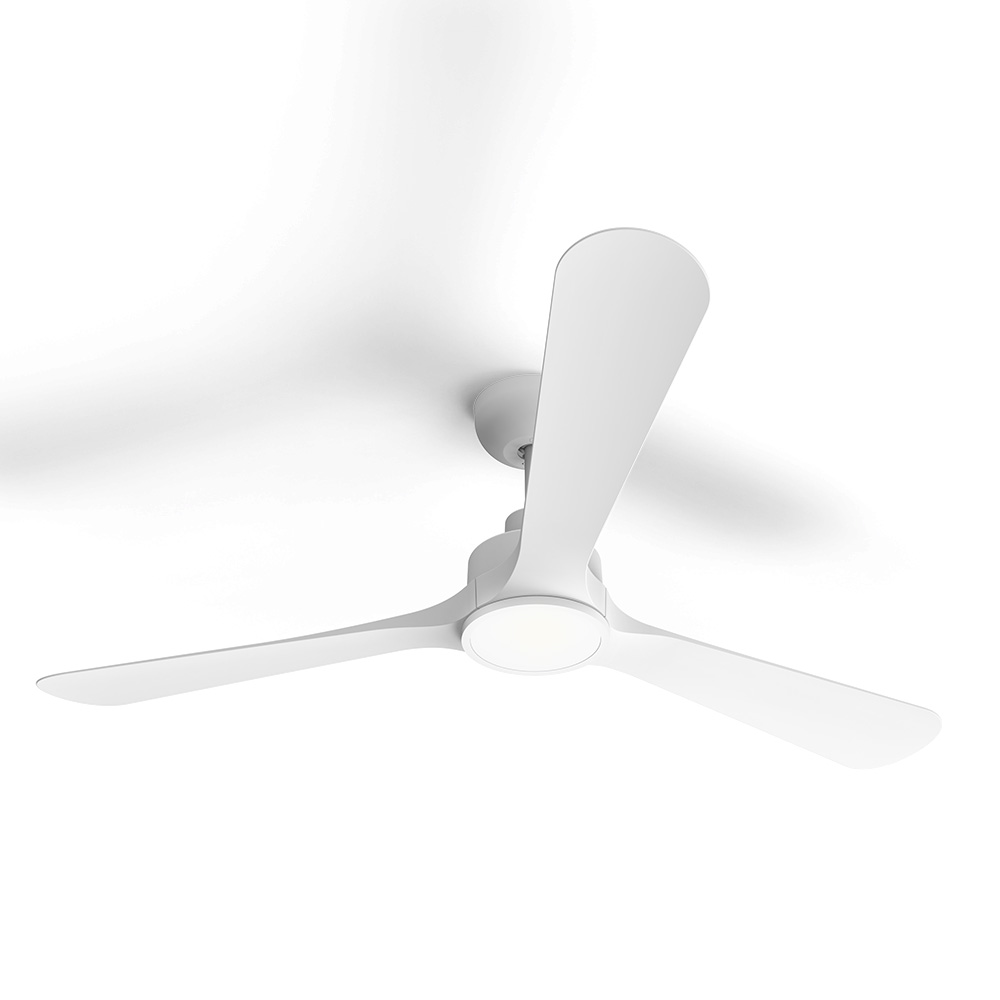

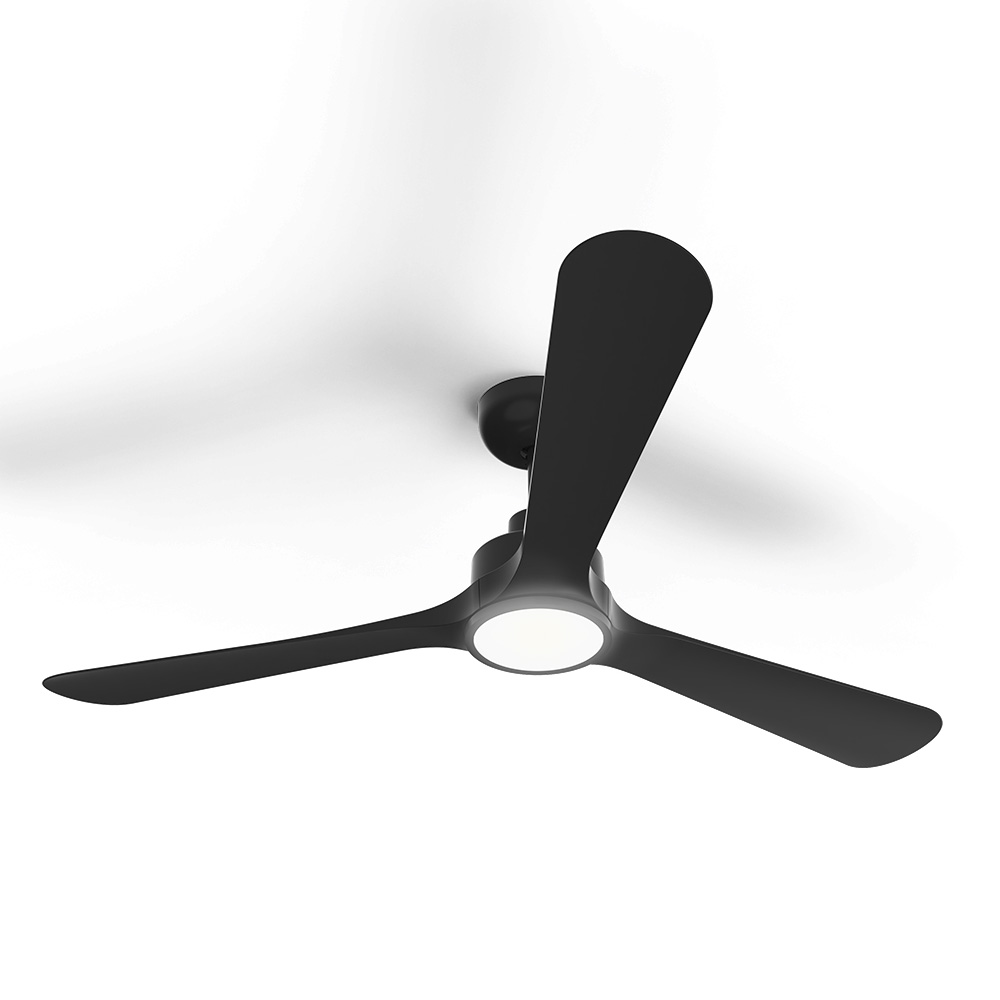

3 blade 32W DC ceiling fan
- Powerful and energy efficient 32W DC motor
- Easy installation with our quick connect wiring solution
- Pre-balanced for smoother, quieter operation
- Slimline design ideal for indoor and covered outdoor applications
- ABS body and canopy with 3 reinforced ABS blades
- Hangsure canopy up to 15 degrees
- Reversible for summer and winter use (via remote control)

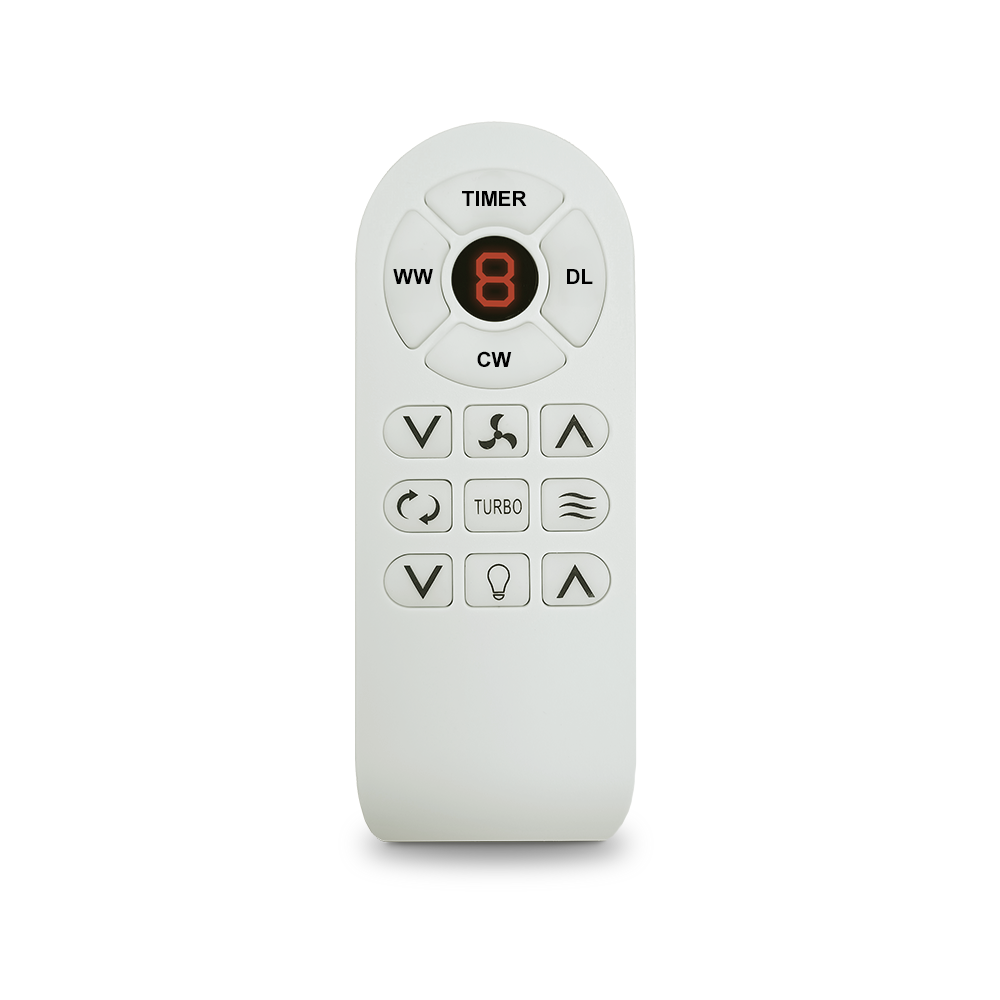

- Supplied with 8 speed remote including turbo speed function and up to 12h timer
Selected Models
- 20W dimmable tri-colour LED
- Switchable colour temperature between 3000K, 4000K and 5000K (via remote control)
Specifications
Mechanical
| Body Material | ABS |
|---|---|
| Fitting Colour | |
| KEPPEL/54/BK KEPPEL/54/LT/BK | Matt Black |
| KEPPEL/54/LT/WH KEPPEL/54/WH | Satin White |
| IP Rating | IP20 |
| Diffuser Material | Polycarbonate |
Electrical
| Electrical Rating | Class I |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Working Temp Range | -10 to 40 °C |
Lamp
| Beam Angle | 120 ° |
|---|---|
| CCT Configuration | TRI-CCT |
| Colour Rendering Index (CRI) | >80 |
Air Movement
| Motor Wattage | 32 W |
|---|---|
| Motor Type | DC |
| No. Speeds | 8 |
| Control | Remote control |
| Ceiling Rake | 15 ° |
| Ceiling Drop | 347 mm |
| Blade Pitch | 10 ° |
| Blade Material | ABS |
| Fan Size | 1370mm (54inch) |
| Fan Speed 1 | 4 W, 85 rpm, 5400 m³/h |
| Fan Speed 2 | 6 W, 107 rpm, 6400 m³/h |
| Fan Speed 3 | 10 W, 135 rpm, 7800 m³/h |
| Fan Speed 4 | 14 W, 155 rpm, 9000 m³/h |
| Fan Speed 5 | 17 W, 175 rpm, 9800 m³/h |
| Fan Speed 6 | 21 W, 185 rpm, 10700 m³/h |
| Fan Speed 7 | 25 W, 200 rpm, 11400 m³/h |
| Fan Speed 8 | 32 W, 220 rpm, 12500 m³/h |
Warranty
| Domestic Use Warranty | 4 Onsite, 2 RTB (Total 6 years) |
|---|
Dimensions
| Item Code | Product Height | Product Weight | Product Width |
|---|---|---|---|
| KEPPEL/54/BK | 347 mm | 5100 g | 1370 mm |
| KEPPEL/54/WH | 347 mm | 5100 g | 1370 mm |
| KEPPEL/54/LT/BK | 347 mm | 5200 g | 1370 mm |
| KEPPEL/54/LT/WH | 347 mm | 5200 g | 1370 mm |
KEPPEL/54
KEPPEL/54/LT
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 15602 | KEPPEL/54/BK | 54 inch (1370mm) 3 Blade 32W DC ceiling fan black | |
| 15604 | KEPPEL/54/LT/BK | 54 inch (1370mm) 3 Blade 32W DC ceiling fan W/LED Light black | |
| 15603 | KEPPEL/54/LT/WH | 54 inch (1370mm) 3 Blade 32W DC ceiling fan W/LED Light white | |
| 15601 | KEPPEL/54/WH | 54 inch (1370mm) 3 Blade 32W DC ceiling fan white |
Documents & Downloads
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12514 | ROD/150/BK | 1500mm Extension rod for ceiling fans w/loom - Black | |
| 12512 | ROD/90/BK | 900mm Extension rod for ceiling fans w/loom - Black | |
| 12511 | ROD/90/WH | 900mm Extension rod for ceiling fans w/loom - white |
