Ceduna
$0.00
3 blade 45W AC ceiling fan
- Efficient 45W AC motor
- Easy installation with our quick connect wiring solution
- Pre-balanced for smoother, quieter operation
- Suitable for indoor and covered outdoor applications
- Metal body and canopy with 3 reinforced ABS blades
- Hangsure canopy up to 15 degrees
- Reversible for summer and winter use
- Compatible with Atom Air ceiling fan remote control ACREMOTE/KIT (sold separately)
- 3 speed wall controller
Selected Models
- 16W dimmable tri-colour LED
- Switchable colour temperature between 3000K, 4000K and 5000K
Specifications
Mechanical
| Body Material | Metal |
|---|---|
| Fitting Colour | Satin White |
| IP Rating | IP20 |
Electrical
| Electrical Rating | Class I |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Working Temp Range | -10 to 40 °C |
Lamp
| CCT Configuration | TRI-CCT |
|---|---|
| Colour Rendering Index (CRI) | >80 |
Colour temperature
CEDUNA/48/LT/WH
| |||||||||
| CEDUNA/48/WH | |||||||||
Air Movement
| Motor Wattage | 45 W |
|---|---|
| Motor Type | AC |
| No. Speeds | 3 |
| Control | Wall control |
| Ceiling Rake | 15 ° |
| Ceiling Drop | 270 mm |
| Blade Pitch | 9 ° |
| Blade Material | ABS |
| Fan Size | 1220mm (48inch) |
| Fan Speed 1 | 45 W, 245 rpm, 9300 m³/h |
| Fan Speed 2 | 37 W, 170 rpm, 7800 m³/h |
| Fan Speed 3 | 20 W, 110 rpm, 5700 m³/h |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 4 Onsite, 2 RTB (Total 6 years) |
|---|
Dimensions
| Item Code | Product Weight |
|---|---|
| CEDUNA/48/LT/WH | 4360 g |
| CEDUNA/48/WH | 3920 g |

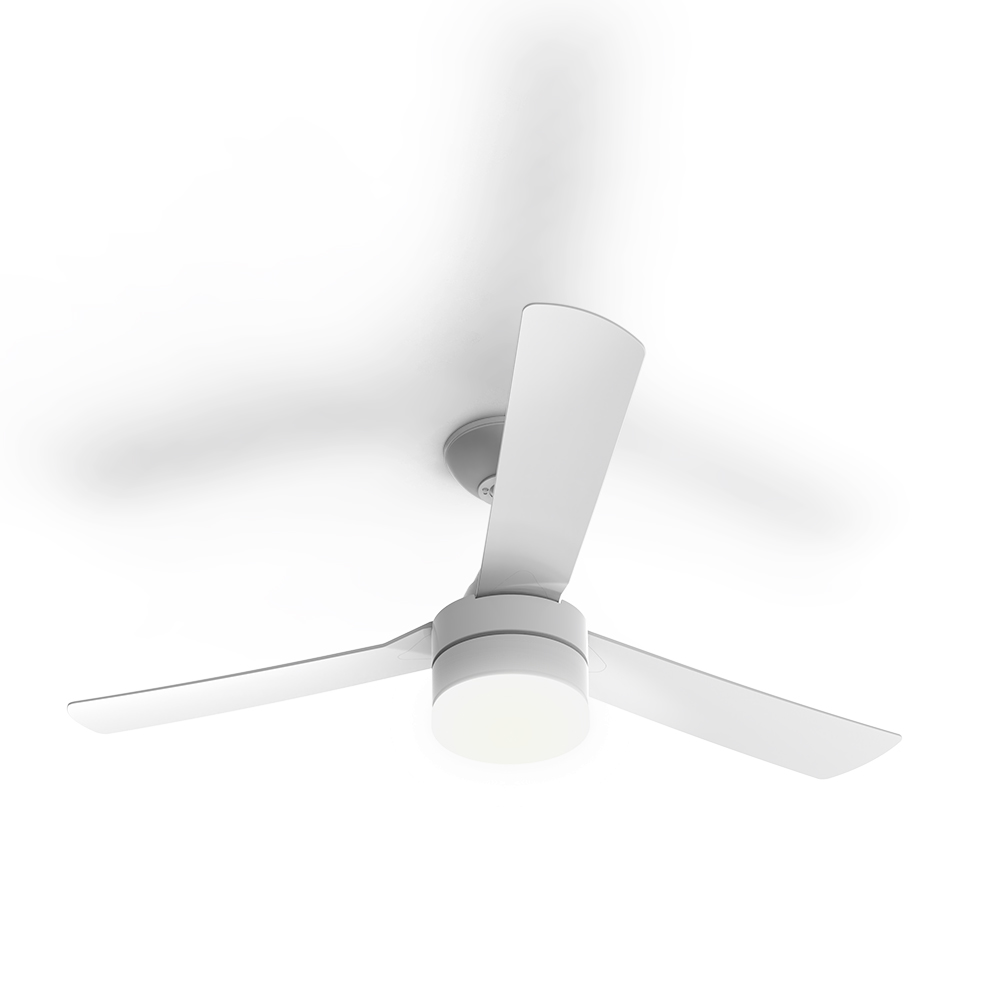

CEDUNA/48/LT

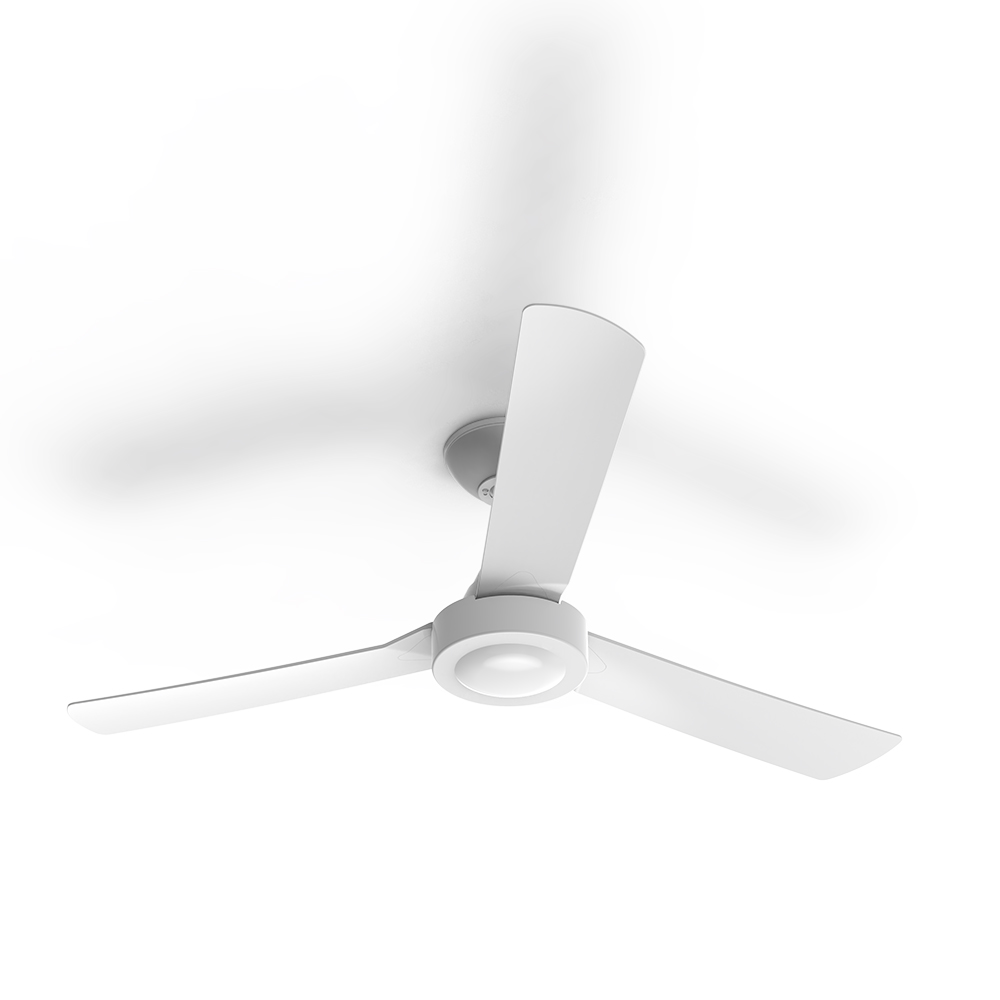

CEDUNA/48
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 18469 | CEDUNA/48/LT/WH | 48 inch (1220mm) 3 blade 45W AC ceiling fan W/Light white | |
| 18468 | CEDUNA/48/WH | 48 inch (1220mm) 3 blade 45W AC ceiling fan white |
Documents & Downloads
Datasheet
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12509 | ACREMOTE/KIT/WH | Remote control receiver and remote kit for AC ceiling fans - White | |
| 12513 | ROD/150/WH | 1500mm Extension rod for ceiling fans w/loom - white | |
| 12511 | ROD/90/WH | 900mm Extension rod for ceiling fans w/loom - white |
