Thredbo
$0.00

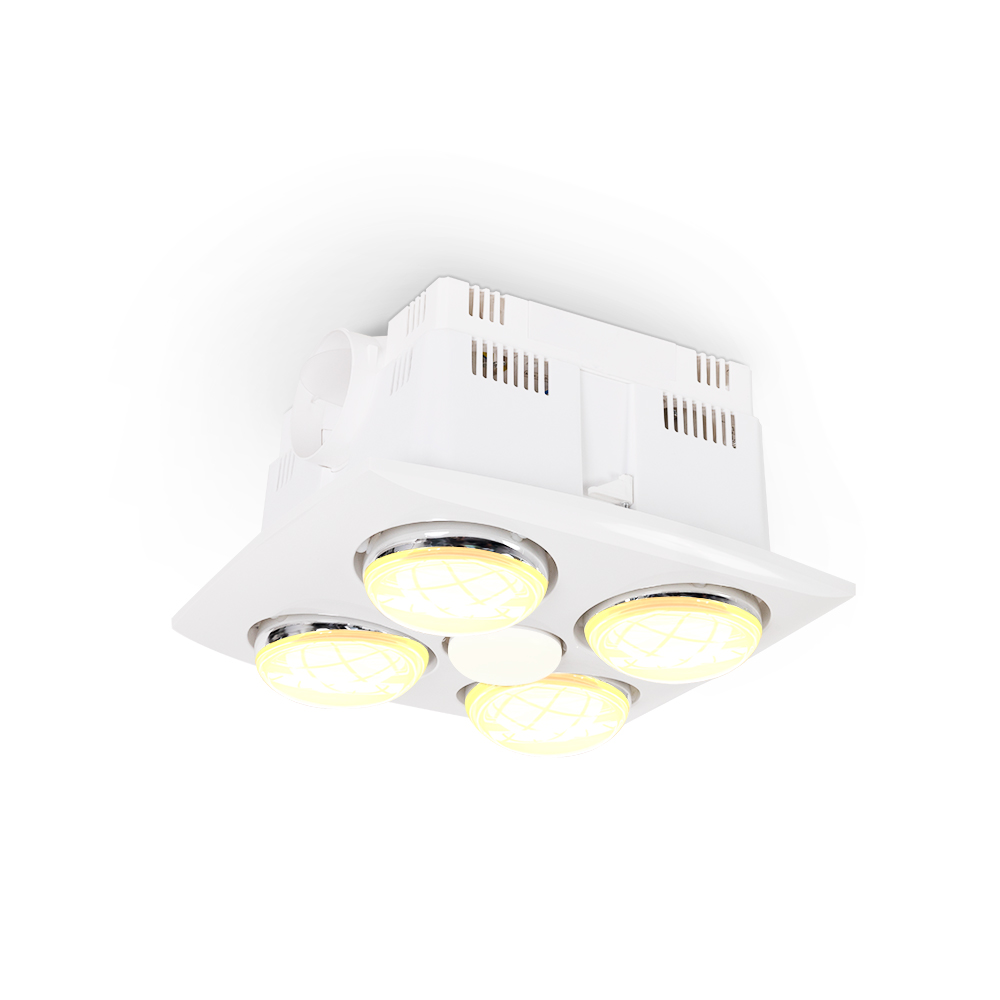

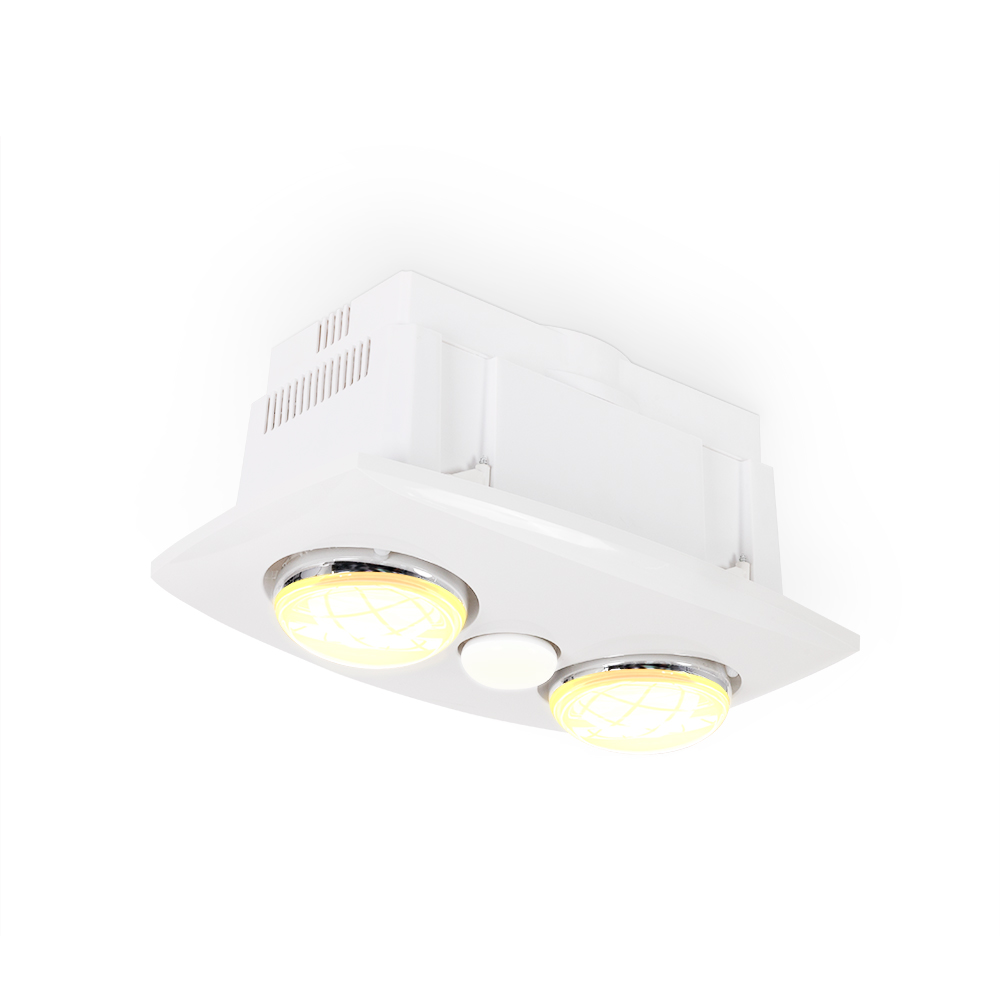

3-in-1 bathroom heater
- Energy-efficient 45W ball bearing motor for superior reliability
- Built in thermostat switch turns fan on automatically if temperature exceeds 80°C
- Outlet grill with integrated draught stopper for maximum efficiency
- Replaceable E27 LED lamps
- 3-year in-home warranty for peace of mind
- Includes integrated draught stopper, wall switches, 1.5m duct and grill outlet
- Ideal for smaller bathrooms and ensuites
Specifications
Mechanical
| Product Finish | Gloss |
|---|---|
| Fitting Colour | White |
| IC Rating | Do not cover |
| Installation Type | Recessed |
| IP Rating | IPx4 |
Electrical
| Electrical Rating | Class I |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Working Temp Range | -10 to 40 °C |
Lamp
| CCT Configuration | Single |
|---|---|
| Colour Rendering Index (CRI) | >80 |
Colour temperature
| CCT | 4000 K |
|---|---|
| CCT Colour | Cool White |
| Luminaire Lumens | |
| THREDBO/2LT/WH | 850 lm |
| THREDBO/4LT/WH | 1250 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
Air Movement
| Outlet | 125 mm |
|---|---|
| Noise level | 45 dB |
| Motor Wattage | 45 W |
| Motor Type | Ball bearing |
| Fan Type | Centrifugal |
| Air extraction | 280 m3/hr |
Heat
| Heater Type | |
|---|---|
| THREDBO/2LT/WH | 2x 275W IR Heat Lamp (E27) |
| THREDBO/4LT/WH | 4x 275W IR Heat Lamp (E27) |
Compliance
| Product Design Life | 10 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Daily Use | 2 hrs |
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| Domestic Use Warranty | 3 Onsite (Total 3 Years) |
|---|---|
| Warranty Operating Hours | 2500 hrs |
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
Dimensions
| Item Code | Minimum Ceiling Depth | Cutout | Product Height | Product Length | Product Width |
|---|---|---|---|---|---|
| THREDBO/2LT/WH | 220 mm | 345x202 mm | 180 mm | 440 mm | 285 mm |
| THREDBO/4LT/WH | 220 mm | 295x295 mm | 180 mm | 400 mm | 360 mm |
THREDBO/2LT/WH
THREDBO/4LT/WH
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 16767 | THREDBO/2LT/WH | 2-Light 3in1 bathroom heater & exhaust w/LED R63 lamp - white | |
| 16768 | THREDBO/4LT/WH | 4-Light 3in1 bathroom heater & exhaust w/LED R80 lamp - white |
Documents & Downloads
Instruction Manual
Datasheet
*Auto generated datasheet (beta)
Accessories
Fixed output
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 18705 | AT9707/E27/CW | 8W R63 LED REFLECTOR LAMP E27 CW NON-DIM | |
| 18704 | AT9707/E27/WW | 8W R63 LED REFLECTOR LAMP E27 WW NON-DIM | |
| 18707 | AT9708/ES/CW | 10W R80 LED REFLECTOR LAMP E27 CW NON-DIM | |
| 18706 | AT9708/ES/WW | 10W R80 LED REFLECTOR LAMP E27 WW NON-DIM |
Dimmable ( Phase cut)
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 18716 | AT9709/ES/HEAT/275 | 275W R125 INFRARED HEAT LAMP E27 |
