St Moritz
$0.00

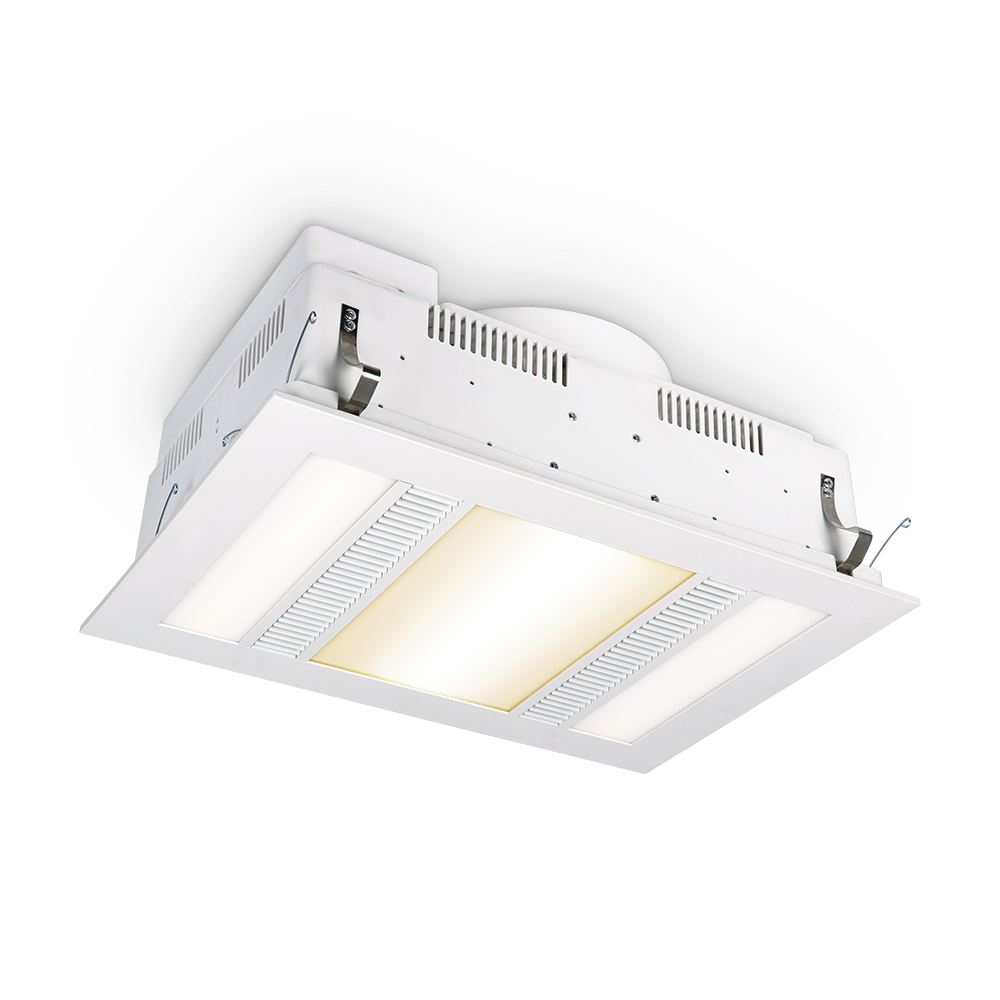

3-in-1 Linear Infrared bathroom heater
- Super-efficient 70W ball bearing motor for superior reliability
- Built in 80°C thermal cutout switch for added safety
- Infrared tube provides instant heat
- 3-year in-home warranty for peace of mind
- Includes wall switches, 1.5m duct and grill outlet
Specifications
Mechanical
| Product Finish | Matt |
|---|---|
| Fitting Colour | |

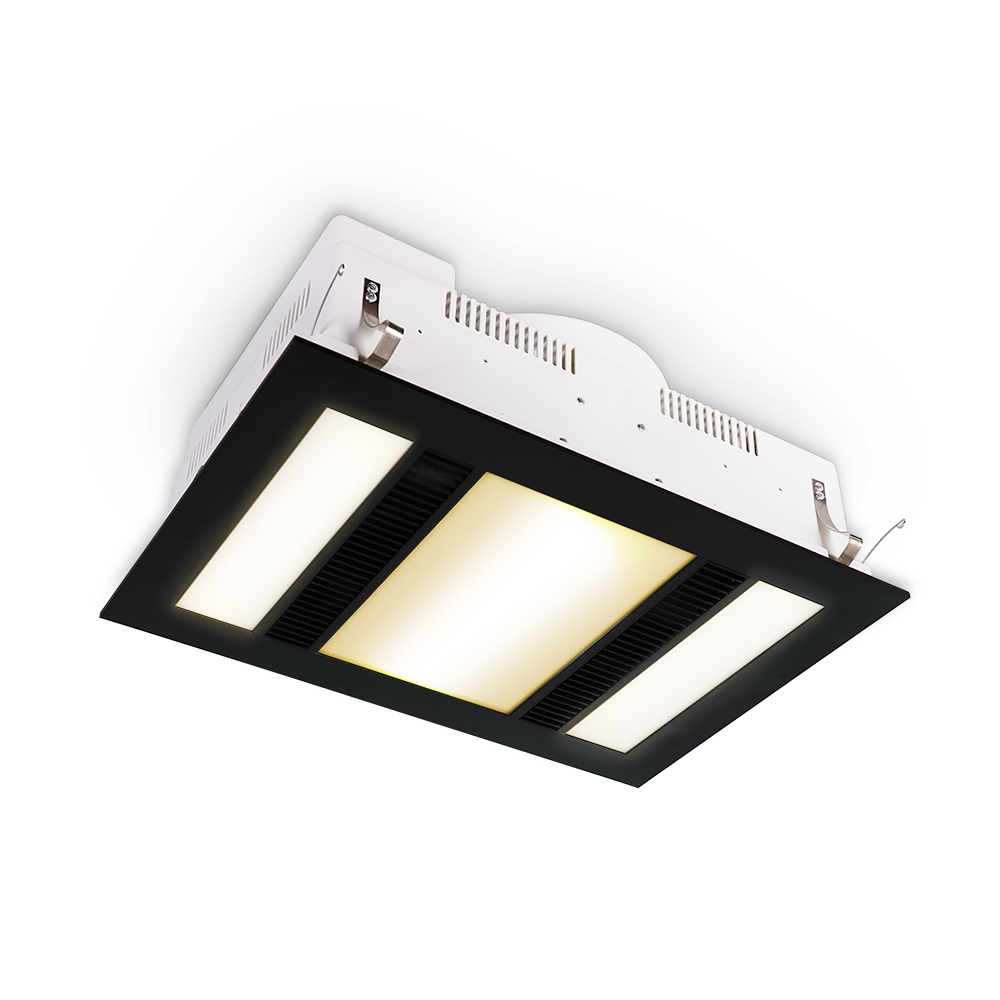

| STMORITZ/B | Black |
| STMORITZ/WH | White |
| IC Rating | Do not cover |
| Installation Type | Recessed |
| IP Rating | IPx2 |
Electrical
| Electrical Rating | Class I |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Working Temp Range | -10 to 40 °C |
Lamp
| CCT Configuration | TRI-CCT |
|---|---|
| Colour Rendering Index (CRI) | >80 |
Colour temperature
| 20 Watts | |
|---|---|
| Warm White (3000 K) | 1585 lm |
| Cool White (4000 K) | 1700 lm |
| DayLight (5000 K) | 1585 lm |
Air Movement
| Outlet | 150 mm |
|---|---|
| Noise level | 45 dB |
| Motor Wattage | 70 W |
| Motor Type | Ball bearing |
| Fan Type | Centrifugal |
| Air extraction | 500 m3/hr |
Heat
| Heater Type | 1000W Infrared Heat Source |
|---|
Compliance
| Product Design Life | 10 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Daily Use | 2 hrs |
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| Domestic Use Warranty | 3 Onsite (Total 3 Years) |
|---|---|
| Warranty Operating Hours | 2500 hrs |
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
Dimensions
| Minimum Ceiling Depth | 220 mm |
|---|---|
| Cutout | 325x470 mm |
| Product Height | 210 mm |
| Product Length | 500 mm |
| Product Width | 350 mm |
STMORITZ
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14837 | STMORITZ/B | 1000W Infrared high velocity bathroom heater & exhaust w/ LED panels - black - tri-cct | |
| 16773 | STMORITZ/WH | 1000W Infrared high velocity bathroom heater & exhaust w/ LED panels - white - tri-cct |
Documents & Downloads
Instruction Manual
Datasheet
Compliance
*Auto generated datasheet (beta)
Accessories
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 10361 | AT9491 | 1000W RJ7S IR Heat Tube to suit St Moritz bathroom Heater |
