Buller
3-in-1 bathroom heater with integrated LED downlight – Series II
- 35W ball bearing motor for superior reliability
- Quality integrated tri-CCT (non-dimmable) LED downlight provides efficient illumination
- Infrared heat lamps provide instant heat
- Built in thermostat switch turns fan on automatically if temperature exceeds 80°C
- 3-year in-home warranty for peace of mind
- Includes wall switches, 1.5m duct and grill outlet
- Ideal for medium-sized bathrooms and ensuites
Specifications
Mechanical
| IP Rating | IPx4 |
|---|---|
| IC Rating | Do not cover |
| Fitting Colour | White |
| Product Finish | Matt |
| Installation Type | Recessed |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
Colour temperature
| 10 Watts | |
|---|---|
| Warm White (3000 K) | 880 lm |
| Cool White (4000 K) | 1000 lm |
| DayLight (5000 K) | 900 lm |
Air Movement
| Outlet | 125 mm |
|---|---|
| Noise level | 42 dB |
| Motor Wattage | 35 W |
| Motor Type | Ball bearing |
| Fan Type | Centrifugal |
| Air extraction | 305 m3/hr |
Heat
| Heater Type | |
|---|---|
| BULLER/2LT/WH | 2x 275W IR Heat Lamp (E27) |
| BULLER/4LT/WH | 4x 275W IR Heat Lamp (E27) |
Driver
| Dimmable | No |
|---|
Compliance
| Daily Use | 2 hrs |
|---|---|
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| Warranty | 5 Year Warranty, First 3 Years Onsite |
|---|---|
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
| Warranty Operating Hours | 2500 hrs |
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
Dimensions
| Item Code | Product Height | Product Length | Product Width | Minimum Ceiling Depth | Cutout |
|---|---|---|---|---|---|
| BULLER/2LT/WH | 202 mm | 428 mm | 230 mm | 250 mm | 375x202 mm |
| BULLER/4LT/WH | 209 mm | 360 mm | 360 mm | 250 mm | 320x320 mm |

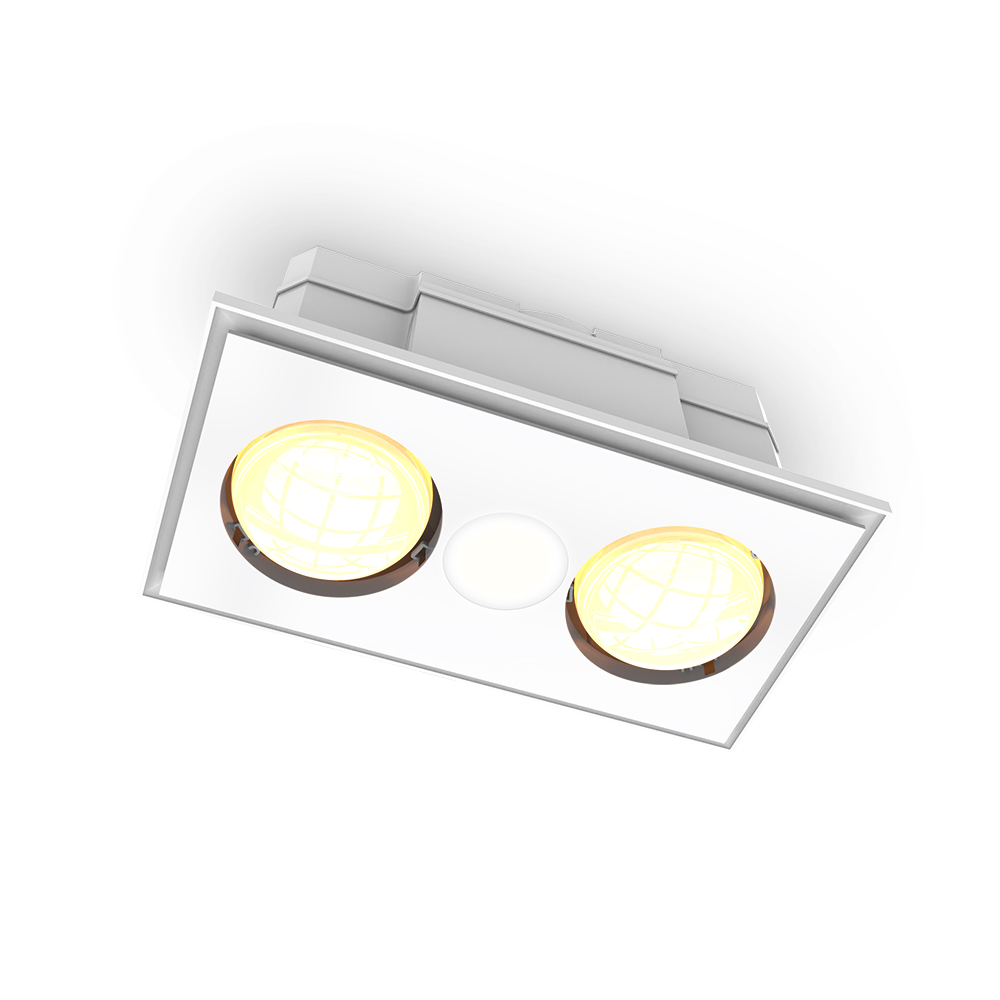

BULLER/2LT/WH

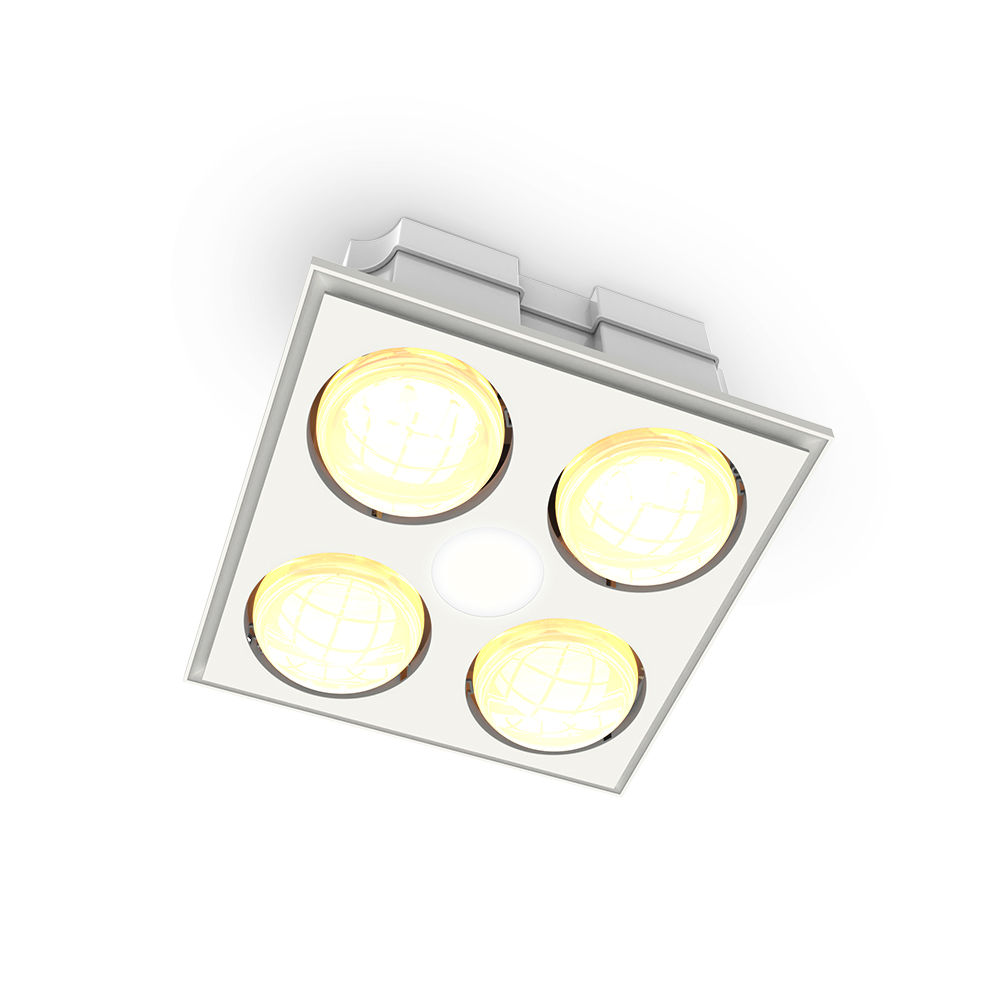

BULLER/4LT/WH
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 12695 | BULLER/2LT/WH | 2-Light 3in1 bathroom heater & exhaust w/LED downlight - white - Tri-cct - Series II | ||
| 12696 | BULLER/4LT/WH | 4-Light 3in1 bathroom heater & exhaust w/LED downlight - white - Tri-cct - Series II |
Documents & Downloads
Datasheet
*Auto generated datasheet (beta)
Accessories
Dimmable ( Phase cut)
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 18716 | AT9709/ES/HEAT/275 | 275W R125 INFRARED HEAT LAMP E27 |
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 14854 | DUCT/125/6M | 125mm x 6m Aluminium Exhaust Duct | ||
| 14851 | TIMER/RO | 1-25min run-on exhaust timer - hardwired | ||
| 13535 | VENT/125/EXT/WH/SQ | 125mm Exterior exhaust fan wall vent square |
