AT9014 (24VDC)
$0.00

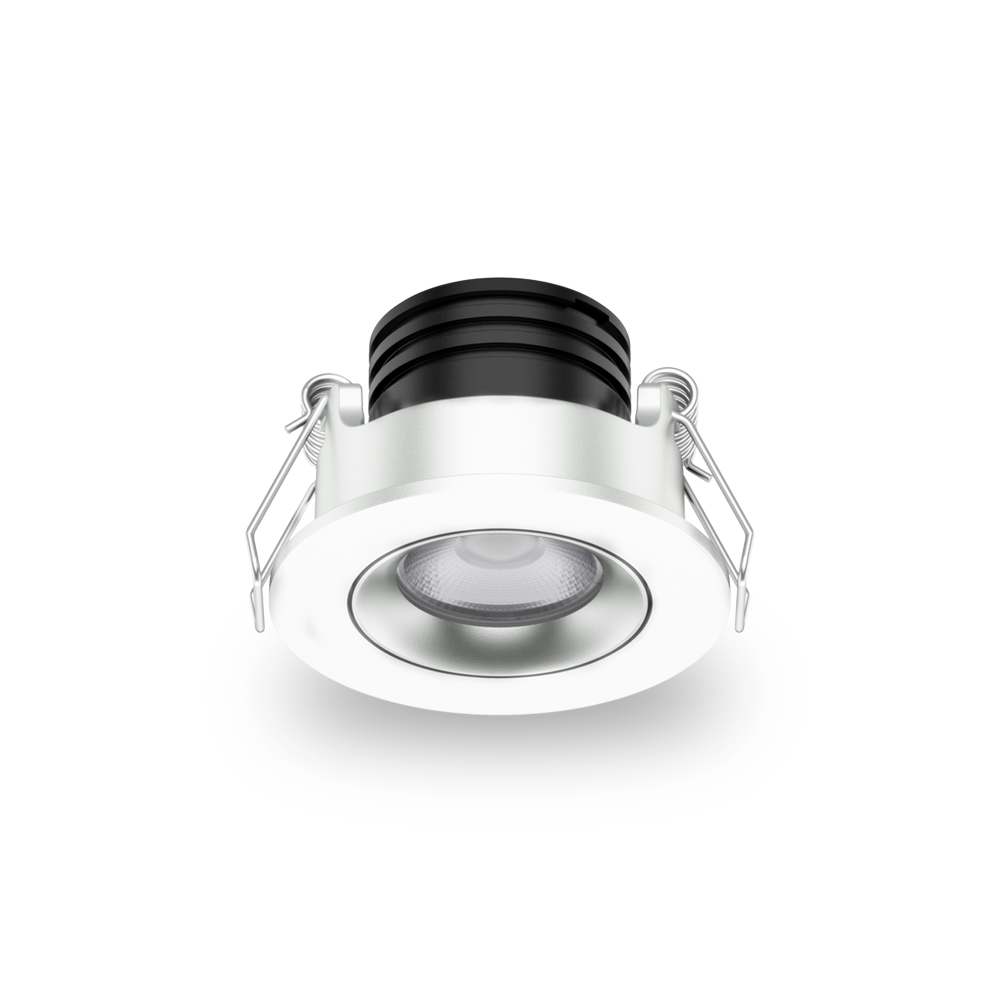

4W LED Adjustable Downlight (24V)
- Ideal for undershelf and accent lighting
- 24V Low voltage operation (driver not supplied)
- 2m Input cable
Specifications
Efficiencies
| Total System Efficiency | 95 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| Adjustability | Adjustable |
|---|---|
| Body Material | Aluminium |
| Product Finish | Matt |
| Fitting Colour | White |
| IC Rating | IC |
| Installation Type | Recessed |
| IP Rating | IP20 |
Electrical
| Electrical Rating | Class III |
|---|---|
| Input voltage | |
| AT9014/ADJ/24V/WH/CW | 24V DC |
| AT9014/ADJ/24V/WH/WW | 24V DV |
| Maximum Wattage | 4 W |
| Switch Type | Inline |
| Working Temp Range | 0 to 40 °C |
Lamp
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
|---|---|
| Beam Angle | 32 ° |
| CCT Configuration | Single |
| Colour Rendering Index (CRI) | >80 |
| LED Type | COB |
| Maximum Bulb Wattage | 4 W |
| Number of Lamps | 1 |
LED Lifetime
| LED Lifetime | 50000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
Colour temperature
| CCT | |
|---|---|
| AT9014/ADJ/24V/WH/WW | 3000 K |
| AT9014/ADJ/24V/WH/CW | 4000 K |
| CCT Colour | |
| AT9014/ADJ/24V/WH/CW | Cool White |
| AT9014/ADJ/24V/WH/WW | Warm White |
| Luminaire Lumens | |
| AT9014/ADJ/24V/WH/WW | 340 lm |
| AT9014/ADJ/24V/WH/CW | 380 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
Driver
| Driver Included | No |
|---|---|
| Integrated Driver | No |
| Flex & Plug or Lead Length | 2000 mm |
| Wiring Type | Flying leads (2 wire) |
Compliance
| Standards |
|
|---|
Warranty
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
|---|---|
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
Dimensions
| Cutout | 45 mm |
|---|---|
| Product Diameter | 50 mm |
| Product Height | 34 mm |
AT9014/ADJ/24V/WH
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12667 | AT9014/ADJ/24V/WH/CW | 4w 24 Volt DC CV Mini Adjustable LED Downlight -White - Cool White | |
| 12666 | AT9014/ADJ/24V/WH/WW | 4w 24 Volt DC Constant Voltage Mini Adjustable LED Downlight-WHT-Warm White |
Documents & Downloads
Instruction Manual
*Auto generated datasheet (beta)
Accessories
Recommended Drivers
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 16091 | EV-DRIVER-24V-100W-ND | 100W 24V Constant Voltage Driver IP67 with 1m Flex and plug | |
| 16089 | EV-DRIVER-24V-40W-ND | 40W 24V Constant Voltage Driver IP67 with 1m Flex and plug | |
| 15795 | ZC-DRIVER-20K-ND-24V | 20W MAX Fixed output Constant Voltage LED Driver 24V CV | |
| 15798 | ZC-DRIVER-60K-ND-24V | 60W MAX Fixed output Constant Voltage LED Driver 24V CV |
