Efficiencies

Total System Efficiency
AT1107/BLK/CW	84 lm/W
AT1107/WH/WW	92 lm/W
AT1107/BLK/WW	93 lm/W

The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

Product Finish
Adjustability	Adjustable
Body Material	Aluminium
AT1107/BLK/CW AT1107/BLK/WW AT1107/WH/WW AT1107/WH/WW/KIT	Powdercoated
AT1107/WH/CW/KIT	White

Fitting Colour
AT1107/BLK/CW AT1107/BLK/WW	Black
AT1107/WH/CW/KIT AT1107/WH/WW AT1107/WH/WW/KIT	White

IC Rating	Non-IC
Installation Type	Surface mount
IP Rating	IP20

Electrical Rating	Class I
Input Frequency	50 Hz
Input voltage	230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage	10 W
Switch Type	Inline
Working Temp Range	-20 to 45 °C

CCT
AT1107/BLK/WW AT1107/WH/WW AT1107/WH/WW/KIT	3000 K
AT1107/BLK/CW AT1107/WH/CW/KIT	4000 K

CCT Colour
AT1107/BLK/CW AT1107/WH/CW/KIT	Cool White
AT1107/BLK/WW AT1107/WH/WW AT1107/WH/WW/KIT	Warm White

Luminaire Lumens
AT1107/WH/WW/KIT	2 x 920 lm
AT1107/WH/CW/KIT	2 x 985 lm
AT1107/BLK/CW	840 lm
AT1107/WH/WW	920 lm
AT1107/BLK/WW	925 lm

All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.

Standards	AS/NZS 60598.1 AS/NZS 60598.2.1 AS/NZS 61347.1 AS/NZS 61347.2.13 AS CISPR 15

Domestic Use Warranty	3 RTB (Total 3 Years)
VIP Warranty	2 Onsite, 3 RTB (Total 5 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.

Dimensions

AT1107/CW

AT1107/WW

AT1107/CW/KIT

AT1107/WW/KIT

Ordering Information

Order code	Item code	Description
11227	AT1107/BLK/CW	10W LED Dimmable Track Mounted Spotlight - BL/60deg/CW
11214	AT1107/BLK/WW	10W LED Dimmable Track Mounted Spotlight - BL/60deg/WW

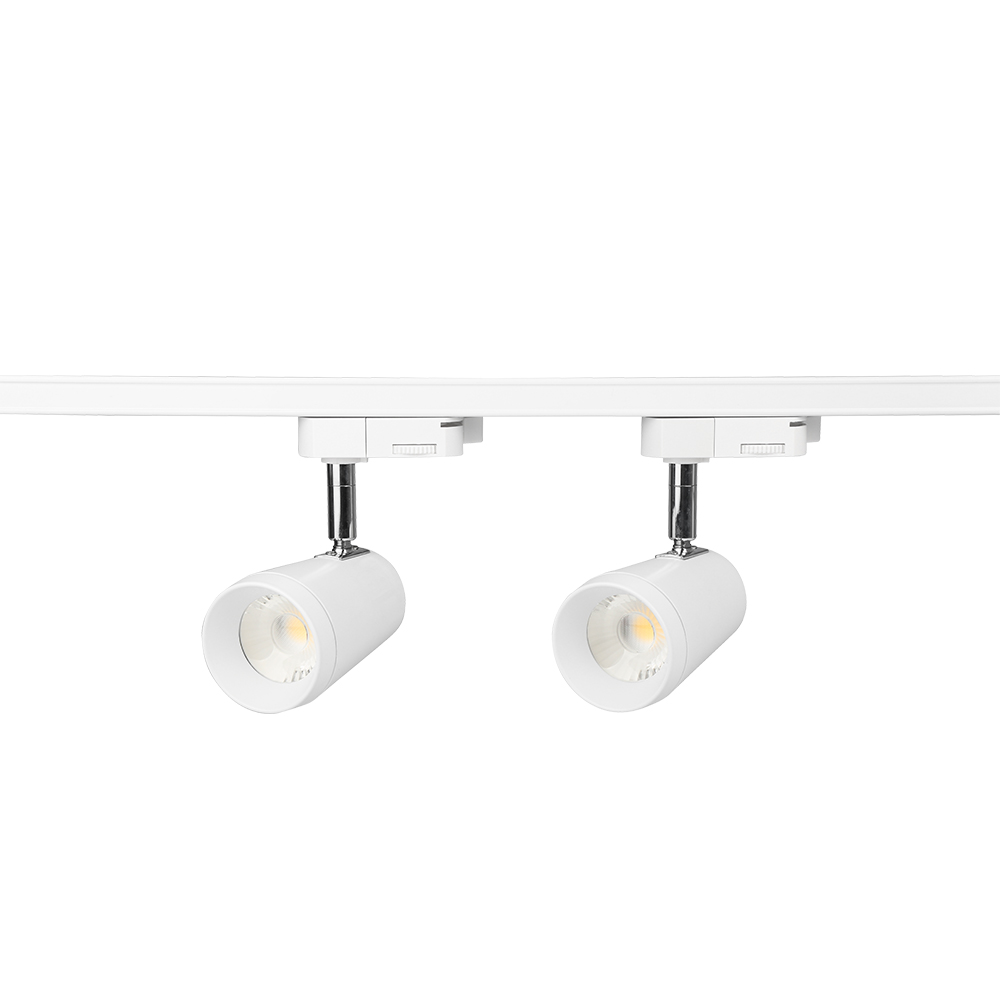

12830	AT1107/WH/CW/KIT	2 x 10W LED Dimmable Adj. Spotlights c/w 1m Track Pack - WH/60deg/CW
11704	AT1107/WH/WW	10W LED Dimmable Track Mounted Spotlight - WH/60deg/WW
18749	AT1107/WH/WW/KIT	2 x 10W LED Dimmable Adj. Spotlights c/w 1m Track Pack - WH/60deg/WW

Documents & Downloads

^*Auto generated datasheet (beta)

Accessories

Order code	Item code	Description
11345	AT1100/BLK/1M	3 Wire Track 1m Aluminium Alloy - Black
11359	AT1100/BLK/2M	3 Wire Track 2m Aluminium Alloy - Black
16833	AT1100/BLK/BEND	3 Wire - Bendable Joiner - Black
11376	AT1100/BLK/CF	3 Wire - Straight Joiner Feeder - Black
11195	AT1100/BLK/DEAD	3 Wire - Dead End - Black
11175	AT1100/BLK/LIVE	3 Wire - Live End Feeder - Black
11415	AT1100/BLK/RA	3 Wire - Right angle joiner Left - Black
11302	AT1100/BLK/RAR	3 Wire - Right angle joiner Right - Black
11393	AT1100/BLK/STR	3 Wire - Straight Joiner - Black
11430	AT1100/BLK/T	3 Wire - T Joiner - BLack
11450	AT1100/BLK/X	3 Wire - X Joiner - BLack
11643	AT1100/WH/2M	3 Wire Track 2m Aluminium Alloy - White
14739	AT1100/WH/BEND	3 Wire - Bendable Joiner - White
17149	AT1100/WH/CF	3 Wire - Straight Joiner Feeder - White
16693	AT1100/WH/LIVE	3 Wire - Live End Feeder - White
11730	AT1100/WH/RA	3 Wire - Right angle joiner Left - White
11284	AT1100/WH/RAR	3 Wire - Right angle joiner Right - White
13416	AT1100/WH/STR	3 Wire - Straight Joiner - White
15094	AT1100/WH/T	3 Wire - T Joiner - White
12348	AT1100/WH/X	3 Wire - X Joiner - White

Photometrics

AT1107/WH/CW

AT1107/WH/WW
