AT9472

$0.00

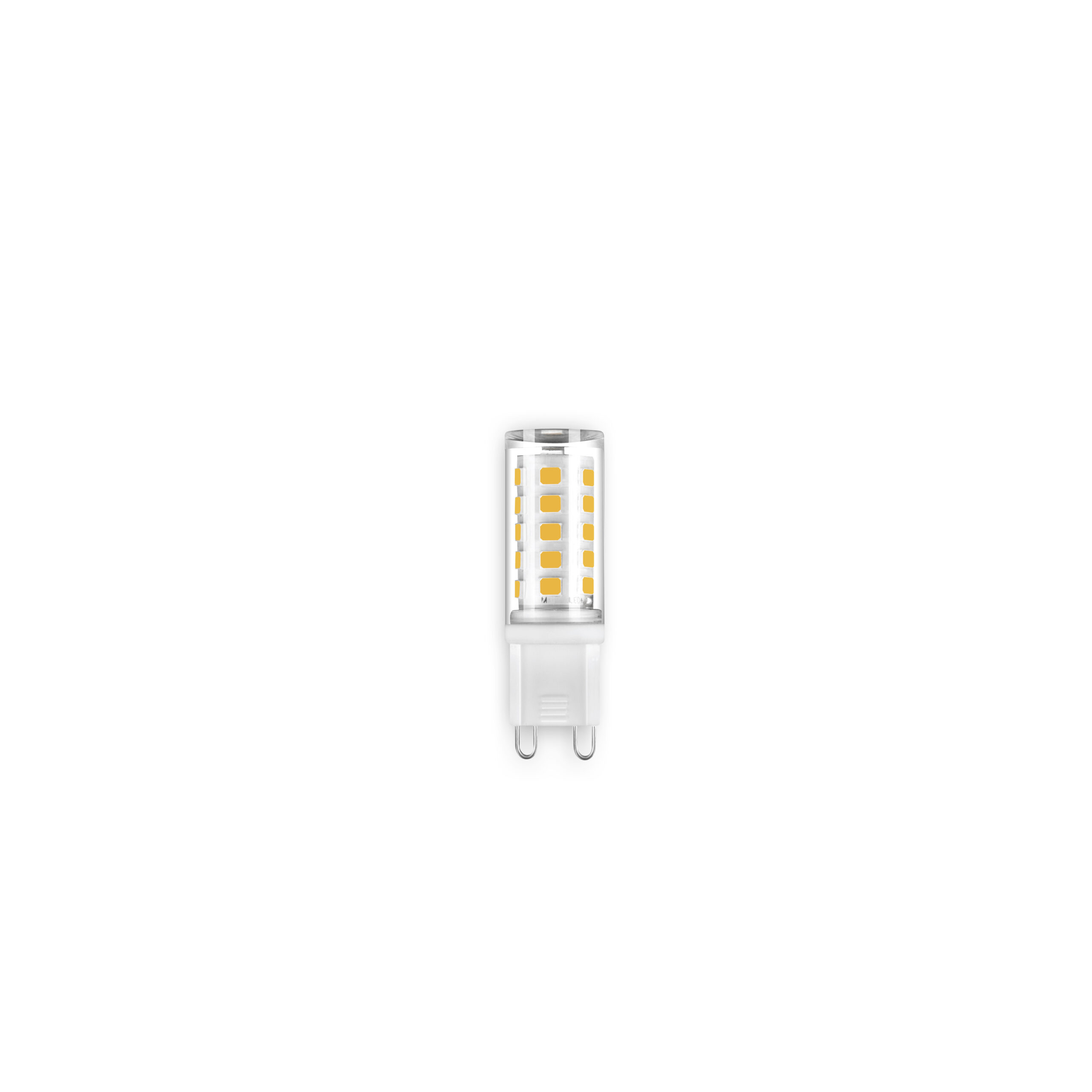

3W G9 BI-PIN LED lamp, Twin pack, Non Dimmable

  • Energy efficient LED lamp
  • Long Life
  • No mercury Content
  • Suitable replacement for halogen and incandescent lamps
Specifications

Efficiencies

Total System Efficiency100 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

AdjustabilityFixed
Diffuser MaterialPolycarbonate
Product FinishFrosted
Fitting ColourWhite
IP RatingIP20

Electrical

Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage3 W
Switch TypeInline
System Max Wattage3 W
Working Temp Range-20 to 40 °C

Lamp

Beam Angle360 °
Bulb TypeG9
CCT ConfigurationSingle
Colour Rendering Index (CRI)>80
Globe BaseG9
Globe IncludedYes
Led Package2835
Number of Lamps2

LED Lifetime

LED Lifetime15000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.

Colour temperature

CCT4000 K
CCT ColourCool White
Luminaire Lumens300 lm
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.

Driver

DimmableNo
Driver IncludedYes
Integrated DriverYes
Driver TypeFixed output

Compliance

Product Design Life10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use4 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 62560
  • IEC/TR 62778
  • AS CISPR 15

Warranty

Domestic Use Warranty1 RTB (Total 1 Year)
VIP Warranty2 RTB (Total 2 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. As a VIP, your warranty for lamps is increased from 1 year to 2 years return to base.
Warranty Operating Hours500 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Dimensions
Product Height50 mm
Product Width15 mm
Ordering Information
Order codeItem codeDescriptionAvailability
18730AT9472/G9/CW3W G9 LED CAPSULE LAMP CW NON-DIM TWIN-PACK
Documents & Downloads

*Auto generated datasheet (beta)
Photometrics
AT9472/G9/CW
IES File

IES File
