AT9862 Lance TRI

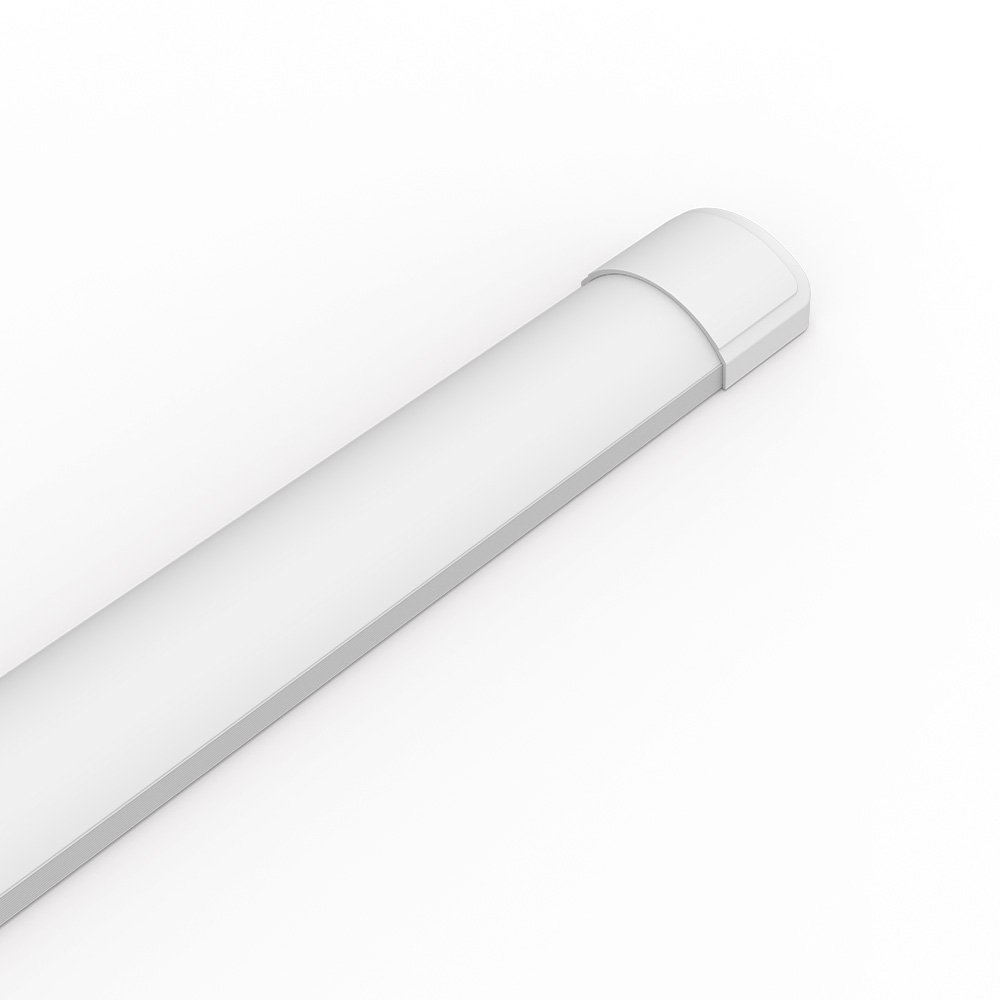

LANCE – 1200mm 16/32W Slim IP20 Resi-batten – Tri-CCT
- Tri-colour selectable 3000K/4000K/6500K
- Easy to mount and wire with large central terminal block
- IP20 rated for indoor installation
Selected Models

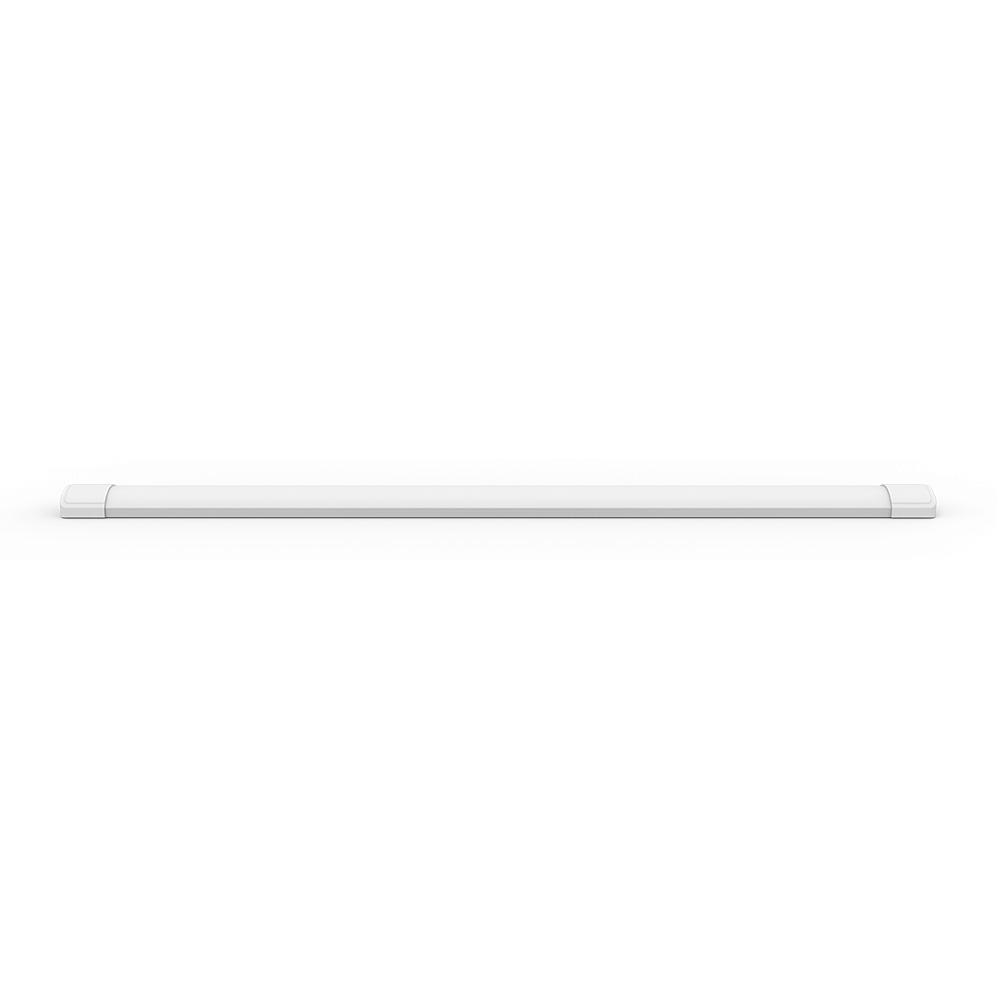

- Narrow, low-profile 1200mm residential batten
- Energy efficient LED with dual-power selection 16W/32W
- Light output of up to 3600lm

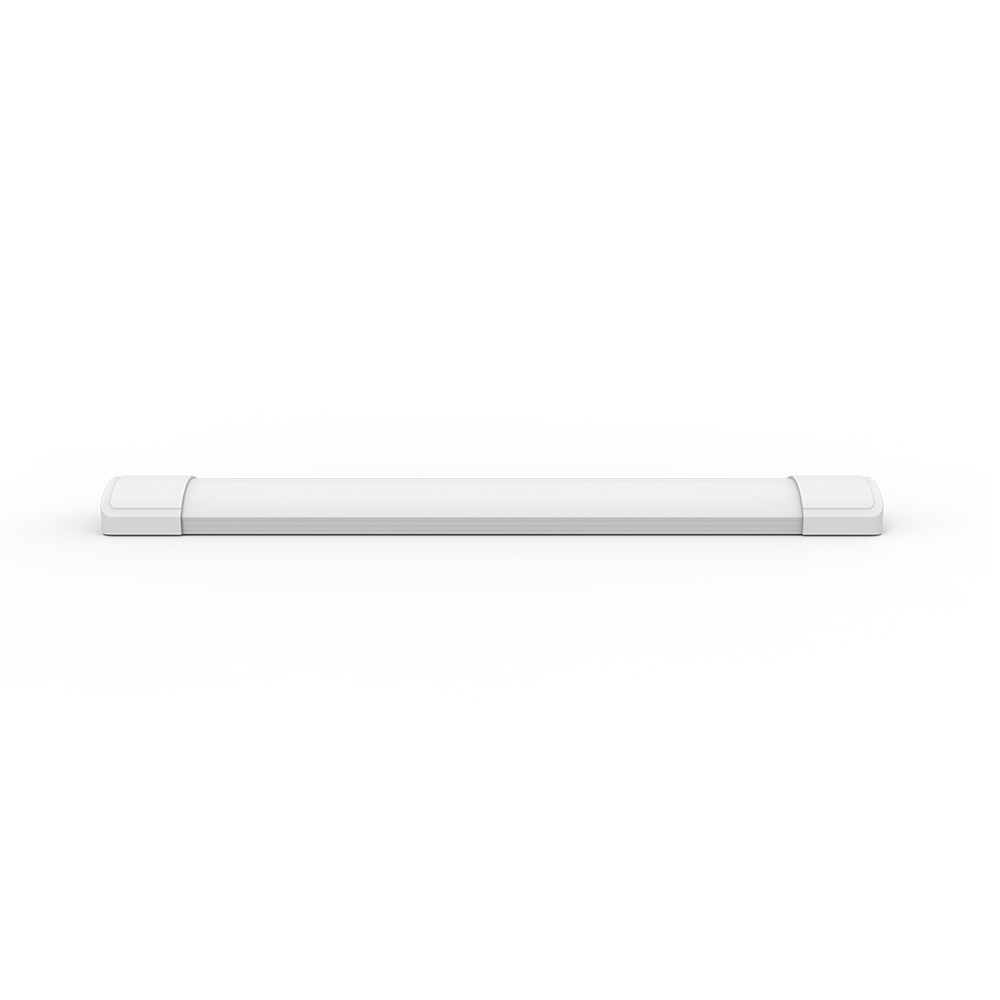

- Narrow, low-profile 600mm residential batten
- Energy efficient LED with dual-power selection 8W/16W
- Light output of up to 1800lm
Specifications
Mechanical
| IP Rating | IP20 |
|---|---|
| IC Rating | No IC rating |
| Adjustability | Fixed |
| Fitting Colour | White |
| Body Material | Aluminium |
| Diffuser Material | Polycarbonate |
| Installation Type | Surface mount |
Electrical
| Working Temp Range | -20 to 40 °C |
|---|---|
| Input Frequency | 50Hz Hz |
| Maximum Wattage | |
| AT9862/600/TRI | 16 W |
| AT9862/1200/TRI | 32 W |
| System Max Wattage | |
| AT9862/600/TRI | 16 W |
| AT9862/1200/TRI | 32 W |
| Input voltage | 220-240V~50Hz |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
| Beam Angle | 120 ° |
Colour temperature
AT9862/1200/TRI
| |||||||||||||||||||||
AT9862/600/TRI
| |||||||||||||||||||||
Driver
| Driver Included | Yes |
|---|---|
| Integrated Driver | Yes |
| Dimmable | No |
| Wiring Type | Re-wireable terminal block (2 pin) |
Warranty
| Warranty | 5 Year Warranty, First 2 Years Onsite |
|---|---|
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
Dimensions
| Item Code | Product Height | Product Length | Product Width |
|---|---|---|---|
| AT9862/1200/TRI | 37 mm | 1200 mm | 84 mm |
| AT9862/600/TRI | 37 mm | 600 mm | 84 mm |
AT9862/1200/TRI
AT9862/600/TRI
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 14642 | AT9862/1200/TRI | LANCE - 1200mm 16/32W Slim IP20 Resi-batten - Tri-CCT | ||
| 14641 | AT9862/600/TRI | LANCE - 600mm 8/16W Slim IP20 Resi-batten - Tri-CCT |
Documents & Downloads
Instruction Manual
Datasheet
*Auto generated datasheet (beta)
Photometrics
AT9862/1200/16W/TRI/3000K
AT9862/1200/16W/TRI/4000K
AT9862/1200/16W/TRI/6500K
AT9862/1200/36W/TRI/3000K
AT9862/1200/32W/TRI/4000K
AT9862/1200/32W/TRI/6500K
AT9862/600/8W/TRI/3000K
AT9862/600/8W/TRI/4000K
AT9862/600/8W/TRI/6500K
AT9862/600/16W/TRI/3000K
AT9862/600/16W/TRI/4000K
AT9862/600/16W/TRI/6500K
