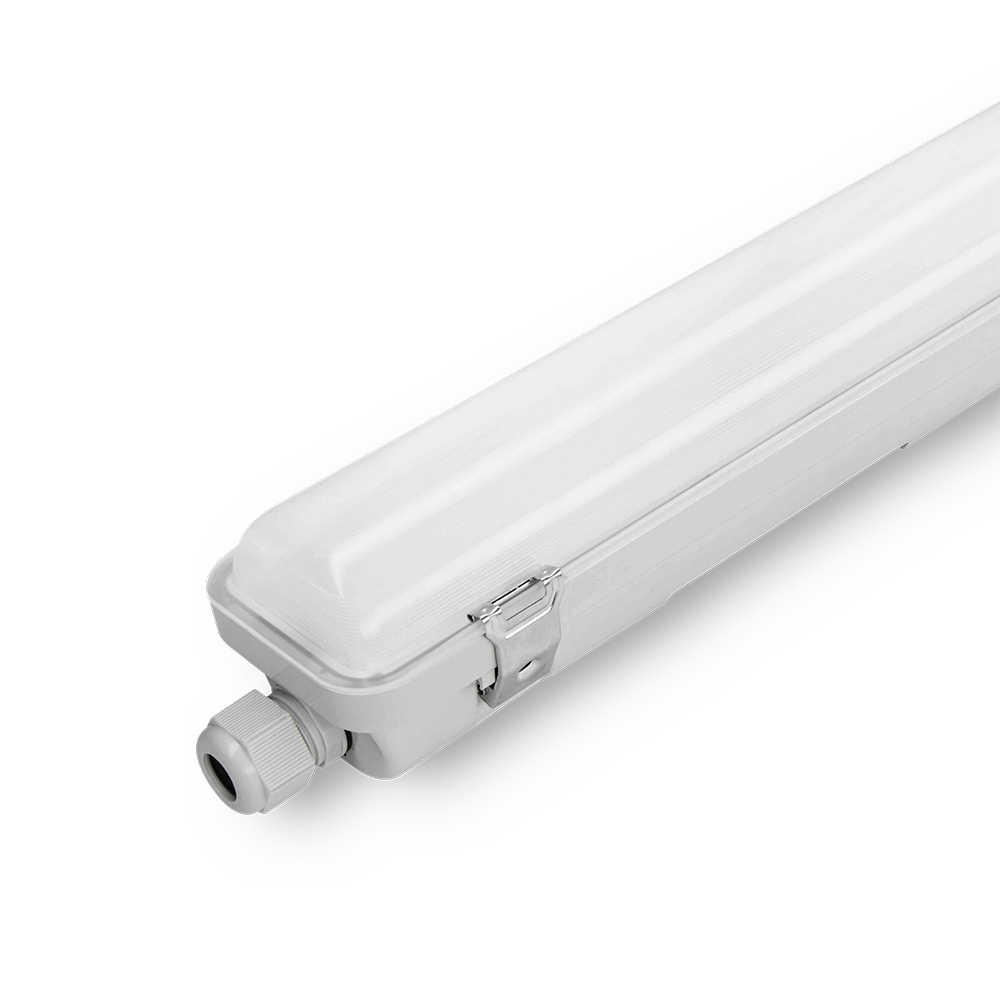

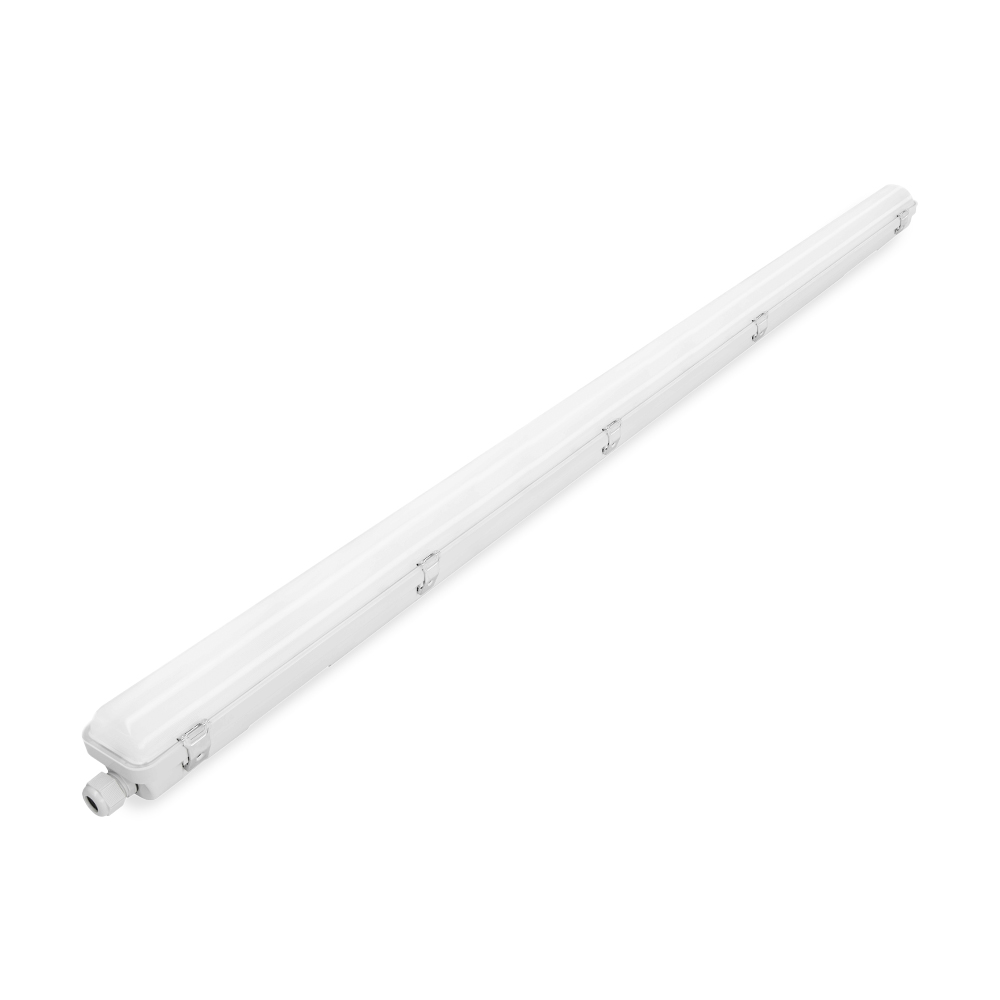

Mace II
Tri Colour/Multi-wattage Narrow Body IP66 Batten
- Tri-CCT
- Multiwattage selectable – 18W/22W/27W/32W
- Durable IP66 rated narrow-body design
- Ideal for residential, retail and carpark applications
Specifications
Efficiencies
| Total System Efficiency | 154 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP66 |
|---|---|
| IK Rating | IK08 |
| Adjustability | Fixed |
| Fitting Colour | Grey |
| Product Finish | Plastic |
| Body Material | Polycarbonate |
| Diffuser Material | Polycarbonate |
| Installation Type | Surface mount |
Electrical
| Working Temp Range | -20 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Switch Type | Inline |
| Maximum Wattage | 32 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| LED Type | Diffused |
| CCT Configuration | TRI-CCT |
| Macadam Steps (SDCM) |
|
| Beam Angle | 180 ° |
LED Lifetime
| LED Lifetime | 72000 hrs | ||||||
|---|---|---|---|---|---|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |||||||
| LED Lifetime Rating | L70 B10 (9K) | ||||||
| LED Lifetime Ratings (Failure rate & lumen depreciation) | |||||||
| |||||||
| This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717. | |||||||
Colour temperature
| 18 Watts | |
|---|---|
| Warm White (4000 K) | 2740 lm |
| Cool White (5000 K) | 2780 lm |
| DayLight (6500 K) | 2700 lm |
| 32 Watts | |
| Warm White (4000 K) | 4495 lm |
| Cool White (5000 K) | 4700 lm |
| DayLight (6500 K) | 4410 lm |
Driver
| Driver Type | Fixed output |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Dimmable | No |
| Wiring Type | Re-wireable terminal block (3 pin) |
Compliance
| Daily Use | 12 hrs |
|---|---|
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| Warranty | 5 Year Warranty, First 2 Years Onsite |
|---|---|
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
| Warranty Operating Hours | 15000 hrs |
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
Dimensions
| Product Height | 76 mm |
|---|---|
| Product Length | 1236 mm |
| Product Width | 80 mm |
AT9874/1200/TRI
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 11114 | AT9874/1200/TRI | Mace II - 1200mm 32W LED IP66 Weatherproof Batten - Tri-CCT |
