24V Constant Voltage IP20
$0.00
Constant Voltage LED Driver to suit 24V DC LED Products
Specifications
Mechanical
| IP Rating | IP20 |
|---|---|
| IC Rating | Do not cover |
Electrical
| Working Temp Range | -25 - 45 °C |
|---|---|
| Input Frequency | 50/60 Hz |
| Power Factor | |
| ZC-DRIVER-20K-ND-24V | 0.9 |
| ZC-DRIVER-60K-ND-24V | 0.95 |
| Inrush Current | |
| ZC-DRIVER-20K-ND-24V | 11.44 A |
| ZC-DRIVER-60K-ND-24V | 19.2 A |
| Inrush Duration | |
| ZC-DRIVER-20K-ND-24V | 232 uS |
| ZC-DRIVER-60K-ND-24V | 360 uS |
| Input voltage | 200-240 |
| Input Current | |
| ZC-DRIVER-20K-ND-24V | 0.2 A |
| ZC-DRIVER-60K-ND-24V | 0.5 A |
| Surge Protection L-N | 2KV |
| Earth Leakage | |
| ZC-DRIVER-60K-ND-24V | 0.18 mA |
| ZC-DRIVER-20K-ND-24V | 0.2 mA |
Driver
| Driver Type | Fixed output |
|---|---|
| Dimmable | No |
| Flex & Plug or Lead Length | 600 mm |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
| Driver Mode | Constant Voltage |
| U_DS_FLICKER_FREE | Yes |
| Driver Power | |
| ZC-DRIVER-20K-ND-24V | 20 W |
| ZC-DRIVER-60K-ND-24V | 60 W |
| Driver Current | |
| ZC-DRIVER-20K-ND-24V | 830 mA |
| ZC-DRIVER-60K-ND-24V | 2500 mA |
| Output Voltage Range | 24 V |
| PSTLM | |
| ZC-DRIVER-20K-ND-24V | 0.001 |
| ZC-DRIVER-60K-ND-24V | 0.003 |
| Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues. | |
| SVM | |
| ZC-DRIVER-60K-ND-24V | 0.001 |
| ZC-DRIVER-20K-ND-24V | 0.023 |
| Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards. | |
Dimensions
| Item Code | Product Height | Product Length | Product Width | Product Weight |
|---|---|---|---|---|
| ZC-DRIVER-20K-ND-24V | 13 mm | 129 mm | 50 mm | 81 g |
| ZC-DRIVER-60K-ND-24V | 18 mm | 160 mm | 57 mm | 270 g |

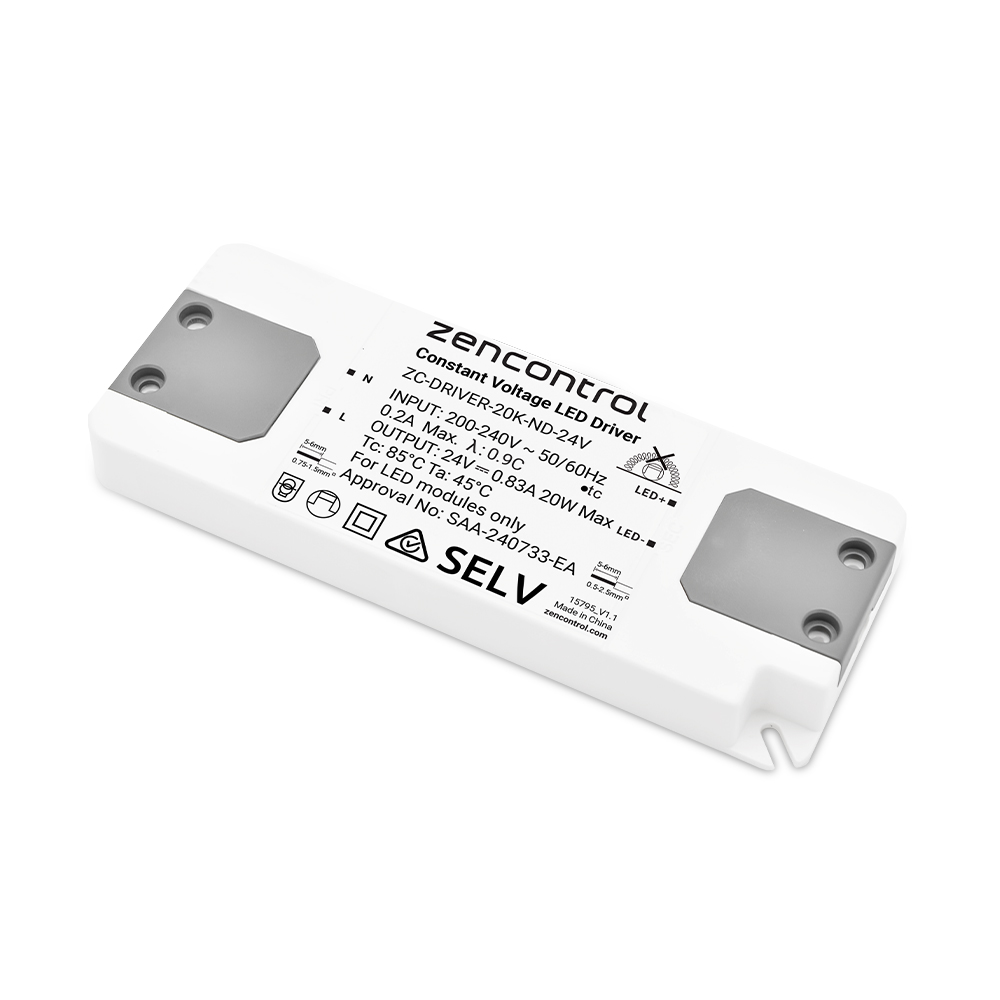

ZC/DRIVER/20K/ND/24V

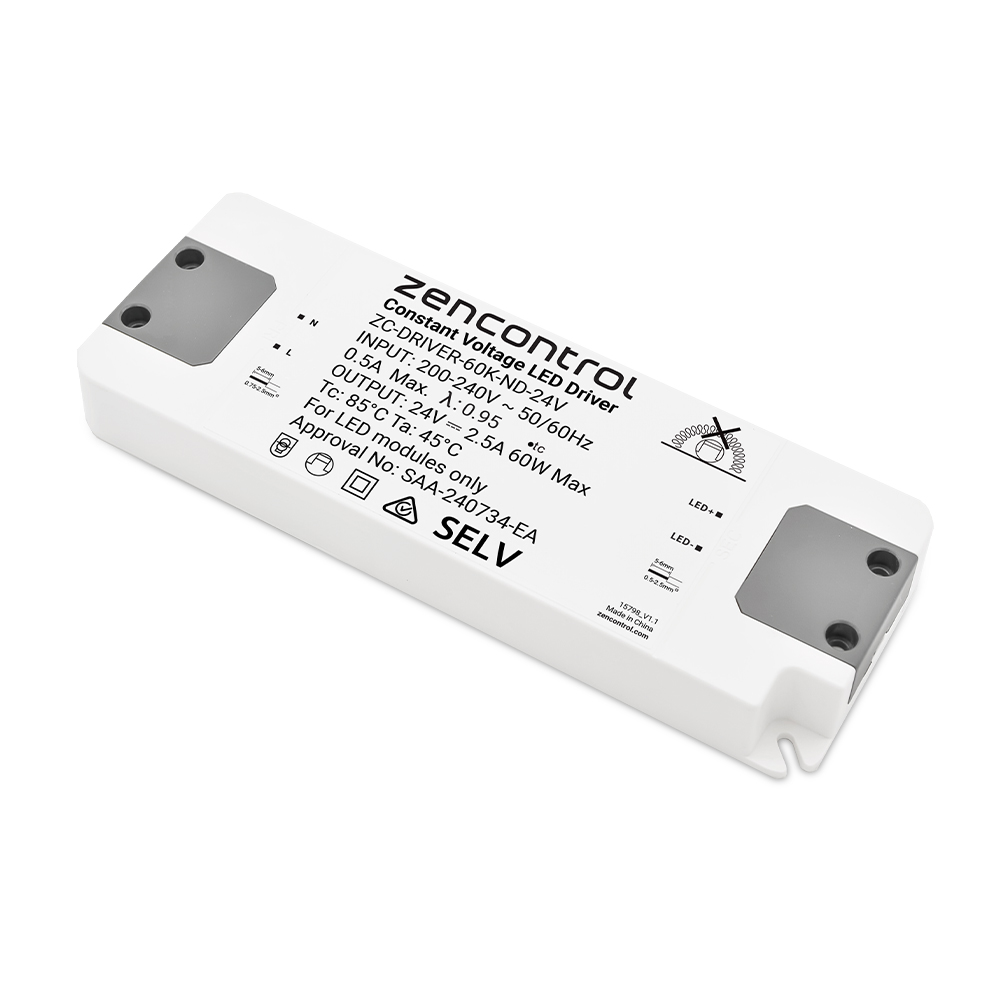

ZC/DRIVER/60K/ND/24V
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 15795 | ZC-DRIVER-20K-ND-24V | 20W MAX Fixed output Constant Voltage LED Driver 24V CV | |
| 15798 | ZC-DRIVER-60K-ND-24V | 60W MAX Fixed output Constant Voltage LED Driver 24V CV |
