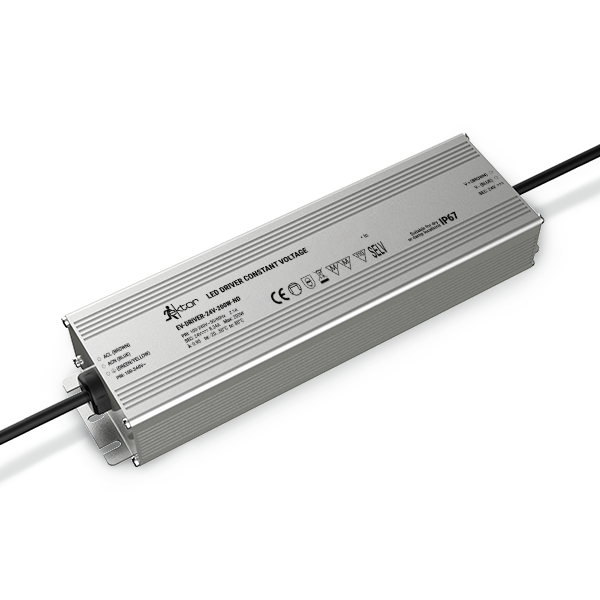

24V Constant Voltage IP67
$0.00
Constant Voltage Led Driver IP67 to suit 24V led arrays
Specifications
Mechanical
| IP Rating | IP67 |
|---|---|
| IC Rating | Non-IC |
| Product Finish | Anodised |
| Body Material | Aluminium |
Electrical
| Working Temp Range | -20 to 50 °C |
|---|---|
| Input Frequency | 50/60 Hz |
| Switch Type | Inline |
| Power Factor | 0.95 |
| Inrush Current | 1.5 A |
| Input voltage | 100-240Vac |
| Input Current | |
| EV-DRIVER-24V-40W-ND | 0.5 A |
| EV-DRIVER-24V-100W-ND | 1.5 A |
| EV-DRIVER-24V-150W-ND | 1.8 A |
| EV-DRIVER-24V-200W-ND | 2.1 A |
Driver
| Driver Type | Fixed output |
|---|---|
| Dimmable | No |
| Flex & Plug or Lead Length | 1000 mm |
| Wiring Type | Re-wireable Flex & Plug (3 pin) |
| Driver Mode | Constant Voltage |
| Driver Power | |
| EV-DRIVER-24V-40W-ND | 40 W |
| EV-DRIVER-24V-100W-ND | 100 W |
| EV-DRIVER-24V-150W-ND | 150 W |
| EV-DRIVER-24V-200W-ND | 200 W |
| Driver Current | |
| EV-DRIVER-24V-40W-ND | 1670 mA |
| EV-DRIVER-24V-100W-ND | 4170 mA |
| EV-DRIVER-24V-150W-ND | 6250 mA |
| EV-DRIVER-24V-200W-ND | 8340 mA |
| Output Voltage Range | 24 V |
Compliance
| Standards |
|
|---|
Dimensions
| Item Code | Product Height | Product Length | Product Width |
|---|---|---|---|
| EV-DRIVER-24V-100W-ND | 35 mm | 199 mm | 67 mm |
| EV-DRIVER-24V-150W-ND | 40 mm | 220 mm | 70 mm |
| EV-DRIVER-24V-200W-ND | 42 mm | 250 mm | 72 mm |
| EV-DRIVER-24V-40W-ND | 31 mm | 182 mm | 58 mm |
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 16091 | EV-DRIVER-24V-100W-ND | 100W 24V Constant Voltage Driver IP67 with 1m Flex and plug | |
| 16092 | EV-DRIVER-24V-150W-ND | 150W 24V Constant Voltage Driver IP67 with 1m Flex and plug | |
| 16093 | EV-DRIVER-24V-200W-ND | 200W 24V Constant Voltage Driver IP67 with 1m Flex and plug | |
| 16089 | EV-DRIVER-24V-40W-ND | 40W 24V Constant Voltage Driver IP67 with 1m Flex and plug |
Documents & Downloads
Instruction Manual
*Auto generated datasheet (beta)
