Wireless DALI+ Constant Current Driver
$0.00
Driver Kit – Wireless DALI+ LED Driver
- Utilises wireless technology for greater installation flexibility
- Extended range for connectivity over larger areas
- Offers real-time monitoring and advanced smart home integration
Specifications
Mechanical
| Fitting Colour | |
|---|---|
| DK1-0AABBHZX00065 DK1-0AABBHZX00070 DK1-0AABBHZX00075 DK1-0AABBHZX00080 DK1-0AABBHZX00085 DK1-0AABBHZX00090 DK1-0AABBHZX00095 DK1-0AABBHZX00100 DK1-0AABBHZX00105 DK1-0AABBHZX00110 DK1-0AABBHZX00115 | Black |
| DK1-0AABBHZX00025 DK1-0AABBHZX00030 DK1-0AABBHZX00035 DK1-0AABBHZX00040 DK1-0AABBHZX00045 DK1-0AABBHZX00050 DK1-0AABBHZX00055 DK1-0AABBHZX00060 | White |
| IC Rating | Do not cover |
Electrical
| Electrical Rating | Class II |
|---|---|
| Input Current | |
| DK1-0AABBHZX00025 DK1-0AABBHZX00030 DK1-0AABBHZX00035 DK1-0AABBHZX00040 DK1-0AABBHZX00045 DK1-0AABBHZX00050 DK1-0AABBHZX00055 DK1-0AABBHZX00060 | 0.14 A |
| DK1-0AABBHZX00065 DK1-0AABBHZX00070 DK1-0AABBHZX00075 DK1-0AABBHZX00080 | 0.18 A |
| DK1-0AABBHZX00085 DK1-0AABBHZX00090 DK1-0AABBHZX00095 DK1-0AABBHZX00100 DK1-0AABBHZX00105 DK1-0AABBHZX00110 DK1-0AABBHZX00115 | 0.25 A |
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Power Factor | 0.95 |
| Standby Power | 0.5 W |
| Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
| Surge Protection L-N | 2kV |
| Working Temp Range | |
| DK1-0AABBHZX00065 DK1-0AABBHZX00070 DK1-0AABBHZX00075 DK1-0AABBHZX00080 DK1-0AABBHZX00085 DK1-0AABBHZX00090 DK1-0AABBHZX00095 DK1-0AABBHZX00100 DK1-0AABBHZX00105 DK1-0AABBHZX00110 DK1-0AABBHZX00115 | -20 to 45 °C |
| DK1-0AABBHZX00025 DK1-0AABBHZX00030 DK1-0AABBHZX00035 DK1-0AABBHZX00040 DK1-0AABBHZX00045 DK1-0AABBHZX00050 DK1-0AABBHZX00055 DK1-0AABBHZX00060 | -20 to 50 °C |
Driver
| Dimmable | Yes |
|---|---|
| Driver Code | |

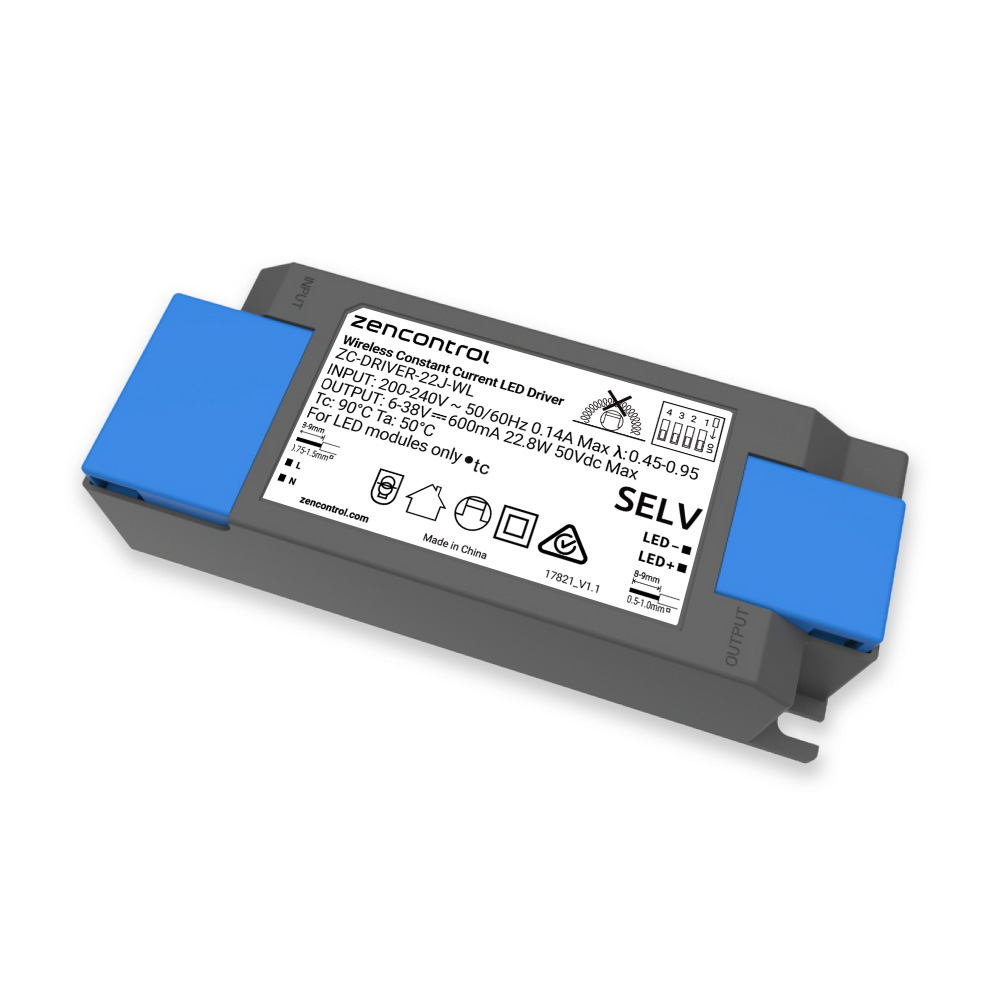

| DK1-0AABBHZX00025 DK1-0AABBHZX00030 DK1-0AABBHZX00035 DK1-0AABBHZX00040 DK1-0AABBHZX00045 DK1-0AABBHZX00050 DK1-0AABBHZX00055 DK1-0AABBHZX00060 | ZC-DRIVER-22J-WL |

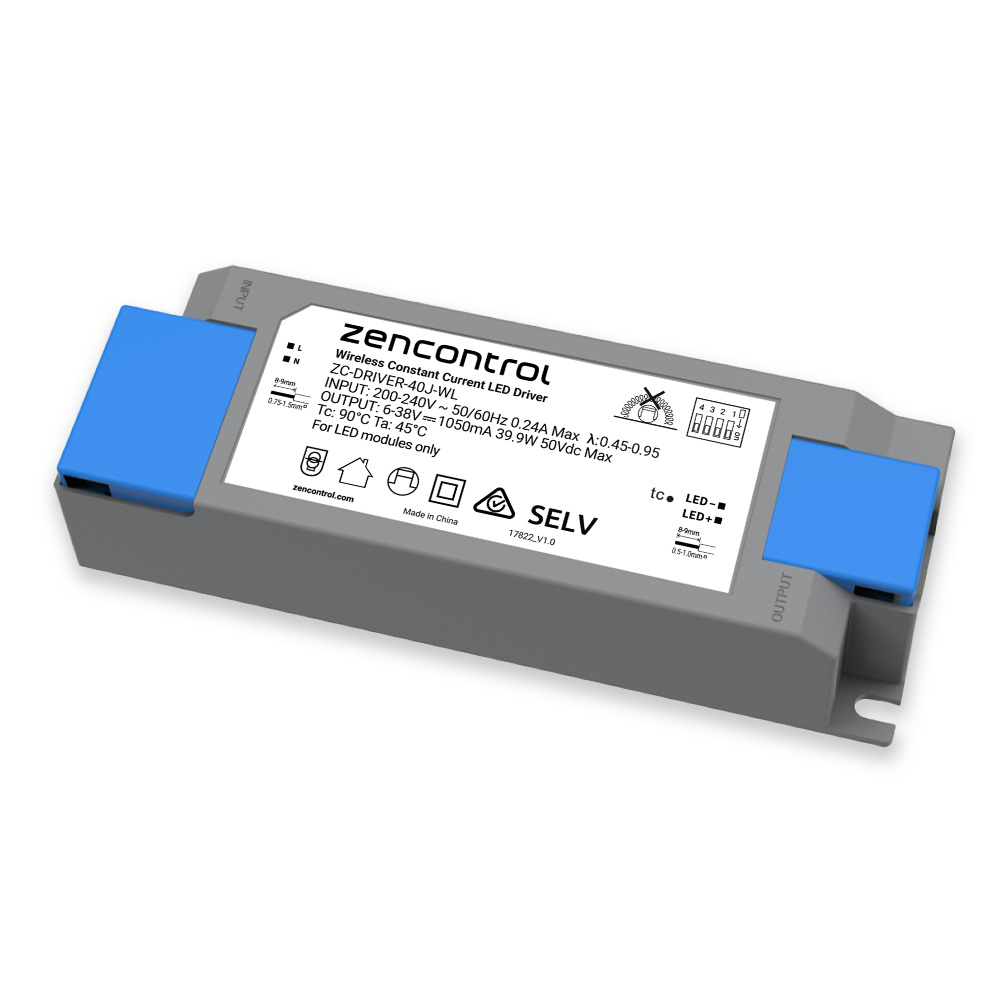

| DK1-0AABBHZX00065 DK1-0AABBHZX00070 DK1-0AABBHZX00075 DK1-0AABBHZX00080 DK1-0AABBHZX00085 DK1-0AABBHZX00090 DK1-0AABBHZX00095 DK1-0AABBHZX00100 DK1-0AABBHZX00105 | ZC-DRIVER-40J-WL |
| Driver Mode | Constant Current |
| Driver Type | Wireless (IEC62386-104) with DT6 |
| Flex & Plug or Lead Length | 1200 mm |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
| Driver Power | |
| DK1-0AABBHZX00025 DK1-0AABBHZX00030 DK1-0AABBHZX00035 DK1-0AABBHZX00040 DK1-0AABBHZX00045 DK1-0AABBHZX00050 DK1-0AABBHZX00055 DK1-0AABBHZX00060 | 22.8 W |
| DK1-0AABBHZX00065 DK1-0AABBHZX00070 DK1-0AABBHZX00075 DK1-0AABBHZX00080 DK1-0AABBHZX00085 DK1-0AABBHZX00090 DK1-0AABBHZX00095 DK1-0AABBHZX00100 DK1-0AABBHZX00105 DK1-0AABBHZX00110 DK1-0AABBHZX00115 | 39.9 W |
| Driver Current | |
| DK1-0AABBHZX00025 | 250 mA |
| DK1-0AABBHZX00030 | 300 mA |
| DK1-0AABBHZX00035 | 350 mA |
| DK1-0AABBHZX00040 | 400 mA |
| DK1-0AABBHZX00045 | 450 mA |
| DK1-0AABBHZX00050 | 500 mA |
| DK1-0AABBHZX00055 | 550 mA |
| DK1-0AABBHZX00060 | 600 mA |
| DK1-0AABBHZX00065 | 650 mA |
| DK1-0AABBHZX00070 | 700 mA |
| DK1-0AABBHZX00075 | 750 mA |
| DK1-0AABBHZX00080 | 800 mA |
| DK1-0AABBHZX00085 | 850 mA |
| DK1-0AABBHZX00090 | 900 mA |
| DK1-0AABBHZX00095 | 950 mA |
| DK1-0AABBHZX00100 | 1000 mA |
| DK1-0AABBHZX00105 | 1050 mA |
| DK1-0AABBHZX00110 | 1100 mA |
| DK1-0AABBHZX00115 | 1150 mA |
| Output Voltage Range | 6-38 V |
| PSTLM | |
| DK1-0AABBHZX00025 DK1-0AABBHZX00030 DK1-0AABBHZX00035 DK1-0AABBHZX00040 DK1-0AABBHZX00045 DK1-0AABBHZX00050 DK1-0AABBHZX00055 DK1-0AABBHZX00060 | 0.001 |
| DK1-0AABBHZX00065 DK1-0AABBHZX00070 DK1-0AABBHZX00075 DK1-0AABBHZX00080 DK1-0AABBHZX00085 DK1-0AABBHZX00090 DK1-0AABBHZX00095 DK1-0AABBHZX00100 DK1-0AABBHZX00105 DK1-0AABBHZX00110 DK1-0AABBHZX00115 | 0.02 |
| Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues. | |
| SVM | |
| DK1-0AABBHZX00065 DK1-0AABBHZX00070 DK1-0AABBHZX00075 DK1-0AABBHZX00080 DK1-0AABBHZX00085 DK1-0AABBHZX00090 DK1-0AABBHZX00095 DK1-0AABBHZX00100 DK1-0AABBHZX00105 DK1-0AABBHZX00110 DK1-0AABBHZX00115 | 0.003 |
| DK1-0AABBHZX00025 DK1-0AABBHZX00030 DK1-0AABBHZX00035 DK1-0AABBHZX00040 DK1-0AABBHZX00045 DK1-0AABBHZX00050 DK1-0AABBHZX00055 DK1-0AABBHZX00060 | 0.004 |
| Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards. | |
Compliance
| Standards |
|
|---|
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 14927 | DK1-0AABBHZX00025 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 250mA | |
| 14928 | DK1-0AABBHZX00030 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 300mA | |
| 14929 | DK1-0AABBHZX00035 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 350mA | |
| 14930 | DK1-0AABBHZX00040 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 400mA | |
| 14931 | DK1-0AABBHZX00045 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 450mA | |
| 14932 | DK1-0AABBHZX00050 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 500mA | |
| 14933 | DK1-0AABBHZX00055 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 550mA | |
| 14934 | DK1-0AABBHZX00060 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 600mA | |
| 14935 | DK1-0AABBHZX00065 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 650mA | |
| 14936 | DK1-0AABBHZX00070 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 700mA | |
| 14937 | DK1-0AABBHZX00075 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 750mA | |
| 14938 | DK1-0AABBHZX00080 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 800mA | |
| 14939 | DK1-0AABBHZX00085 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 850mA | |
| 14982 | DK1-0AABBHZX00090 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 900mA | |
| 14940 | DK1-0AABBHZX00095 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 950mA | |
| 14941 | DK1-0AABBHZX00100 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 1000mA | |
| 14942 | DK1-0AABBHZX00105 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 1050mA | |
| 14943 | DK1-0AABBHZX00110 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 1100mA | |
| 14944 | DK1-0AABBHZX00115 | Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 1150mA |
Documents & Downloads
Datasheet
- DK1-0AABBHZX00025*
- DK1-0AABBHZX00030*
- DK1-0AABBHZX00035*
- DK1-0AABBHZX00040*
- DK1-0AABBHZX00045*
- DK1-0AABBHZX00050*
- DK1-0AABBHZX00055*
- DK1-0AABBHZX00060*
- DK1-0AABBHZX00065*
- DK1-0AABBHZX00070*
- DK1-0AABBHZX00075*
- DK1-0AABBHZX00080*
- DK1-0AABBHZX00085*
- DK1-0AABBHZX00090*
- DK1-0AABBHZX00095*
- DK1-0AABBHZX00100*
- DK1-0AABBHZX00105*
- DK1-0AABBHZX00110*
- DK1-0AABBHZX00115*
Compliance
- DK1-0AABBHZX00025-AU-sdoc
- DK1-0AABBHZX00030-AU-sdoc
- DK1-0AABBHZX00035-AU-sdoc
- DK1-0AABBHZX00040-AU-sdoc
- DK1-0AABBHZX00045-AU-sdoc
- DK1-0AABBHZX00050-AU-sdoc
- DK1-0AABBHZX00055-AU-sdoc
- DK1-0AABBHZX00060-AU-sdoc
- DK1-0AABBHZX00065-AU-sdoc
- DK1-0AABBHZX00070-AU-sdoc
- DK1-0AABBHZX00075-AU-sdoc
- DK1-0AABBHZX00080-AU-sdoc
- DK1-0AABBHZX00085-AU-sdoc
- DK1-0AABBHZX00090-AU-sdoc
- DK1-0AABBHZX00095-AU-sdoc
- DK1-0AABBHZX00100-AU-sdoc
- DK1-0AABBHZX00105-AU-sdoc
- DK1-0AABBHZX00110-AU-sdoc
- DK1-0AABBHZX00115-AU-sdoc
*Auto generated datasheet (beta)
