AT5006

$0.00

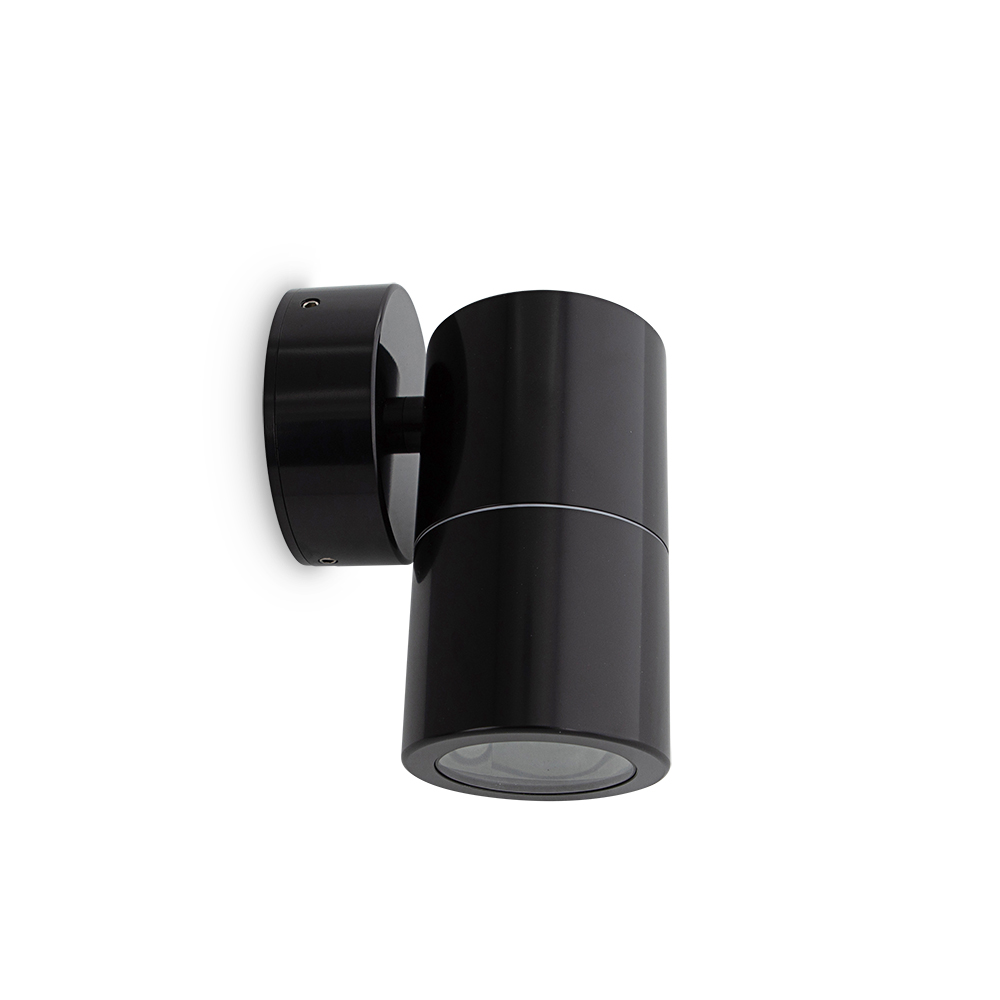

Fixed wall Spot with Glass Diffuser – GU10 LED lamp included

Features

  • Discrete installation of sets screws
  • Tempered Glass lens
  • Elegant Design
  • Suitable for coastal environments
SKU: AT5006 Category: Fixed Tags: Ip65, Outside, Domestic, Outdoor
Share:
  • Specifications
  • Dimensions
  • Ordering Information
  • Documents & Downloads
Specifications

Mechanical

AdjustabilityFixed
Body MaterialAluminium
Diffuser MaterialGlass
Product FinishAnodised
Fitting Colour
AT5006/AND/BLK/LEDBlack
AT5006/AND/LEDSilver
IC RatingNon-IC
Installation TypeWall mount
IP RatingIP65

Electrical

Electrical RatingClass I
Input Frequency50 Hz
Input voltage230VAC
Maximum Wattage6 W
Switch TypeInline
System Max Wattage6 W
Working Temp Range-20 to 40 °C

Lamp

Beam Angle36 °
Bulb TypeInbuilt
CCT ConfigurationSingle
Globe BaseGU10
Globe IncludedYes
Maximum Bulb Wattage6 W
Number of Lamps1
System Efficiency78 lm/W

Colour temperature

CCT4000 K
CCT ColourCool White
LED Wattage6 W
System Lumens470 lm
All photometric data has a tolerance of ±10%.

Driver

DimmableNo
Driver IncludedYes
Integrated DriverYes
Driver TypeFixed output
Wiring TypeRe-wireable terminal block (3 pin)

Compliance

Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.1

Warranty

Commercial Use Warranty1 RTB (Total 1 Year)
Domestic Use Warranty1 (Yr) RTB
Dimensions
Product Height120 mm
Product Length68 mm
Product Width85 mm
AT5006
Ordering Information
Ordering codeItem codeDescriptionAvailability
16188AT5006/AND/BLK/LED6W LED Anodised Aluminium Fixed Wall Spot - Black
16142AT5006/AND/LED6W LED Anodised Aluminium Fixed Wall Spot
Documents & Downloads

Datasheet

  • AT5006/AND/BLK/LED*
  • AT5006/AND/LED*
  • AT5006

Instruction Manual

  • AT5006/LED/ Instruction Manual.pdf

Compliance

  • AT5006/AND/BLK/LED-AU-sdoc*
  • AT5006/AND/LED-AU-sdoc*

*Auto generated datasheet (beta)
