AT5101
$0.00

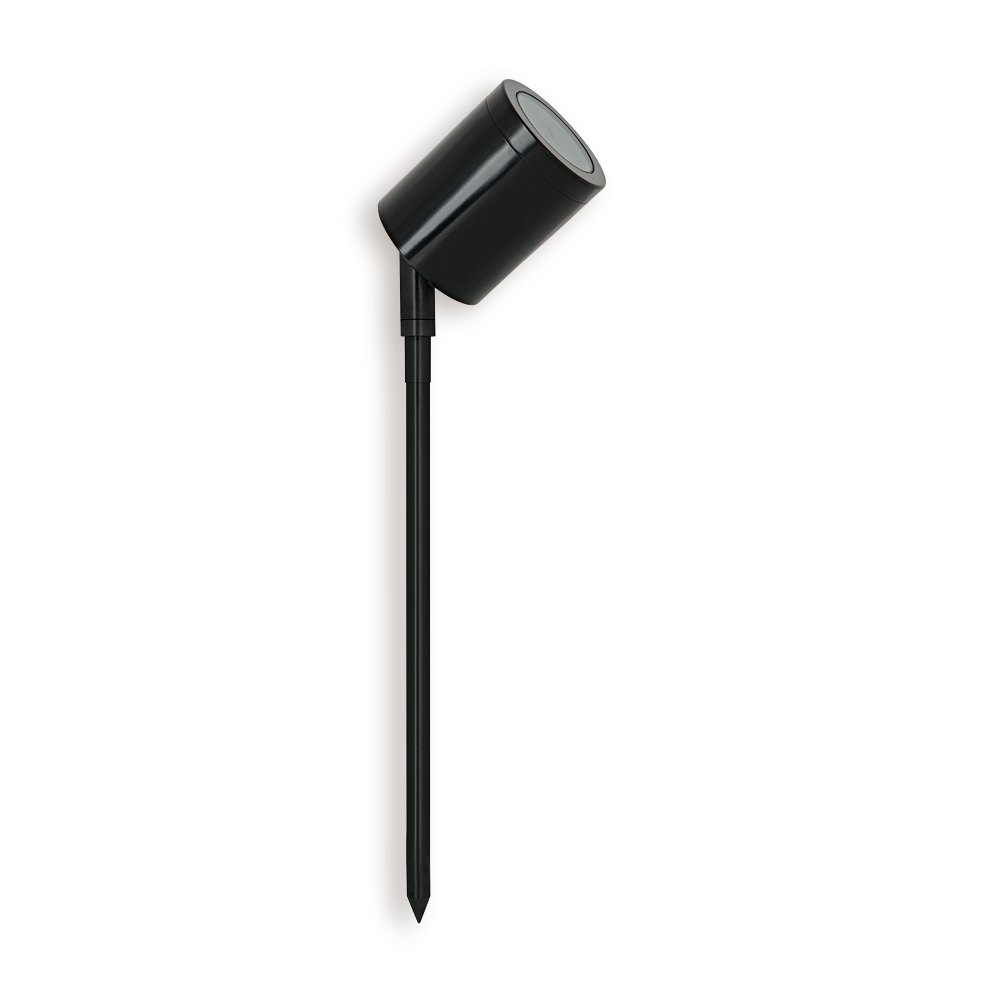

MR16 12V Led Garden Spike light
- Tempered Glass lens
- Adjustable Head
- Elegant Design
- Suitable for coastal environments
Specifications
Efficiencies
| Total System Efficiency | 78 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP65 |
|---|---|
| IC Rating | Non-IC |
| Adjustability | Adjustable |
| Fitting Colour | |
| AT5101/AND/BLK/LED AT5101/BLK/LED | Black |
| AT5101/AND/LED | Silver |
| AT5101/316/LED | Stainless |
| Product Finish | |
| AT5101/AND/BLK/LED AT5101/AND/LED | Anodised |
| AT5101/BLK/LED | Powdercoated |
| AT5101/316/LED | Steel |
| Body Material | |
| AT5101/316/LED | 316L Stainless Steel |
| AT5101/AND/BLK/LED AT5101/AND/LED AT5101/BLK/LED | Aluminium |
| Installation Type | Inground |
Electrical
| Working Temp Range | -20 to 40 °C |
|---|---|
| Switch Type | Inline |
| Maximum Wattage | 6 W |
| System Max Wattage | 6 W |
| Input voltage | 12Vdc |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| Number of Lamps | 1 |
| Globe Base | MR16 |
| Globe Included | Yes |
| CCT Configuration | Single |
| Maximum Bulb Wattage | 6 W |
| Beam Angle | 38 ° |
Colour temperature
| CCT Colour | Cool White |
|---|---|
| LED Wattage | 6 W |
| Luminaire Lumens | 470 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
| CCT | 4000 K |
Driver
| Driver Type | Fixed output |
|---|---|
| Driver Included | No |
| Integrated Driver | No |
| Dimmable | No |
| Wiring Type | Flying leads (2 wire) |
Compliance
| Standards |
|
|---|
Warranty
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
|---|---|
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
Dimensions
| Product Height | 347 mm |
|---|---|
| Product Length | 63 mm |
| Product Width | 63 mm |

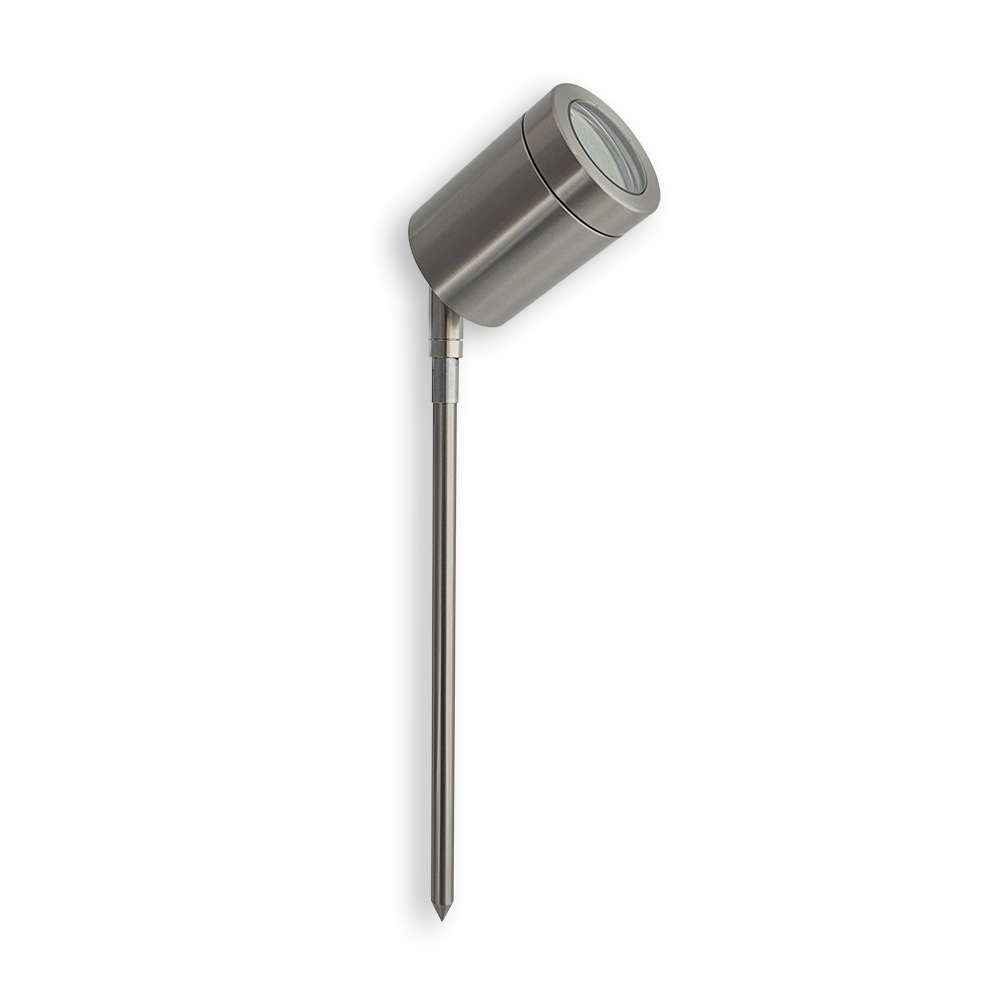

AT5101/316/LED
AT5101/AND/BLK/LED

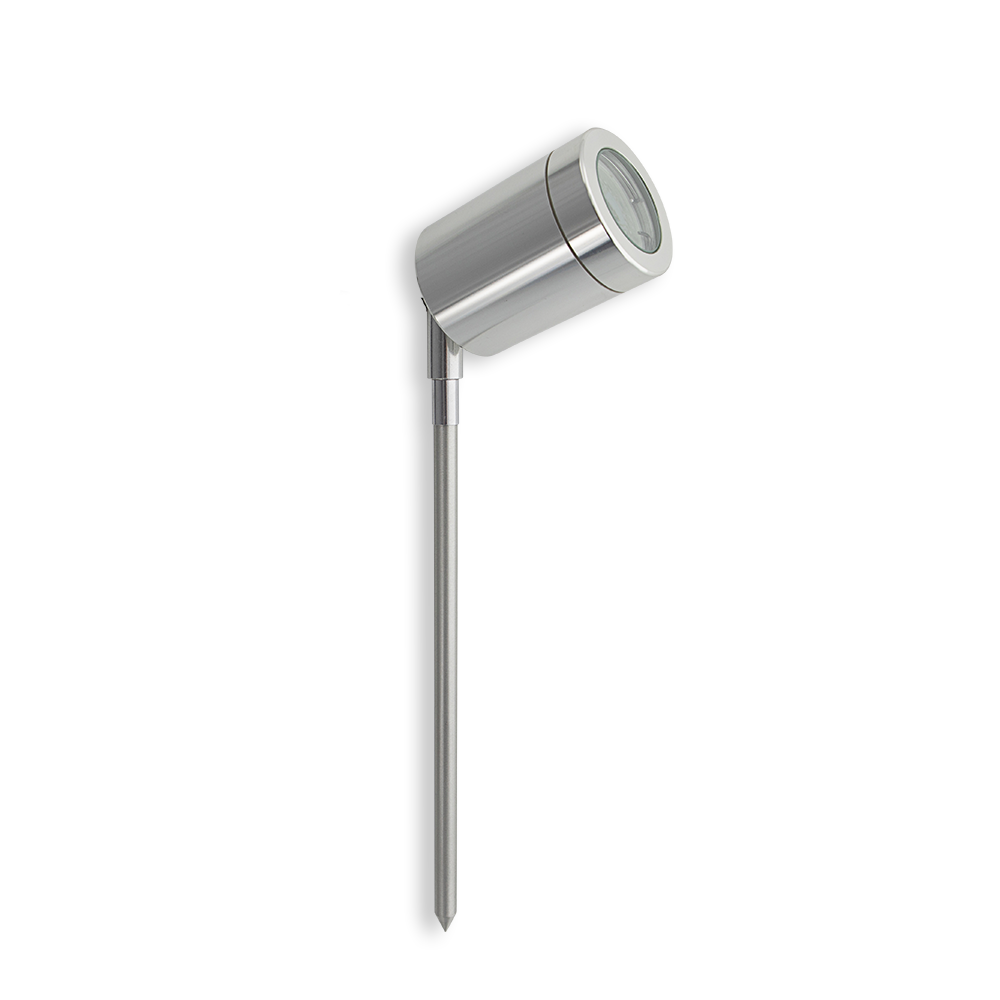

AT5101/AND/LED

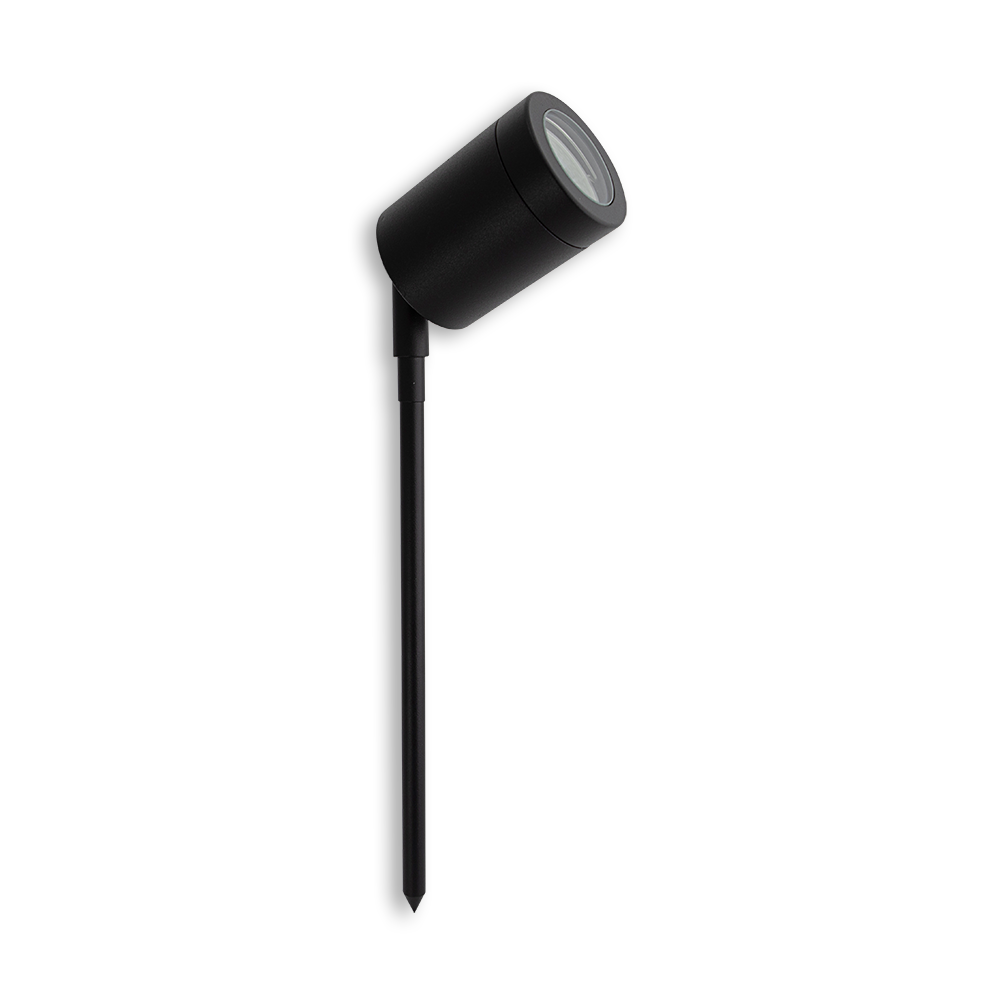

AT5101/BLK/LED
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 11947 | AT5101/316/LED | 6W LED IP65 12v 316L Stainless Steel Spike Spot | |
| 12084 | AT5101/AND/BLK/LED | 6W LED IP65 12v Spike Spot Anodised Aluminium - Black | |
| 12147 | AT5101/AND/LED | 6W LED IP65 12v Anodised Aluminium Spike Spot | |
| 12205 | AT5101/BLK/LED | 6W LED IP65 12v Spike Spot - Black |
Documents & Downloads
Instruction Manual
*Auto generated datasheet (beta)
Accessories
Recommended Drivers
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 10573 | AT100va W/P | 100W 12Vac Dimmable Weatherproof Transformer | |
| 10680 | AT105va W/P | 105W 12Vac Mini Weatherproof Transformer | |
| 10575 | AT200va W/P | 200W 12Vac Dimmable Weatherproof Transformer |
