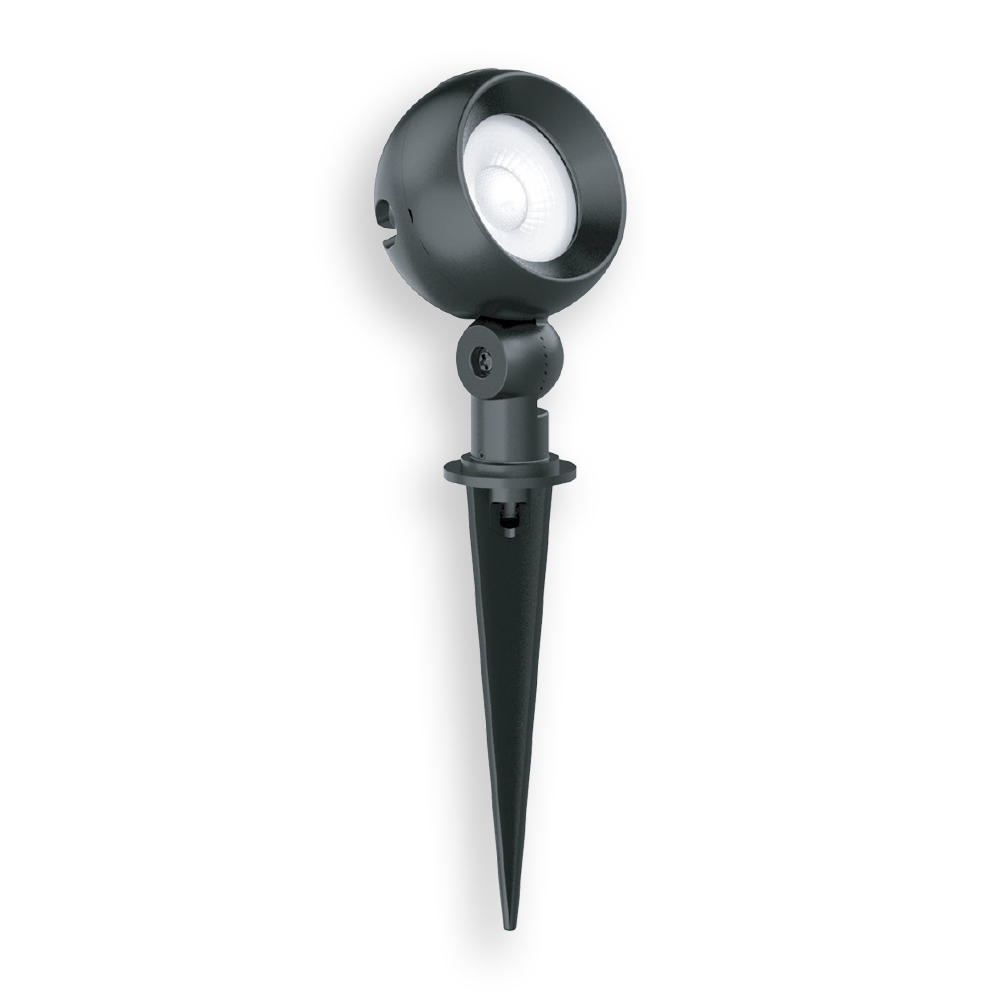

AT5107
IP65 LED garden spike light
- Robust and Stylish Design
- Adjustable Head
- Ideal for general lighting applications in courtyard, park, garden, and lawns
Specifications
Efficiencies
| Total System Efficiency | |
|---|---|
| AT5107/6/BLK/WW | 81.6 lm/W |
| AT5107/10/BLK/WW | 85 lm/W |
| AT5107/10/BLK/DL | 88 lm/W |
| AT5107/6/BLK/DL | 90 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP65 |
|---|---|
| Adjustability | |
| AT5107/6/BLK/DL | Adjustable |
| AT5107/10/BLK/DL AT5107/10/BLK/WW AT5107/6/BLK/WW | Fixed |
| Fitting Colour | Black |
| Product Finish | Powdercoated |
| Body Material | Aluminium |
| Diffuser Material | Polycarbonate |
| Installation Type | Inground |
Electrical
| Working Temp Range | -20 to 45 °C |
|---|---|
| Switch Type | Inline |
| Maximum Wattage | |
| AT5107/6/BLK/DL AT5107/6/BLK/WW | 6 W |
| AT5107/10/BLK/DL AT5107/10/BLK/WW | 10 W |
| Input voltage | 12VAC/DC |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| Bulb Type | Inbuilt |
| Number of Lamps | 1 |
| CCT Configuration | Single |
| Maximum Bulb Wattage | |
| AT5107/6/BLK/DL AT5107/6/BLK/WW | 6 W |
| AT5107/10/BLK/DL AT5107/10/BLK/WW | 10 W |
| Beam Angle | 60 ° |
Colour temperature
| CCT Colour | |
|---|---|
| AT5107/10/BLK/WW | Cool White |
| AT5107/10/BLK/DL AT5107/6/BLK/DL | Daylight |
| AT5107/6/BLK/WW | Warm White |
| LED Wattage | |
| AT5107/6/BLK/DL AT5107/6/BLK/WW | 6 W |
| AT5107/10/BLK/DL AT5107/10/BLK/WW | 10 W |
| Luminaire Lumens | |
| AT5107/6/BLK/WW | 445 lm |
| AT5107/6/BLK/DL | 510 lm |
| AT5107/10/BLK/WW | 800 lm |
| AT5107/10/BLK/DL | 880 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
| CCT | |
| AT5107/10/BLK/WW AT5107/6/BLK/WW | 3000 K |
| AT5107/10/BLK/DL AT5107/6/BLK/DL | 5000 K |
Driver
| Driver Included | No |
|---|---|
| Integrated Driver | No |
| Dimmable | No |
| Flex & Plug or Lead Length | 450 mm |
| Wiring Type | Flying leads (2 wire) |
Compliance
| Standards |
|
|---|
Warranty
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
|---|---|
| Selected products include VIP on-site warranty support, followed by return-to-base coverage for the remainder of the warranty period. For full warranty details and claim instructions, please refer to the our Warranty page. | |
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
Dimensions
| Product Height | 262 mm |
|---|---|
| Product Length | 58 mm |
| Product Width | 76 mm |
AT5107/10/DL
AT5107/10/WW
AT5107/6/DL
AT5107/6/WW
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 11809 | AT5107/10/BLK/DL | 10W LED Garden Spike Light - Black - Daylight | ||
| 11834 | AT5107/10/BLK/WW | 10W LED Garden Spike Light - Black - Warm White | ||
| 11754 | AT5107/6/BLK/DL | 6W LED Garden Spike Light - Black - Daylight | ||
| 11781 | AT5107/6/BLK/WW | 6W LED Garden Spike light - Black _ Warm White |
