AT6025
ECO LED Panel – Tri-CCT
- Easy-to-install with flex and plug
- Flicker-free external LED driver included, easy to replace
- Tri-Colour (3000K, 4000K, 5700K)
- IC-4 rated
- 5-year warranty (first 2 years onsite)
Specifications
Efficiencies
| Total System Efficiency | 120 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP50 |
|---|---|
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Fitting Colour | White |
| Body Material | Steel Frame |
| Installation Type | Recessed |
Electrical
| Working Temp Range | -10 to 40 °C |
|---|---|
| System Max Wattage | |
| AT6025/306 | 14 W |
| AT6025/312 AT6025/606 | 33 W |
| AT6025/612 | 50 W |
| Input voltage | 220-240V AC |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| LED Type | Diffused |
| UGR | <22 |
| Led Package | 2835 SMD |
| CCT Configuration | TRI-CCT |
| Beam Angle | 120 ° |
LED Lifetime
| LED Lifetime Ratings (Failure rate & lumen depreciation) | |||||||
|---|---|---|---|---|---|---|---|
| |||||||
| This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717. | |||||||
Colour temperature

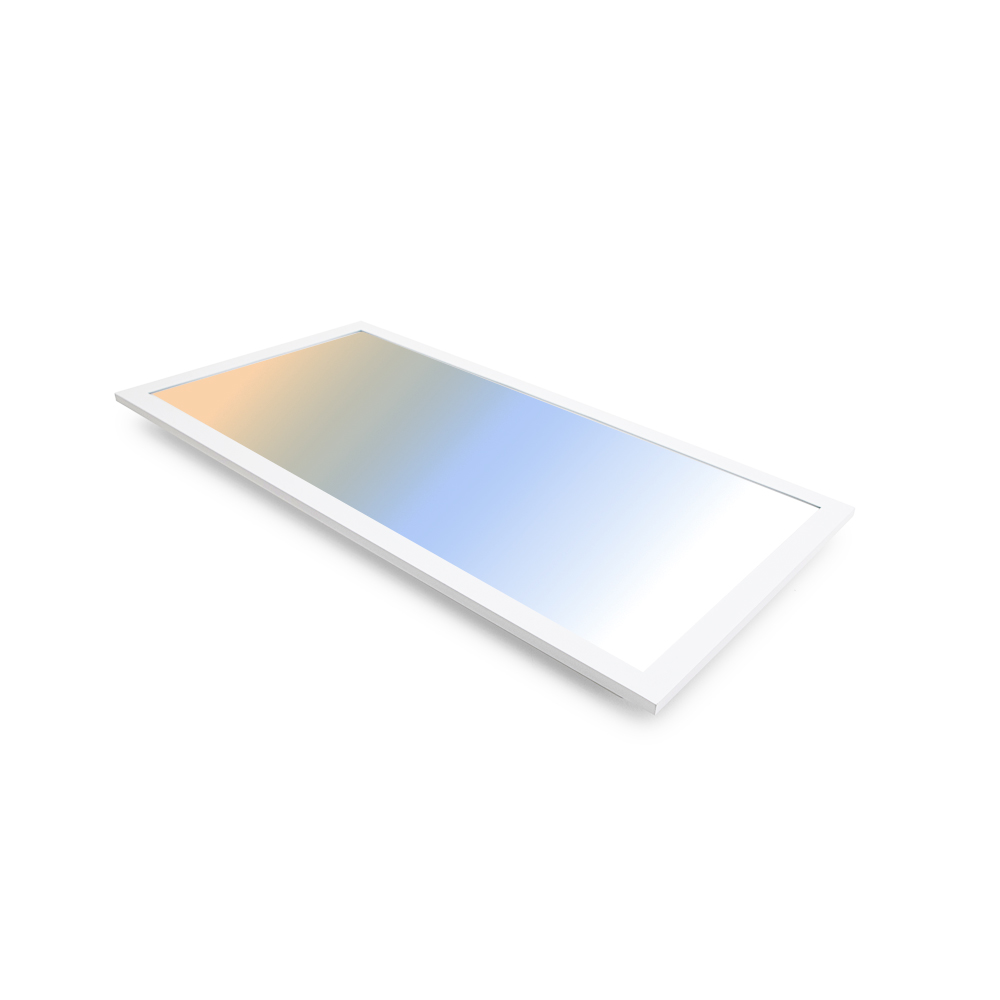

AT6025/306
| |||||||||||

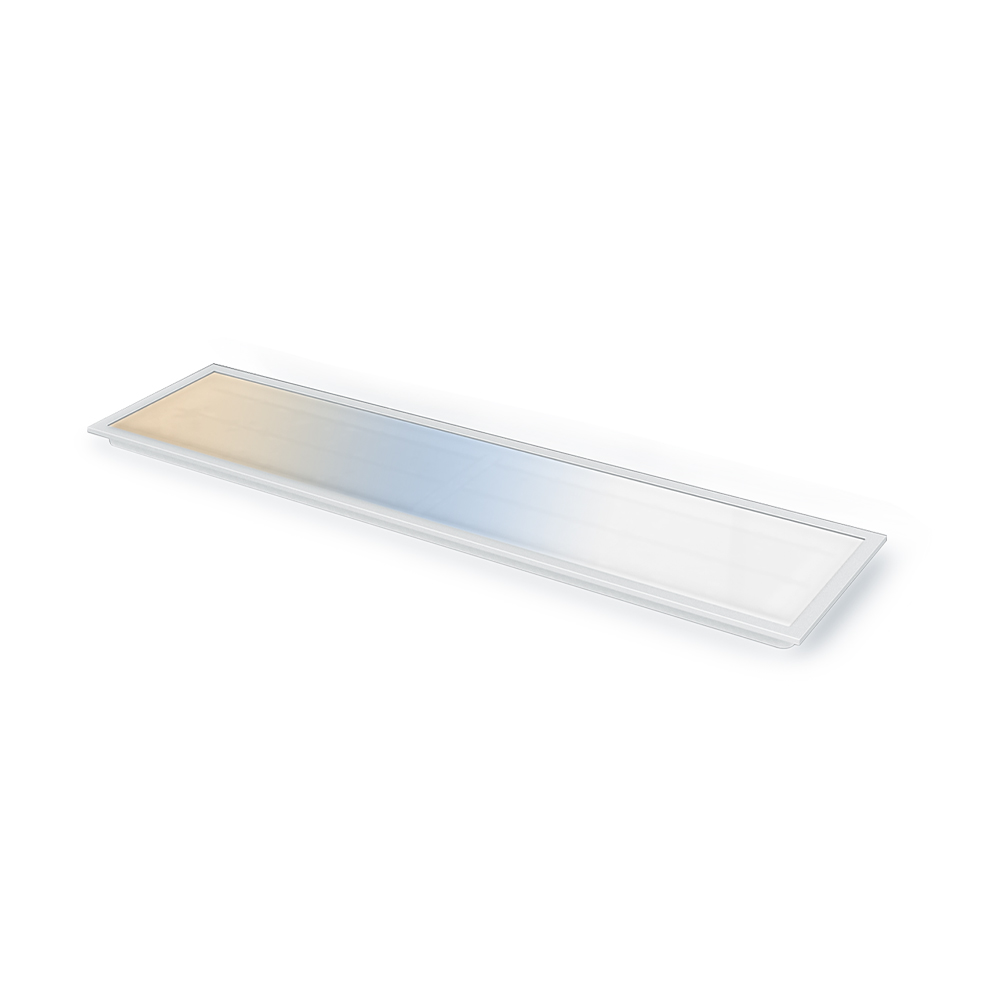

AT6025/312
| |||||||||||

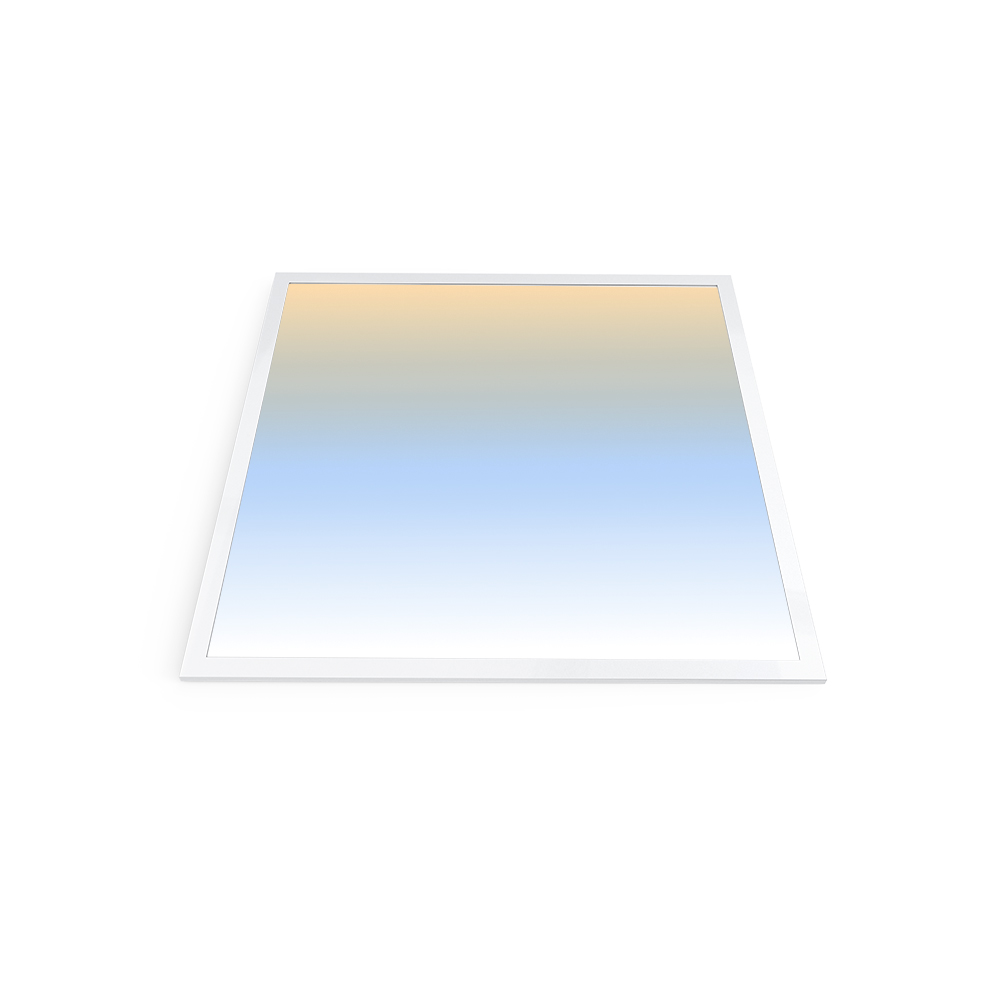

AT6025/606
| |||||||||||

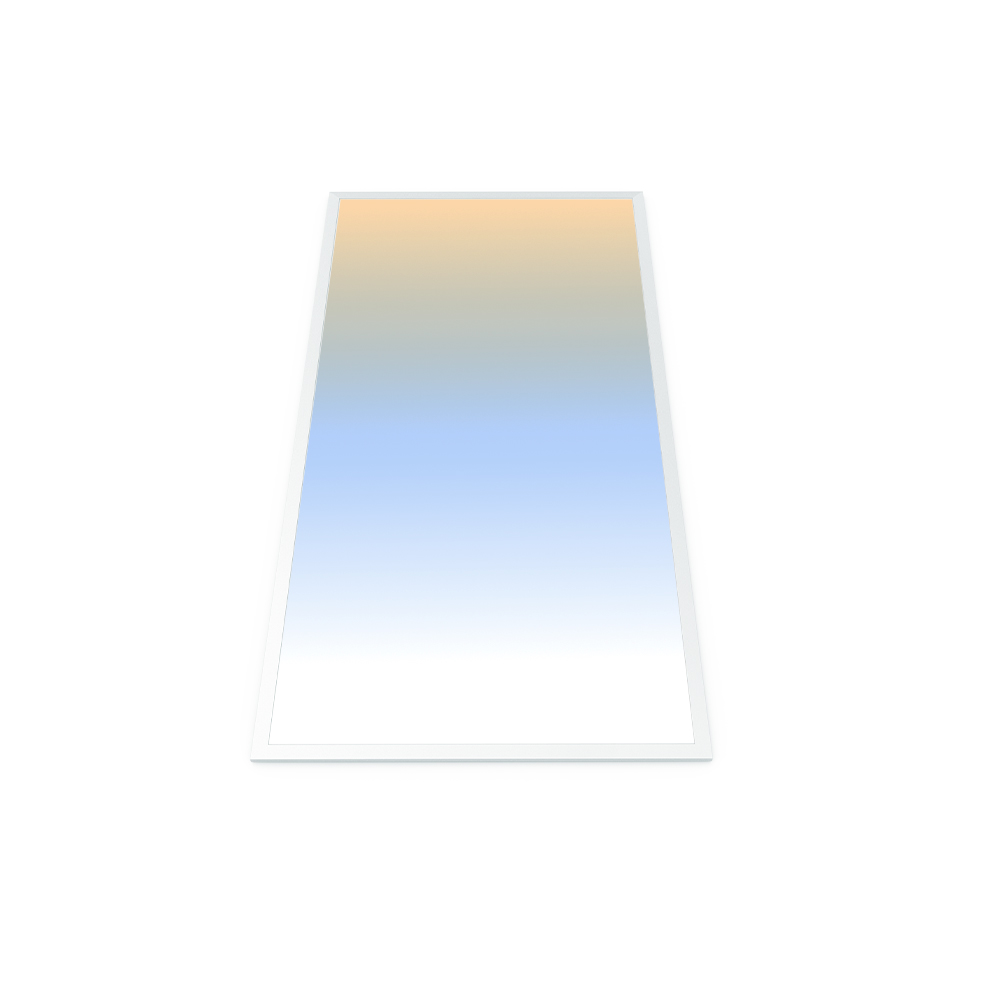

AT6025/612
| |||||||||||
Driver
| Driver Type | Fixed output |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Dimmable | No |
| Flex & Plug or Lead Length | 600 mm |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
| Driver Current | |
| AT6025/306 | 350 mA |
| AT6025/312 AT6025/606 | 850 mA |
| AT6025/612 | 1250 mA |
Compliance
| Standards |
|
|---|
Warranty
| Warranty | 5 Year Warranty, First 2 Years Onsite |
|---|---|
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
Dimensions
| Item Code | Product Height | Product Length | Product Width |
|---|---|---|---|
| AT6025/306 | 25 mm | 595 mm | 295 mm |
| AT6025/606 | 25 mm | 595 mm | 595 mm |
| AT6025/312 | 25 mm | 1195 mm | 295 mm |
| AT6025/612 | 25 mm | 1195 mm | 595 mm |
AT6025/306
AT6025/312
AT6025/606
AT6025/612
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 15579 | AT6025/306 | 14W ECO LED Panel 300x600mm - TRI-CCT | ||
| 15581 | AT6025/312 | 33W ECO LED Panel 300x1200mm - TRI-CCT | ||
| 15580 | AT6025/606 | 33W ECO LED Panel 600x600mm - TRI-CCT | ||
| 15582 | AT6025/612 | 50W ECO LED Panel 600x1200mm - TRI-CCT |
