AT6024

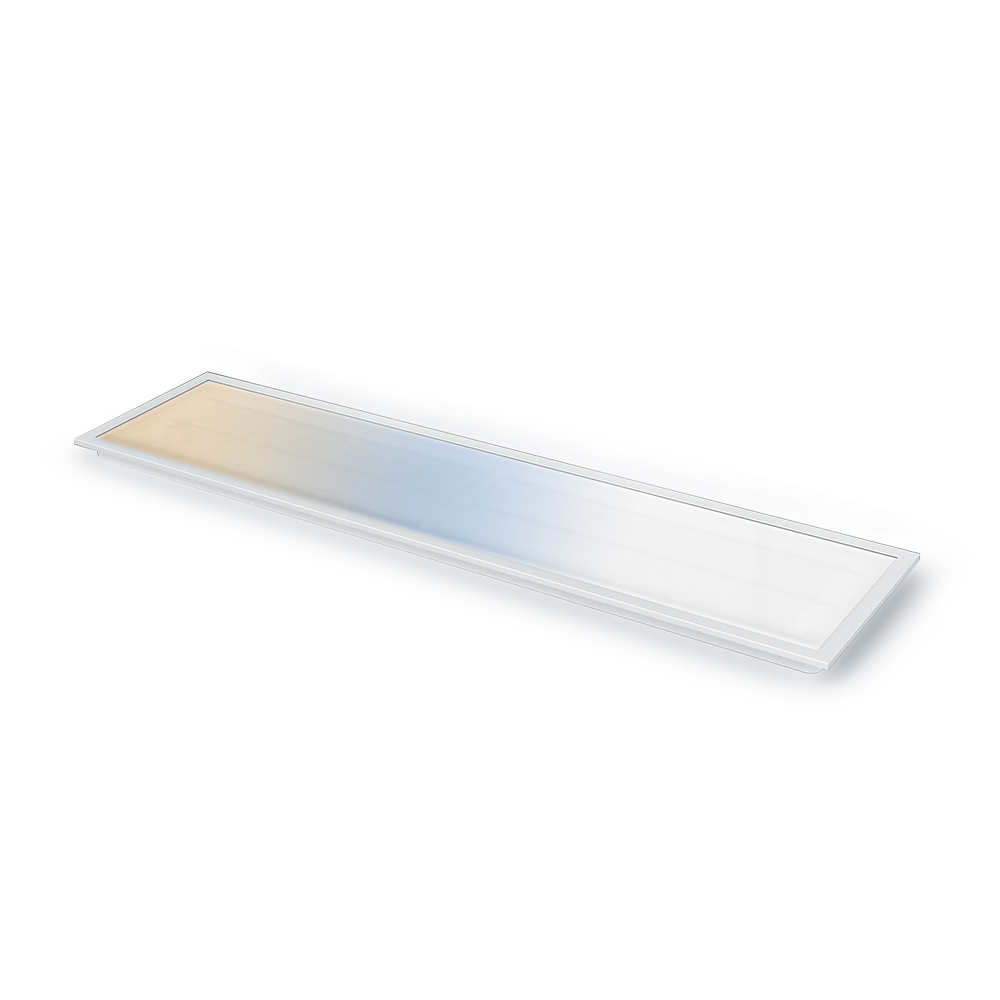

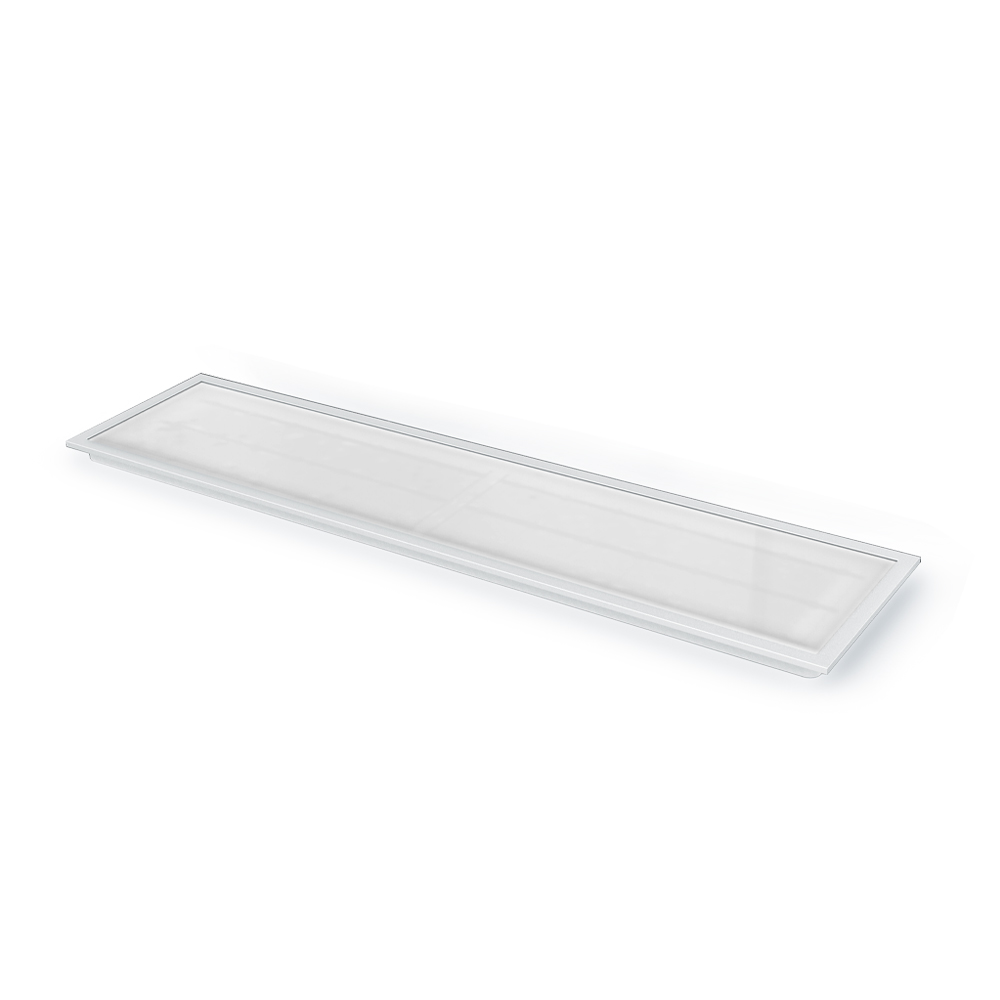

Power adjustable LED backlit panel – Tri-CCT
- Easy-to-install with flex and plug
- LED driver included
- Tri-Colour (3000K, 4000K, 5700K)
- Power adjustable (23W, 25W, 27W and 29W options)
- Low glare with UGR<19
- Upgradeable with DALI-2 dimmable driver (not included)
Specifications
Efficiencies
| Total System Efficiency | 120 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP50 |
|---|---|
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Adjustability | Fixed |
| Fitting Colour | White |
| Product Finish | Powdercoated |
| Body Material | Steel |
| Diffuser Material | Polystyrene |
| Installation Type | Recessed |
Electrical
| Working Temp Range | 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Maximum Wattage | 29 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| Number of Lamps | 1 |
| UGR | <19 |
| CCT Configuration | TRI-CCT |
| Beam Angle | 90 ° |
LED Lifetime
| LED Lifetime | >72000 hrs | ||||||
|---|---|---|---|---|---|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |||||||
| LED Lifetime Ratings (Failure rate & lumen depreciation) | |||||||
| |||||||
| This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717. | |||||||
| TM-21 Test Hours | 12000 hrs | ||||||
Colour temperature
| 23 Watts | ||
|---|---|---|
| Warm White (3000 K) | 2700 lm | >82 CRI |
| Cool White (4000 K) | 2900 lm | >86 CRI |
| DayLight (5700 K) | 2700 lm | >85 CRI |
| 29 Watts | ||
| Warm White (3000 K) | 3200 lm | >82 CRI |
| Cool White (4000 K) | 3500 lm | >86 CRI |
| DayLight (5700 K) | 3250 lm | >85 CRI |
Driver
| Driver Included | Yes |
|---|---|
| Integrated Driver | No |
| Dimmable | No |
| Flex & Plug or Lead Length | 1200 mm |
| Wiring Type | Re-wireable Flex & Plug (2 pin) |
| Driver Mode | Constant Current |
| Driver Current | 750 mA |
| PSTLM | 0.1 |
| Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues. | |
| SVM | 0.4 |
| Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards. | |
Energy Savings Scheme
| Ipart Approval | Yes |
|---|---|
| REES Approval | Yes |
Compliance
| Product Design Life | 10 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Daily Use | 12 hrs |
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
|---|---|
| Selected products include VIP on-site warranty support, followed by return-to-base coverage for the remainder of the warranty period. For full warranty details and claim instructions, please refer to the our Warranty page. | |
| Warranty Operating Hours | 15000 hrs |
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
| Domestic Use Warranty | 3 RTB (Total 3 Years) |
Dimensions
| Product Length | 1195 mm |
|---|---|
| Product Width | 295 mm |
| Product Weight | 1300 g |
AT6024/312/TRI
Ordering Information
| Order code | Item code | Description | Availability | |
|---|---|---|---|---|
| 10166 | AT6024/312/TRI | 29W Low Glare LED Panel - TRI-CCT |
