Home Lamps Fancy Round / G45 AT9422
AT9012-98 COB
AT9012-98 COB $0.00
Back to products
AT9421
AT9421 $0.00

AT9422

$0.00

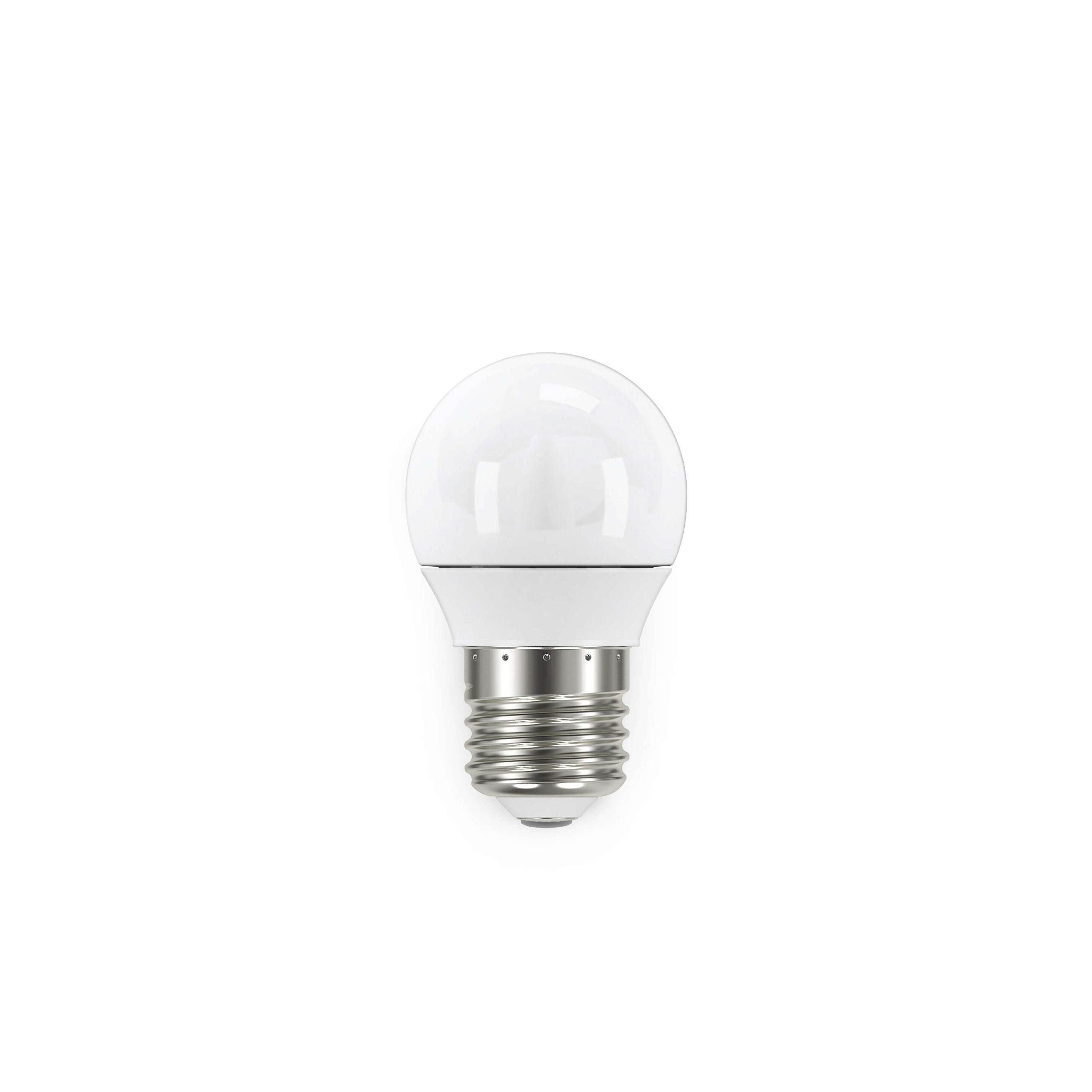

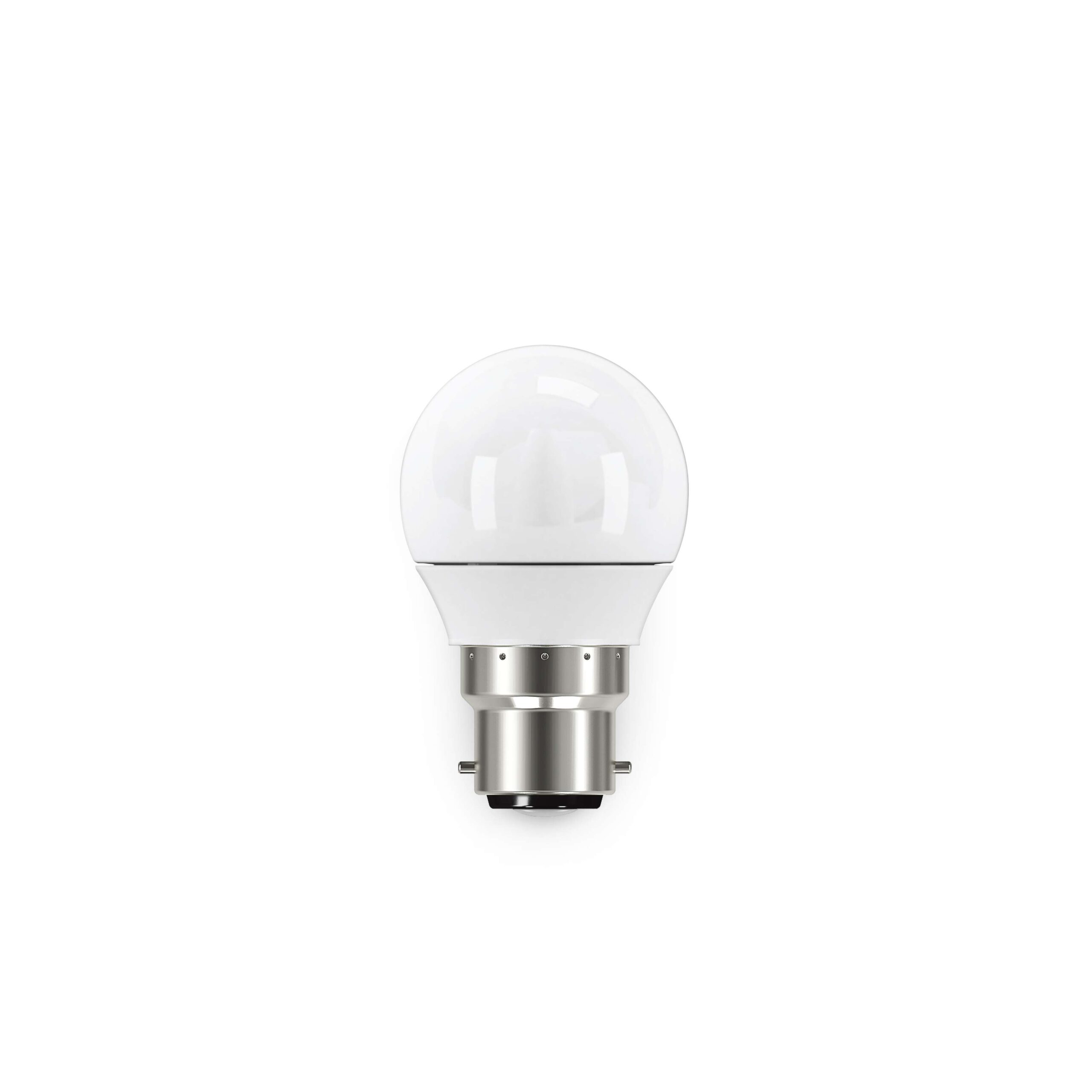

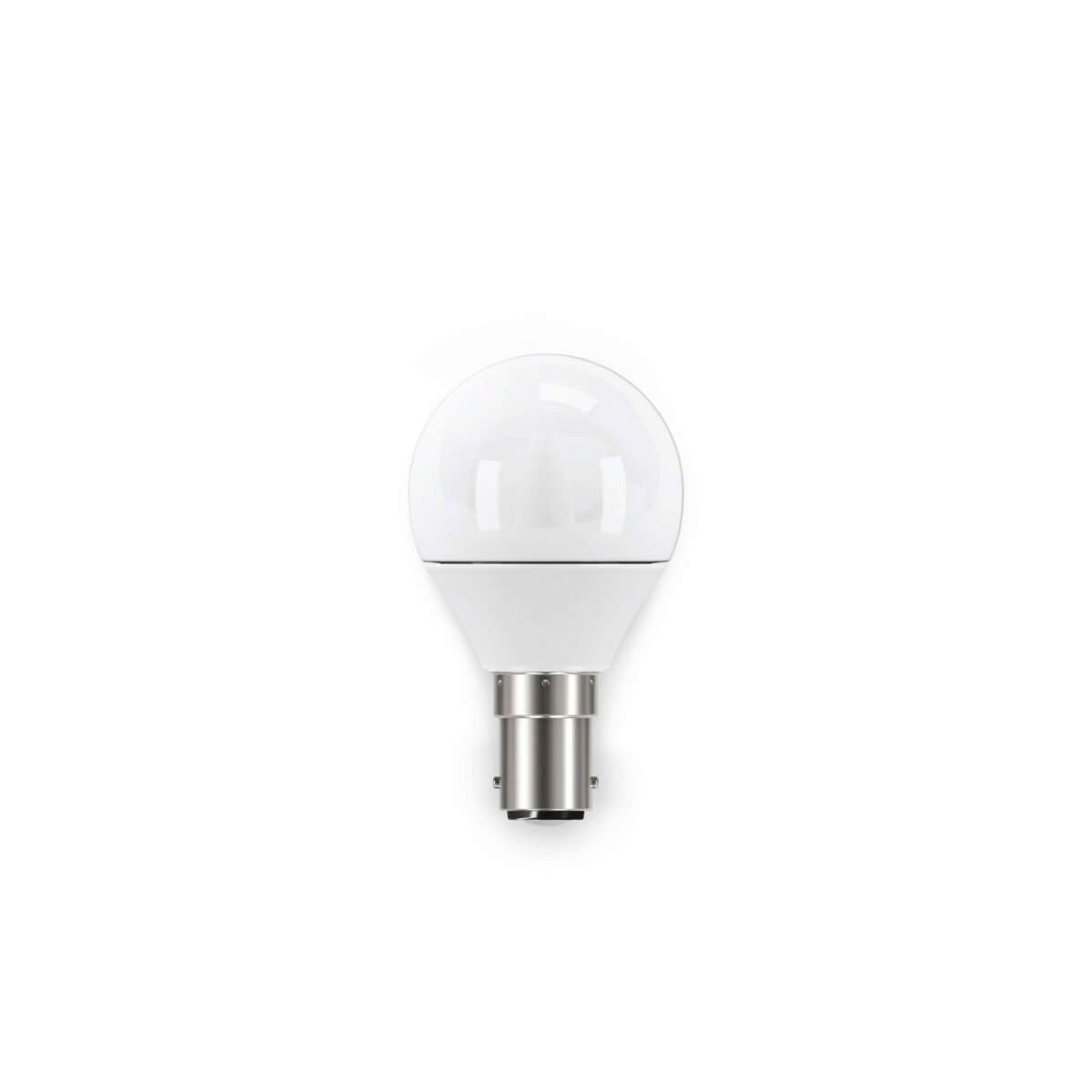

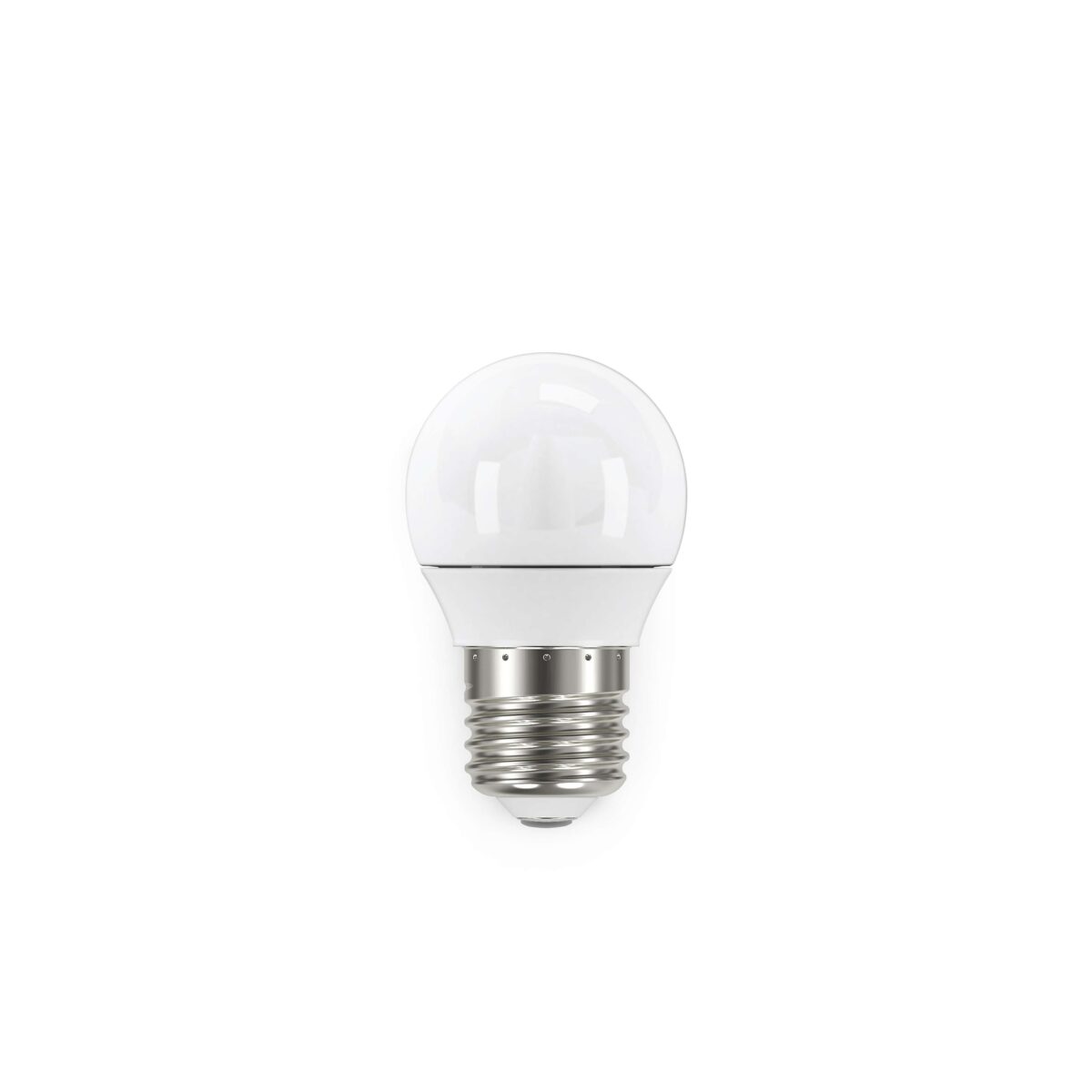

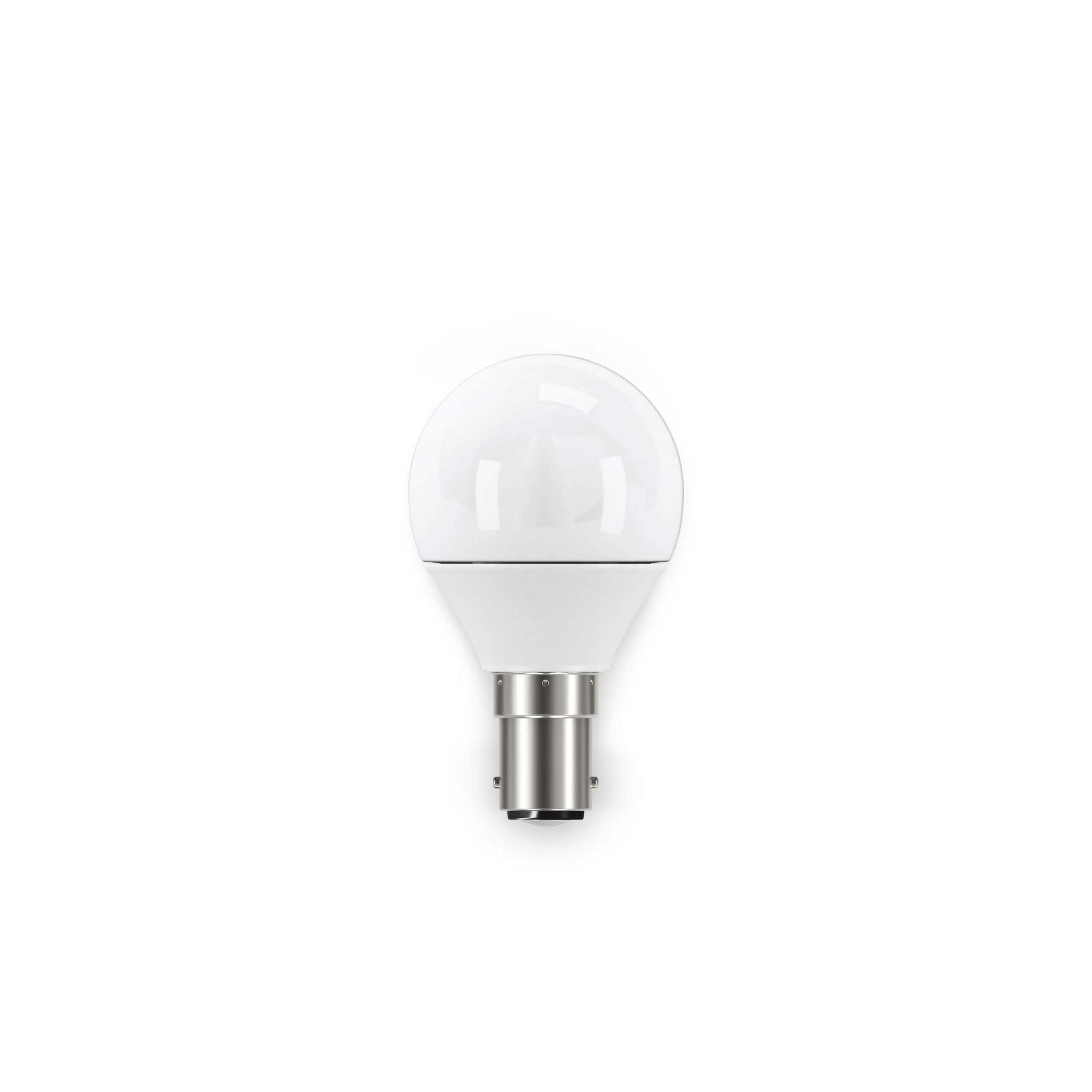

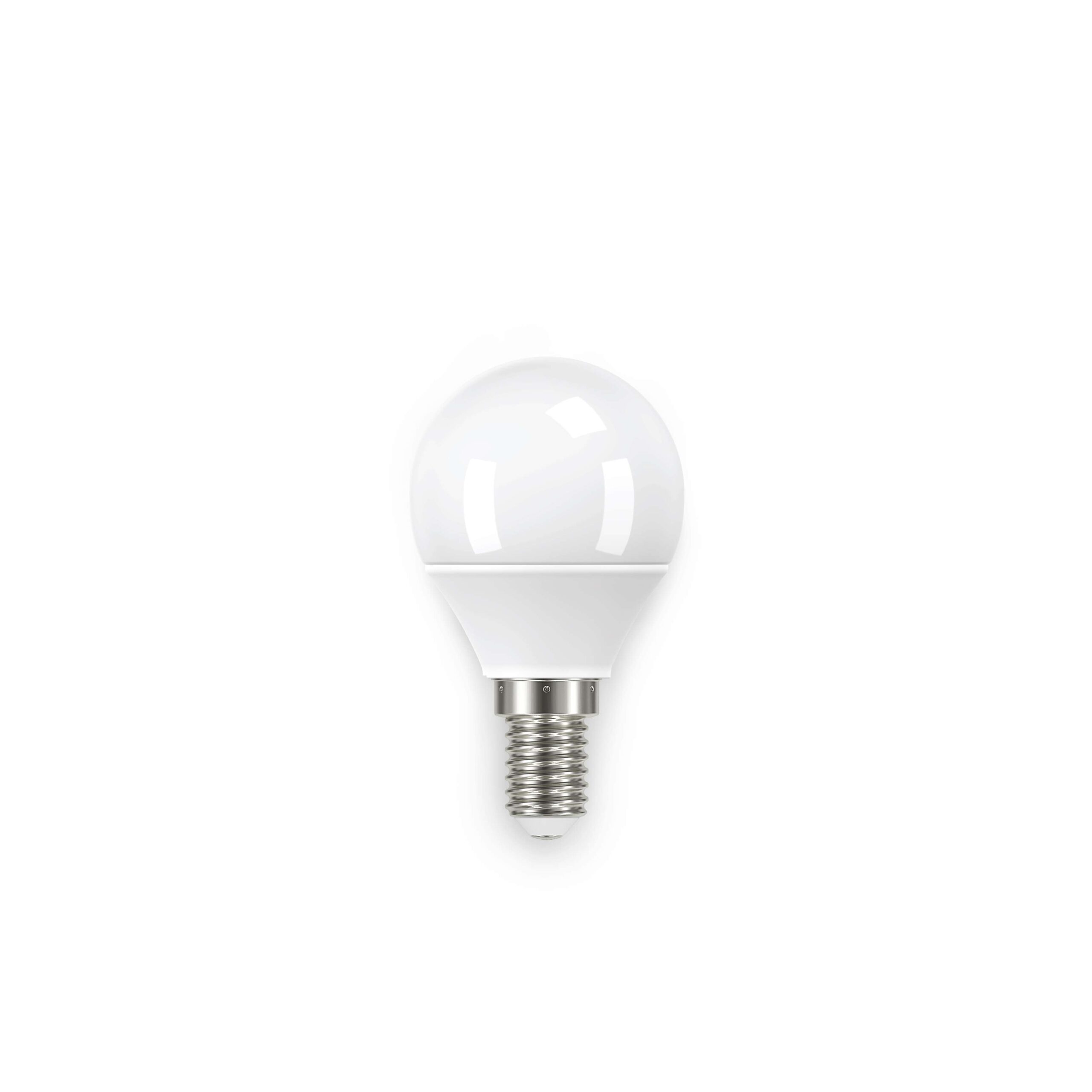

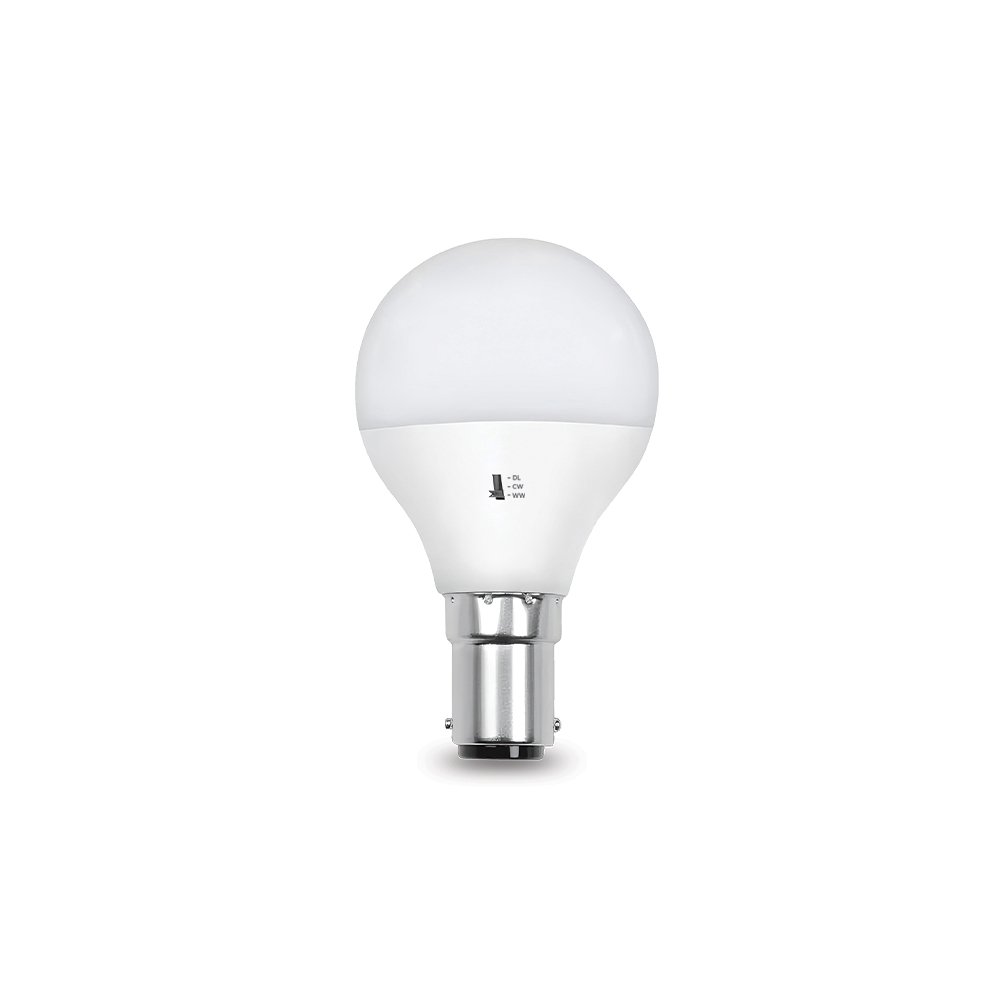

6W G45 LED lamp. Dimmable. Frosted lens

Features

  • Fancy round lamp (G45 shape)
  • Energy efficient LED lamp
  • Long Life
  • No mercury Content
  • Suitable for use with dimmers

Selected Models

  • Suitable replacement for halogen and incandescent lamps
SKU: AT9422 Category: Fancy Round / G45 Tags: Bed, Study, Living, Family, Ip20, Office, Shed, Garage, Stairs, Hallway, Toilet, Kitchen, Indoor, Bath, Domestic
Share:
  • Specifications
  • Dimensions
  • Ordering Information
  • Documents & Downloads
  • Photometrics
Specifications

Mechanical

AdjustabilityFixed
Diffuser MaterialPolycarbonate
Product FinishFrosted
Fitting ColourWhite
IP RatingIP20
Body MaterialAluminium
IC RatingNon-IC

Electrical

Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage5 W
Power Factor0.55
Switch TypeInline
System Max Wattage
AT9422/BC/CW
AT9422/BC/WW
AT9422/ES/CW
AT9422/ES/WW
AT9422/SBC/CW
AT9422/SBC/WW
AT9422/SES/CW
AT9422/SES/WW
5 W
AT9422/BC/DL
AT9422/BC/WW
AT9422/BC/WW/V1
AT9422/ES/CW/V1
AT9422/ES/WW/V1
6 W
Working Temp Range-20 to 40 °C

Lamp

Beam Angle
AT9422/BC/CW
AT9422/BC/WW
AT9422/ES/CW
AT9422/ES/WW
AT9422/SBC/CW
AT9422/SBC/WW
AT9422/SES/CW
AT9422/SES/WW
220 °
AT9422/BC/DL
AT9422/BC/WW
AT9422/BC/WW/V1
AT9422/ES/CW/V1
AT9422/ES/WW/V1
225 °
Bulb TypeG45
CCT ConfigurationSingle
CRI>80
Globe Base
AT9422/SBC/CW
AT9422/SBC/WW
B15 / SBC
AT9422/BC/CW
AT9422/BC/DL
AT9422/BC/WW
AT9422/BC/WW/V1

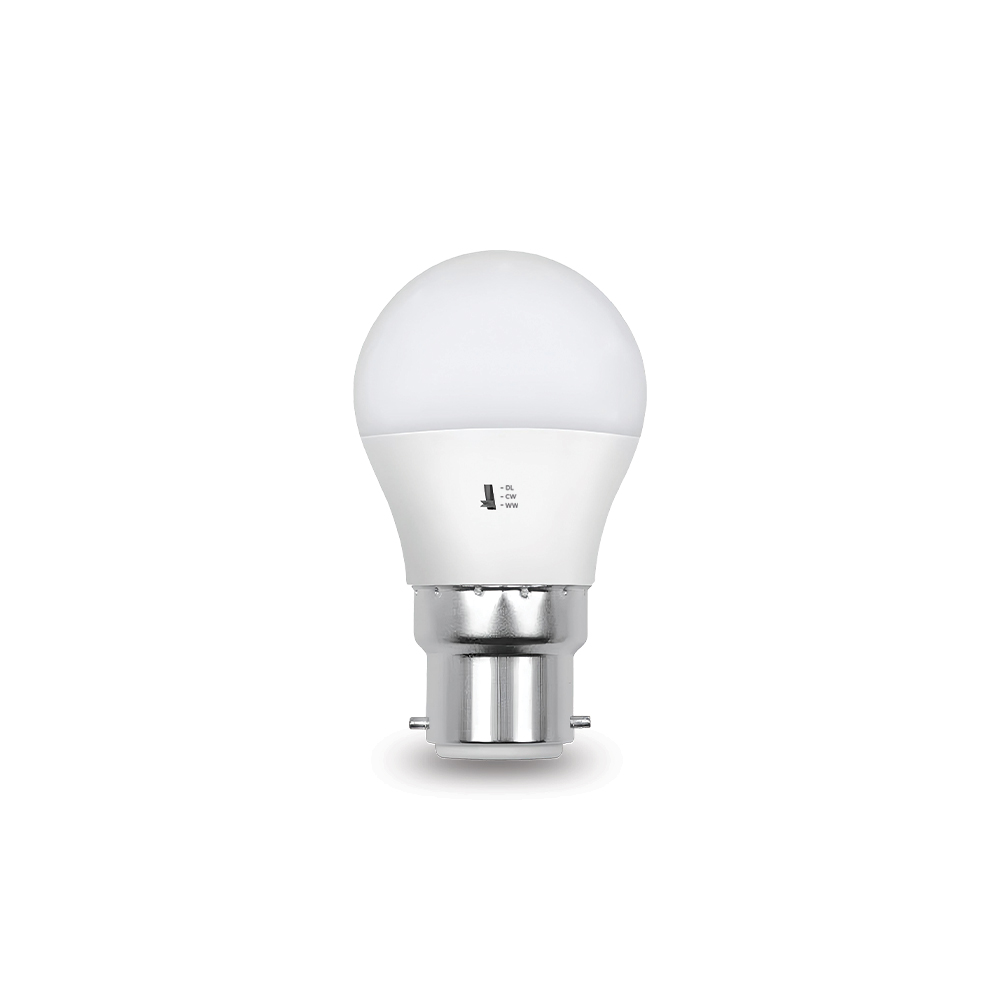

B22 / BC
AT9422/SES/CW
AT9422/SES/WW

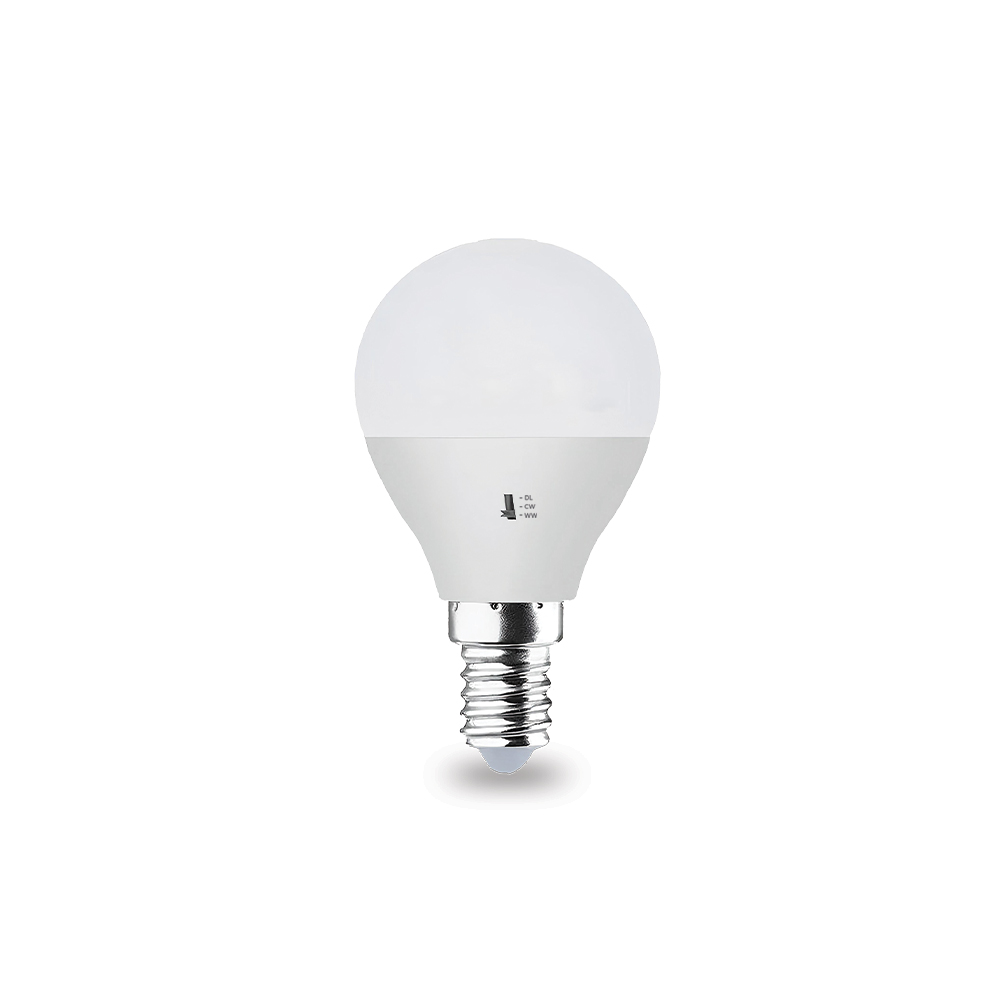

E14 / SES
AT9422/ES/CW
AT9422/ES/CW/V1
AT9422/ES/WW
AT9422/ES/WW/V1

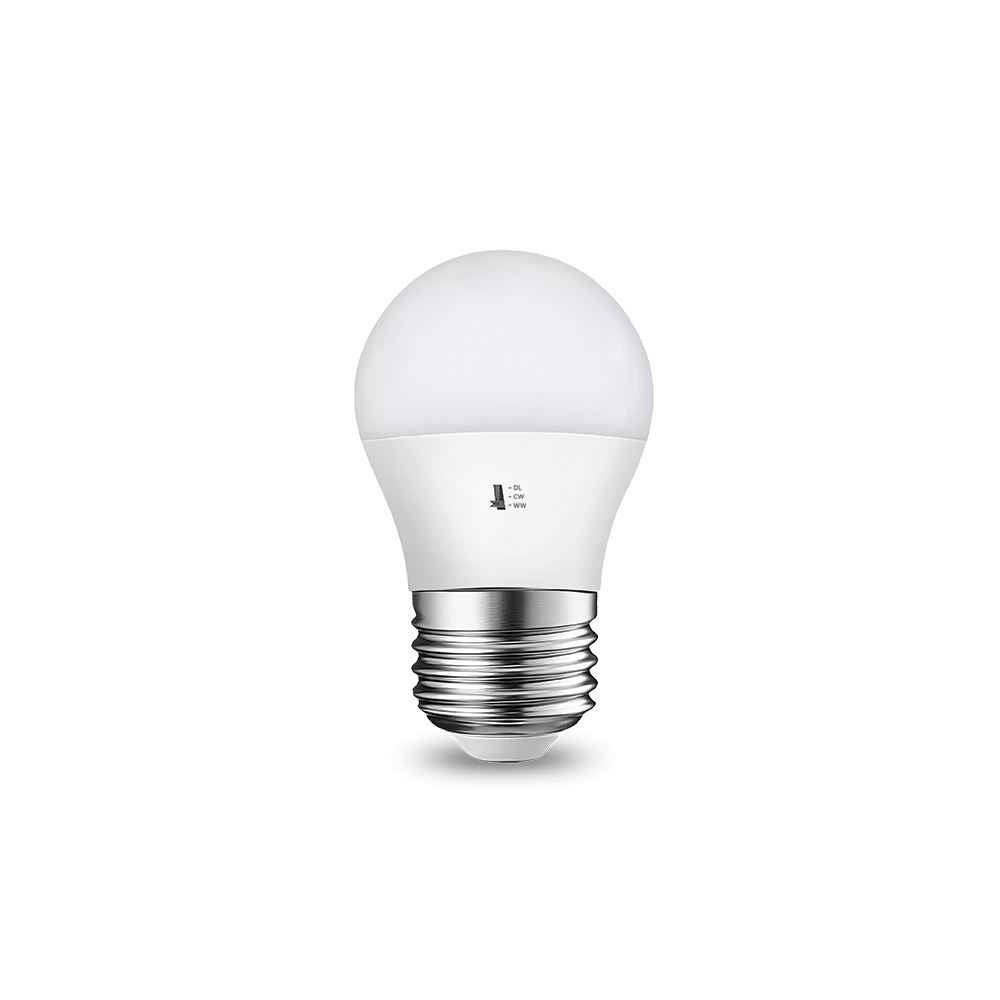

E27
Globe IncludedYes
Led Package2835
Number of Lamps1
Maximum Bulb Wattage6 W

LED Lifetime

LED Lifetime15000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.

Colour temperature

CCT
AT9422/BC/WW
AT9422/BC/WW/V1
AT9422/ES/WW
AT9422/ES/WW/V1
AT9422/SBC/WW
AT9422/SES/WW
3000 K
AT9422/BC/CW
AT9422/ES/CW
AT9422/ES/CW/V1
AT9422/SBC/CW
AT9422/SES/CW
4000 K
AT9422/BC/DL6500 K
CCT Colour
AT9422/BC/CW
AT9422/ES/CW
AT9422/ES/CW/V1
AT9422/SBC/CW
AT9422/SES/CW
Cool White
AT9422/BC/DLDaylight
AT9422/BC/WW
AT9422/BC/WW/V1
AT9422/ES/WW
AT9422/ES/WW/V1
AT9422/SBC/WW
AT9422/SES/WW
Warm White
System Lumens
AT9422/BC/WW
AT9422/BC/WW/V1
AT9422/ES/CW/V1
AT9422/ES/WW/V1
AT9422/SES/WW
470 lm
AT9422/BC/DL
AT9422/SES/CW
500 lm
AT9422/BC/CW
AT9422/BC/WW
AT9422/ES/CW
AT9422/ES/WW
AT9422/SBC/CW
AT9422/SBC/WW
530 lm
All photometric data has a tolerance of ±10%.

Driver

DimmableYes
Driver IncludedYes
Integrated DriverYes
Driver TypeDimmable ( Phase cut)

Compliance

Product Design Life10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use4 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 62560
  • IEC/TR 62778
  • AS CISPR 15

Warranty

Domestic Use Warranty1 (Yr) RTB
VIP Warranty2 RTB (Total 2 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.
Warranty Operating Hours500 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Dimensions
Item CodeProduct HeightProduct Width
AT9422/BC/CW78 mm45 mm
AT9422/BC/WW84 mm45 mm
AT9422/ES/CW78 mm45 mm
AT9422/ES/WW78 mm45 mm
AT9422/SBC/CW78 mm45 mm
AT9422/SBC/WW78 mm45 mm
AT9422/SES/CW78 mm45 mm
AT9422/SES/WW78 mm45 mm
AT9422/BC/DL84 mm45 mm
AT9422/BC/WW/V184 mm45 mm
AT9422/ES/CW/V182 mm45 mm
AT9422/ES/WW/V182 mm45 mm
Ordering Information
Ordering codeItem codeDescriptionAvailability
18620AT9422/BC/CW6W FANCY ROUND LED LAMP B22 CW DIMMABLE
16804AT9422/BC/DL6W Dimmable Fancy Round Lamp - daylight 6500K BC/B22 Frosted
18619AT9422/BC/WW5W FANCY ROUND LED LAMP B22 WW DIMMABLE
14370AT9422/BC/WWG45 6W Dimmable 3000K BC/B22 Frosted
12047AT9422/BC/WW/V16W Dimmable Fancy Round Lamp - warm white 3000K BC/B22 Frosted
18618AT9422/ES/CW6W FANCY ROUND LED LAMP E27 CW DIMMABLE
18233AT9422/ES/CW/V16W Dimmable Fancy Round Lamp - cool white 4000K ES/E27 Frosted
18617AT9422/ES/WW6W FANCY ROUND LED LAMP E27 WW DIMMABLE
11960AT9422/ES/WW/V16W Dimmable Fancy Round Lamp - warm white 3000K ES/E27 Frosted
18622AT9422/SBC/CW6W FANCY ROUND LED LAMP B15 CW DIMMABLE
18621AT9422/SBC/WW6W FANCY ROUND LED LAMP B15 WW DIMMABLE
18616AT9422/SES/CW6W FANCY ROUND LED LAMP E14 CW DIMMABLE
18615AT9422/SES/WW6W FANCY ROUND LED LAMP E14 WW DIMMABLE
Documents & Downloads

Datasheet

  • AT9422/BC/CW*
  • AT9422/BC/DL*
  • AT9422/BC/WW*
  • AT9422/BC/WW/V1*
  • AT9422/ES/CW*
  • AT9422/ES/CW/V1*
  • AT9422/ES/WW*
  • AT9422/ES/WW/V1*
  • AT9422/SBC/CW*
  • AT9422/SBC/WW*
  • AT9422/SES/CW*
  • AT9422/SES/WW*

Compliance

  • AT9422/BC/CW-AU-sdoc*
  • AT9422/BC/DL-AU-sdoc*
  • AT9422/BC/WW-AU-sdoc*
  • AT9422/BC/WW/V1-AU-sdoc*
  • AT9422/ES/CW-AU-sdoc*
  • AT9422/ES/CW/V1-AU-sdoc*
  • AT9422/ES/WW-AU-sdoc*
  • AT9422/ES/WW/V1-AU-sdoc*
  • AT9422/SBC/CW-AU-sdoc*
  • AT9422/SBC/WW-AU-sdoc*
  • AT9422/SES/CW-AU-sdoc*
  • AT9422/SES/WW-AU-sdoc*

*Auto generated datasheet (beta)
Photometrics
AT9422/BC/CW
IES File

IES File


Download
AT9422/BC/WW
IES File

IES File


Download
AT9422/ES/CW
IES File

IES File


Download
AT9422/ES/WW
IES File

IES File


Download
AT9422/SBC/CW
IES File

IES File


Download
AT9422/SBC/WW
IES File

IES File


Download
AT9422/SES/CW
IES File

IES File


Download
AT9422/SES/WW
IES File

IES File


Download
