AT9421

$0.00

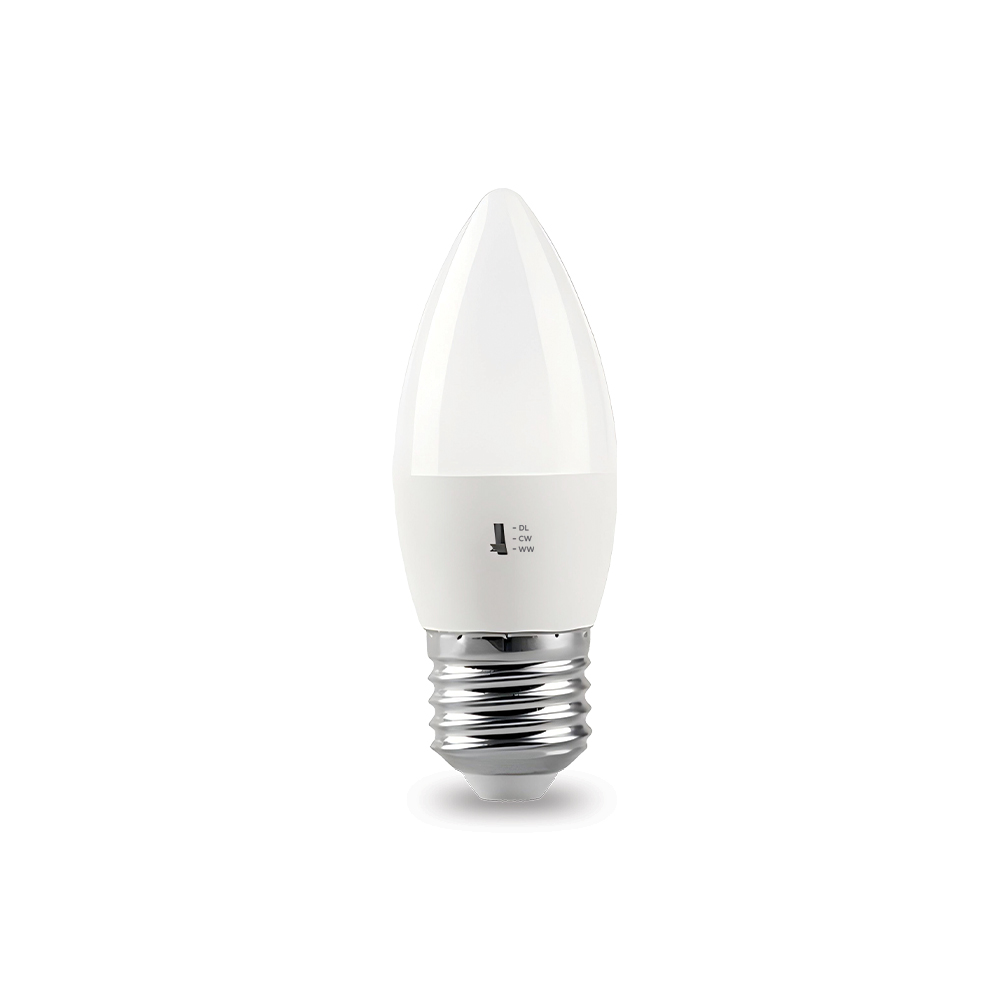

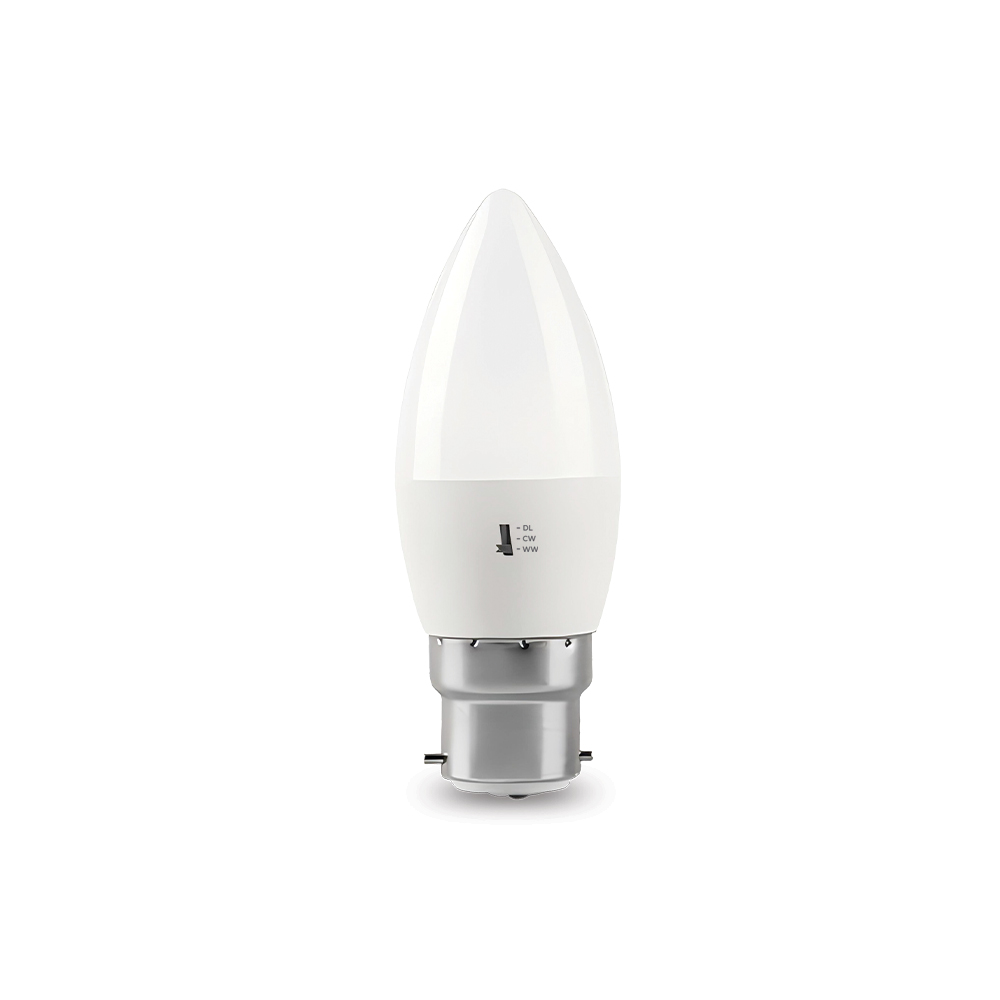

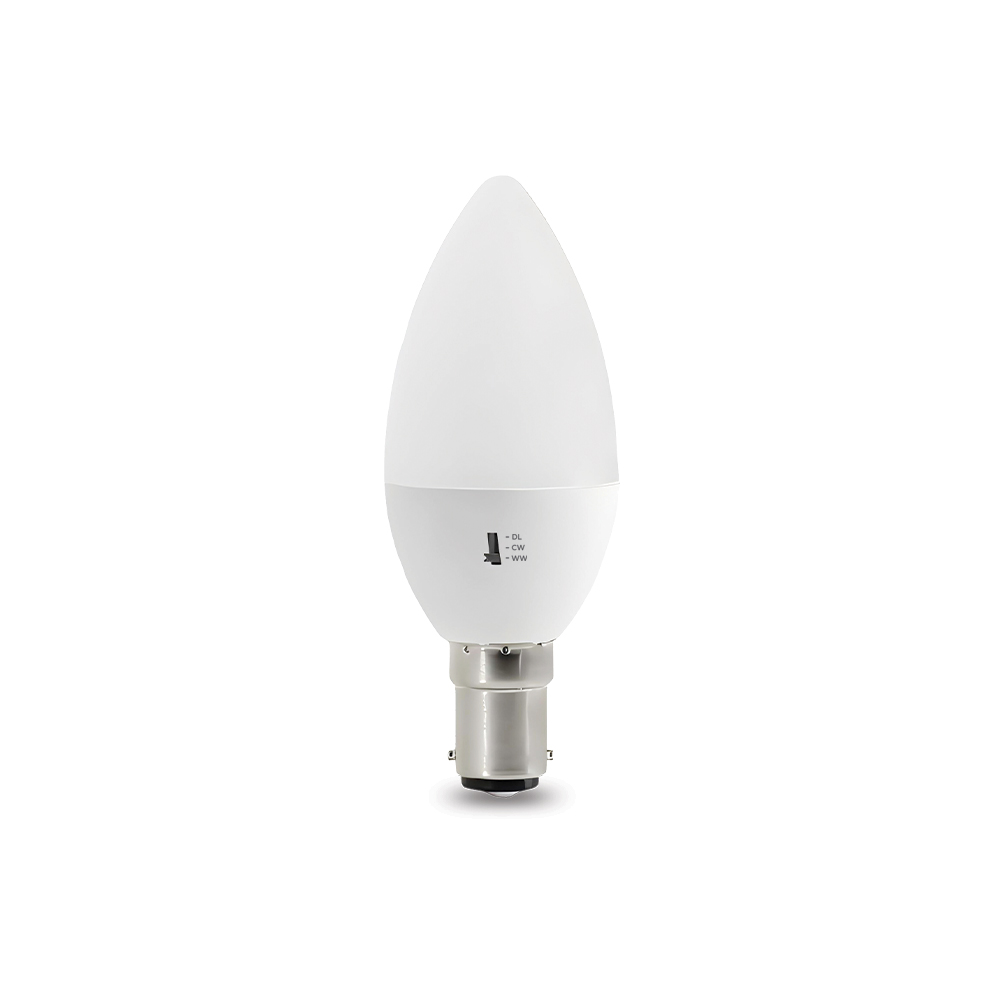

6W C35 LED lamp. Dimmable. Frosted lens

  • Candle lamp (C35 shape)
  • Energy efficient LED lamp
  • Long Life
  • No mercury Content
  • Suitable replacement for halogen and incandescent lamps
  • Suitable for use with dimmers
Specifications

Mechanical

AdjustabilityFixed
Diffuser MaterialPolycarbonate
Product FinishFrosted
Fitting ColourWhite
IC RatingNon-IC
IP RatingIP20

Electrical

Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage5.8 W
Power Factor0.5
Switch TypeInline
System Max Wattage5 W
Working Temp Range-20 to 40 °C

Lamp

Beam Angle270 °
Bulb TypeC35
CCT ConfigurationSingle
Colour Rendering Index (CRI)>80
Globe Base
AT9421/SBC/CW
AT9421/SBC/WW

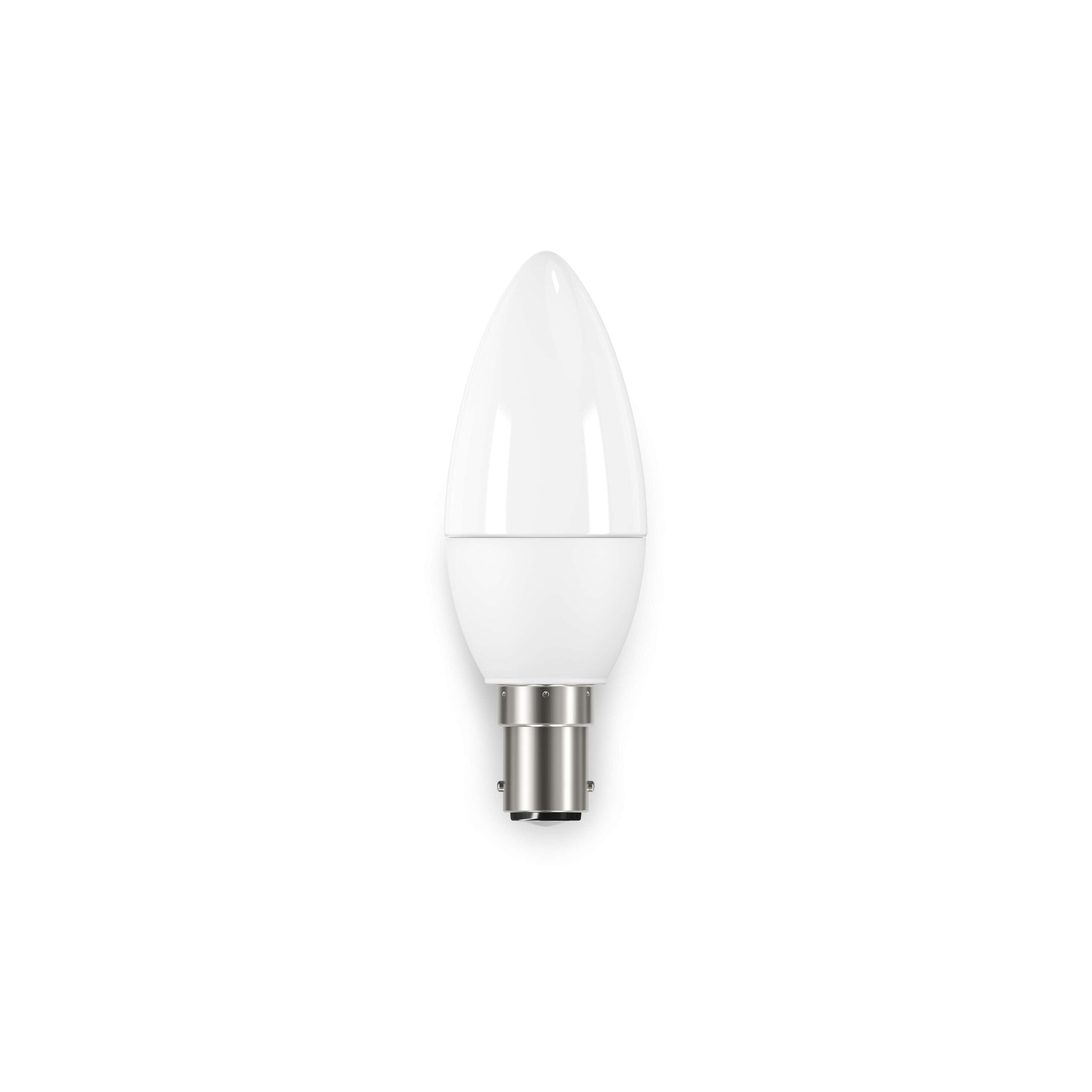

B15 / SBC
AT9421/BC/CW
AT9421/BC/WW

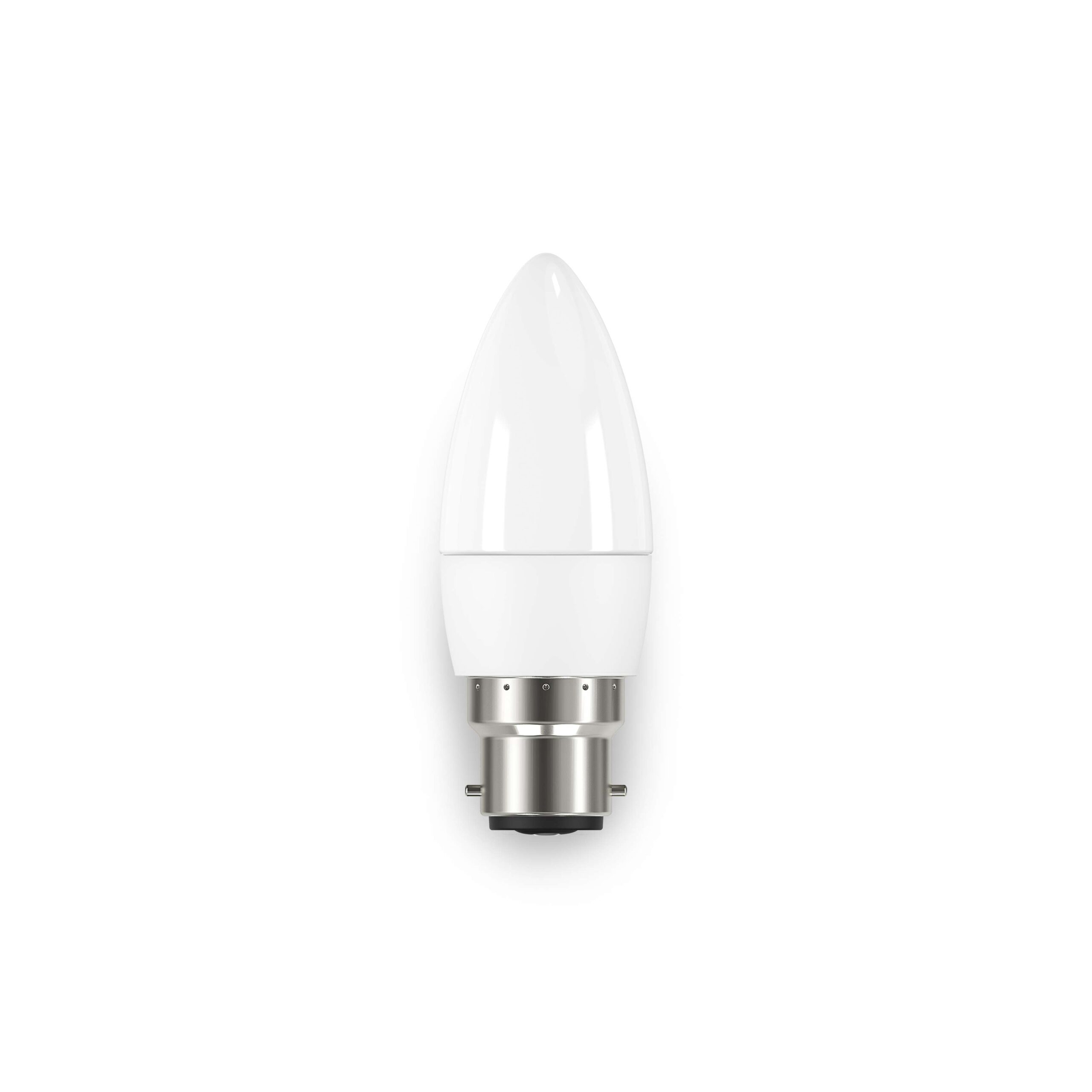

B22 / BC

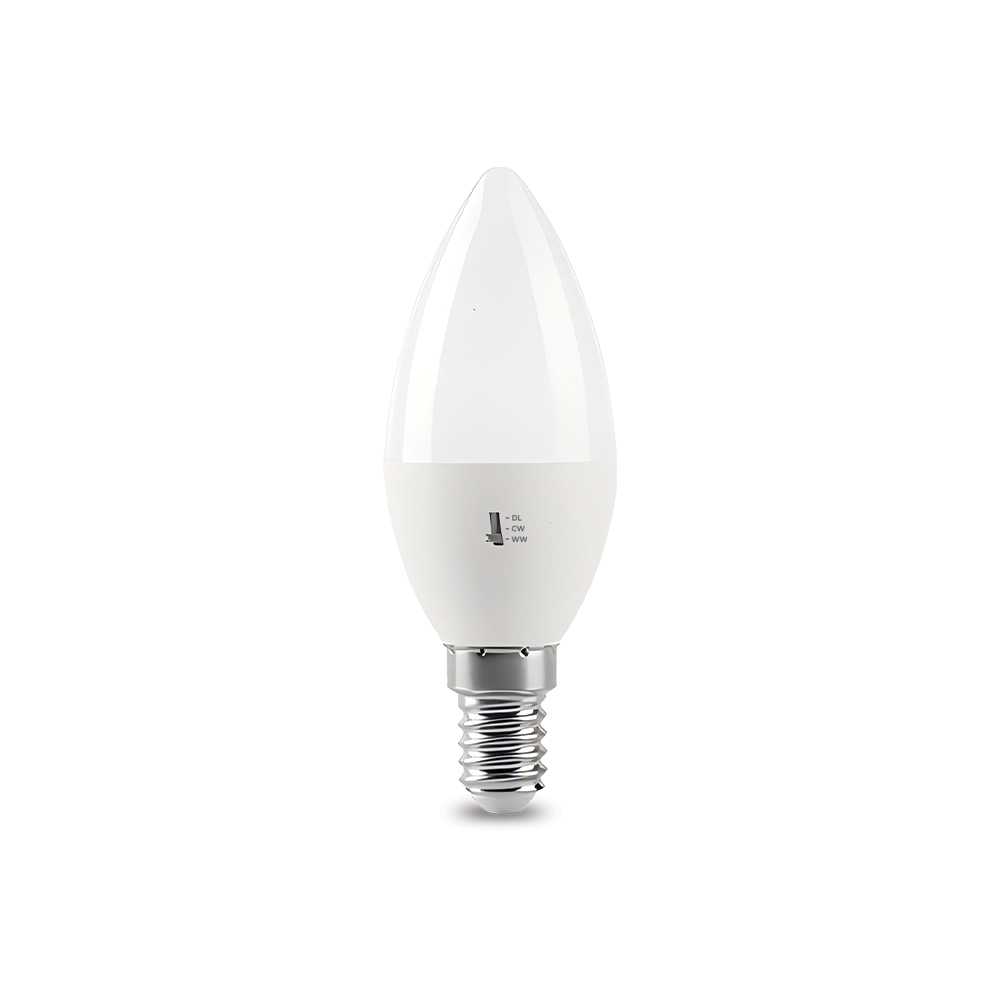

AT9421/SES/WWE14 / SES
AT9421/ES/CW
AT9421/ES/WW

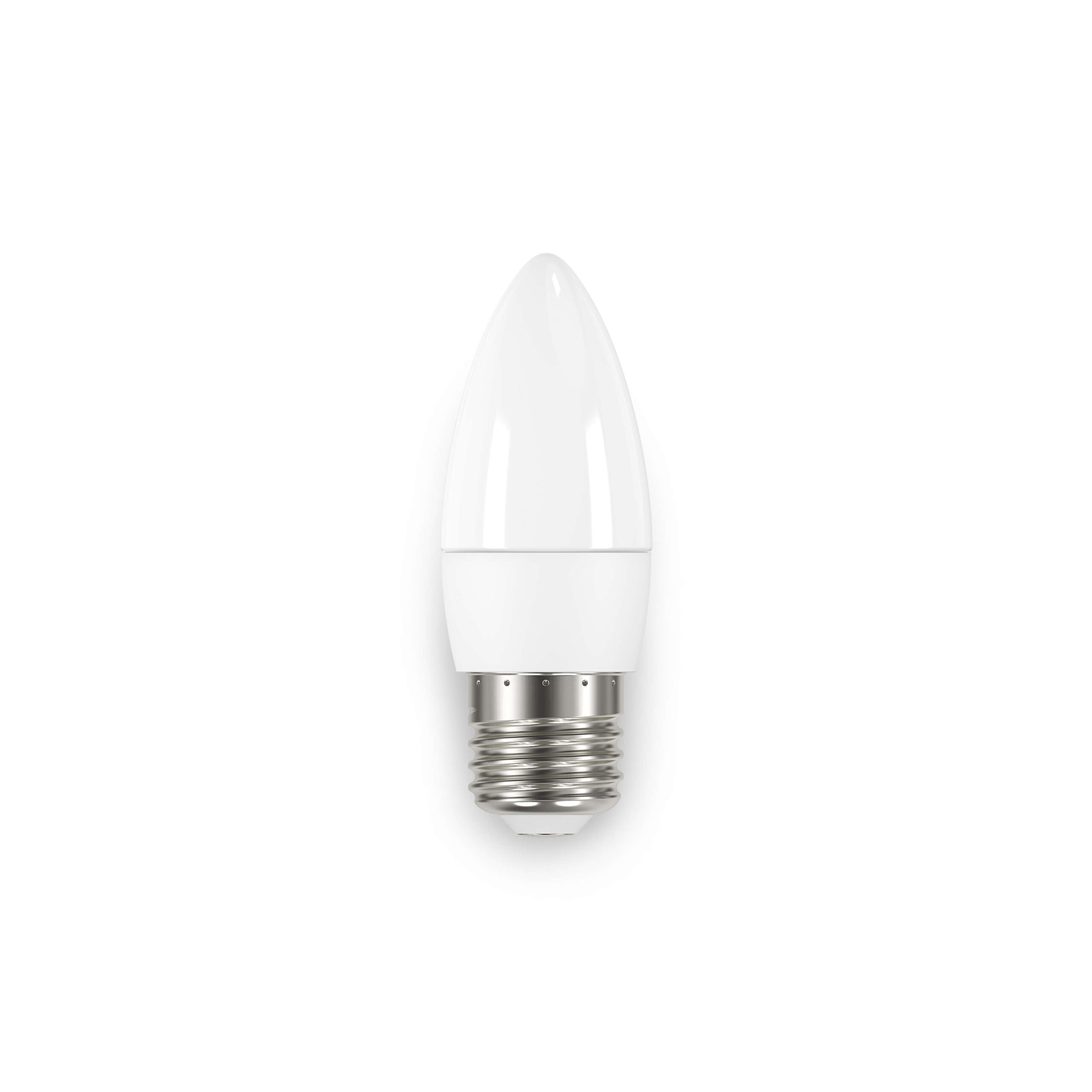

E27
Globe IncludedYes
Lamp/LED Current15.5 mA
Lamp/LED voltage270 V
Led Package2835
Maximum Bulb Wattage5.8 W
Number of Lamps1

LED Lifetime

LED Lifetime15000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.

Colour temperature

CCT
AT9421/BC/WW
AT9421/ES/WW
AT9421/SBC/WW
AT9421/SES/WW
3000 K
AT9421/BC/CW
AT9421/ES/CW
AT9421/SBC/CW
4000 K
CCT Colour
AT9421/BC/CW
AT9421/ES/CW
AT9421/SBC/CW
Cool White
AT9421/BC/WW
AT9421/ES/WW
AT9421/SBC/WW
AT9421/SES/WW
Warm White
LED Wattage4.2 W
Luminaire Lumens
AT9421/BC/WW
AT9421/ES/WW
AT9421/SBC/WW
AT9421/SES/WW
510 lm
AT9421/BC/CW
AT9421/ES/CW
AT9421/SBC/CW
520 lm
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.

Driver

DimmableYes
Driver IncludedYes
Integrated DriverYes
Driver TypeDimmable ( Phase cut)

Compliance

Product Design Life10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use4 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 62560
  • IEC/TR 62778
  • AS CISPR 15

Warranty

Domestic Use Warranty1 RTB (Total 1 Year)
VIP Warranty2 RTB (Total 2 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. As a VIP, your warranty for lamps is increased from 1 year to 2 years return to base.
Warranty Operating Hours500 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Dimensions
Product Height102 mm
Product Width35 mm
Ordering Information
Order codeItem codeDescriptionAvailability
18611AT9421/BC/CW6W CANDLE LED LAMP B22 CW DIMMABLE
18610AT9421/BC/WW6W CANDLE LED LAMP B22 WW DIMMABLE
18609AT9421/ES/CW6W CANDLE LED LAMP E27 CW DIMMABLE
18608AT9421/ES/WW6W CANDLE LED LAMP E27 WW DIMMABLE
18613AT9421/SBC/CW6W CANDLE LED LAMP B15 CW DIMMABLE
18612AT9421/SBC/WW6W CANDLE LED LAMP B15 WW DIMMABLE
18606AT9421/SES/WW6W CANDLE LED LAMP E14 WW DIMMABLE
