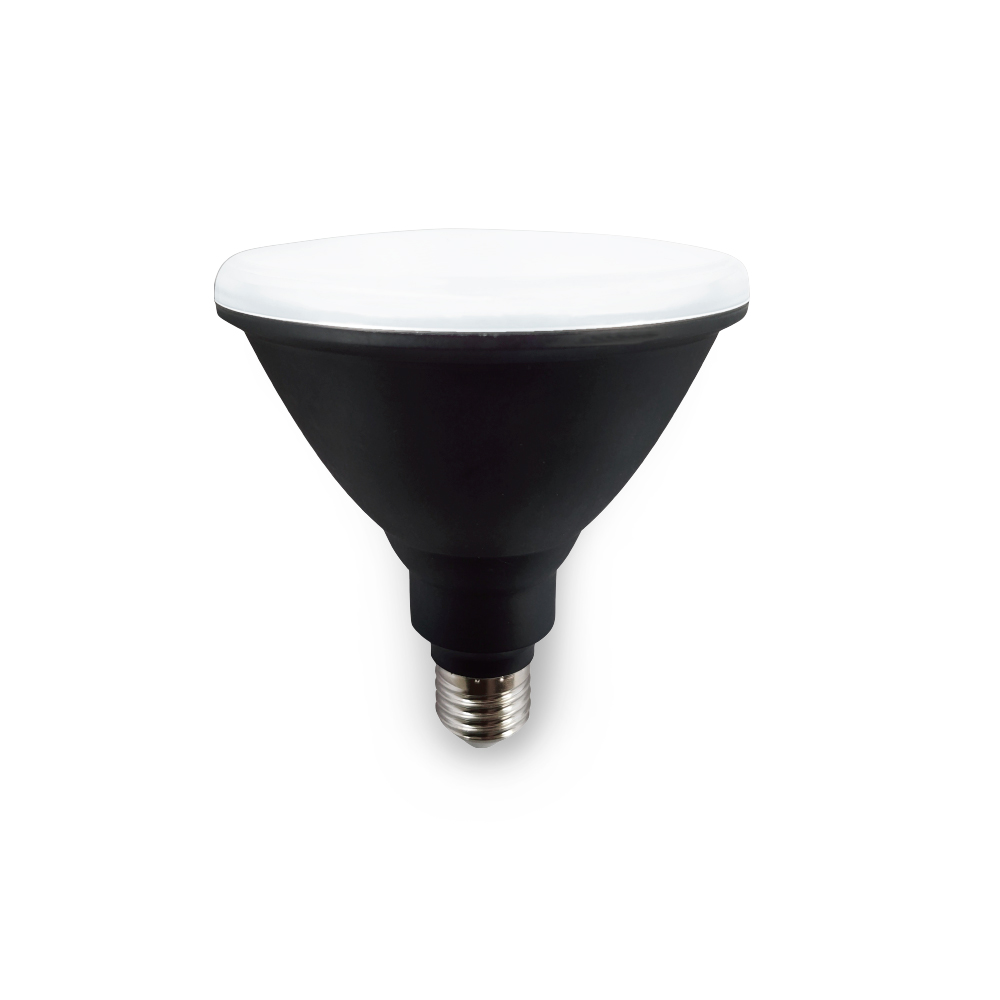

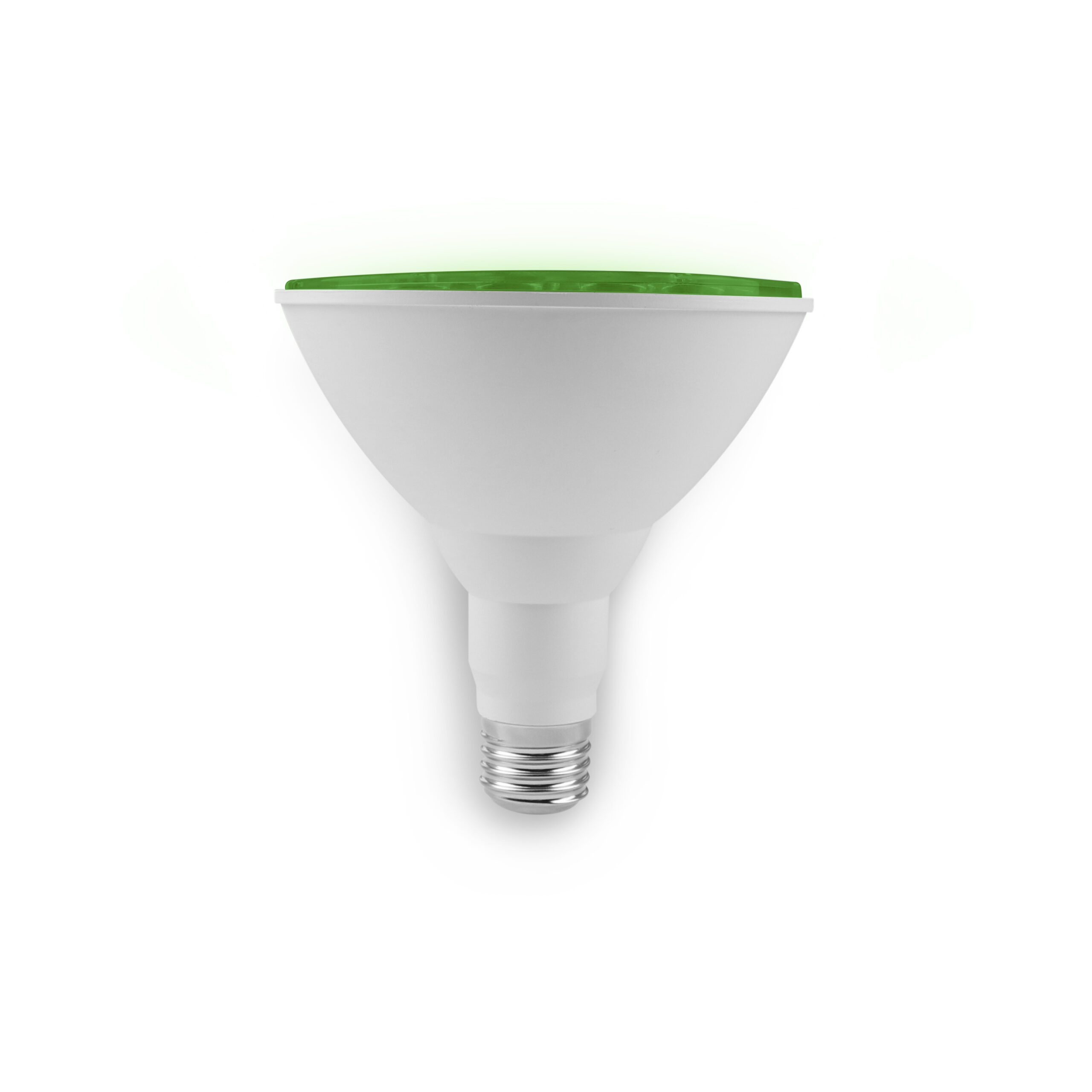

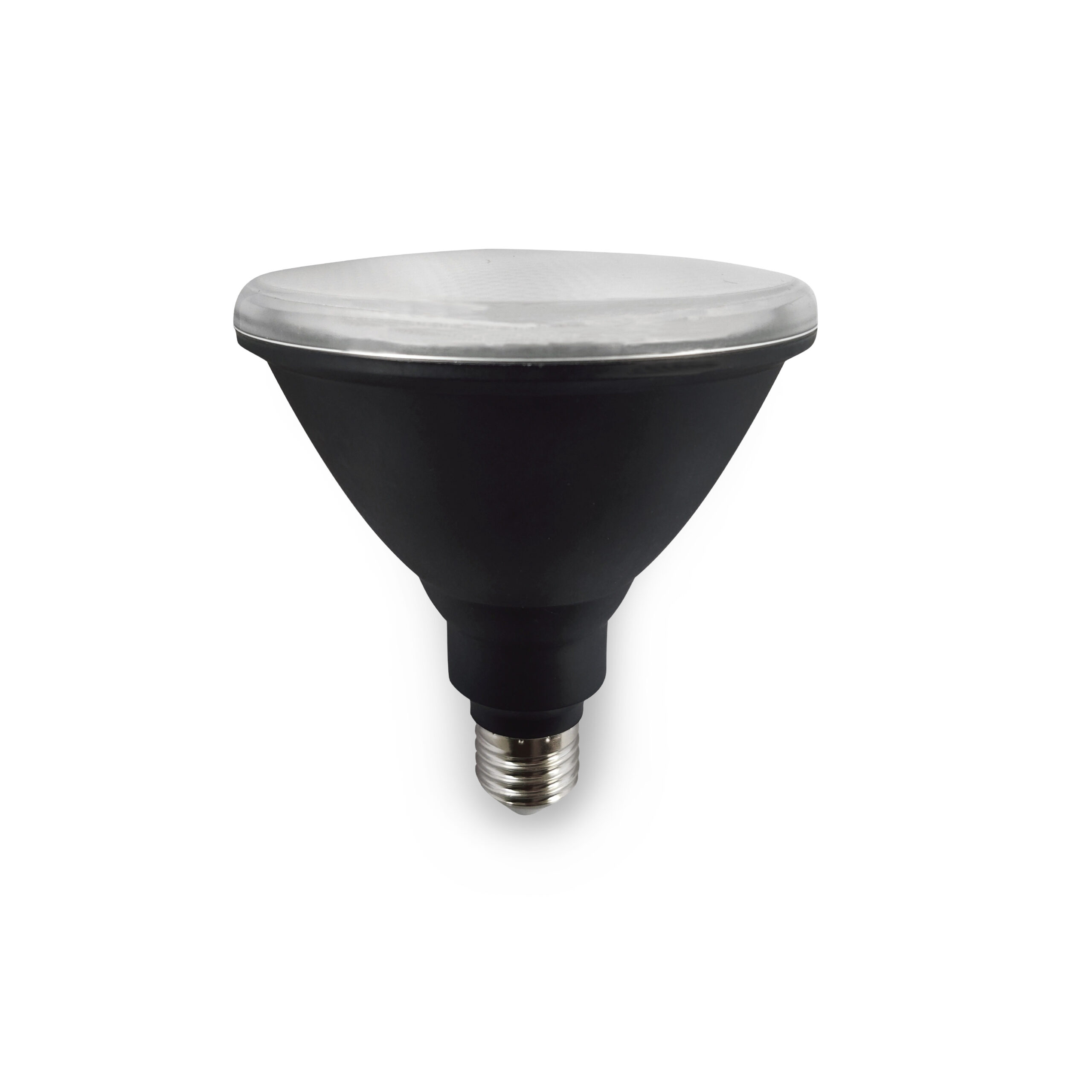

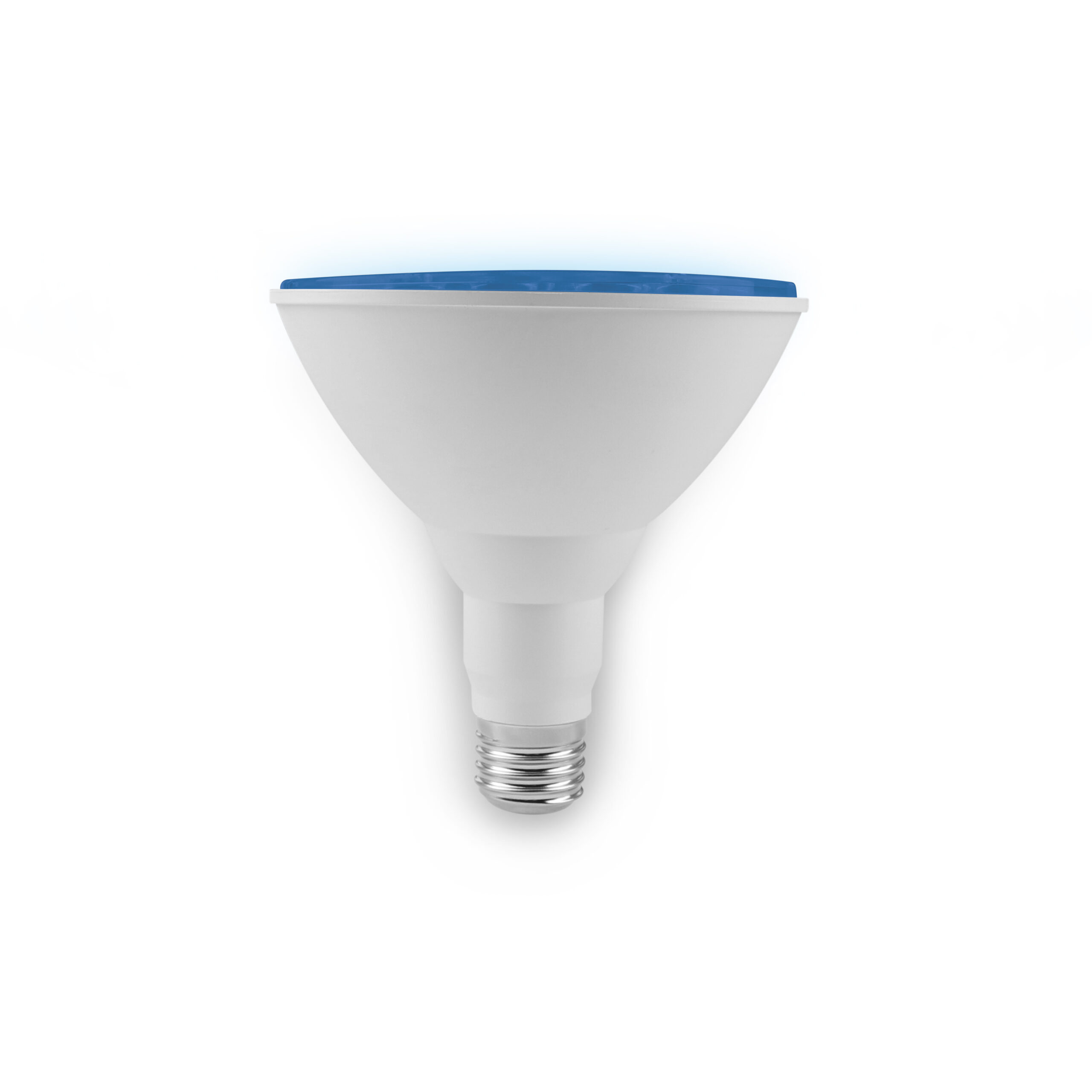

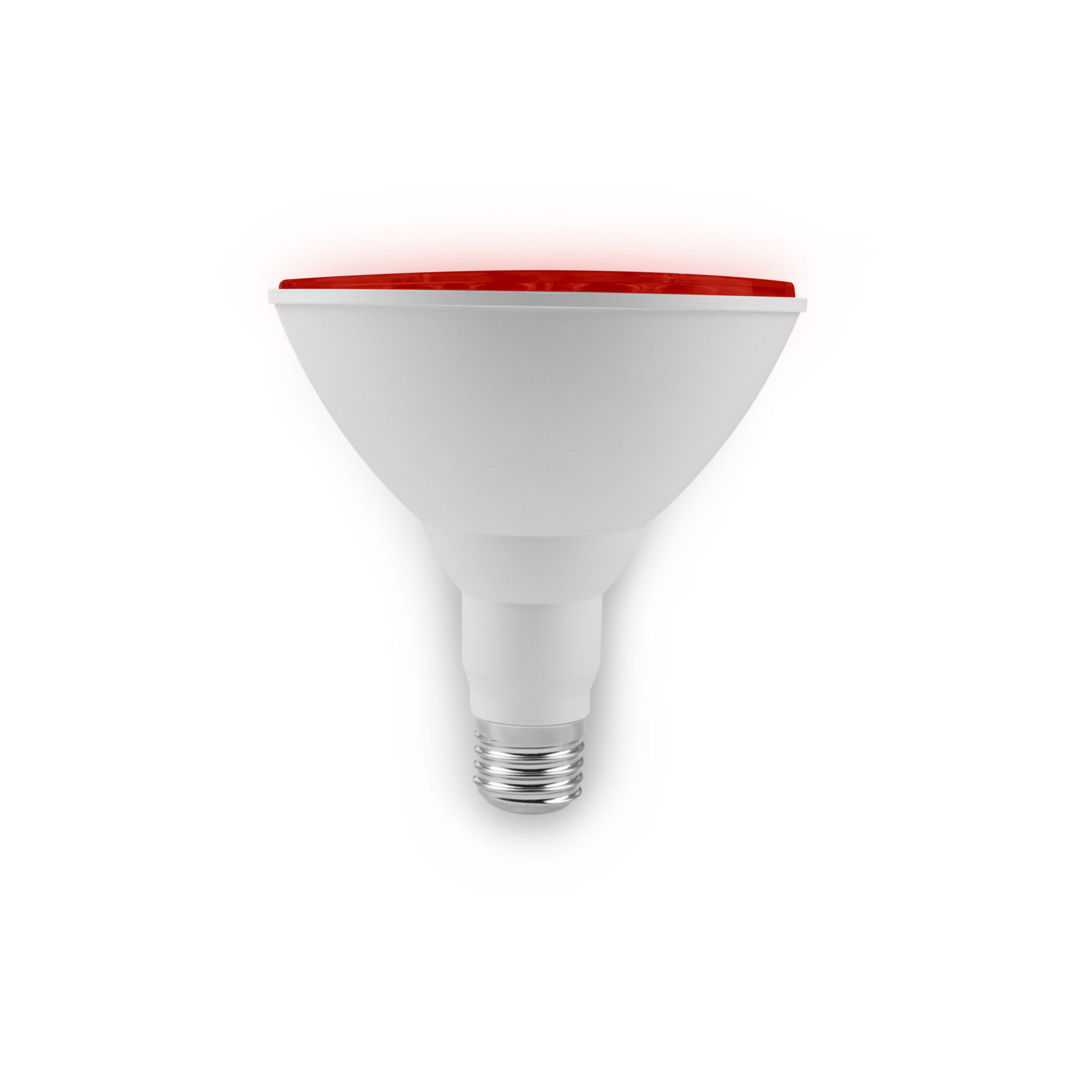

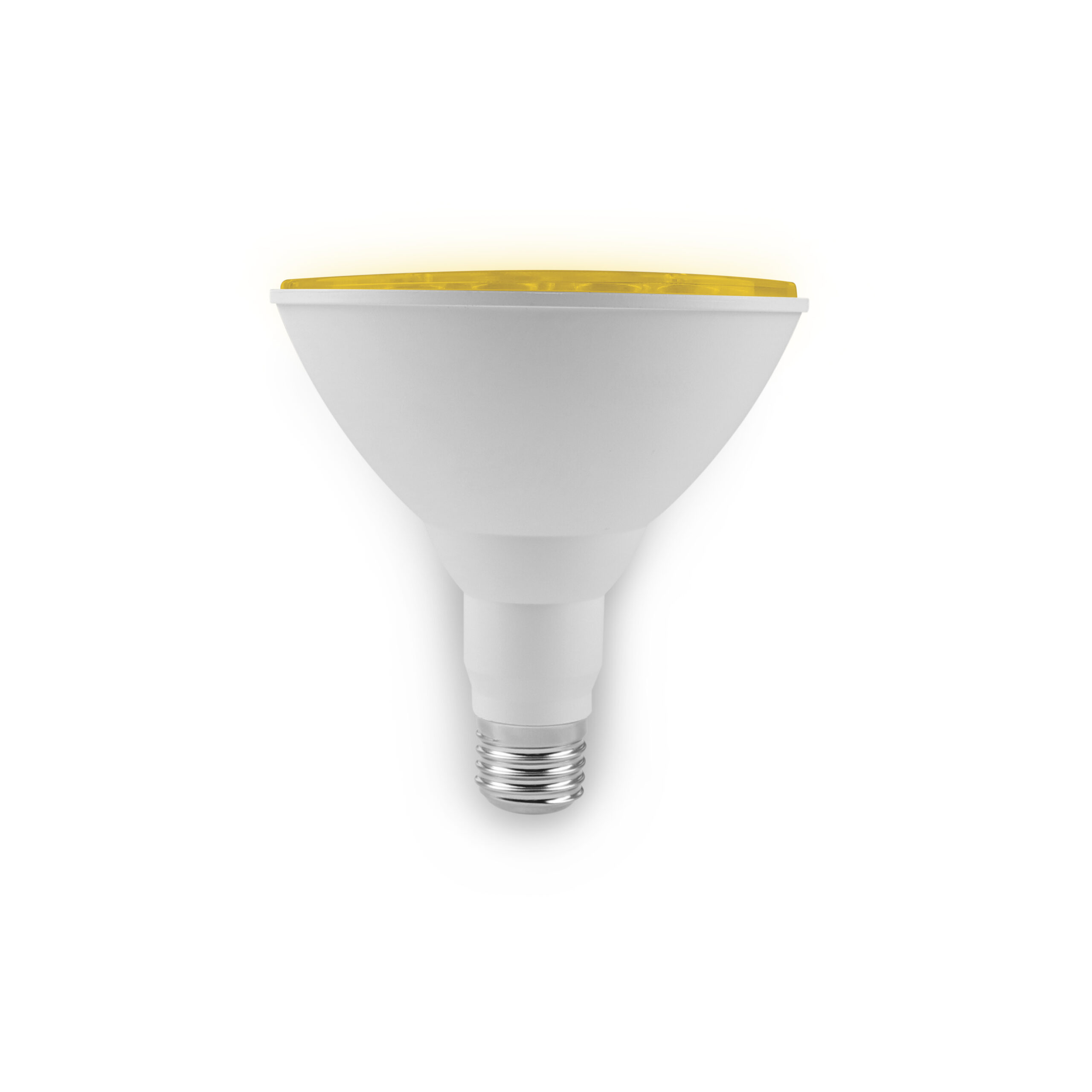

AT9425 (PAR38)
$0.00
15W PAR38 LED Lamp. Non Dimmable
- Energy efficient LED lamp
- Long Life
- No mercury Content
- Suitable replacement for halogen and incandescent lamps
Specifications
Mechanical
Adjustability | Fixed |
---|---|
Diffuser Material | Polycarbonate |
Product Finish | Frosted |
Fitting Colour | White |
IP Rating | IP65 |
Electrical
Input Frequency | 50 Hz |
---|---|
Input voltage | 230Vac |
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Maximum Wattage | 15 W |
Power Factor | 0.55 |
Switch Type | Inline |
System Max Wattage | 15 W |
Working Temp Range | -20 to 40 °C |
Lamp
Beam Angle | |
---|---|
AT9425/ES/CW AT9425/ES/DL AT9425/ES/WW | 40 ° |
AT9425/ES/BLUE AT9425/ES/GREEN AT9425/ES/RED AT9425/ES/YELLOW | 60 ° |
Bulb Type | PAR38 |
CCT Configuration | Single |
Globe Base | E27 |
Globe Included | Yes |
Led Package | 2835 |
Number of Lamps | 1 |
Colour Rendering Index (CRI) | |
AT9425/ES/GREEN | >10 |
AT9425/ES/RED | >40 |
AT9425/ES/YELLOW | >70 |
AT9425/ES/CW AT9425/ES/DL AT9425/ES/WW | >80 |
LED Lifetime
LED Lifetime | 15000 hrs |
---|---|
This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. |
Colour temperature
CCT | |
---|---|
AT9425/ES/RED | 1000 K |
AT9425/ES/YELLOW | 1800 K |
AT9425/ES/WW | 3000 K |
AT9425/ES/CW | 4000 K |
AT9425/ES/DL | 5000 K |
AT9425/ES/GREEN | 8000 K |
AT9425/ES/BLUE | 100000 K |
CCT Colour | |
AT9425/ES/BLUE | Blue |
AT9425/ES/CW | Cool White |
AT9425/ES/DL | Daylight |
AT9425/ES/GREEN | Green |
AT9425/ES/RED | Red |
AT9425/ES/WW | Warm White |
AT9425/ES/YELLOW | Yellow |
Luminaire Lumens | |
AT9425/ES/BLUE | 180 lm |
AT9425/ES/RED | 400 lm |
AT9425/ES/GREEN | 500 lm |
AT9425/ES/YELLOW | 1000 lm |
AT9425/ES/WW | 1400 lm |
AT9425/ES/CW | 1450 lm |
AT9425/ES/DL | 1500 lm |
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. |
Driver
Dimmable | No |
---|---|
Driver Included | Yes |
Integrated Driver | Yes |
Driver Type | Fixed output |
Compliance
Product Design Life | 10 years |
---|---|
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
Daily Use | 4 hrs |
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
Standards |
|
Warranty
Domestic Use Warranty | 1 RTB (Total 1 Year) |
---|---|
VIP Warranty | 2 RTB (Total 2 Years) |
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. As a VIP, your warranty for lamps is increased from 1 year to 2 years return to base. | |
Warranty Operating Hours | 500 hrs |
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). |
Dimensions
Item Code | Product Height | Product Width |
---|---|---|
AT9425/ES/BLUE | 128 mm | 120 mm |
AT9425/ES/GREEN | 128 mm | 120 mm |
AT9425/ES/RED | 128 mm | 120 mm |
AT9425/ES/YELLOW | 128 mm | 120 mm |
AT9425/ES/CW | 137 mm | 121 mm |
AT9425/ES/DL | 137 mm | 121 mm |
AT9425/ES/WW | 137 mm | 121 mm |
Ordering Information
Order code | Item code | Description | Availability |
---|---|---|---|
18714 | AT9425/ES/BLUE | 15W PAR38 LED LAMP E27 BLUE NON-DIM | |
18710 | AT9425/ES/CW | 15W PAR38 LED LAMP E27 CW NON-DIM | |
18711 | AT9425/ES/DL | 15W PAR38 LED LAMP E27 DL NON-DIM | |
18713 | AT9425/ES/GREEN | 15W PAR38 LED LAMP E27 GREEN NON-DIM | |
18712 | AT9425/ES/RED | 15W PAR38 LED LAMP E27 RED NON-DIM | |
18709 | AT9425/ES/WW | 15W PAR38 LED LAMP E27 WW NON-DIM | |
18715 | AT9425/ES/YELLOW | 15W PAR38 LED LAMP E27 ANTI-INSECT YELLOW NON-DIM |
