Mechanical

IP Rating	IP65
Adjustability	Fixed
Fitting Colour	White
Product Finish	Frosted
Diffuser Material	Polycarbonate

Electrical

Working Temp Range	-20 to 40 °C
Input Frequency	50 Hz
Switch Type	Inline
Power Factor	0.55
Maximum Wattage	14.5 W
System Max Wattage	15 W
Input voltage	230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%

Lamp

Colour Rendering Index (CRI)	>80
Bulb Type	PAR38
Number of Lamps	1
Globe Base	E27
Globe Included	Yes
CCT Configuration	Single
Beam Angle	40 °

LED Lifetime

15000 hrs

This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.

LED Lifetime Ratings (Failure rate & lumen depreciation)

Ambient Temp (°C)	0 °C
L70B50	25000 hrs

This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.

Colour temperature

14 Watts
Warm White (3000 K)	1250 lm

Neutral White (4000 K)
Cool White (6000 K)

Driver

Driver Type	Fixed output
Driver Included	Yes
Integrated Driver	Yes
Dimmable	No

Warranty

Operational Lifetime	25000 hrs
Domestic Use Warranty	2 RTB (Total 2 Years)

Dimensions

Product Height	137 mm
Product Width	121 mm

Ordering Information

Order code	Item code	Description	Availability

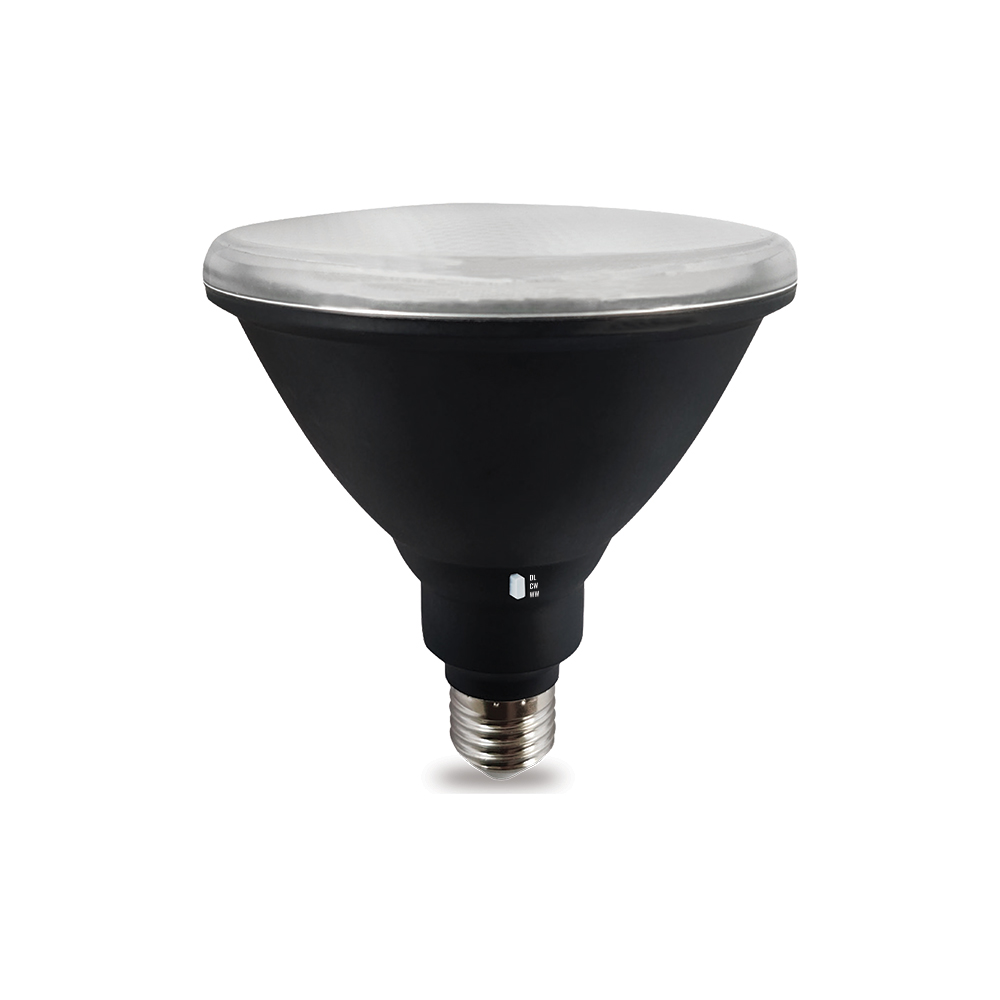

15378	AT9425/ES/TRI	PAR38 14.5W LED LAMP E27 TRI-CCT NON-DIM FROSTED

Documents & Downloads

Datasheet

AT9425/ES/TRI^*

Compliance

AT9425/ES/TRI-AU-sdoc

^*Auto generated datasheet (beta)
