AT9482
$0.00
2W ST26 LED Globes Non Dimmable, Clear lens
- Energy efficient LED lamp
- Long Life
- No mercury Content
- Suitable replacement for halogen and incandescent lamps
- Stylish filament lamp with Glass body
Specifications
Mechanical
| IP Rating | IP20 |
|---|---|
| Adjustability | Fixed |
| Fitting Colour | Clear |
| Product Finish | Clear |
| Diffuser Material | Glass |
Electrical
| Working Temp Range | -20 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Switch Type | Inline |
| Maximum Wattage | 2 W |
| System Max Wattage | 2 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| Bulb Type | ST26 |
| Number of Lamps | 1 |
| Globe Base | |

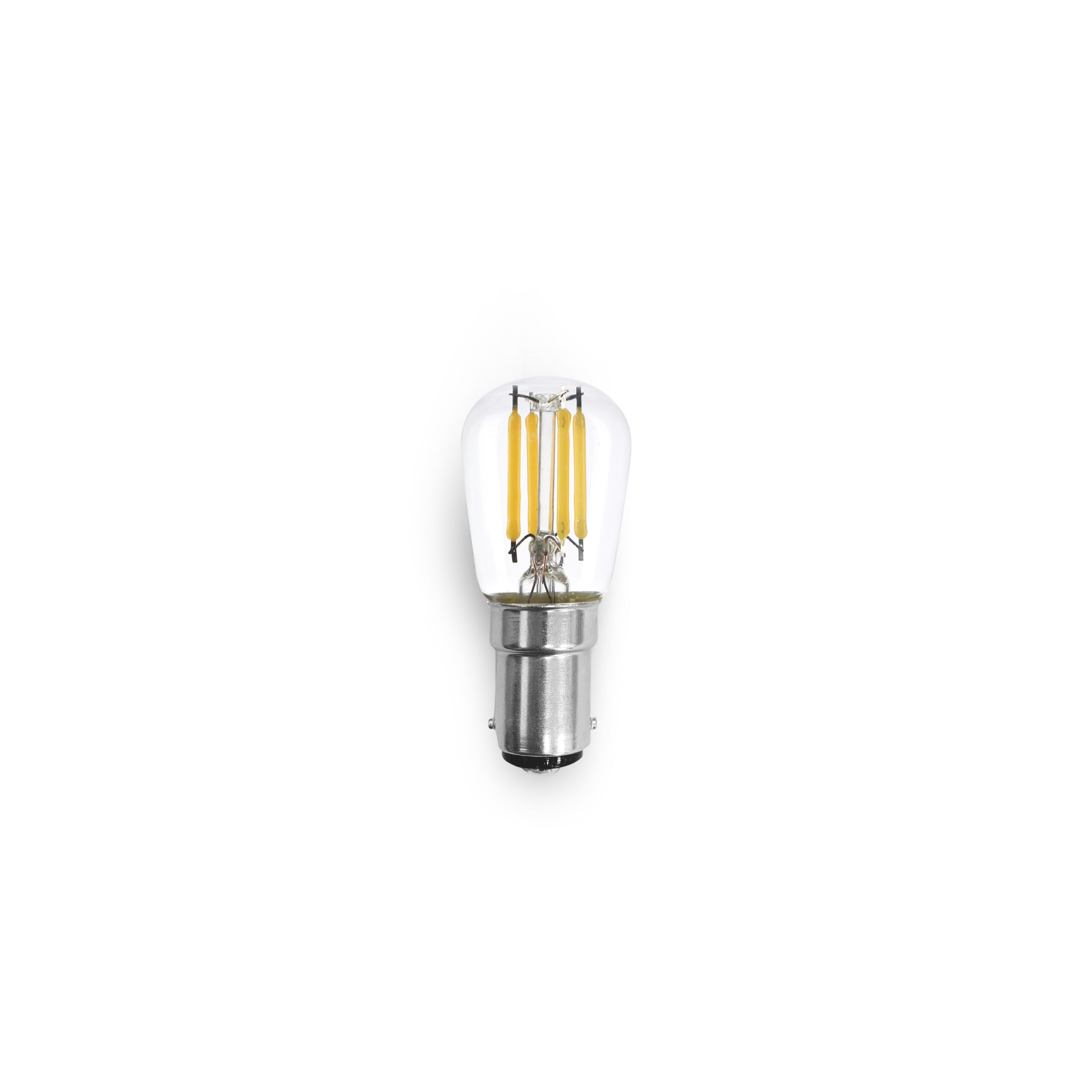

| AT9482/SBC/WW | B15 / SBC |

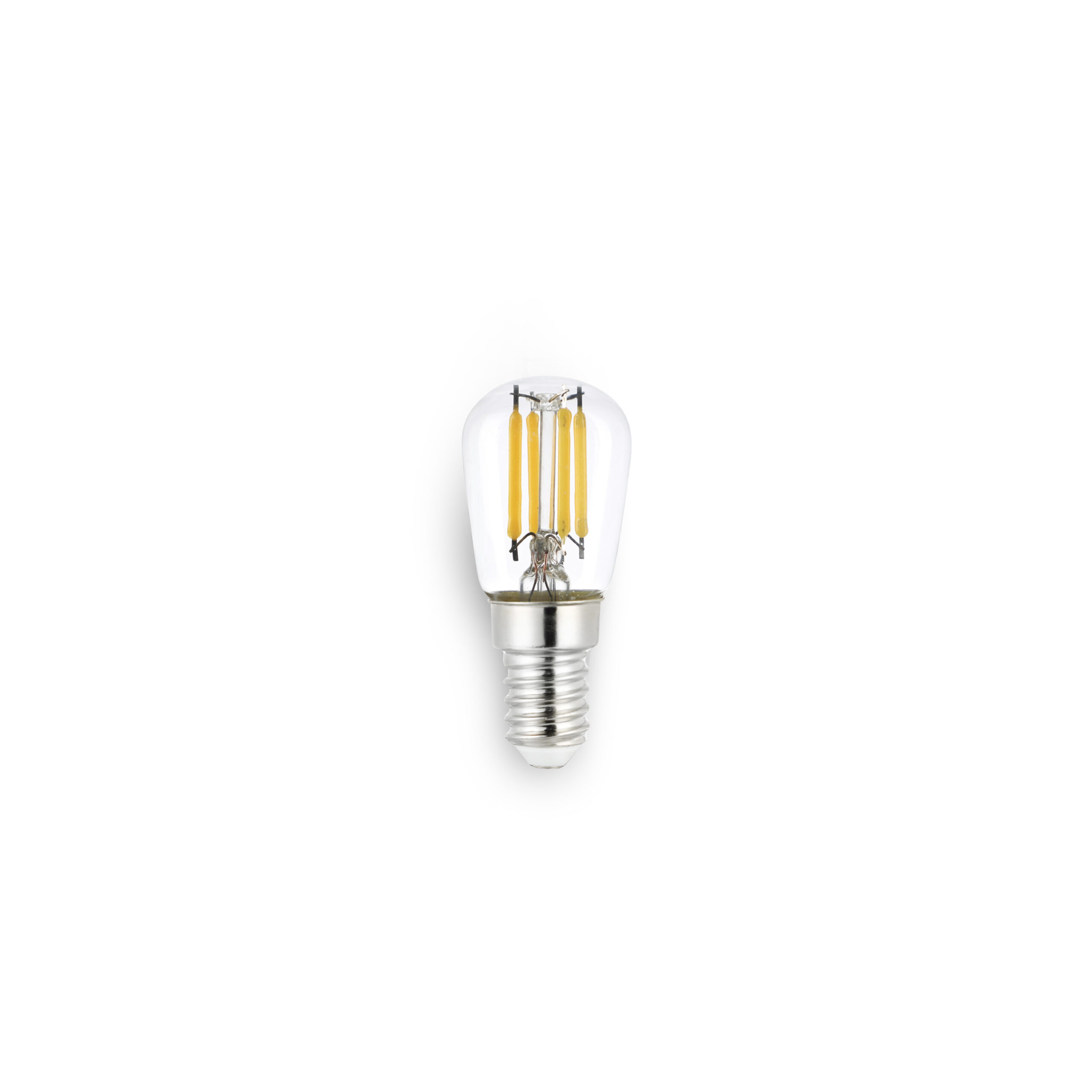

| AT9482/SES/WW | E14 / SES |
| Globe Included | Yes |
| Led Package | 2835 |
| CCT Configuration | Single |
| Beam Angle | 360 ° |
LED Lifetime
| LED Lifetime | 15000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Atom does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
Colour temperature
| CCT Colour | Warm White |
|---|---|
| Luminaire Lumens | 230 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
| CCT | 3000 K |
Driver
| Driver Type | Fixed output |
|---|---|
| Driver Included | Yes |
| Integrated Driver | Yes |
| Dimmable | No |
Compliance
| Product Design Life | 10 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Daily Use | 4 hrs |
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| VIP Warranty | 2 RTB (Total 2 Years) |
|---|---|
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. As a VIP, your warranty for lamps is increased from 1 year to 2 years return to base. | |
| Warranty Operating Hours | 500 hrs |
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
| Domestic Use Warranty | 1 RTB (Total 1 Year) |
Dimensions
| Product Height | 60 mm |
|---|---|
| Product Width | 26 mm |
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 18733 | AT9482/SBC/WW | 2W ST26 LED FILAMENT PILOT LAMP B15 WW NON-DIM CLEAR | |
| 18732 | AT9482/SES/WW | 2W ST26 LED FILAMENT PILOT LAMP E14 WW NON-DIM CLEAR |
Documents & Downloads
Datasheet
*Auto generated datasheet (beta)
