AT9819 ACC
$0.00

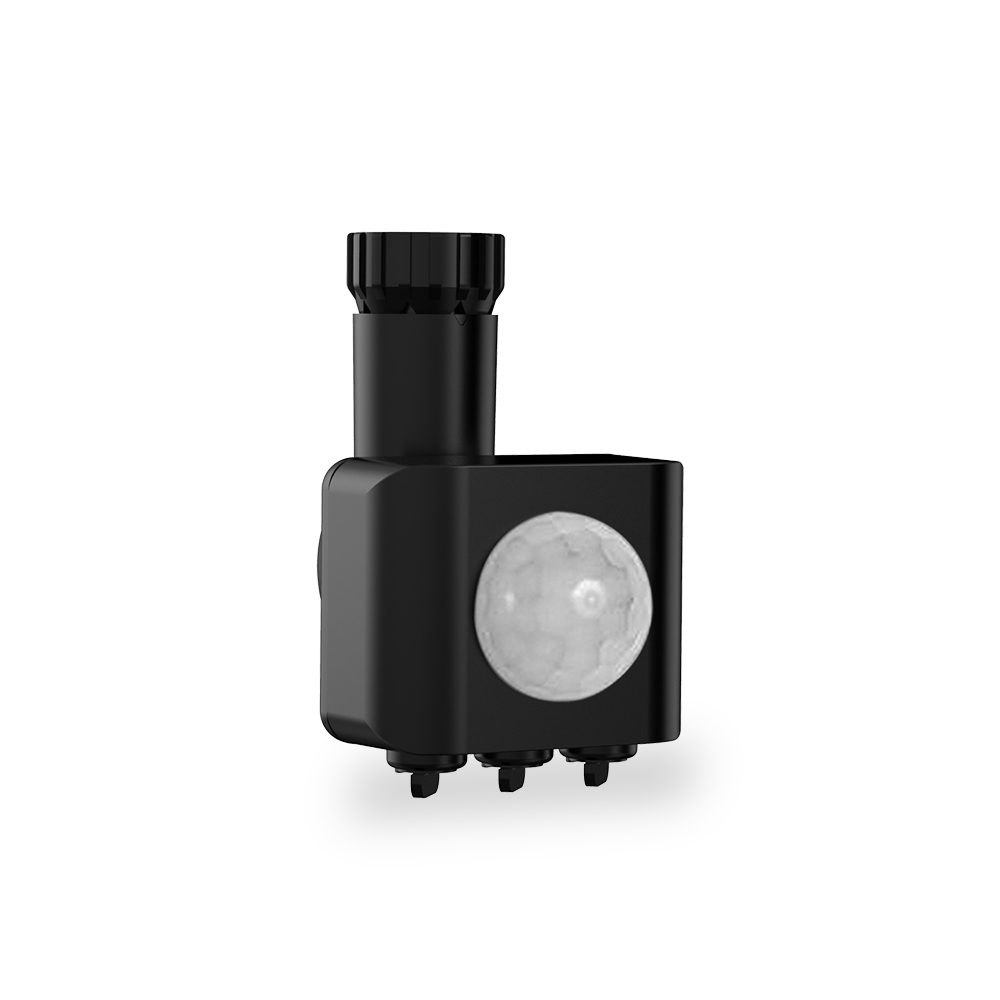

PIR Sensor to suit AT9819/TRI
- Suits AT9819/TRI/30 & AT9819/TRI/50
- Relay output up to 100W LED
- Works at installation heights 1.8-2.5m
- Adjustable detection range 2-8m
- Adjustable time delay 10s to 7min
- Adjustable lux mode 10-2000lx
- Easy installation without wiring
- Can be installed at any time
Specifications
Sensor (S suffix)
| Sensor Type | PIR |
|---|---|
| Lux Range | 10-2000lx lx |
| Detection Range | 8 m |
| Time Delay | 10s - 7min |
| Switched Output | No |
| Corridor Function | No |
| Lux Adjustment | Yes |
| Manual Override | No |
| Dusk Mode | Yes |
| Adjustable Hold Time | Yes |
| Adjustable Standby Level | No |
| Adjustable Detection Area / Sensitivity | Yes |
Warranty
| Domestic Use Warranty | 2 (Yr) RTB |
|---|
Dimensions
| Product Height | 70 mm |
|---|---|
| Product Length | 44 mm |
| Product Width | 44 mm |
AT9819/TRI/SENS
Ordering Information
| Order code | Item code | Description | Availability |
|---|---|---|---|
| 12308 | AT9819/TRI/SENS | PIR Sensor to suit AT9819/TRI Series 30W and 50W Floods |
Documents & Downloads
*Auto generated datasheet (beta)
